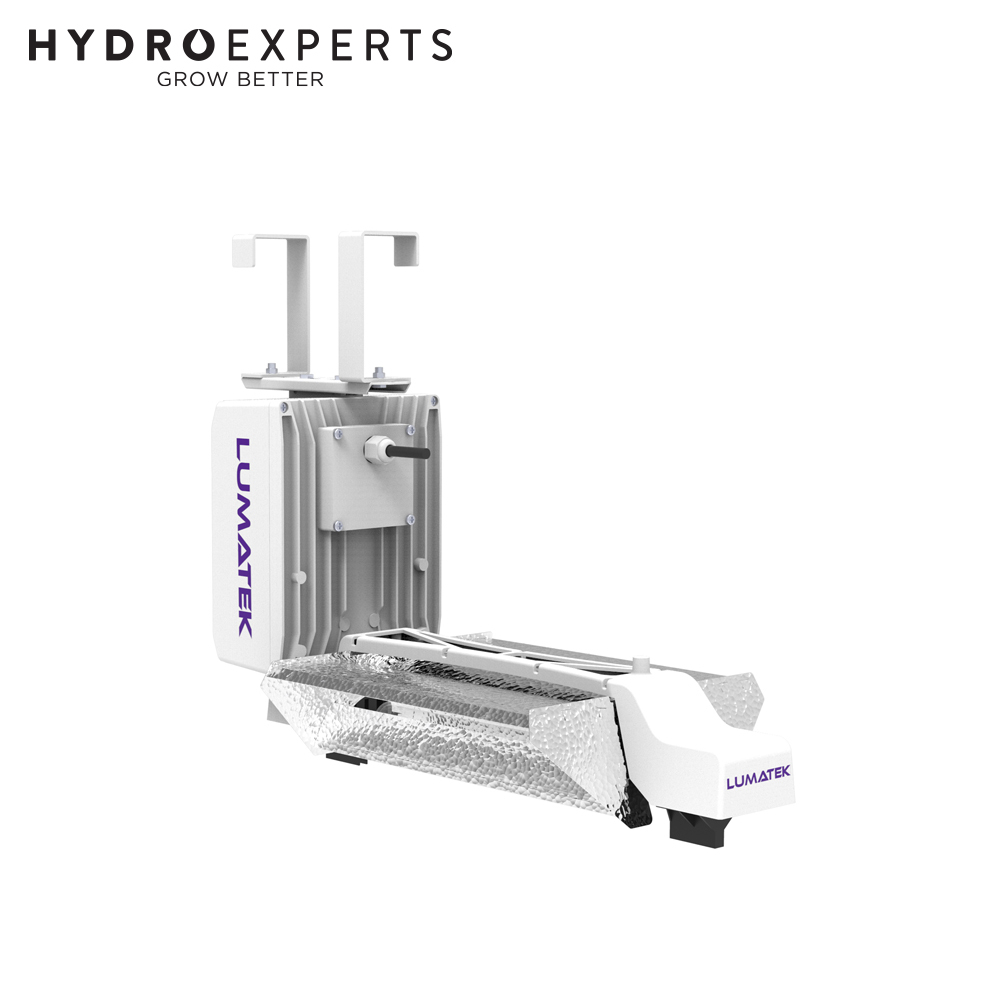

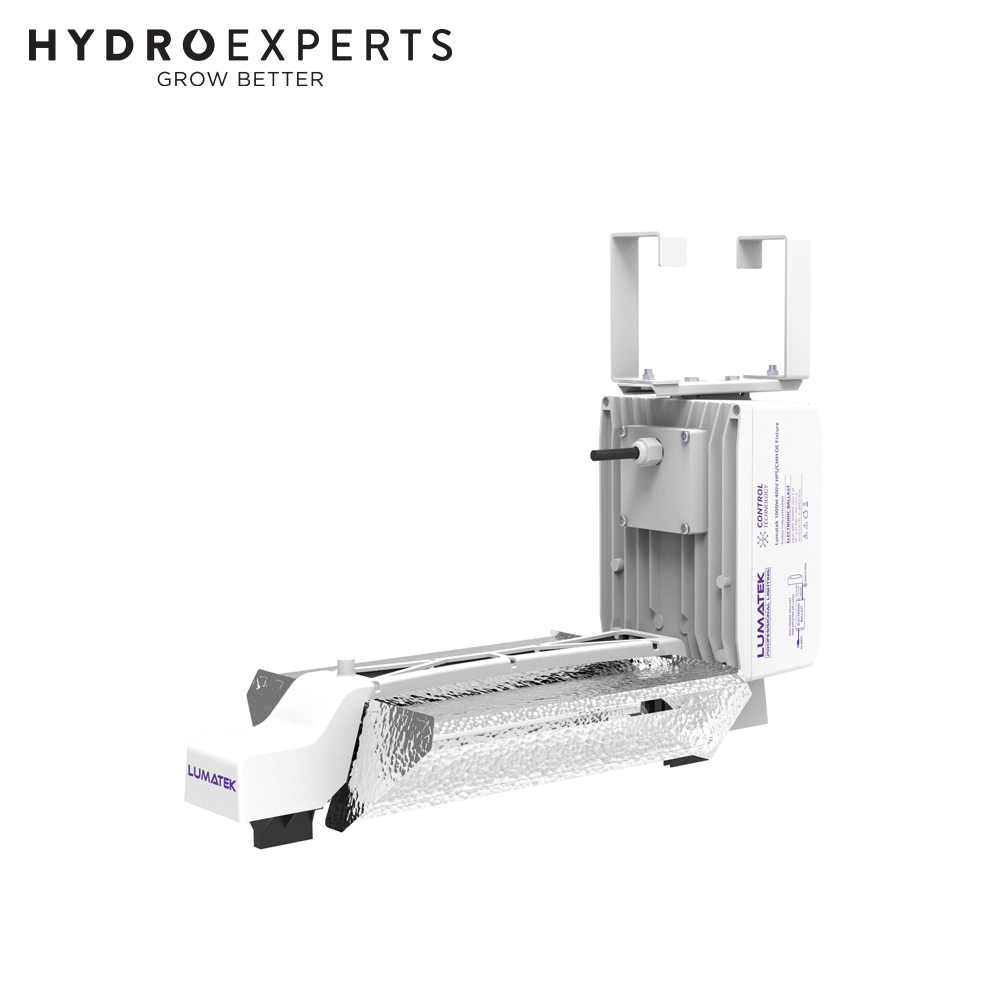

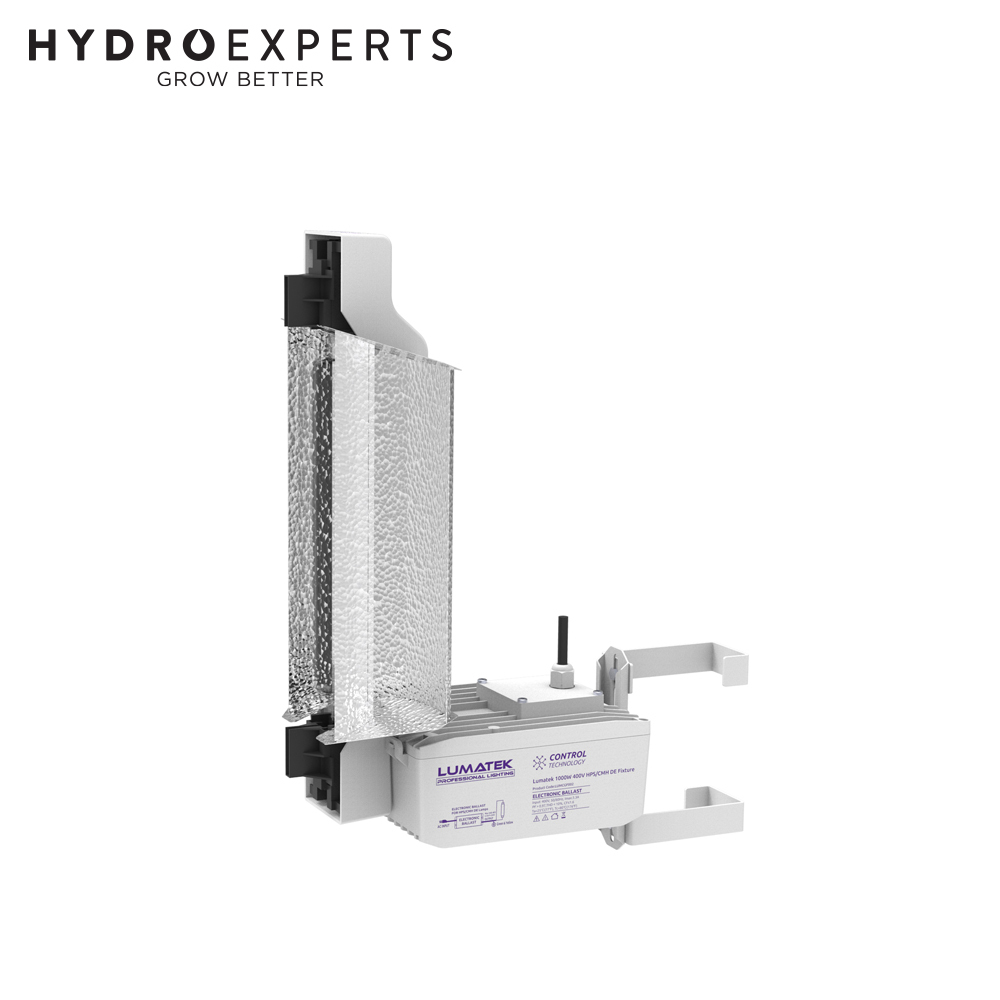

Lumatek HPS Commercial Fixture - 1000W | 400V | DE | For Commercial Use Only

Bulbs are sold separately

SKU: BLST40621
|

OUT OF STOCK

FREE SHIPPING

$879.95
This is a special order item and only available for large scale projects, with an estimated backorder time of 15 to 20 Weeks.

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

This is a special order item and only available for large scale projects, with an estimated backorder time of 15 to 20 Weeks. - Enquire Now

Lumatek offer solutions for commercial (large scale) horticultural projects such as Greenhouse production and research programs.

  • Project Management
  • Product Customization
  • Light Calculations
  • Implementation Support

These Double Ended 400V Fixtures have the versatility to run both CMH and HPS technologies on a single unit. This is a 1000W integers lamp with a 3.5mm headphone jack interface that can be connected to an external controller. Input voltage is 400V,50/60Hz. The dimming range can be 60%-70%-80%-90%-100%. It will delay 0-6s ignition randomly. It can match well with 1000W DE lamps.

Note: The fixture comes with two reflector options Focal (Concentrated Light) or Wide (Wide Light Spread). Please specify which one you need when you send an enquiry.

Specifications

  • Mains Voltage:
    • Operational Voltage:
      • Min: 360V
      • Type: 400V
      • Max: 440V
    • Safe Voltage:
      • Min: 340V
      • Type: 400V
      • Max: 460V
  • Mains Frequency (fmains):
    • Operational Frequency: 48 50/60 63
      • Min: 48Hz
      • Type: 50/60Hz
      • Max: 63Hz
    • Safe Frequency:
      • ​​​​​Min: 45Hz
      • Type: 50/60Hz
      • Max: 66Hz
  • Mains Power (Pmains):
    • P=100%
      • Min: 1021W
      • Type: 1053W
      • Max: 1084W
    • P=90%
      • Min: 900W
      • Type: 930W
      • Max: 960W
    • P=80%
      • Min: 795W
      • Type: 825W
      • Max: 960W
    • P=70%
      • Min: 690W
      • Type: 720W
      • Max: 750W
    • P=60%
      • Min: 590W
      • Type: 620W
      • Max: 650W
  • Mains Current (Imains):
    • Vmains =400V 2.6 2.7 2.8 A
      • Min: 2.6A
      • Type: 2.7A
      • Max: 2.8A
  • Power Factor
    • P=100%
      • Min: 0.97
      • Type: 0.95
      • Max: -
  • THD
    • P=100%
      • Min: -
      • Type: -
      • Max: 10%
  • Inrush Current
    • Vmains = 400V​​​
      • Min: -
      • Type: -
      • Max: 30A
  • Pulse Duration
    • Ta=25℃,Cold start
      • Min: -
      • Type: -
      • Max: 0.8ms
  • Lamp Frequency(flamp)
    • P=100%​​​​​​
      • Min: 110KHz
      • Type: 120KHz
      • Max: 130KHz
  • Efficiency(%)
    • P=100% 95 96 -- --
      • Min: 95W
      • Type: 96W
      • Max: -
  • Lamp Power (Plamp)
    • P=100% 970 1000 1030W
      • Min: 970W
      • Type: 1000W
      • Max: 1030W
    • P=90%
      • Min: 870W
      • Type: 900W
      • Max: 930W
    • P=80%
      • Min: 770W
      • Type: 800W
      • Max: 830W
    • P=70%
      • Min: 670W
      • Type: 700W
      • Max: 730W
    • P=60%
      • Min: 570W
      • Type: 600W
      • Max: 630W
  • Lamp Voltage
    • 1000W DE
      • Min: 210V
      • Type: 230V
      • Max: 250V
  • Ignition Voltage
    • Cload<100pF 3000 4000 5000 V
      • Min: 3000V
      • Type: 4000W
      • Max: 5000W

Note: The certified current of this product is: 3.3A.

In The Box

  • [1] x Lumatek HPS Commercial Fixture - 1000W | 400V | DE | For Commercial Use Only
  • Run HPS Technology
  • Very High Efficiency & Energy Saving
  • Long Operating Life
  • Very Effective Light Distribution
  • Completely Silent and Maximum Heat Distribution
  • RF Shielding
  • Automatic Frequency Adjustment
  • Soft Start and Random Start Technology
