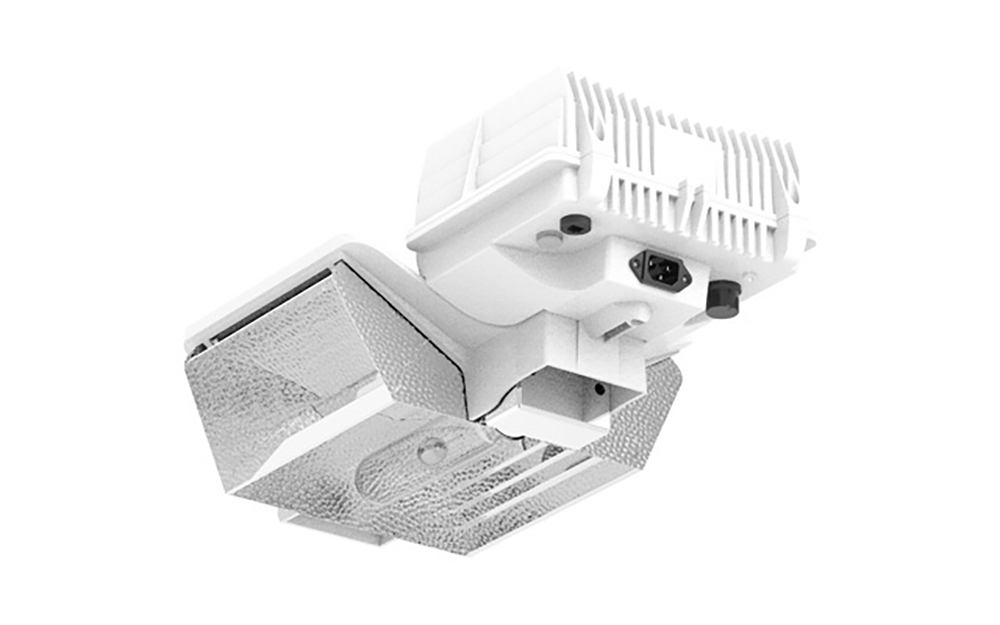

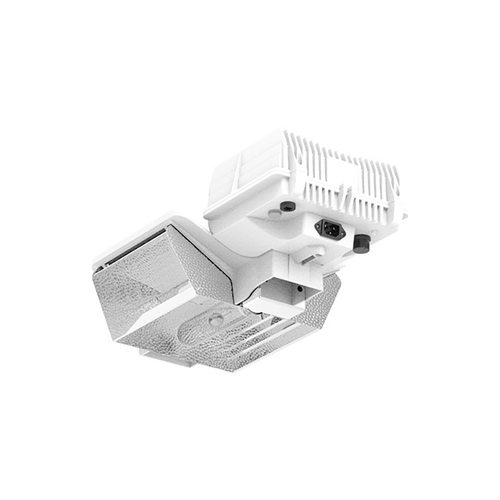

DLI’s mission is to always create a fixture that surpasses the performance of the competitors whilst improving the design to suit the purpose. Dutch Lighting Innovations presents the CRI-Series 315W LEC Fixture. This proprietary engineered design has reset the bar for indoor production.

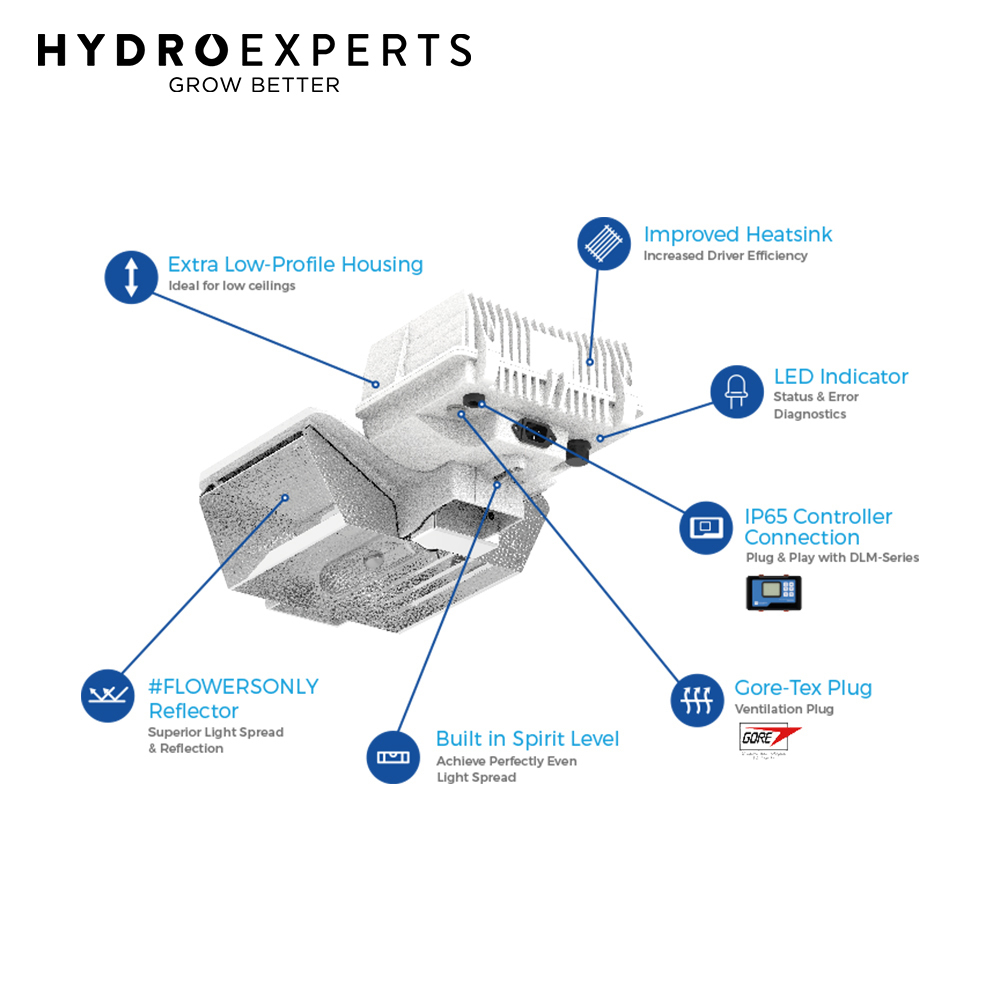

The #FLOWERSONLY Reflector is manufactured to have the highest possible total reflectance at all wavelengths giving excellent PAR rendition. Efficiency and uniformity are the main focus in the design of the #FLOWERSONLY Reflector. The unique design and the high uniformity of light results in less hotspots on the canopy and a more even plant growth. The DLI CRI-Series are Plug & Play with the DLM-4 Zone Controller. A RJ12 Connection Kit is included with each fixture.
DocumentsDownload PDF brochure
- DIMENSIONS: 16.9" X 11.6" X 7.1"
- WEIGHT: 6.5KG
- DIMMING WITH CONTROLLER: ON-OFF
- FREQUENCY: 50/60 Hz
- TYPICAL CURRENT: 1.4A @ 240V
- MAXIMUM CURRENT: 3.2A @ 110V
- INRUSH CURRENT: ≤ 40A
- POWER FACTOR: ≥ 0.98
- INPUT VOLTAGE: 120 ~ 240V
- INPUT VOLTAGE RANGE: ± 10%
- RATED POWER: 340W
In The Box
-  x Dutch Lighting CRI-Series CMH Fixture - 315W | 120/240V
How it works

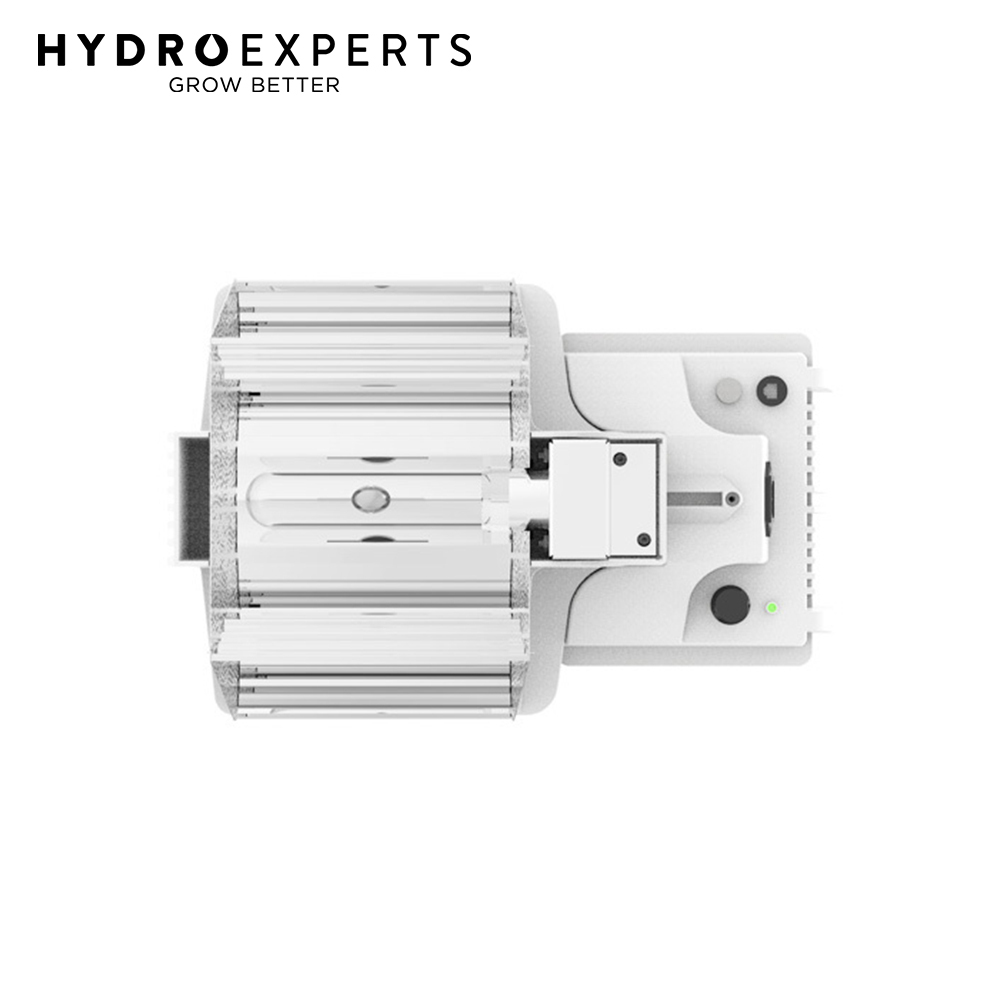

The DLI reflectors are manufactured to have the highest possible total reflectance at all wavelengths from 400 to 700 nm giving excellent PAR rendition. The integrated hemispherical reflectance is over 95% with an absence of iridescence colours in the louvre.
The DLI reflectors are made from an electrochemically brightened high purity aluminium substrate coil, and start with an anodised base coat which gives a hard support to minimize abrasion damage. The material is then treated under vacuum with specially developed processes to maximise coating adhesion and is vacuum coated with a super pure reflection layer of 99.99% pure aluminium.
These reflection layers are overlaid with a dual layer oxide system tuned for maximum visible reflection enhancement. This serves to increase the overall reflectivity provided by the metallic layers and adds protection against damage.
