AC Infinity LED Grow Light - Ionboard S22 | 100W | 2.7 umol/J | Dimmable | IP65

Full Spectrum | Daisy Chain No | For Full Grow Cycle

SKU: NEWPND-ACIBS22

AC Infinity

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

Calculate shipping

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

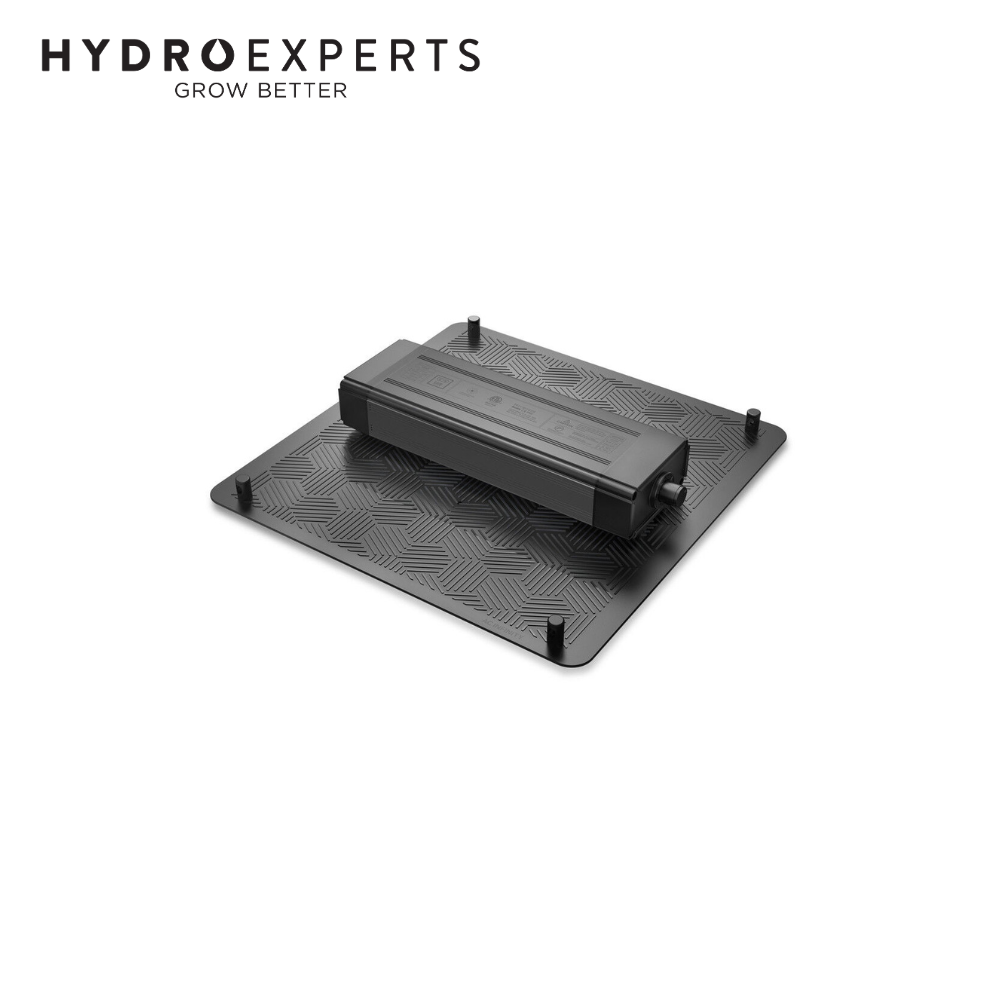

The AC Infinity Ionboard S22 is a high-performance LED grow light engineered for 2x2ft grow tents and compact cultivation spaces, ideal for hobbyists and professional indoor growers alike. Featuring Samsung LM301H horticulture diodes in an optimised full-spectrum array, this LED grow fixture ensures uniform light distribution, deep canopy penetration, and exceptional growth throughout all plant stages—from seedling to harvest.

Built on a fanless unibody aluminium board, the Ionboard S22 delivers quiet, passive cooling and is IP-65 rated for use in humid and warm grow rooms. The fixture supports smart dimming, scheduling, and app control when connected to AC Infinity's UIS™ controllers (sold separately), making it a future-ready component of any connected grow setup.

Whether cultivating vegetables, herbs, fruits, or flowering plants, the Ionboard S22 offers powerful, energy-efficient lighting in a compact and easy-to-install design.

Features

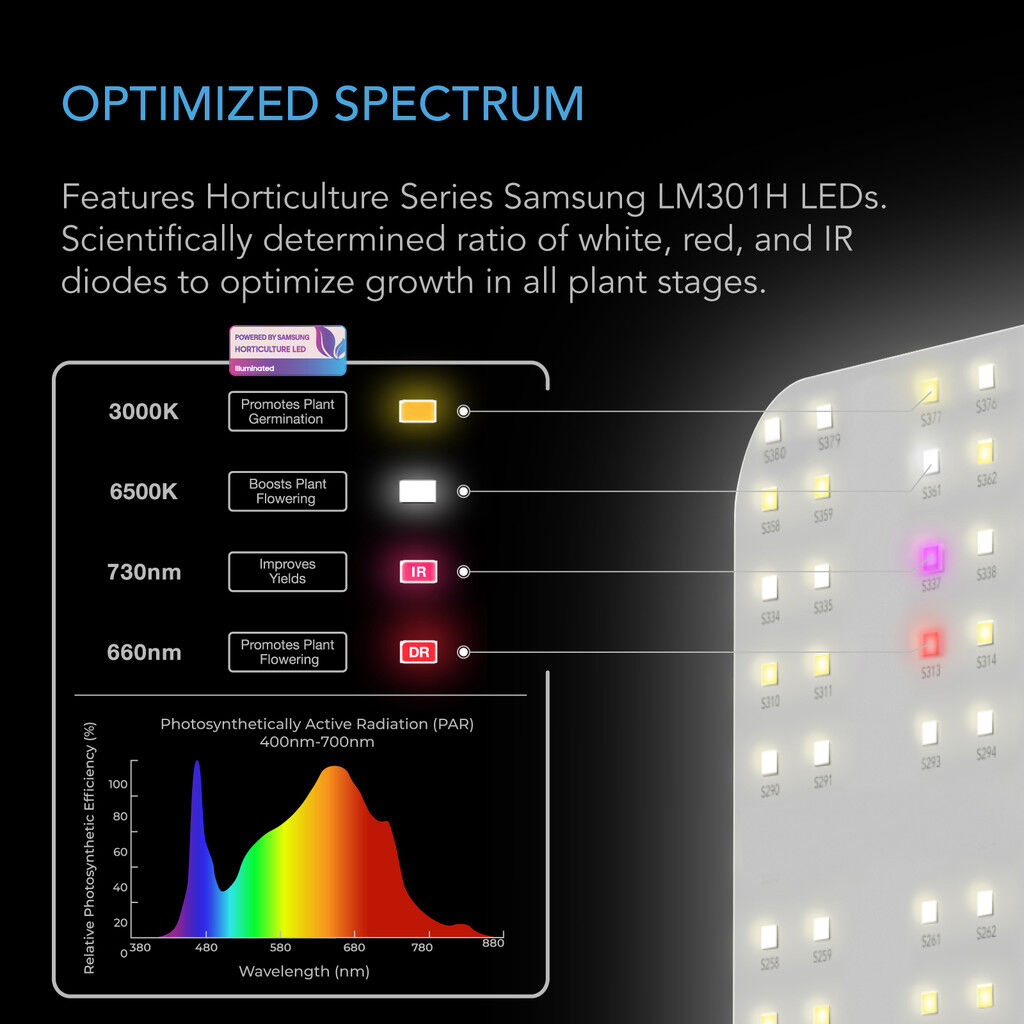

Samsung LM301H Diodes: Delivers high-efficiency light output with full spectrum coverage (3000K, 6500K, 660nm, 730nm).
60CM x 60CM Coverage: Perfect for compact grow tents or single-plant spaces.

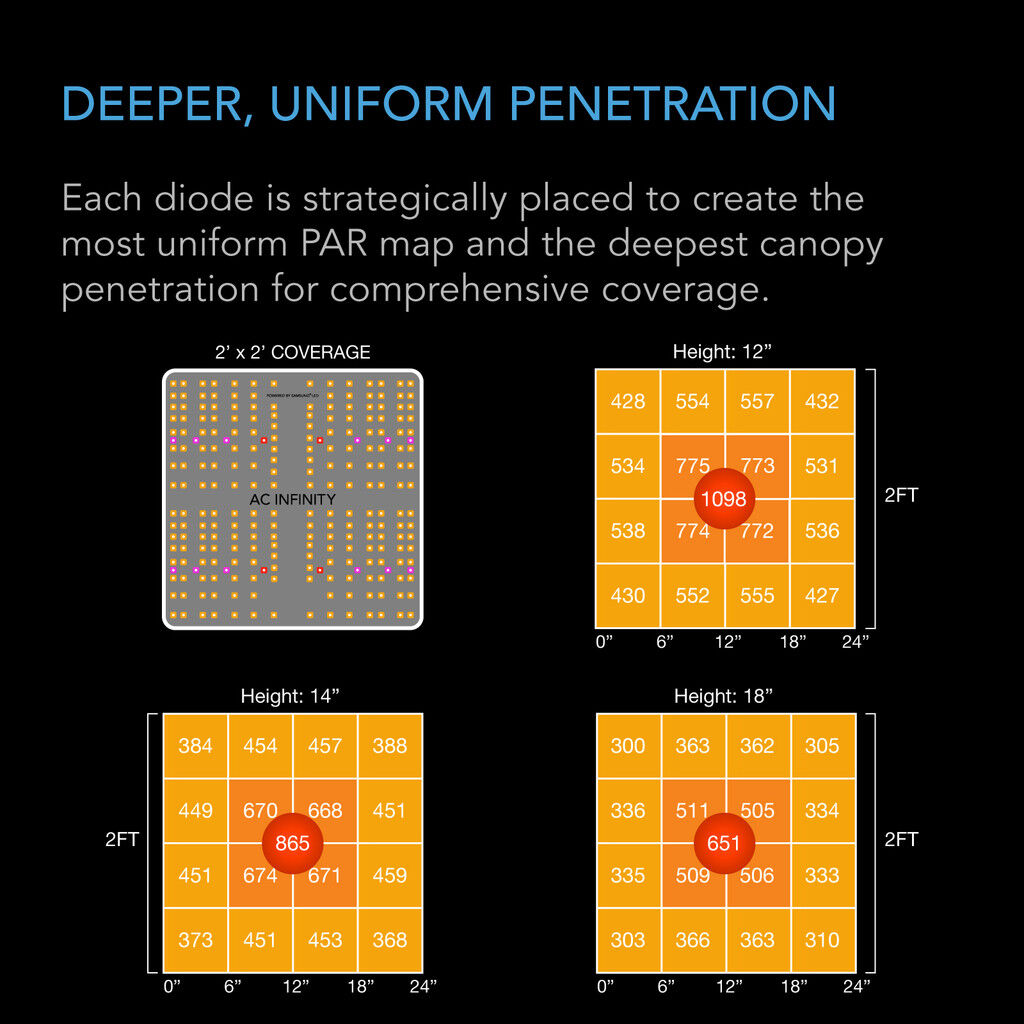

Optimised PAR Map: Algorithmically positioned diodes ensure even light distribution and deep canopy penetration.

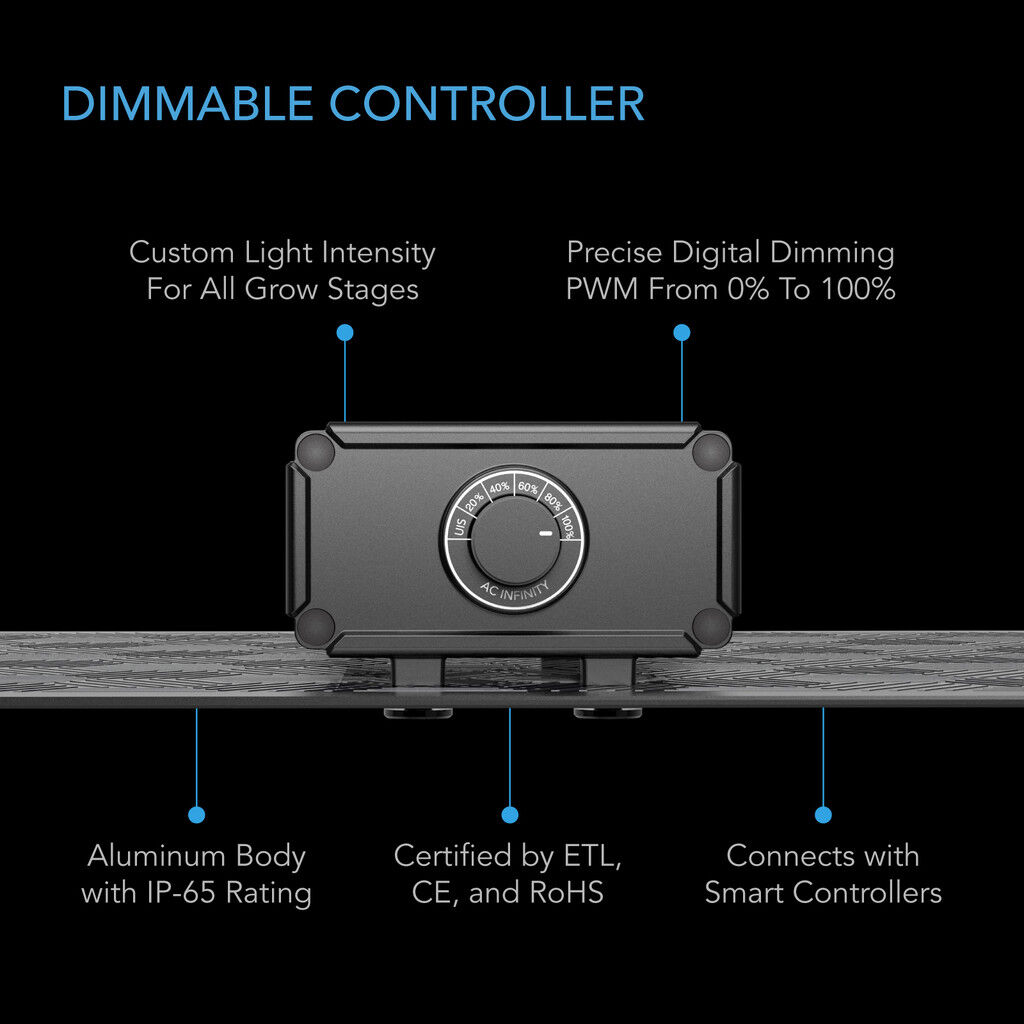

Dimmable 0-100%: Digital knob adjusts in 20% increments or integrate with AC Infinity smart controllers.
Fanless Cooling: Passive aluminium heatsink design ensures quiet, long-lasting operation.
IP-65 Rated: Sealed against dust and moisture—ideal for humid grow environments.
Smart Control Ready: Pair with UIS™ controllers and app for remote scheduling, brightness, and climate sync.
Long Lifespan: 50,000-hour rated life ensures years of performance.

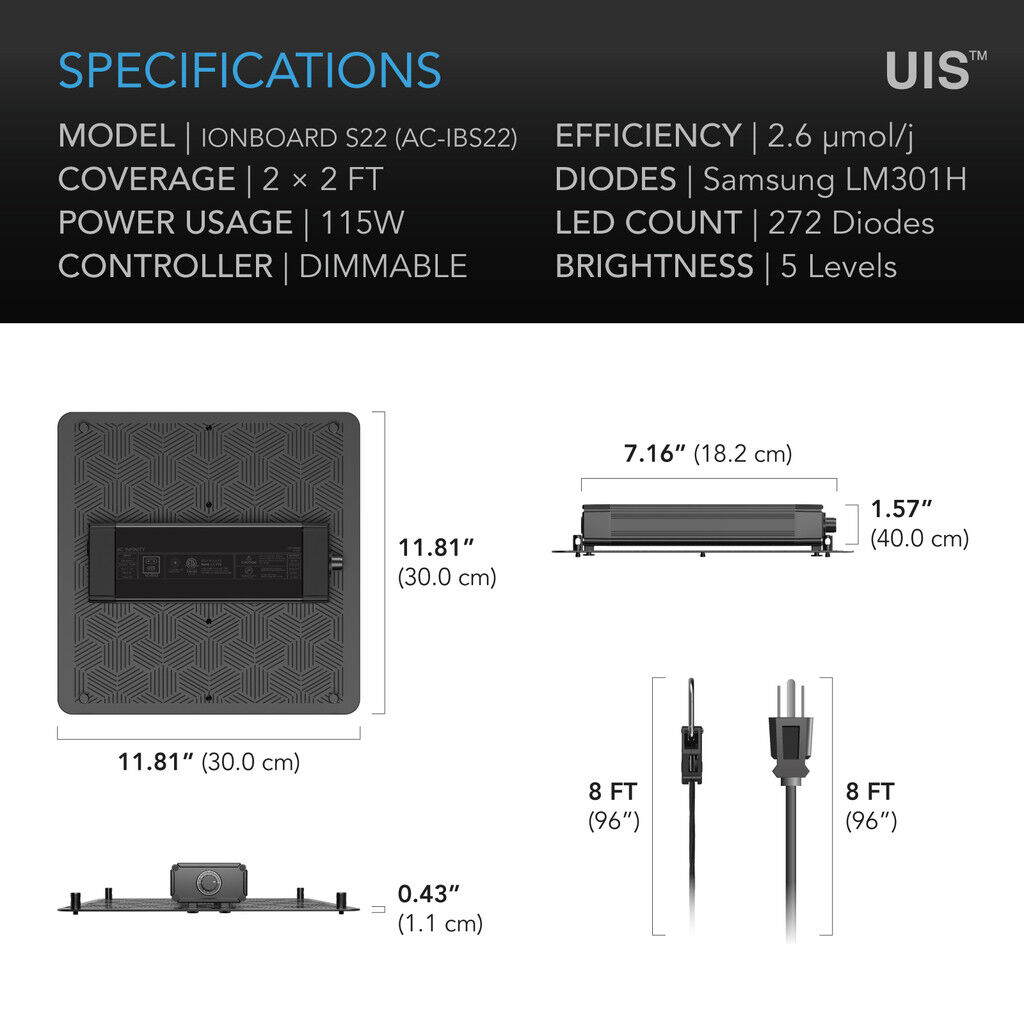

Specifications

Specification	Ionboard S22
Manufacturer	AC Infinity Inc.
Model	AC-IBS22
UPC	819137022515
Coverage Area	60 x 60 cm (2 x 2 ft)
Wattage	115W
Spectrum	3000K, 6500K, 660nm, 730nm
Diodes	Samsung LM301H
Diode Count	272
Efficiency	2.7 µmol/J
PPFD	1098 µmol/m²/s
Dimming	0–100% via control knob or smart controller
Driver	AC Infinity Proprietary Driver (IB-150)
Input Voltage	100–277V AC
Amps	0.94A @ 120V \| 0.47A @ 240V \| 0.40A @ 277V
Frequency	50/60Hz
Control Interface	Digital Dimming Timer + UIS Port
Operating Humidity	35% to 85% RH
Operating Temperature	0°C to 60°C (32°F to 140°F)
Life Expectancy	50,000 Hours
Plug Type	US Plug (NEMA 1-15 Type-A)
Light Dimensions	30 x 30 cm
Driver Dimensions	18.2 x 4.0 cm
LED Board Thickness	1.1 cm
Ingress Rating	IP-65
