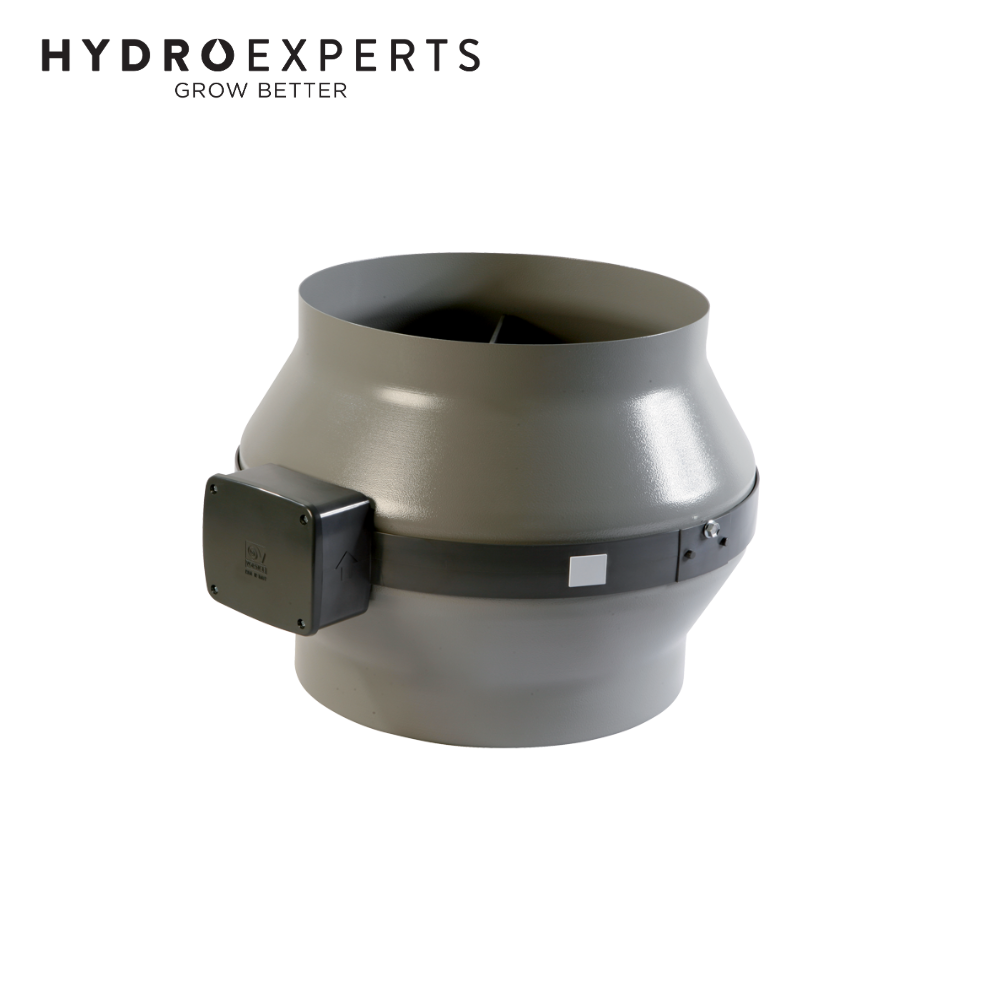

Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 315 MD | 315MM (12" Inch)

Air Flow 1735 M³/H | Power Consumption 300W | IP44

SKU: FANS70205
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice CA 315 MD is a premium in-line centrifugal exhaust fan, expertly engineered for high-demand commercial and industrial ventilation systems. Its rugged pickled and phosphated steel housing, finished in polyester powder coating, provides excellent resistance to corrosion and aggressive atmospheric agents—perfect for Australian environments.

This powerful unit features a 315mm nominal diameter, delivering a peak airflow of 1735 m³/h and operating with a 300W dual-speed AC motor equipped with thermal overload cutout. Designed with a backward curved centrifugal impeller and ball bearing-supported shaft, it excels in ducted systems requiring reliable static pressure and low noise.

The CA 315 MD is sensor-compatible—allowing automated response to temperature, humidity, smoke, and presence detection—and is also speed adjustable via optional Vortice controllers. Certified with IMQ SAFETY and IMQ PERFORMANCE, it guarantees trusted performance in critical airflow applications.

Features

  • 315mm nominal diameter – suited for large-scale ducted systems
  • Durable, anti-corrosive powder-coated steel casing
  • High airflow capacity: up to 1735 m³/h
  • Quiet operation: breakout sound pressure from 36.9 dB(A) to 44.6 dB(A)
  • Dual-speed AC motor with thermal overload protection
  • Backward curved centrifugal impeller for high pressure and airflow
  • Sensor-compatible: temperature, humidity, smoke, and occupancy
  • Certified with IMQ SAFETY and IMQ PERFORMANCE
  • Speed control compatible (Vortice controllers sold separately)
  • Wall-mount brackets included (zinc-coated)

Specifications

Model CA 315 MD
Brand Vortice
Voltage 220–240V
Frequency 50 Hz
Nominal Diameter 315 mm
Max Airflow 1735 m³/h
Airflow at 1st Speed 1330 m³/h
Max Power Consumption 300 W
Power at 1st Speed 210 W
Max Current 1.30 A
Min Current 0.90 A
IP Rating IP44
Insulation Class II
Max Ambient Temp 40°C
Max Pressure 671.8 Pa
Sound Pressure (Min/Max) 36.9 / 44.6 dB(A) at 3m
Speed Control Available (optional)
Certifications IMQ Safety, IMQ Performance, EAC, G-Mark
Weight 11 kg
Mounting Zinc-Coated Wall Brackets

In The Box

  • [1] x Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 315 MD | 315MM (12" Inch)
