Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 150 | 150MM (6" Inch)

Air Flow 515 M³/H | Power Consumption 31W | IP45

SKU: FANS70102
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

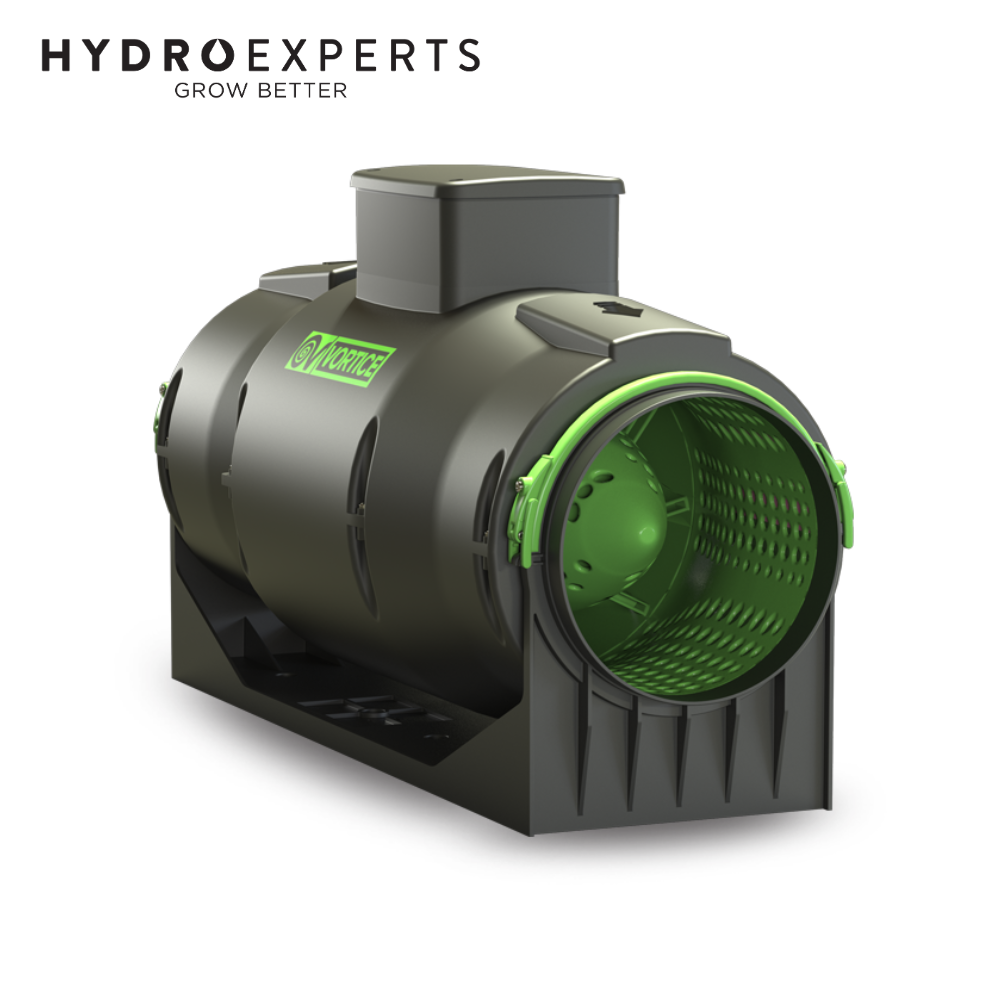

The Vortice Lineo Quiet ES 150 is a premium mixed-flow inline EC fan, designed for whisper-quiet air extraction and ideal for high-demand residential and commercial applications in Australia. With advanced acoustic insulation and energy-efficient EC motor technology, this fan delivers up to 515 m³/h of airflow at just 31 watts.

Constructed from fire-resistant E2-class resin and equipped with IP45 ingress protection, this model is perfect for moisture-prone areas like bathrooms, kitchens, and laundry spaces when installed within ductwork. The casing features a sound-absorbing coating to reduce radiated and duct-transmitted noise significantly, while the centrifugal impeller and ball-bearing motor ensure durability and smooth operation.

Designed for intelligent ventilation, the fan supports 0–10V variable speed control or 2-speed switch configuration, enabling optimal airflow management across multiple ducted zones or building automation systems.

Applications:

  • Silent bathroom and toilet exhaust
  • Laundry room moisture extraction
  • Kitchen rangehood exhaust (ducted)
  • Apartment/office inline ducting
  • Air handling systems in ceiling voids

Features

  • High Airflow Capacity: Up to 515 m³/h for powerful extraction
  • Low Power Consumption: Only 31W at maximum speed
  • Quiet Operation: Integrated sound insulation, only 31 dB(A) at 3m
  • Advanced EC Motor: Thermally protected, ball-bearing supported
  • Flexible Speed Control: 0–10V potentiometer or 2-speed switch
  • IP45 Protection: Water-resistant when installed in-duct
  • Fire-Resistant Housing: Made to ISO EN 11925-2:2010 standards
  • Compact 150MM Duct Compatibility: Ideal for space-constrained installs
  • Certified Safe: CE, UKCA, and CB certifications

Specifications

Attribute Value
Air Flow Rate Max 515 m³/h
Power Consumption Max 31W
Voltage 220–240V
Frequency 50–60Hz
Motor Type Brushless EC Motor (Thermally Protected)
IP Rating IPX5 (if installed in-duct)
Nominal Diameter 150MM (6" Inch)
Weight 5.4 kg
Noise Level @ 3m 31 dB(A) at full speed
Max Pressure 237.3 Pa
Max Temp 60°C (Continuous)
Control Options 0–10V Potentiometer or 2-Speed Switch

In The Box

  • [1] x Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 150 | 150MM (6" Inch)
