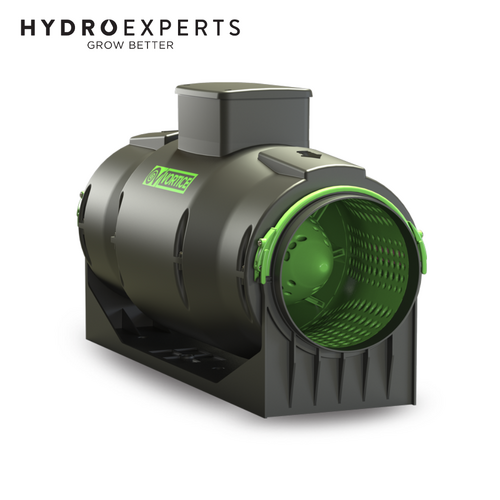

Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 200 | 200MM (8" Inch)

Air Flow 1145 M³/H | Power Consumption 88W | IPX5

SKU: FANS70103
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice Lineo Quiet ES 200 EC Inline Fan is engineered for high-capacity extraction with silent operation, making it ideal for commercial buildings, large-scale residential applications, and ducted air systems requiring robust airflow and noise control. This premium 200MM mixed-flow fan features an EC (electronically commutated) motor paired with a centrifugal impeller and ball bearing support for enhanced reliability and long-term performance.

Delivering up to 1145 m³/h airflow at just 88W, the Lineo Quiet ES 200 is encased in fire-resistant E2-class resin and internally coated with acoustic insulation to suppress airborne and duct-transmitted sound.

Designed to meet IPX5 water resistance standards (when duct-installed), it provides safe, adaptable operation via 0–10V potentiometer control or a two-speed switch, making it a great fit for automation systems or variable air volume environments.

Applications:

  • Ventilation for large residential and commercial ducted systems
  • Silent operation in theatres, restaurants, server rooms
  • High airflow zones requiring minimal noise transfer
  • Ceiling, roof space, or utility room installs

Features

  • High Airflow Delivery: Up to 1145 m³/h – perfect for demanding ducted applications
  • Efficient EC Motor: Quiet, thermally protected, brushless operation
  • IPX5 Rated: High water resistance when installed in duct
  • Advanced Soundproof Housing: Minimises breakout and duct noise
  • Fire-Resistant Casing: Certified E2 plastic resin (ISO EN 11925-2:2010)
  • Speed Adjustment: Via 0–10V potentiometer or two-speed switch
  • High Static Pressure: Max pressure up to 329.5 Pa for long duct runs
  • CE, UKCA & CB Certified for safety and compliance
  • Ideal for Australian commercial and industrial ventilation systems

Specifications

Attribute Value
Air Flow Rate Max 1145 m³/h (318.1 L/s)
Power Consumption Max 88W
Voltage 220–240V
Frequency 50–60Hz
Motor Type EC Brushless Motor (Thermally Protected)
IP Rating IPX5 (Duct Installed)
Nominal Diameter 200MM (8" Inch)
Weight 8.6 kg
Noise Level @ 3m 35.8 dB(A)
Max Static Pressure 329.5 Pa
Operating Temperature Max 50°C
Speed Control Options 0–10V Potentiometer or 2-Speed Switch

In The Box

  • [1] x Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 200 | 200MM (8" Inch)
