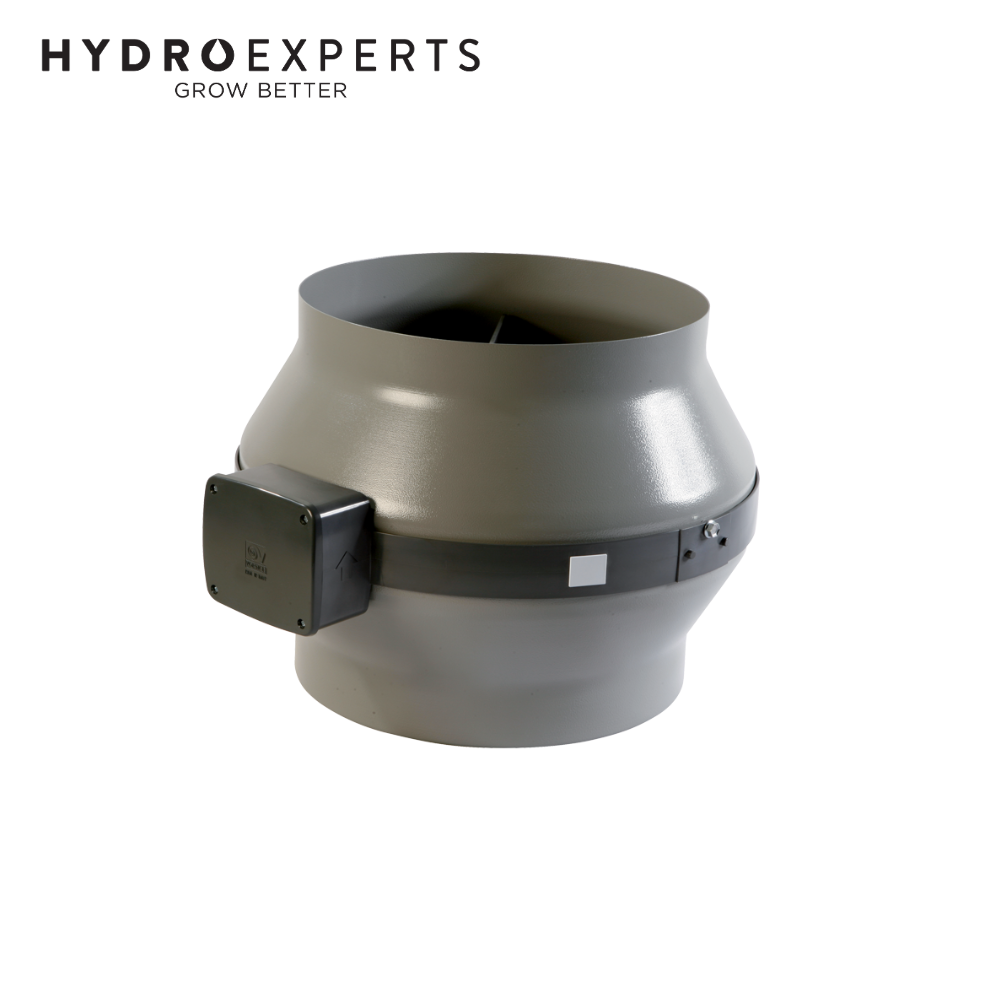

Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 250 MD | 250MM (10" Inch)

Air Flow 1200 M³/H | Power Consumption 185W | IP44

SKU: FANS70204
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice CA 250 MD is a robust and high-efficiency in-line centrifugal exhaust fan designed for demanding commercial and industrial ventilation systems across Australia. Engineered with a pickled and phosphated steel housing and a durable polyester powder-coated finish, it offers long-term resistance against corrosion and harsh weather exposure.

With a nominal diameter of 250mm, the CA 250 MD delivers a powerful airflow of 1200 m³/h at only 185W power consumption. It features a 2-speed AC motor with thermal overload protection and ball bearings, ensuring long-lasting performance. The backward curved centrifugal impeller generates high static pressure ideal for ducted applications.

Intelligent ventilation control is possible with support for remote sensors including temperature, humidity, smoke, and occupancy detection. The fan is IMQ SAFETY and IMQ PERFORMANCE certified, guaranteeing safe and reliable operation in critical airflow systems.

Zinc-coated wall-mount brackets and compatibility with Vortice speed controllers (sold separately) make it a versatile and user-friendly choice for HVAC contractors and facility managers alike.

Features

  • Durable phosphated steel housing with polyester powder coating
  • 250mm nominal diameter – perfect for mid-to-large ducted systems
  • High airflow: up to 1200 m³/h
  • Quiet operation with sound pressure as low as 36 dB(A) at min speed
  • 2-speed AC motor with backward curved impeller and overload protection
  • Remote control capability via sensors: temperature, humidity, smoke, presence
  • IMQ SAFETY and IMQ PERFORMANCE certified
  • Speed adjustable via optional Vortice controllers
  • Zinc-coated steel brackets for secure wall mounting

Specifications

Model CA 250 MD
Brand Vortice
Voltage 220–240V
Frequency 50 Hz
Nominal Diameter 250 mm
Max Airflow 1200 m³/h
Airflow at 1st Speed 915 m³/h
Max Power Consumption 185 W
Power at 1st Speed 140 W
Max Current 0.80 A
Min Current 0.60 A
IP Rating IP44
Insulation Class II
Max Ambient Temp 50°C
Max Pressure 583.5 Pa
Sound Pressure (Min/Max) 36 / 43.3 dB(A) at 3m
Speed Control Available (optional)
Certifications IMQ Safety, IMQ Performance, EAC, G-Mark
Weight 7.6 kg
Mounting Zinc-Coated Wall Brackets

In The Box

  • [1] x Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 250 MD | 250MM (10" Inch)
