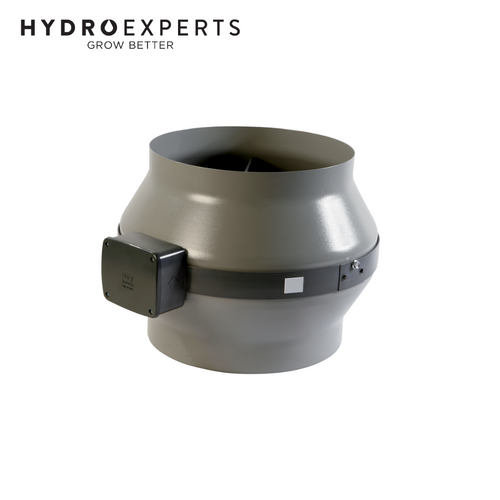

Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 200 MD | 200MM (8" Inch)

Air Flow 1050 M³/H | Power Consumption 155W | IP44

SKU: FANS70203
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice CA 200 MD is a high-performance in-line centrifugal exhaust fan built for reliability and durability in commercial and industrial ventilation systems. Designed with a pickled and phosphated steel housing and finished with a polyester powder coating, this fan resists corrosion and harsh environmental exposure—ideal for Australian conditions.

Featuring a nominal diameter of 200mm, the unit delivers a maximum airflow of 1050 m³/h at only 155W, making it an energy-efficient solution. Its 2-speed AC motor, equipped with a thermal overload cutout and ball bearings, drives a backward curved centrifugal impeller for strong static pressure and quiet performance.

For enhanced functionality, the fan supports remote sensor control for temperature, humidity, smoke, and presence, making it an intelligent option for demand-based ventilation systems. Zinc-coated wall mounting brackets are included, and airflow speed can be adjusted with optional Vortice speed controls (sold separately).

Ideal for installation in ducted exhaust systems, this fan is perfect for commercial kitchens, warehouses, mechanical rooms, and industrial facilities seeking robust airflow with low noise and high efficiency.

Features

  • Durable pickled and phosphated steel body with polyester powder coating
  • High airflow capacity: up to 1050 m³/h
  • IP44 protection – suitable for demanding environments
  • Two-speed AC motor with backward curved centrifugal impeller
  • Motor includes thermal overload protection and ball bearings
  • Remote controllable via sensors (temperature, humidity, smoke, presence)
  • Mountable with zinc-coated steel wall brackets
  • Compatible with Vortice fan speed controllers

Specifications

Model CA 200 MD
Brand Vortice
Voltage 220–240V
Frequency 50 Hz
Nominal Diameter 200 mm
Max Airflow 1050 m³/h
Airflow at 1st Speed 820 m³/h
Max Power Consumption 155 W
Power at 1st Speed 115 W
Max Current 0.70 A
Min Current 0.60 A
IP Rating IP44
Insulation Class II
Max Ambient Temp 50°C
Max Pressure 471 Pa
Sound Level (Max) 49.6 dB(A) at 3m
Speed Control Available (optional)
Weight 6 kg
Mounting Wall Brackets Included

In The Box

  • [1] x Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 200 MD | 200MM (8" Inch)
