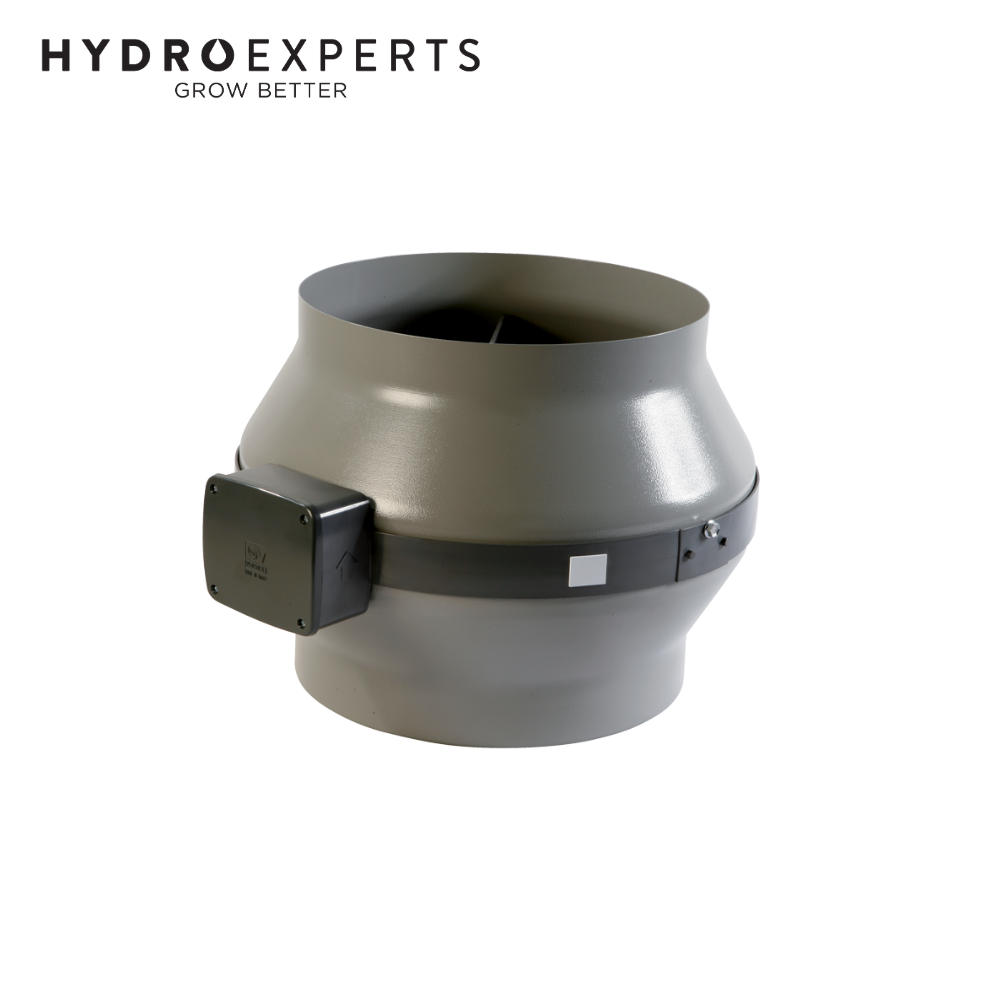

Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 150 MD | 150MM (6" Inch)

Air Flow 770 M³/H | Power Consumption 155W | IP44

SKU: FANS70202
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice CA 150 MD is a heavy-duty 150MM (6-inch) in-line centrifugal exhaust fan designed for efficient air extraction across medium to large ducted systems. Constructed from pickled and phosphated steel with a polyester powder-coated finish, it offers superior durability and corrosion resistance — perfect for Australia’s varied indoor and coastal environments.

With a high-capacity 2-speed AC motor that peaks at 770 m³/h airflow, this unit ensures powerful performance with minimal energy waste. The motor includes a thermal overload cutout and ball bearing-mounted shaft for long-lasting reliability, while the backward curved centrifugal impeller guarantees consistent static pressure for complex ductwork.

Compatible with Vortice control accessories, the fan is adjustable via external speed controllers and supports automated operation through optional temperature, humidity, smoke, and motion sensors. This makes it ideal for both commercial and advanced residential applications requiring responsive and adaptable ventilation.

Features

  • Durable Metal Housing: Powder-coated steel body resists rust and aggressive environmental elements
  • High Airflow Performance: Moves up to 770 m³/h at just 155W, making it ideal for long duct runs
  • Smart Sensor Integration: Ready for temperature, humidity, smoke & motion control via external sensors
  • Two-Speed Motor: Optimise ventilation performance based on zone or application demands
  • Reliable Operation: Thermal overload protection and ball-bearing shaft ensure extended motor life
  • Easy to Mount: Zinc-coated steel wall brackets included
  • Quiet Ventilation: Noise levels as low as 40.7 dB(A) at 3m on low speed

Specifications

Model CA 150 MD
Brand Vortice
Nominal Diameter 150MM (6" Inch)
Max Air Flow 770 m³/h
Power Consumption 155W (Max Speed)
Voltage 220–240V
Motor Type 2-Speed AC Motor
Impeller Type Backward Curved Centrifugal
RPM Range 1600 – 2080 RPM
Sound Pressure at 3m 40.7 – 48.0 dB(A)
Max Static Pressure 530 Pa
IP Rating IP44
Material Powder-Coated Steel
Weight 6.1 kg
Max Operating Temperature 50°C
Mounting Brackets Included (Zinc-Coated)
Control Options Vortice Speed Controllers & Remote Sensors

In The Box

  • [1] x Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 150 MD | 150MM (6" Inch)
