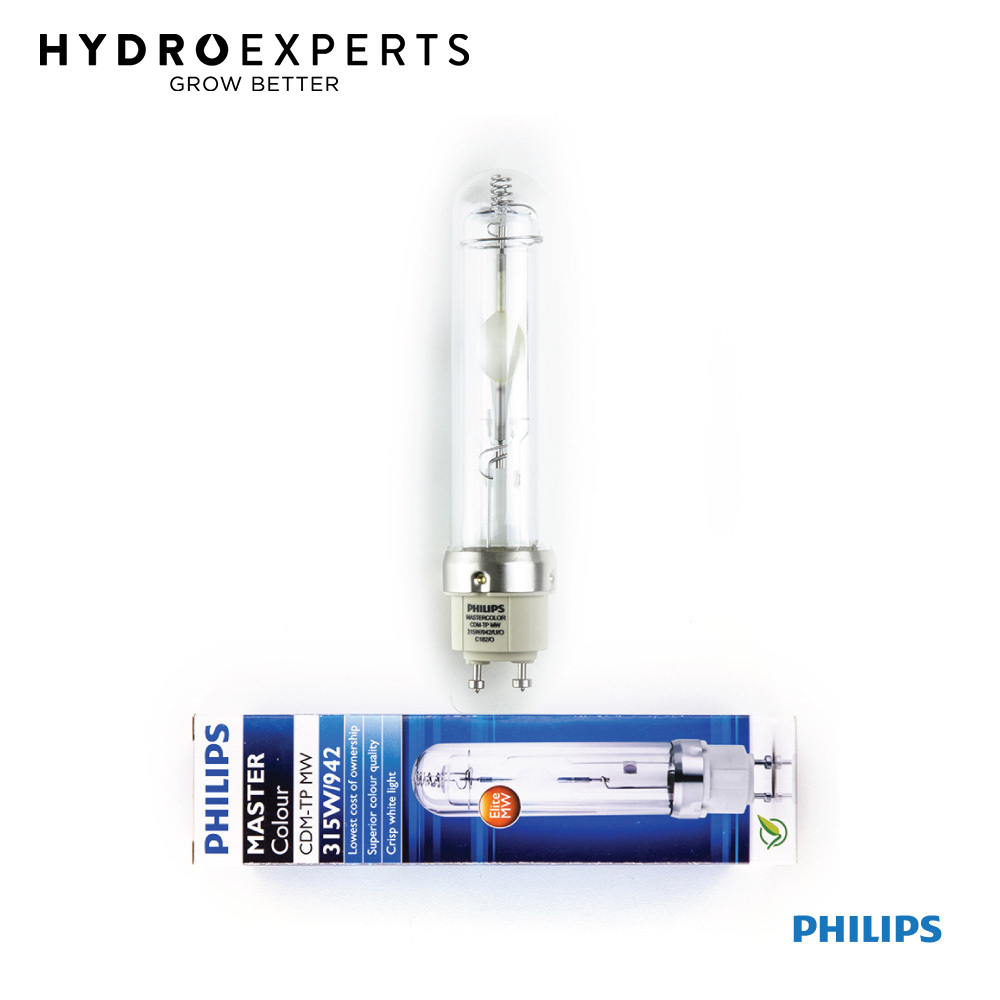

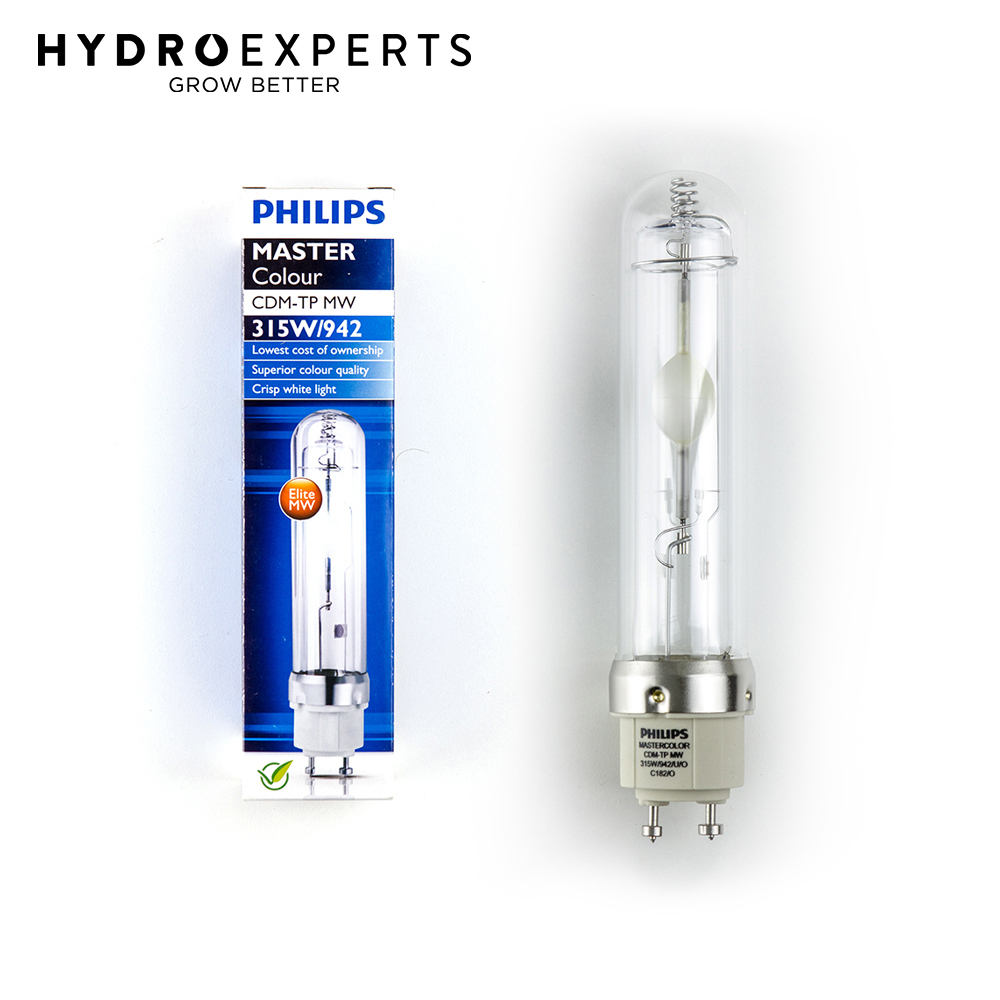

Philips Master Colour CDM-TP MW Lamp - 315W | 942 | Grow

#SKU: BULB13102
Brand:
View PDF brochure for Philips Master Colour CDM-TP MW Lamp - 315W | 942 | PGZ18 | Veg Download PDF brochure

$179.95
RRP $220.00
SAVE $40.05 (18%)


Calculate Shipping


Description



Master CDM Elite MW, medium wattage lighting system that gives superior, long-lasting white light for both indoor and outdoor use.
This lamp gives twice as much light as a growth plasma lamp.



Specifications



Colour Code  942 [CCT of 4200K]
Luminous Flux (Rated) (Min) 33100 lm
Luminous Flux (Rated) (Nom) 35500 lm
Colour Designation Cool White (CW)
Lumen Maintenance 12000 h (Nom) 82%
Lumen Maintenance 10000 h (Nom) 86%
Lumen Maintenance 2000 h (Nom) 81%
Lumen Maintenance 20000 h 81%
Lumen Maintenance - 40% Life 82%
Lumen Maintenance - 5000 h (Nom) 94%
Lumen Maintenance - 10% Life 96%
Saturated Red 80
Design Mean Lumens 31150 lm
Chromaticity Coordinate X (Nom) 0.376
Chromaticity Coordinate Y (Nom) 0.379
Colour Temperature, horizontal (Max)  - K
Colour Temperature, horizontal (Min) - K
Colour Temperature, horizontal (Nom) 4140 K
Luminous Efficacy (rated) (Min)  105 lm/W
Luminous Efficacy (rated) (Nom)  113 lm/W
Colour Rendering Index horiz (Min) 90
Colour Rendering Index horiz (Nom)  93



Operating And Electrical

Power (Rated) (Nom)  315W
Lamp Current RunUp (Nom)  4.7A
Ignition Supply Voltage (Max)  4000V
Ignition Peak Voltage (Max) 4000V
Ignition Supply Voltage (Min) 3000V
Re-Ignition Time (Min) (Max) 10min
Ignition Time (Max)  3s
Voltage (Max)  115V
Voltage (Min)  85V
Voltage (Nom)  110V



Controls & Dimming

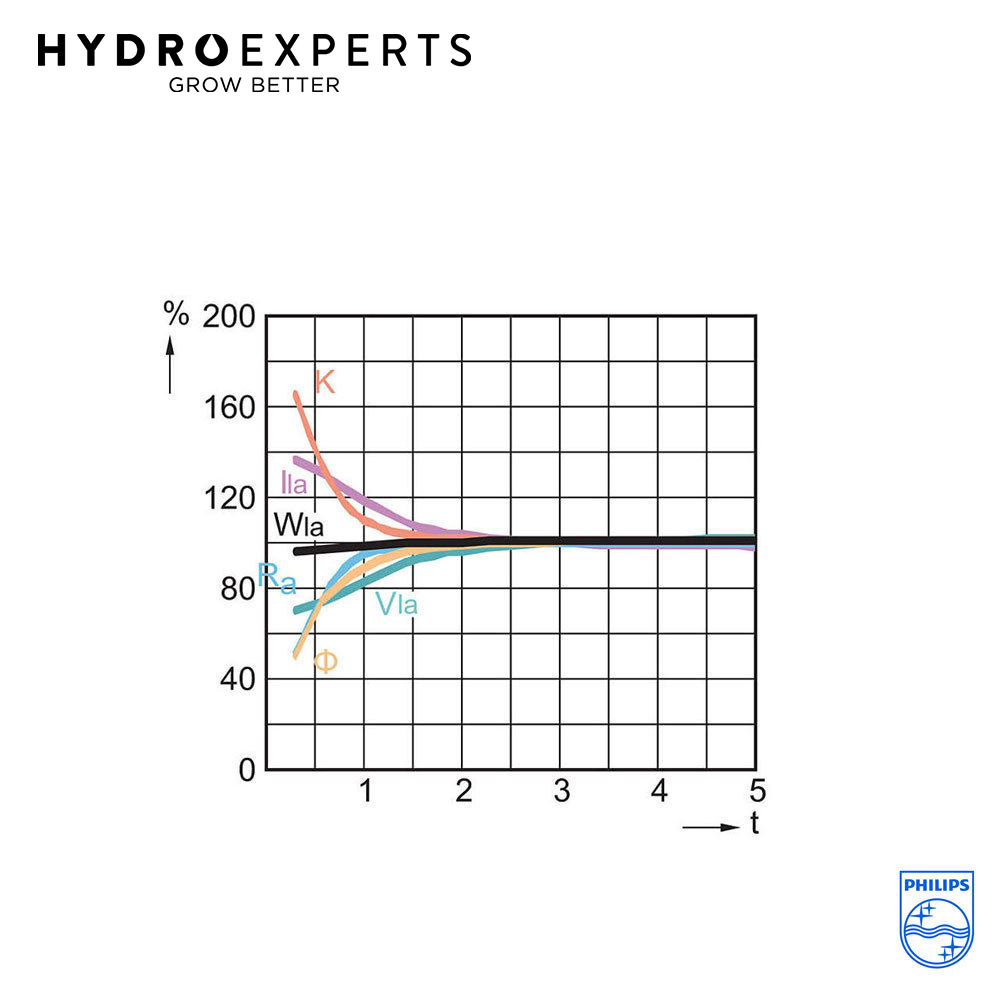

Run-up Time 90% (Max) 3 min



Approval and Application

Energy Efficiency Label  A+
Picogram Per Lumen Hour 25 pg/lm.h
Mercury (Hg) Content (Max) 24 mg
Energy Consumption kWh/1000 h 346 kWh





  • [1] x Philips Master Colour CDM-TP MW Lamp - 315W | 942 | PGZ18 | Veg
Colour Code  942 [CCT of 4200K]
Luminous Flux (Rated) (Min) 33100 lm
Luminous Flux (Rated) (Nom) 35500 lm
Colour Designation Cool White (CW)
Lumen Maintenance 12000 h (Nom) 82%
Lumen Maintenance 10000 h (Nom) 86%
Lumen Maintenance 2000 h (Nom) 81%
Lumen Maintenance 20000 h 81%
Lumen Maintenance - 40% Life 82%
Lumen Maintenance - 5000 h (Nom) 94%
Lumen Maintenance - 10% Life 96%
Saturated Red 80
Design Mean Lumens 31150 lm
Chromaticity Coordinate X (Nom) 0.376
Chromaticity Coordinate Y (Nom) 0.379
Colour Temperature, horizontal (Max)  - K
Colour Temperature, horizontal (Min) - K
Colour Temperature, horizontal (Nom) 4140 K
Luminous Efficacy (rated) (Min)  105 lm/W
Luminous Efficacy (rated) (Nom)  113 lm/W
Colour Rendering Index horiz (Min) 90
Colour Rendering Index horiz (Nom)  93



Operating And Electrical

Power (Rated) (Nom)  315W
Lamp Current RunUp (Nom)  4.7A
Ignition Supply Voltage (Max)  4000V
Ignition Peak Voltage (Max) 4000V
Ignition Supply Voltage (Min) 3000V
Re-Ignition Time (Min) (Max) 10min
Ignition Time (Max)  3s
Voltage (Max)  115V
Voltage (Min)  85V
Voltage (Nom)  110V



Controls & Dimming

Run-up Time 90% (Max) 3 min



Approval and Application

Energy Efficiency Label  A+
Picogram Per Lumen Hour 25 pg/lm.h
Mercury (Hg) Content (Max) 24 mg
Energy Consumption kWh/1000 h 346 kWh
SKU BULB13102
Barcode # 46677220648
Brand Philips
Shipping Weight 0.5000kg
Shipping Width 0.050m
Shipping Height 0.150m
Shipping Length 0.050m
Shipping Cubic 0.000375m3
Unit Of Measure ea
