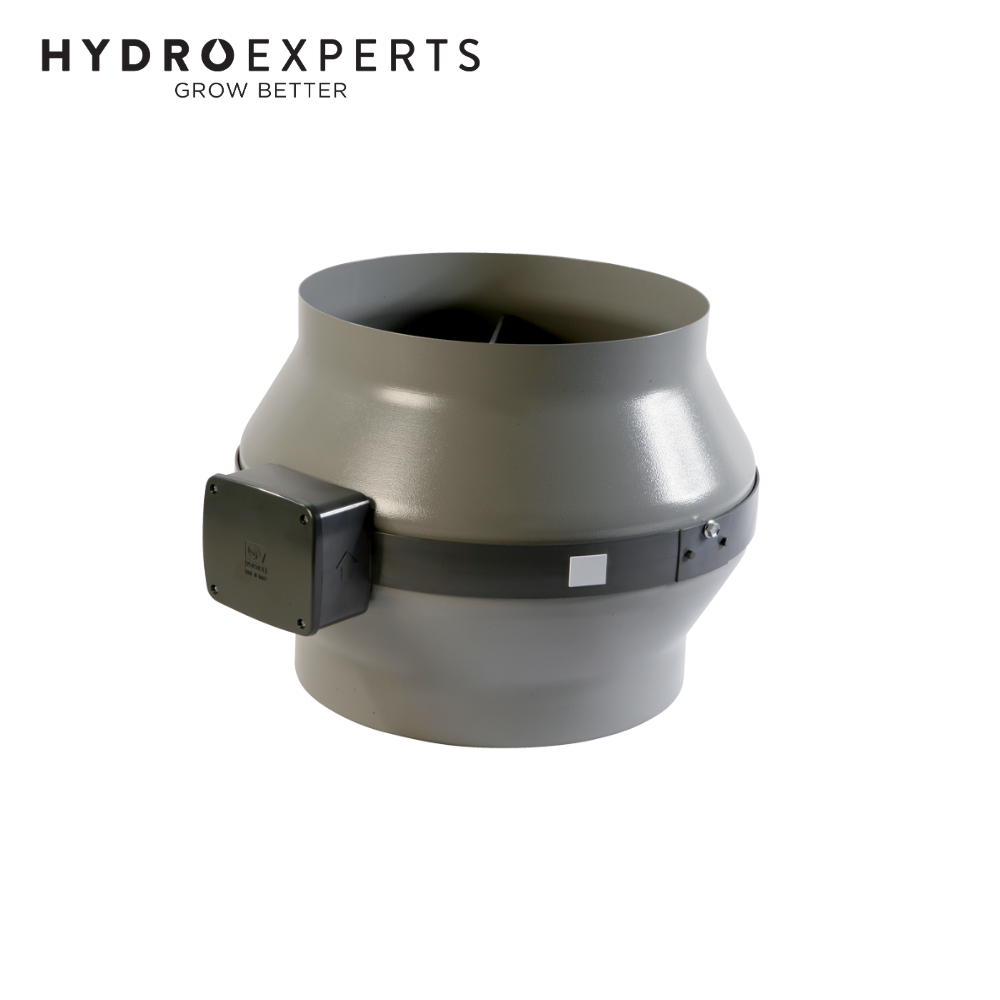

Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 100 MD | 100MM (4" Inch)

Air Flow 260 M³/H | Power Consumption 43W | IP44

SKU: FANS70201
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice CA 100 MD is a high-performance 100mm (4-inch) in-line centrifugal exhaust fan, purpose-built for residential and commercial ducted ventilation systems. Engineered with a durable, pickled and phosphated steel casing, this fan offers excellent resistance against aggressive atmospheric agents — making it ideal for continuous operation in demanding Australian conditions.

Powered by a three-speed AC motor with ball bearings and a thermal overload cutout, the CA 100 MD ensures quiet and efficient airflow up to 260 m³/h, with low power consumption of just 43W at maximum speed. Its backward curved centrifugal impeller maximises pressure performance while maintaining stable airflow through longer duct runs.

Installation is made easy with zinc-coated steel wall-mount brackets, and operation can be integrated with remote sensors for temperature, humidity, smoke, and presence — offering a smart solution for dynamic airflow control.

Features

  • Robust Construction: Pickled & phosphated steel body with polyester powder coating for corrosion resistance
  • High Performance: Delivers up to 260 m³/h airflow at only 43W power consumption
  • Smart Control Ready: Compatible with sensors for temperature, humidity, smoke, and motion
  • Versatile 3-Speed Operation: AC motor with thermal cutout and backward curved centrifugal impeller
  • Easy Installation: Zinc-coated wall brackets included
  • Low Noise Levels: Designed for quiet ventilation in both residential and commercial settings

Specifications

Model CA 100 MD
Brand Vortice
Nominal Diameter 100MM (4" Inch)
Max Air Flow 260 m³/h
Power Consumption 43W (Max Speed)
Voltage 220–240V
Motor Type AC with Thermal Overload Protection
Fan Speeds 3-Speed
RPM Range 880 – 2135 RPM
Sound Pressure at 3m Up to 67 dB(A)
IP Rating IP44
Installation Type In-line Duct Mount (Wall Bracket Included)
Material Steel (Powder-Coated)
Weight 2.97 kg
Max Operating Temperature 50°C

In The Box

  • [1] x Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 100 MD | 100MM (4" Inch)
