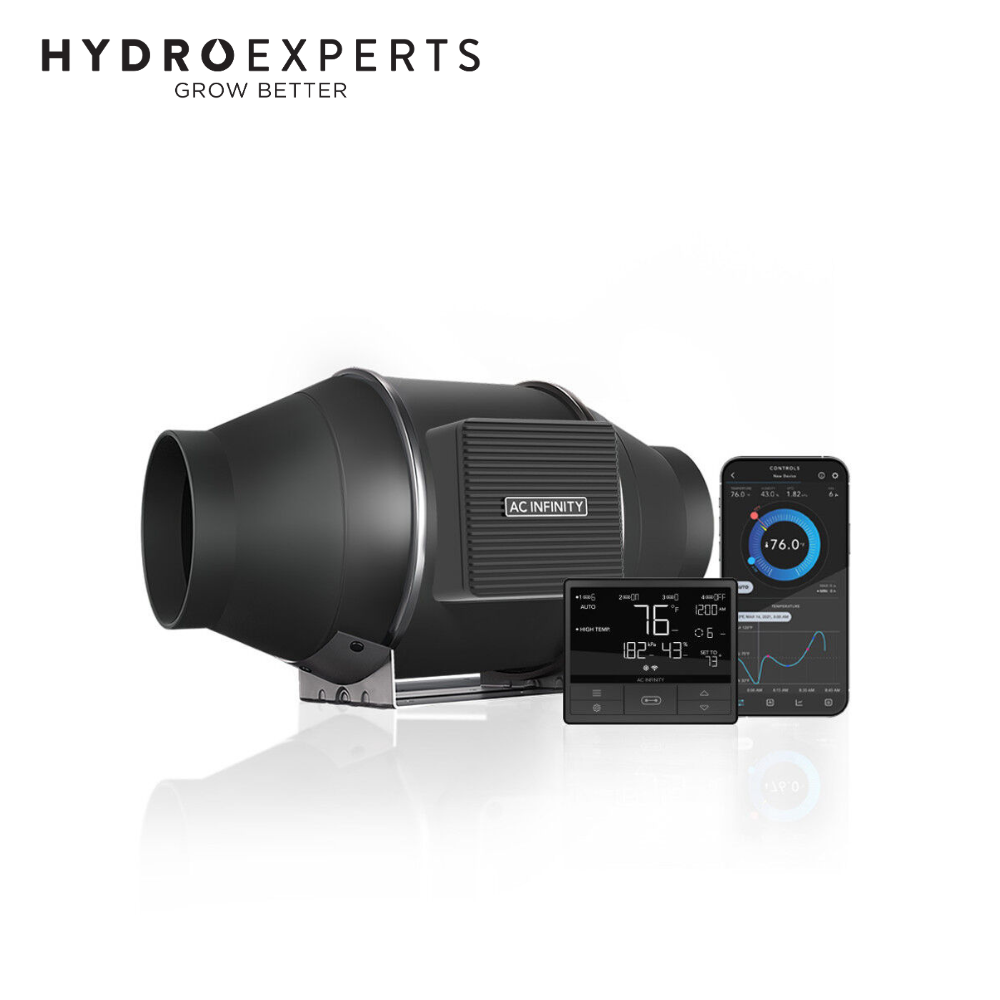

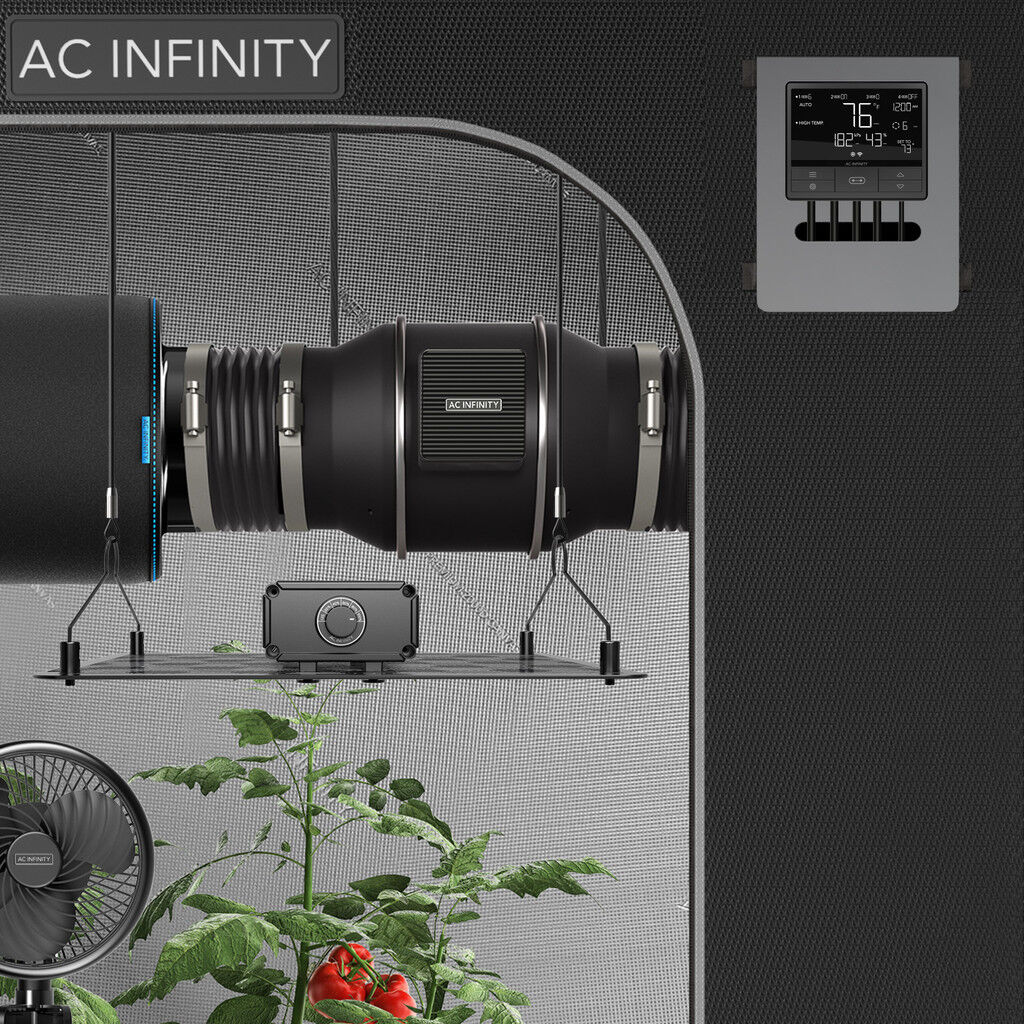

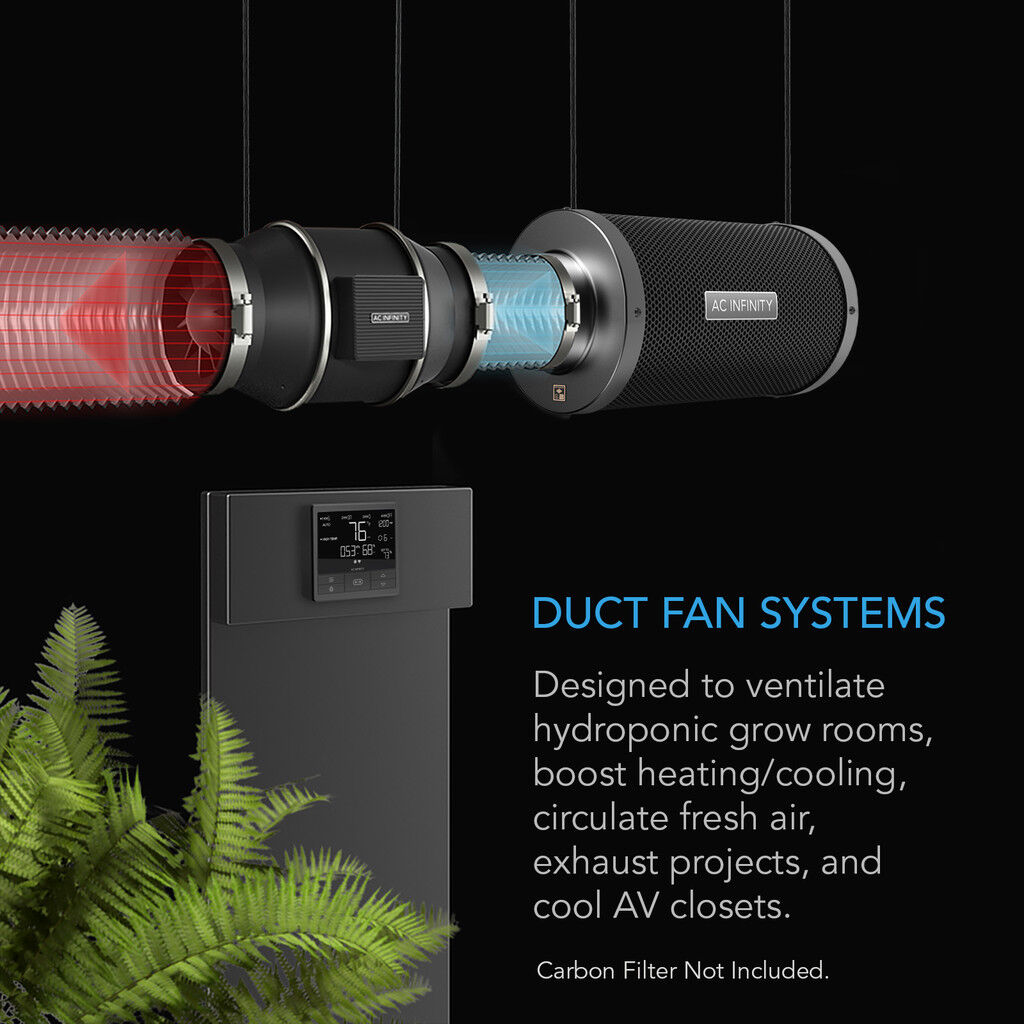

The AC Infinity CLOUDLINE PRO T4 AI-CLT4 is a precision-engineered 4-inch inline duct fan system designed for grow tents, hydroponic rooms, AV closets, and general air circulation needs. Featuring a PWM-controlled EC motor, this quiet fan delivers 205 CFM airflow with just 28 dBA of noise. Its mixed-flow design, enhanced with a stator blade and dual hydrodynamic wind circles, ensures strong airflow performance even in high static pressure environments.

Included is the CONTROLLER 69 PRO, offering real-time automation through temperature, humidity, and VPD triggers, as well as timers, grow cycle scheduling, and minimum fan speed functions. The sensor probe reads climate data, while the fan controller communicates wirelessly via WiFi with the AC Infinity App, allowing you to monitor and automate your system remotely. With compatibility across the UIS™ platform, the T4 easily integrates with other smart devices like CLOUDRAY fans and IONFRAME grow lights.

The detachable motor housing, dual ball bearings rated at 67,000 hours, and IP44 ingress protection make the CLOUDLINE T4 a long-lasting and low-maintenance choice for high-performance environments.

Features

Smart UIS™ Controller: Built-in CONTROLLER 69 PRO with temperature, humidity, and VPD triggers, scheduling, cycles, and WiFi app control.

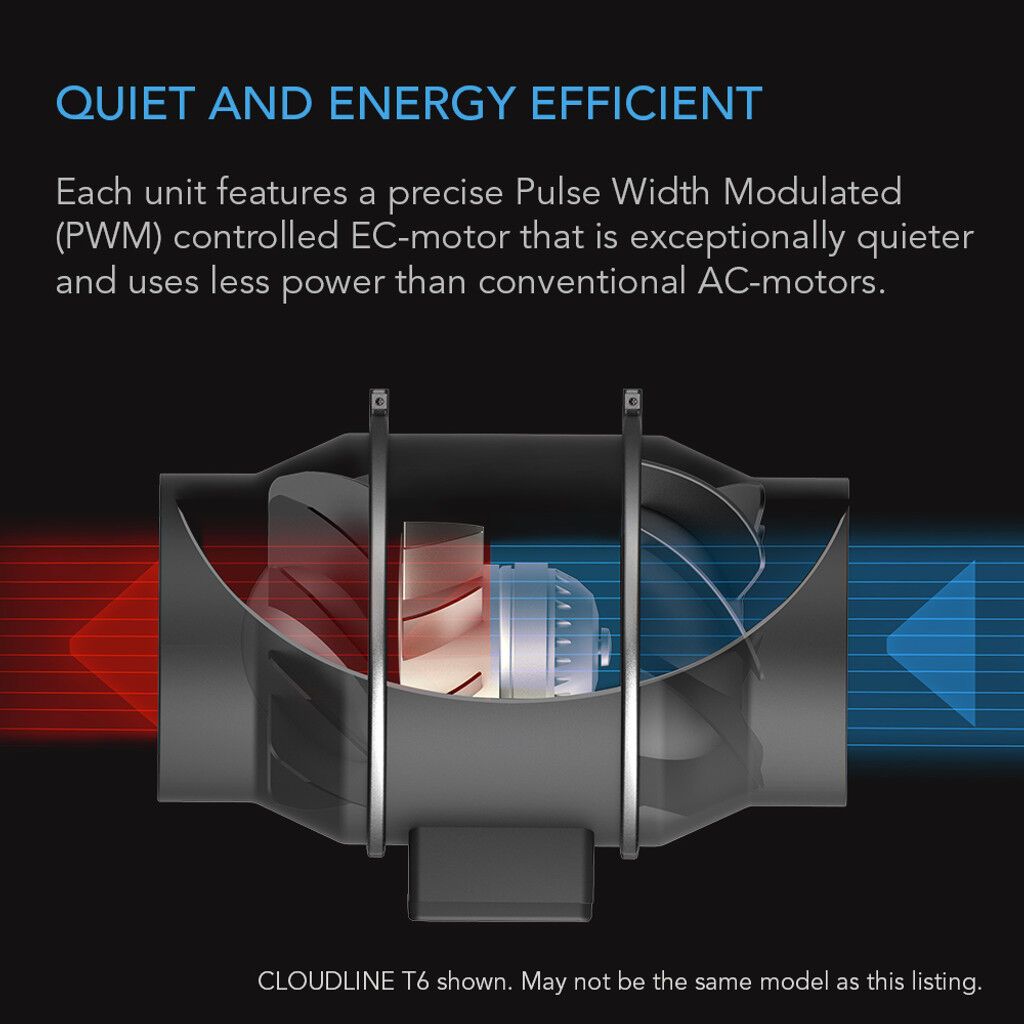

Quiet EC Motor: PWM-controlled for efficient, low-noise performance at only 28 dBA.
Precision Climate Automation: Adjusts speed dynamically based on real-time sensor data to optimise growing or cooling conditions.
Advanced Mixed-Flow Design: Hydrodynamic engineering ensures optimal airflow in restricted ducting setups.
Durable Build: Dual ball bearings, IP44-rated housing, and 67,000-hour lifespan for long-term performance.

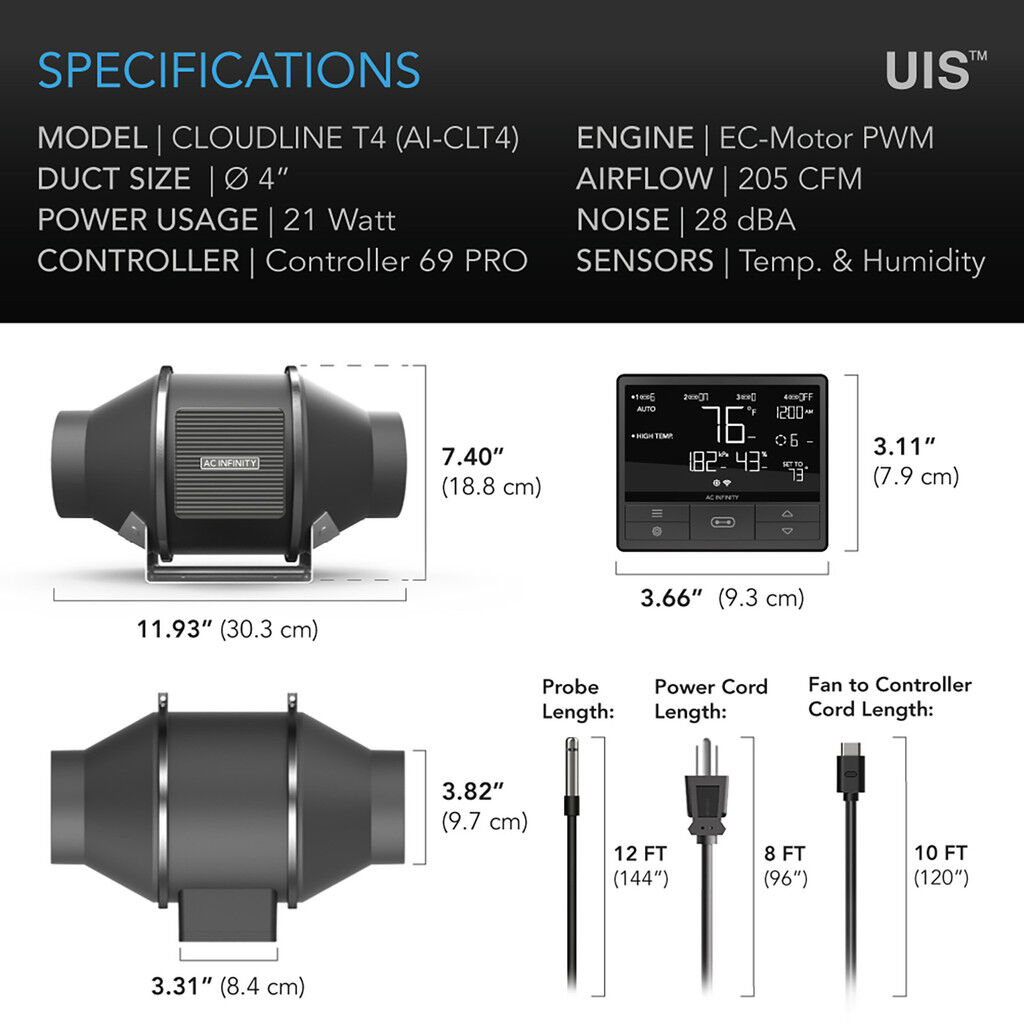

Specifications

Attribute	Details
Product Model	AI-CLT4
UPC Code	854759004785
Duct Size	4"
Fan Dimensions	18.8 x 30.3 x 17.6 cm (7.40 x 11.93 x 6.93 in.)
Mounting Hole Distance	8.0 x 6.0 cm (3.15 x 2.36 in.)
Screw Hole Size (Fan)	Ø 0.5 cm (Ø 0.197 in.)
Controller Dimensions	13.2 x 7.4 x 2.7 cm (5.19 x 2.91 x 1.06 in.)
Controller Mounting Distance	12.0 x 6.7 cm (4.71 x 2.64 in.)
Screw Hole Size (Controller)	Ø 0.3 cm (Ø 0.119 in.)
Display Size	9 x 3.5 cm (3.5 x 1.4 in.)
Cord to Controller	305 cm (10 feet)
Cord to Plug	244 cm (8 feet)
Sensor Probe Length	365.8 cm (12 feet)
Total Airflow	205 CFM
Total Noise	28 dBA
Static Pressure	223 Pa
Max Speed	2800 RPM
Voltage	100–240V AC
Frequency	50/60 Hz
Max Power Draw	28 W
Average Power Usage	21 W
Current	0.4 A
Power Plug Type	US Plug (NEMA 5-15 Type B)
Operating Humidity	35 to 85% RH
Operating Temperature	32–140°F
Waterproof Rating	IP44
Fan Bearings	Dual Ball Bearing
Mounting Positions	Horizontal or Vertical
Life Expectancy	67,000 Hours
