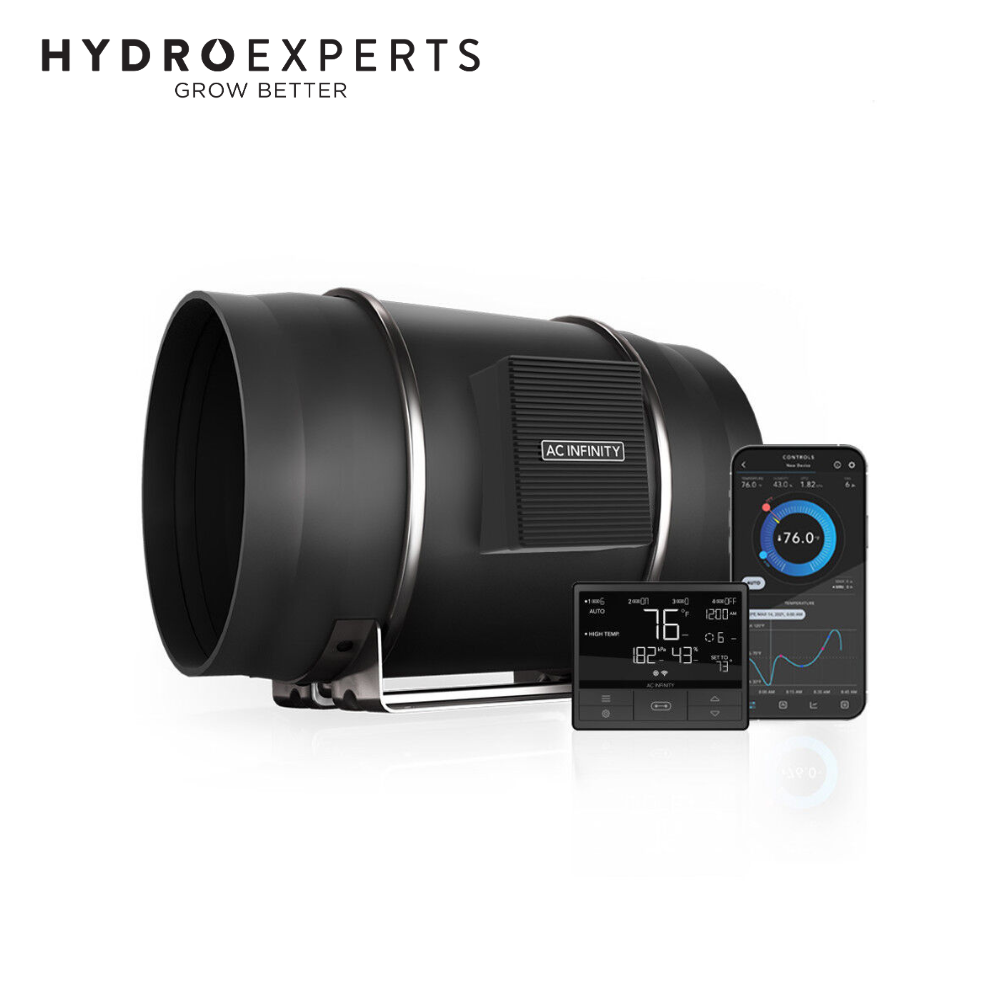

AC Infinity Inline EC Exhaust Fan Cloudline Pro T10 - 250MM (10" Inch) | 1201 CFM | 136W

SKU: NEWPND-AICLT10
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

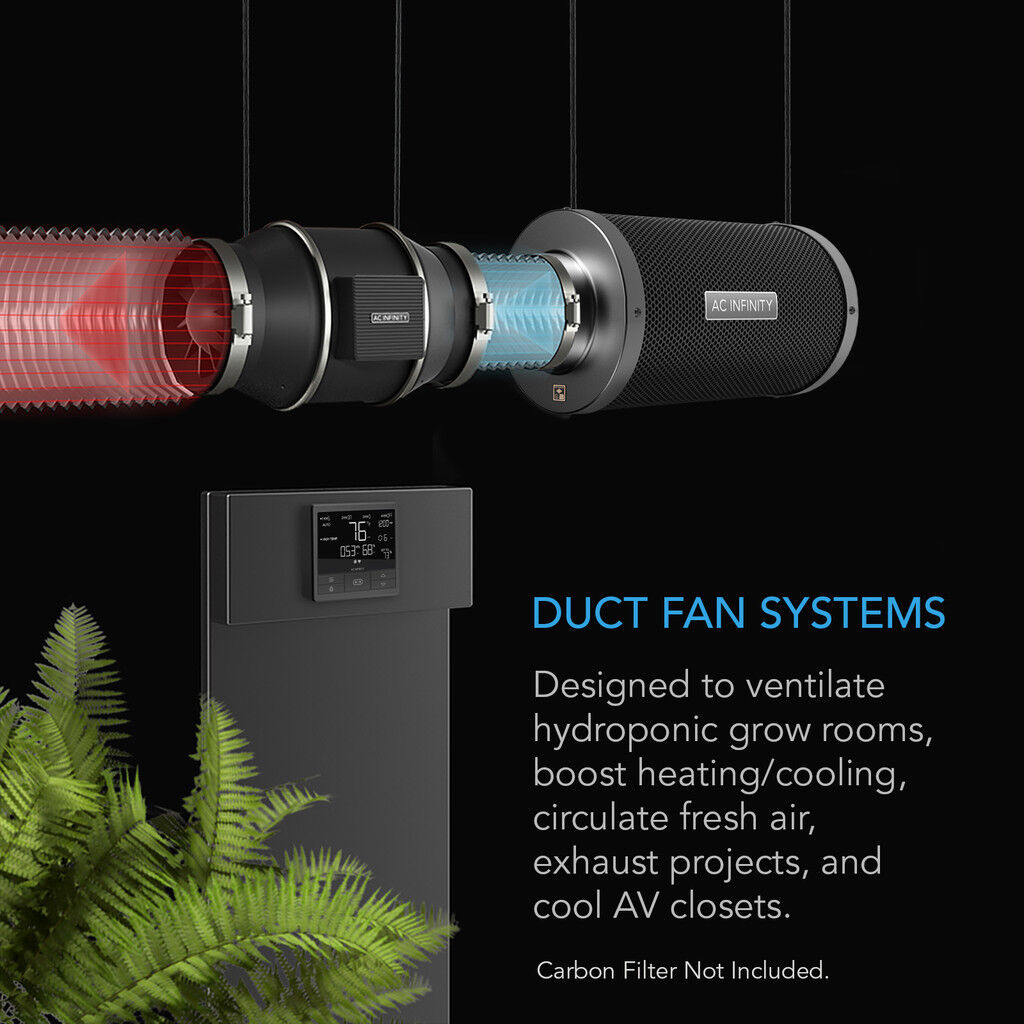

The AC Infinity CLOUDLINE PRO T10 is a premium-grade 10-inch inline duct fan system, engineered for high-powered yet whisper-quiet ventilation in large hydroponic grow tents, greenhouses, AV closets, and HVAC systems. Delivering a massive 1201 CFM of airflow at just 48 dBA, it combines commercial-level performance with advanced climate automation, all managed via the CONTROLLER 69 PRO.

This intelligent controller enables real-time WiFi access, temperature/humidity/VPD triggers, and scheduling through the AC Infinity App, giving growers full command of their environmental conditions from anywhere. Backed by a PWM-controlled EC motor and mixed-flow design, this fan provides stable airflow even under static pressure—making it ideal for long duct runs and large extraction setups.

Built to the demands of professional growers and HVAC installers, the T10 also features a detachable motor housing for easy cleaning, IP44 dust/liquid protection, and a 67,000-hour lifespan. Fully compatible with other UIS™ platform devices.

Features

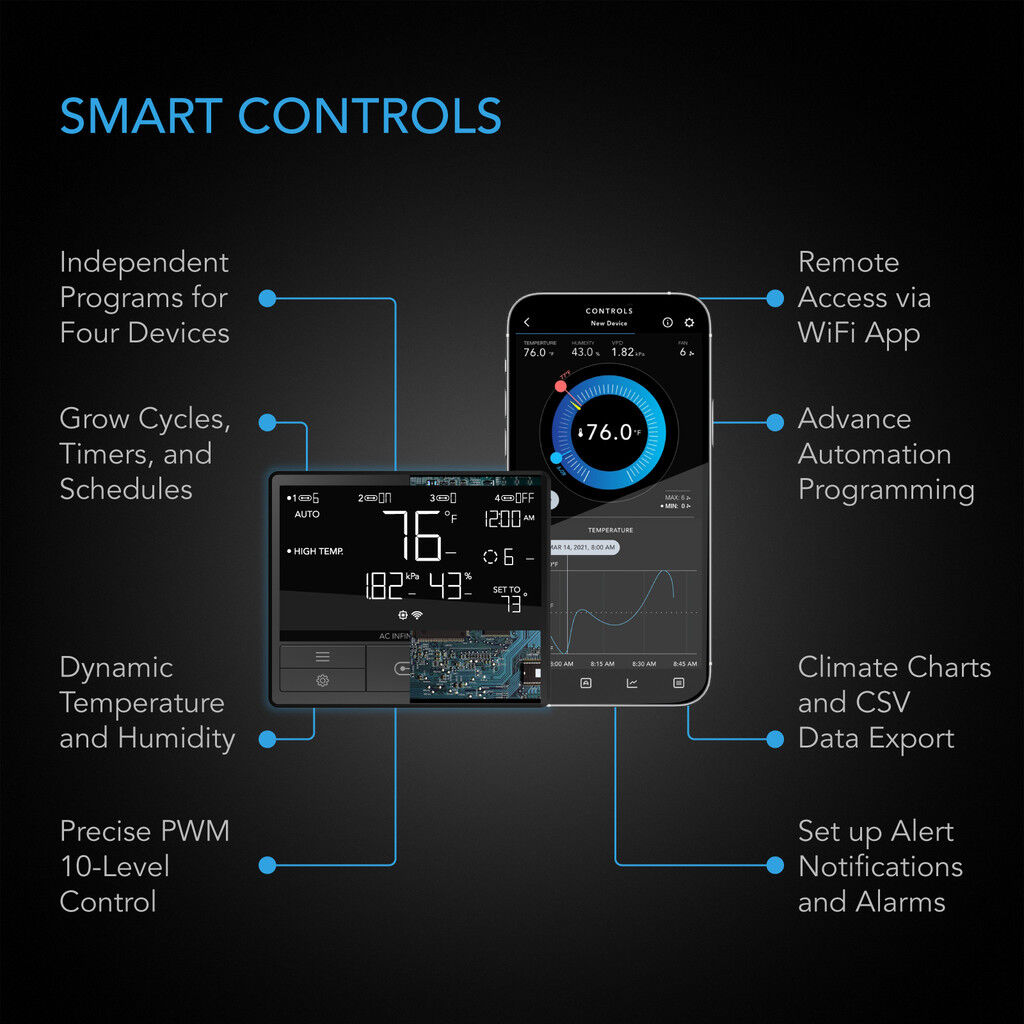

  • Ultimate Smart Controller: Includes CONTROLLER 69 PRO with WiFi, VPD triggers, temperature/humidity controls, scheduling, and custom fan speed profiles.
  • Massive Airflow Capacity: Pushes up to 1201 CFM at just 48 dBA—ideal for large-scale grow spaces and industrial ventilation.

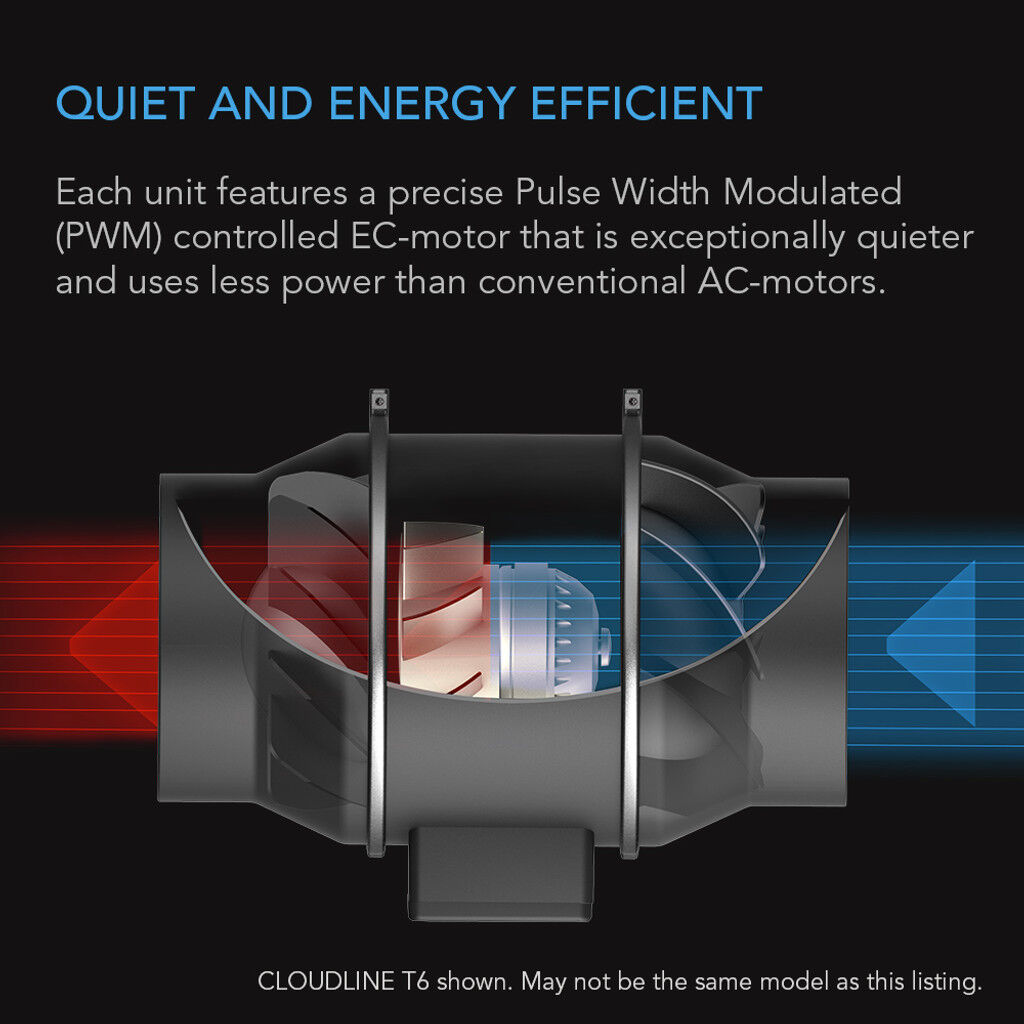

  • Energy-Efficient EC Motor: PWM-controlled brushless motor operates quietly at low RPMs with high energy savings.
  • App Automation: Remotely manage fan speed, receive alerts, and analyse historical climate data with the AC Infinity app.
  • Mixed-Flow Impeller Design: Maintains airflow in high-resistance duct systems thanks to stator blades and hydrodynamic wind circles.
  • Detachable Motor Housing: Simplifies cleaning and maintenance of impeller and blades.
  • UIS™ Ecosystem Ready: Syncs with other AC Infinity grow fans, lights, and accessories via a single smart control system.

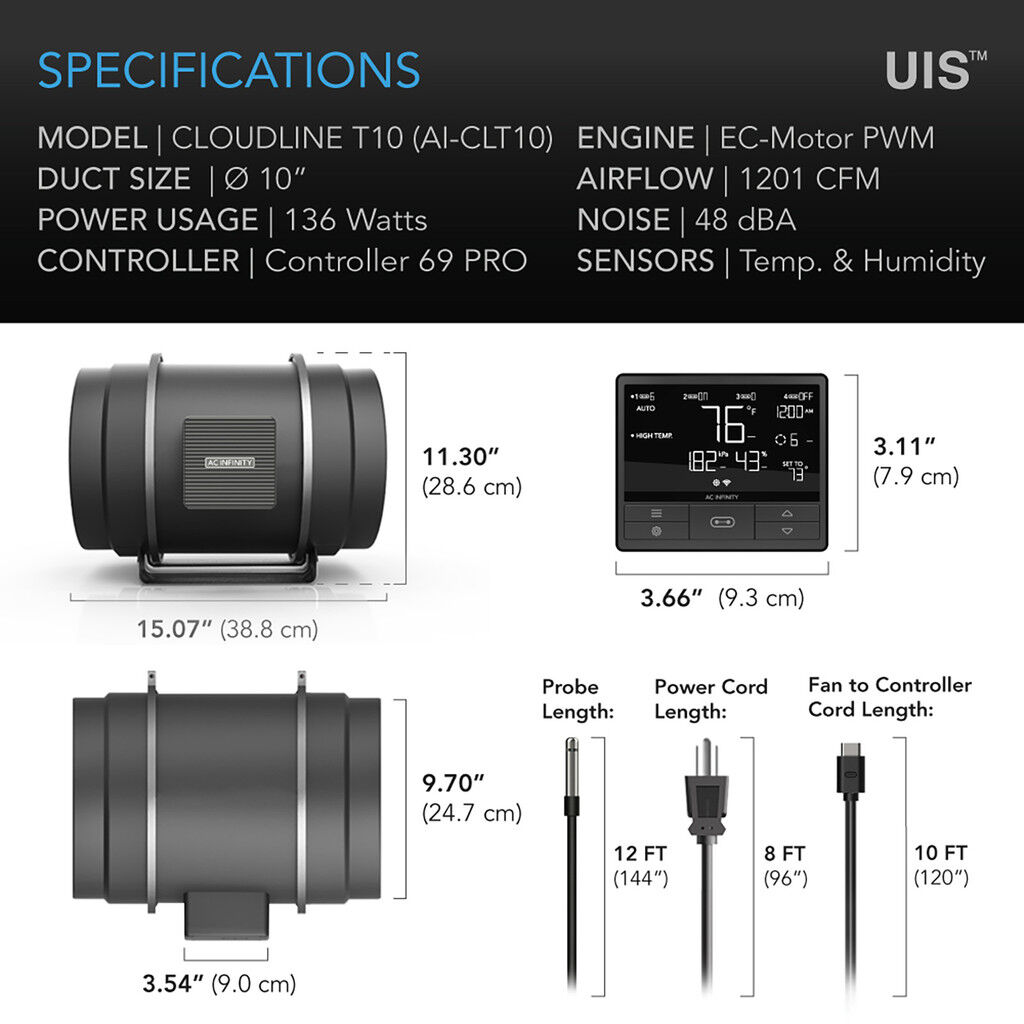

Specifications

Attribute Details
Duct Size 10 Inch
Total Airflow 1201 CFM
Noise Level 48 dBA
Static Pressure 1059 Pa
Max Power Draw 255 W
Voltage 100–240V AC
Mounting Orientation Horizontal / Vertical
Fan Bearings Dual Ball
Ingress Protection IP44
L10 Life Expectancy 67,000 Hours

In The Box

  • [1] x AC Infinity Inline EC Exhaust Fan Cloudline Pro T10 - 250MM (10" Inch) | 1201 CFM | 136W

Documents

View PDF brochure for AC Infinity Inline EC Exhaust Fan Cloudline Pro T10 - 250MM (10" Inch) | 1201 CFM | 136W Download PDF brochure
