AC Infinity Inline Duct EC Fan Cloudline Pro S8 – 200MM (8" Inch) | 807 CFM | 78W | w/ Speed Controller

SKU: NEWPND-AICLS8

AC Infinity

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

Calculate shipping

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

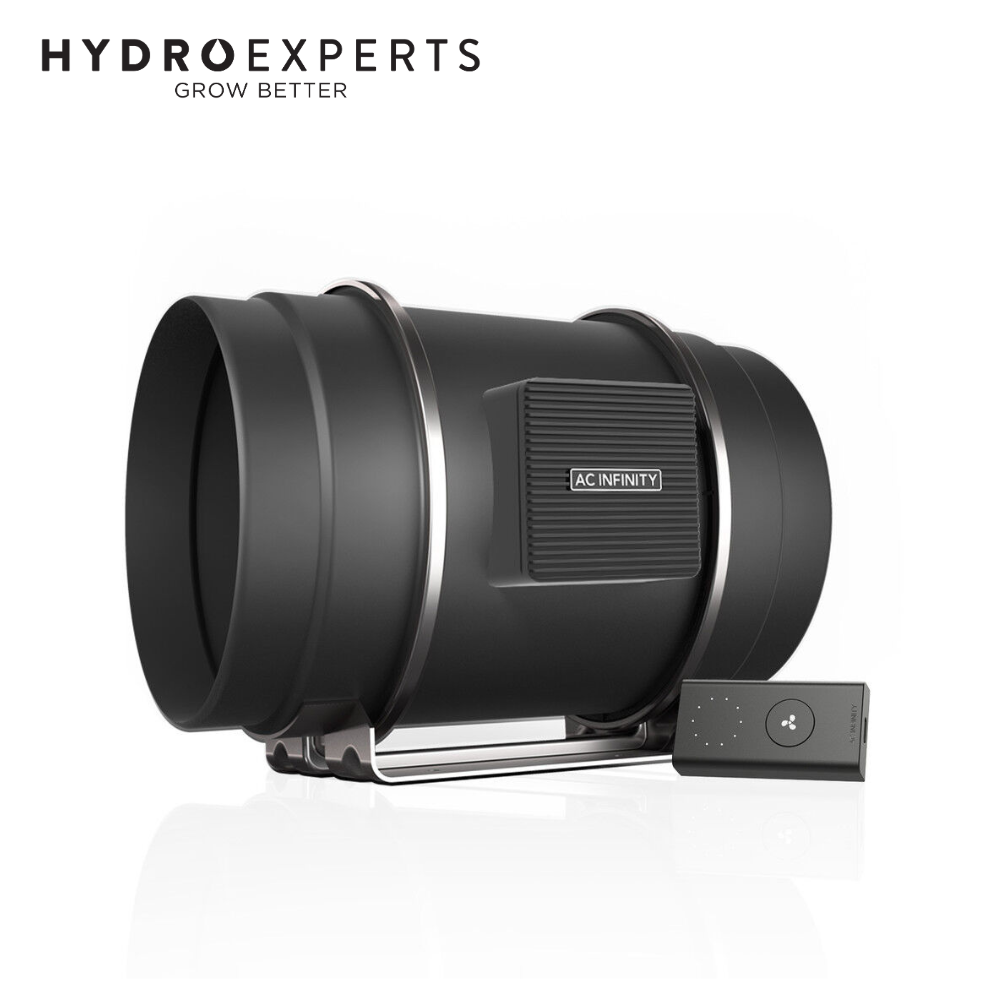

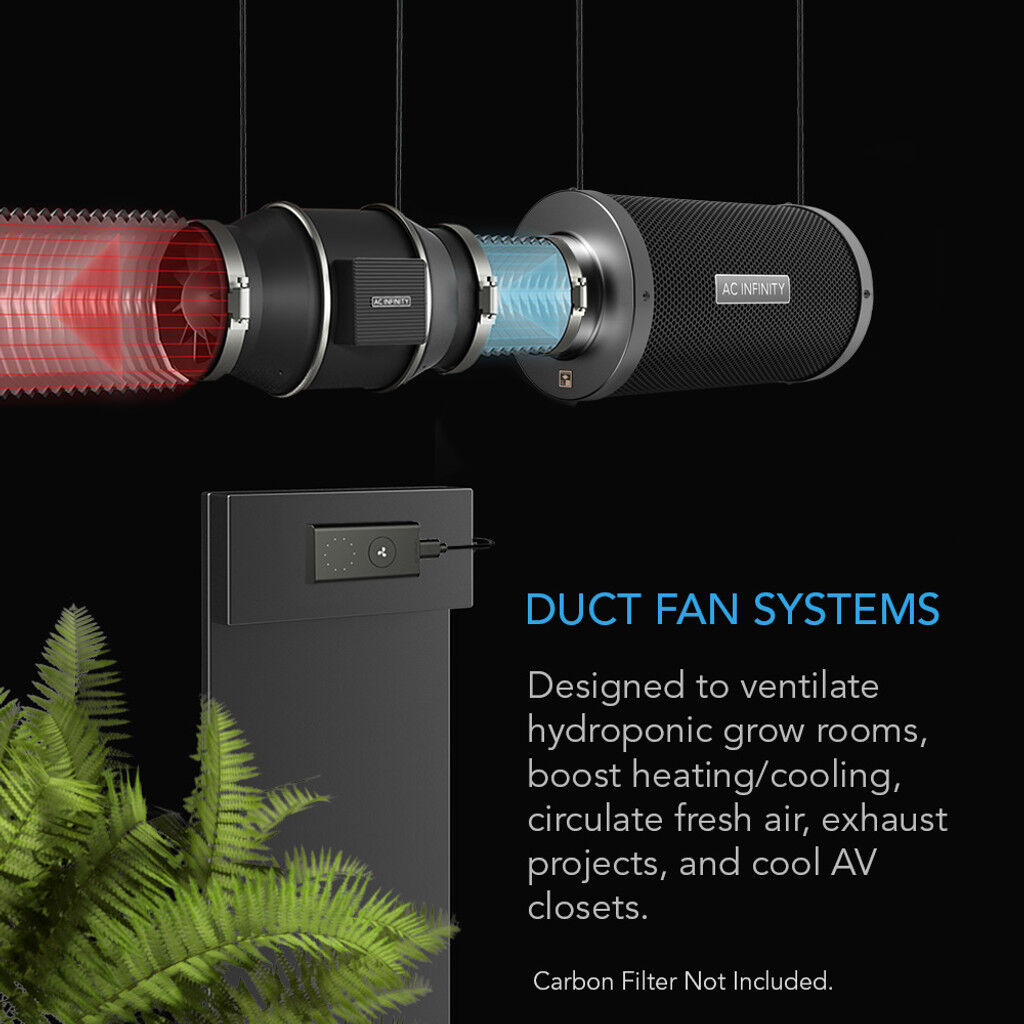

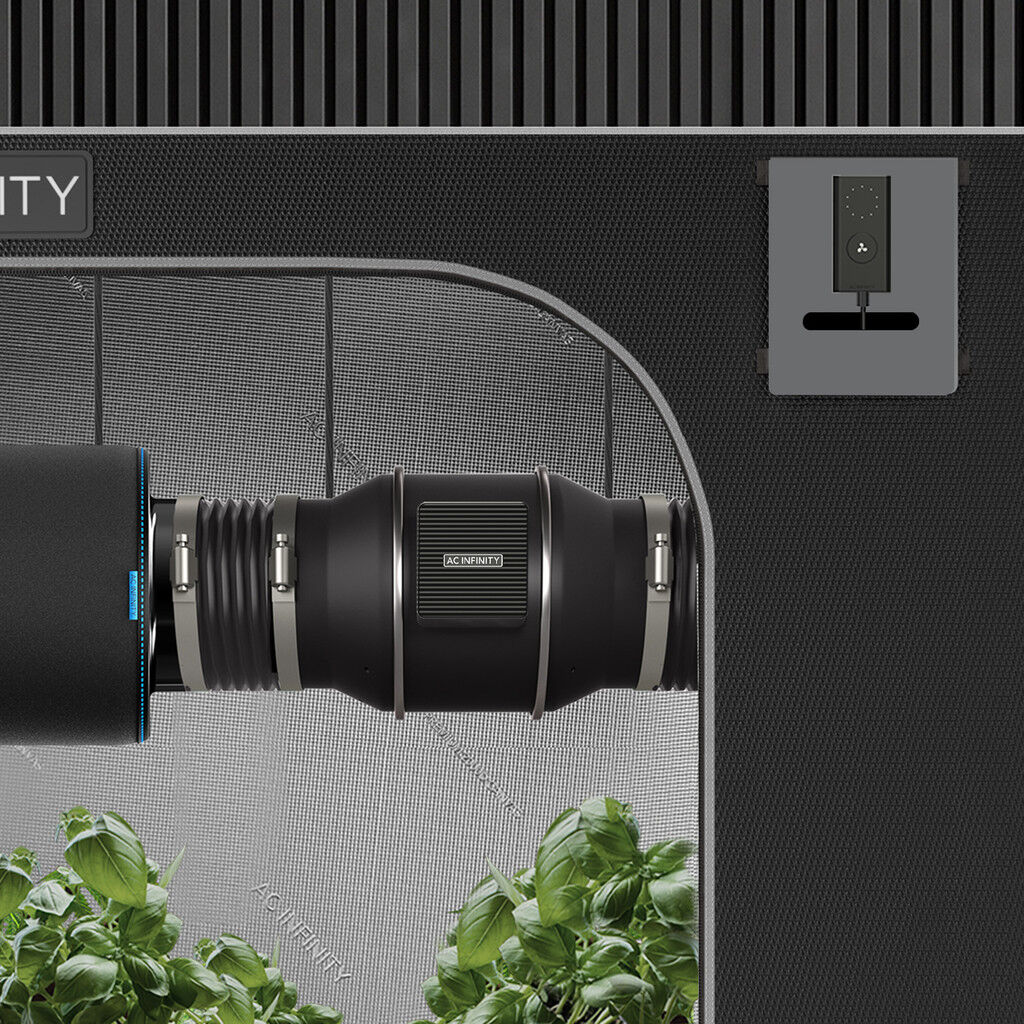

The AC Infinity CLOUDLINE PRO S8 AI-CLS8 is a premium 8-inch inline duct fan system engineered for high-output, low-noise ventilation in hydroponic grow tents, HVAC ducting, AV closets, server racks, and more. Delivering a powerful 807 CFM at just 39 dBA, this fan is powered by a PWM-controlled EC motor designed for energy efficiency, low heat output, and ultra-quiet operation.

Its advanced mixed-flow impeller system, combined with stator blades and dual hydrodynamic wind circles, ensures strong airflow performance in high-resistance ducting setups. The detachable motor box allows easy maintenance access, while dual ball bearings rated for 67,000 hours support versatile mounting in both horizontal and vertical positions.

The included 10-speed wired controller provides precise airflow management and retains speed settings even after power loss. Compatible with all UIS™ smart controllers, including Controller 69, Controller 69 PRO, and AI+, the CLOUDLINE S8 can be seamlessly integrated into a WiFi-connected grow automation system with scheduling, triggers, and real-time app control.

Features

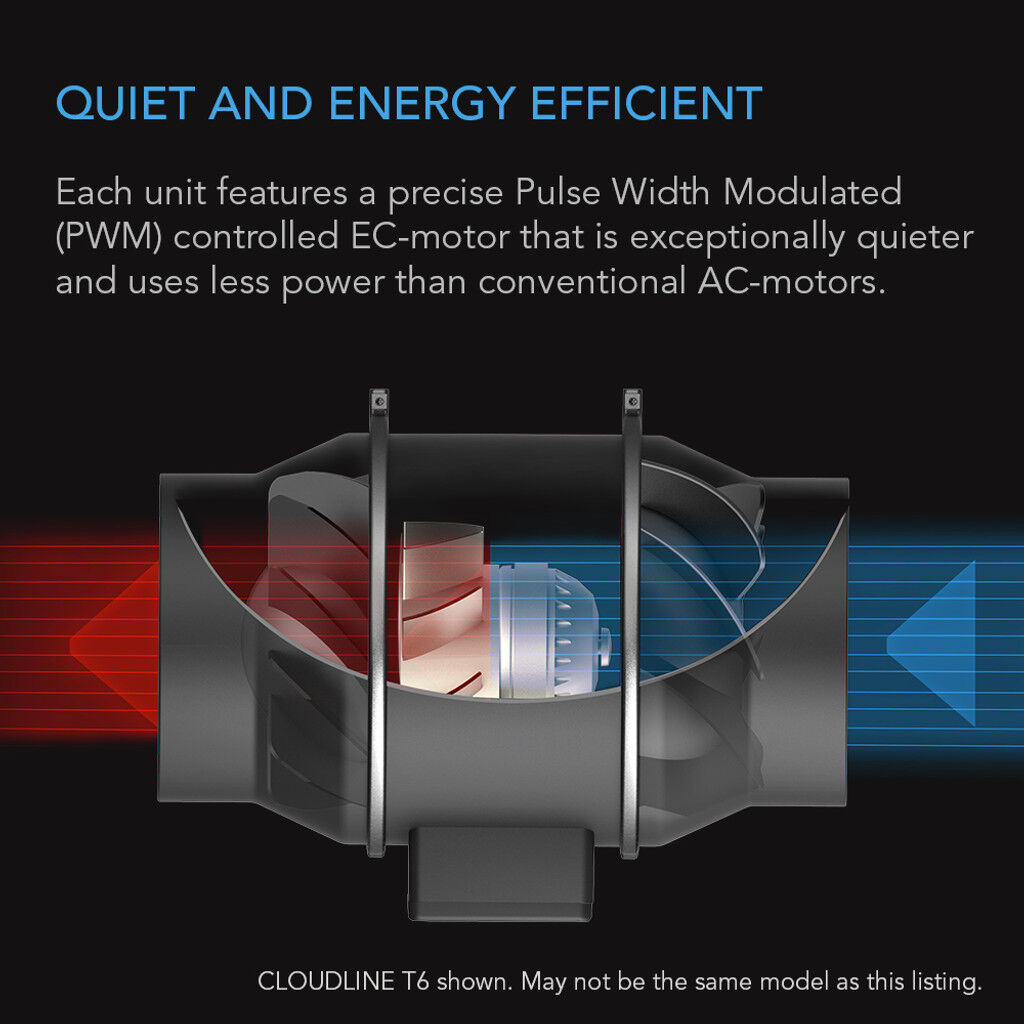

High-Performance EC Motor: PWM-controlled for low noise, low power draw, and long operational life.

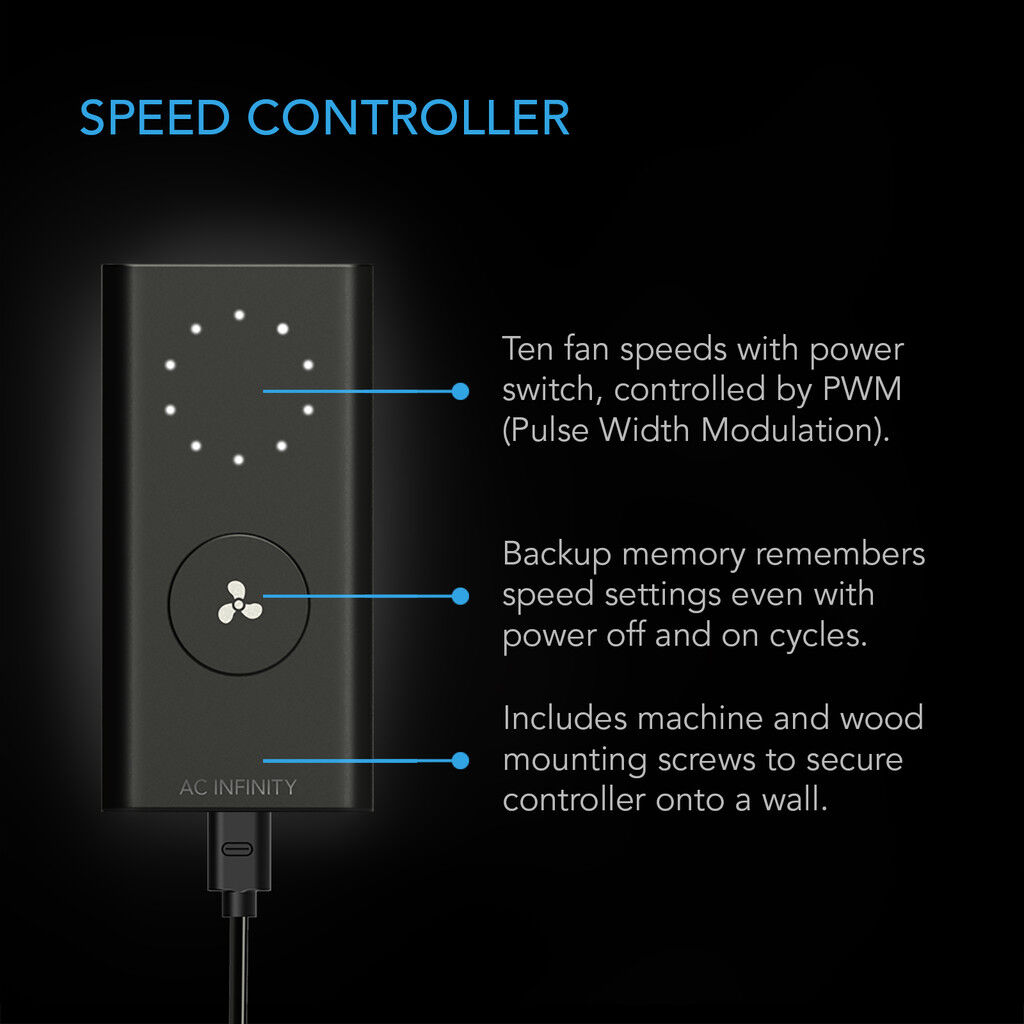

10-Speed Wired Controller: Offers manual control with memory backup and UIS upgradeability for smart features.
Maximum Airflow: Powerful 807 CFM output ideal for large grow tents or high-resistance HVAC systems.
Durable & Versatile: IP44-rated build with dual ball bearings and mounting flexibility in any orientation.
UIS™ Compatible: Integrates with AC Infinity's ecosystem for app-based climate automation and alerts.

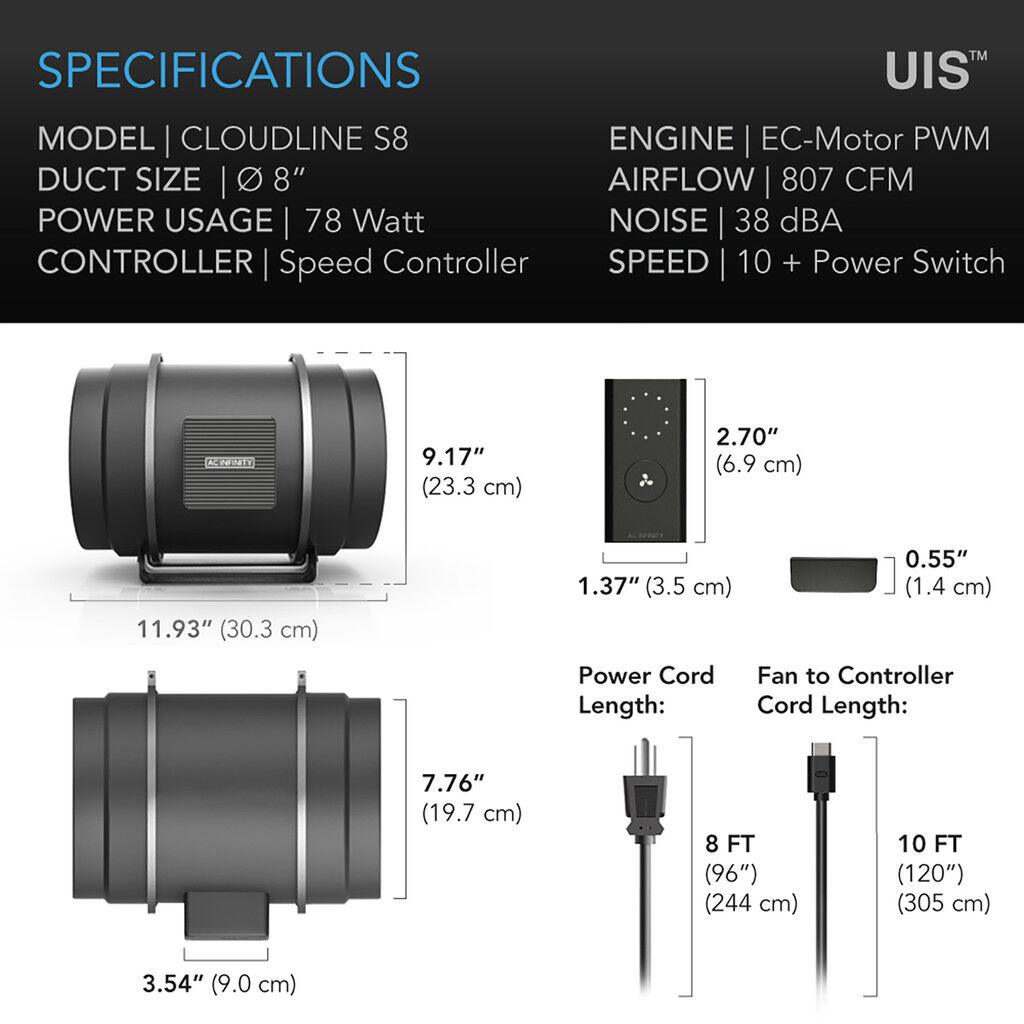

Specifications

Attribute	Details
Product Model	AI-CLS8
UPC Code	819137020849
Duct Size	8"
Fan Dimensions	21.7 x 30.2 x 12.3 cm (8.54 x 11.89 x 9.17 in.)
Mounting Hole Distance	10.0 x 9.4 cm (3.94 x 3.70 in.)
Screw Hole Size	Ø 0.55 cm (Ø 0.217 in.)
Controller Dimensions	8.5 x 3.6 x 1.3 cm (3.34 x 2.95 x 0.51 in.)
Cord to Controller	305 cm (10 feet)
Cord to Plug	244 cm (8 feet)
Total Airflow	807 CFM
Total Noise	39 dBA
Static Pressure	746 Pa
Voltage	100–240V AC
Frequency	50/60 Hz
Max Power Draw	180 W
Average Power Usage	78 W
Current	2.3 A
Power Plug Type	US Plug (NEMA 5-15 Type B)
Operating Humidity	35 to 85% RH
Operating Temperature	32–140°F
Waterproof Rating	IP44
Bearings	Dual Ball Bearing
Mounting Positions	Horizontal or Vertical
Life Expectancy	67,000 Hours
