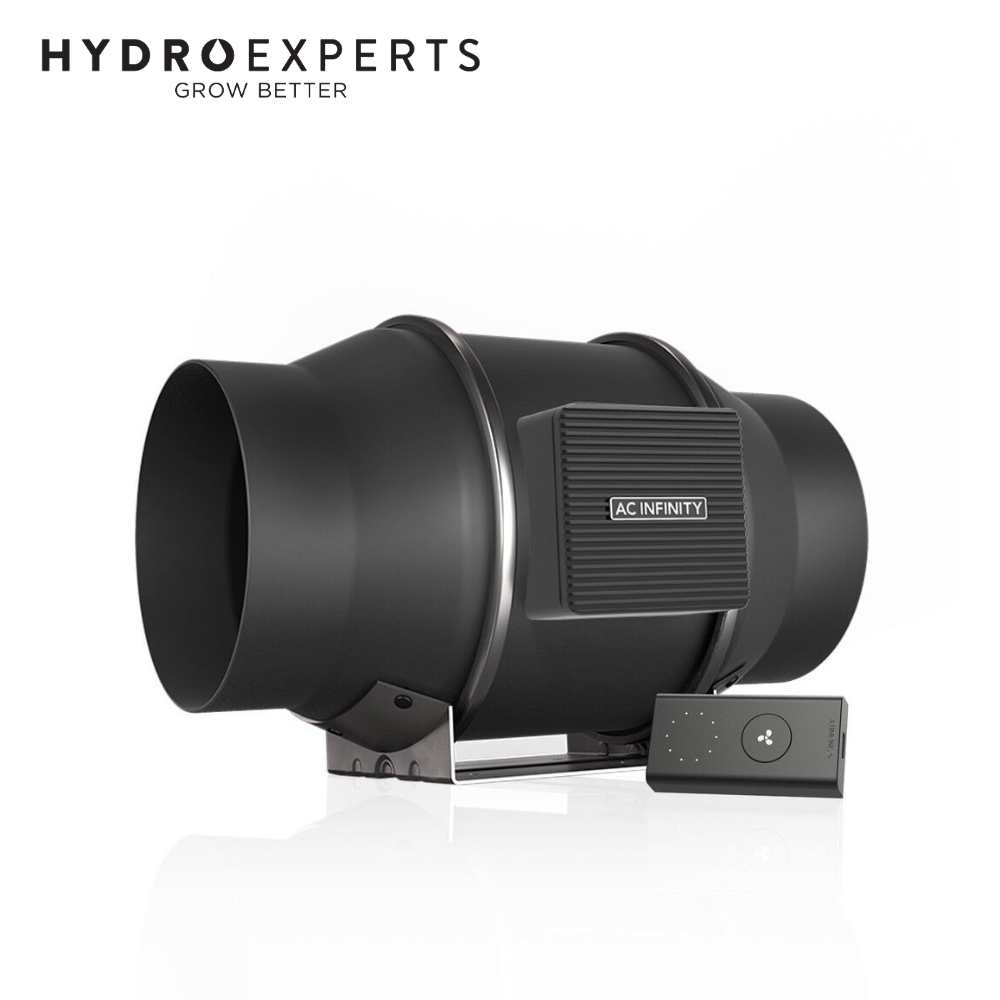

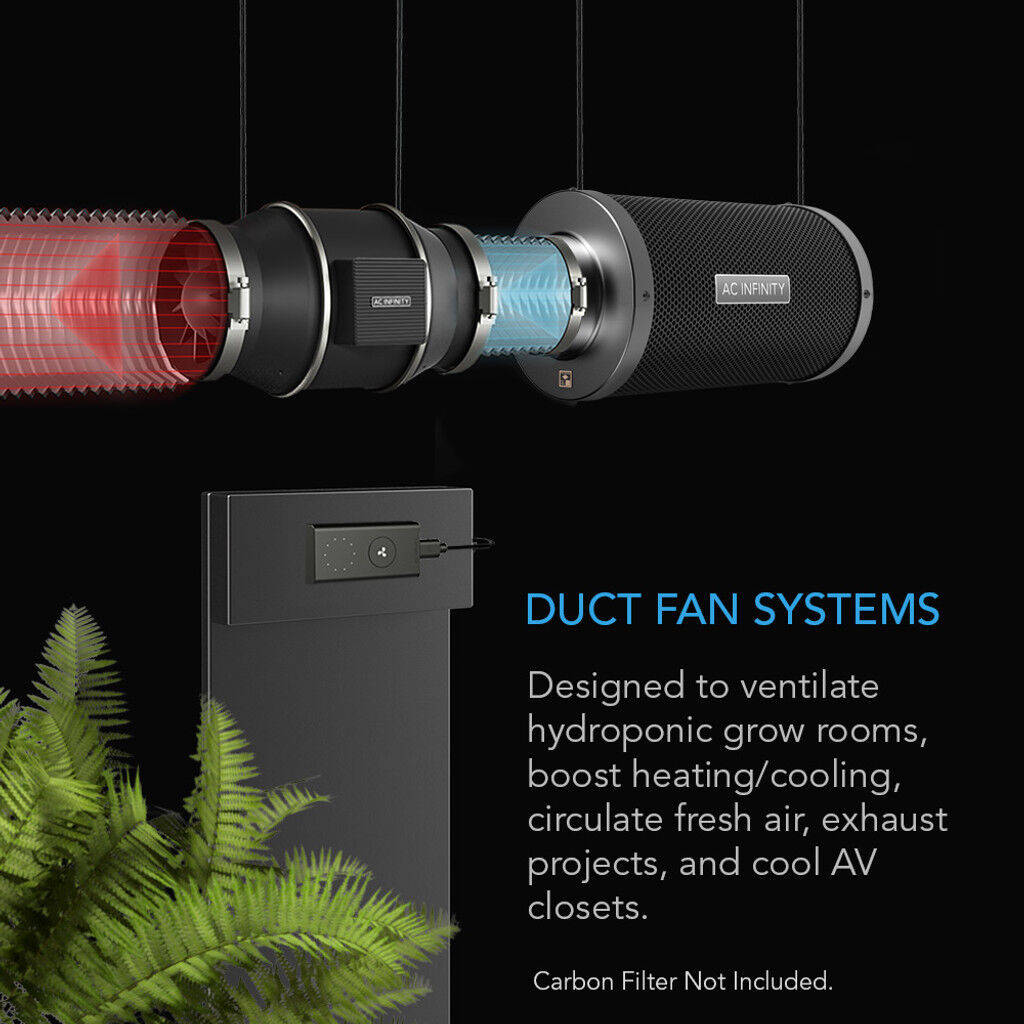

The AC Infinity CLOUDLINE PRO S6 Inline Duct Fan AI-CLS6 is a powerful and whisper-quiet 6-inch inline fan system designed for precision air control in grow tents, hydroponic setups, HVAC spaces, AV closets, and more. Featuring an advanced PWM-controlled EC motor, this fan delivers up to 402 CFM with low noise output at just 32 dBA, making it ideal for ventilation applications where sound matters.

Its mixed-flow impeller design, stator blades, and dual hydrodynamic wind circles ensure efficient airflow through high static pressure areas, such as ductwork with carbon filters or bends. The included 10-speed wired controller allows precise control over fan speed, with memory backup to retain settings after power loss. The EC motor is housed in a detachable module for easy maintenance and long-term reliability.

Fully compatible with the UIS™ ecosystem, the CLOUDLINE PRO S6 can be upgraded with smart AC Infinity controllers like Controller 69, 69 PRO, or AI+ for automated scheduling, app-based remote control, and dynamic climate triggers. The unit is IP44-rated and features dual ball bearings rated for 67,000 hours, ensuring long life and dependable performance in tough grow environments.

Features

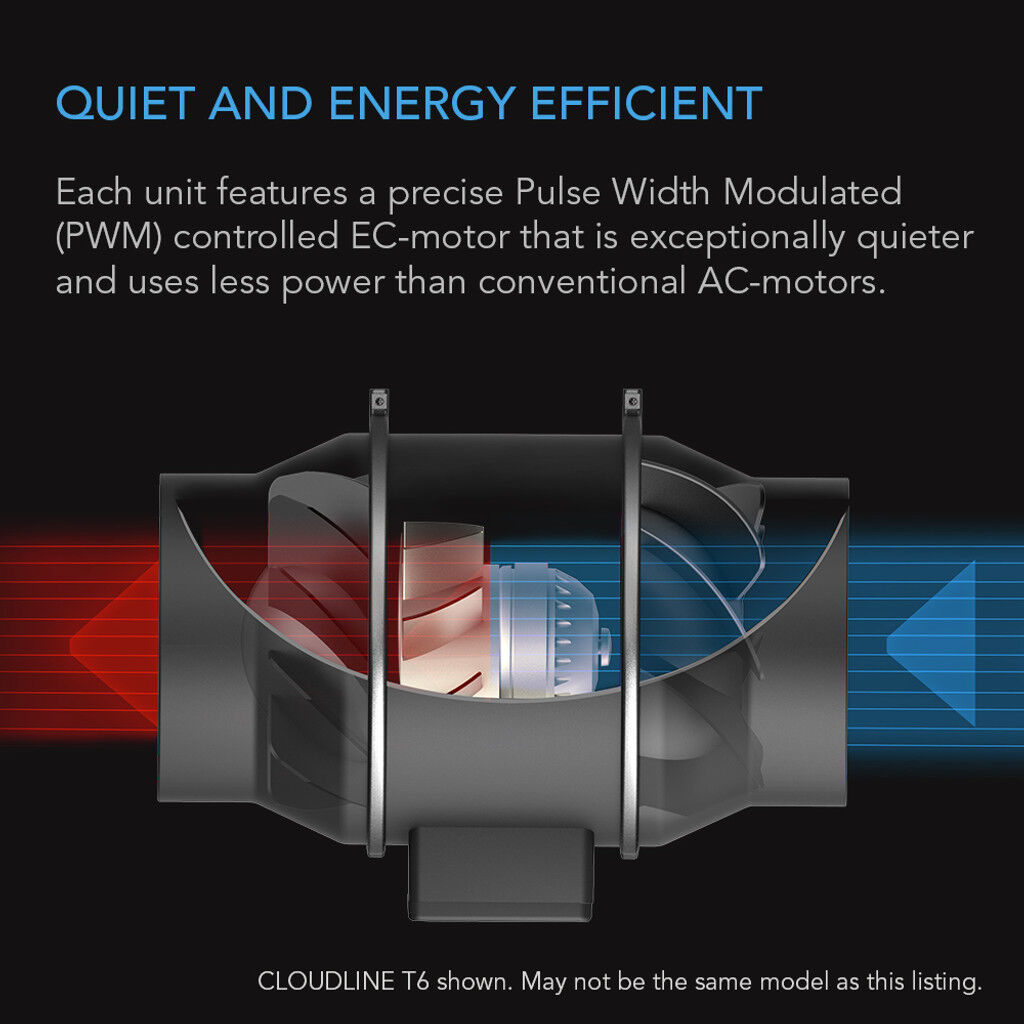

High-Efficiency EC Motor: PWM-controlled motor offers precise speed adjustment with ultra-quiet performance.
Powerful Airflow: 402 CFM capacity for ventilating larger grow tents and static-pressure-heavy systems.

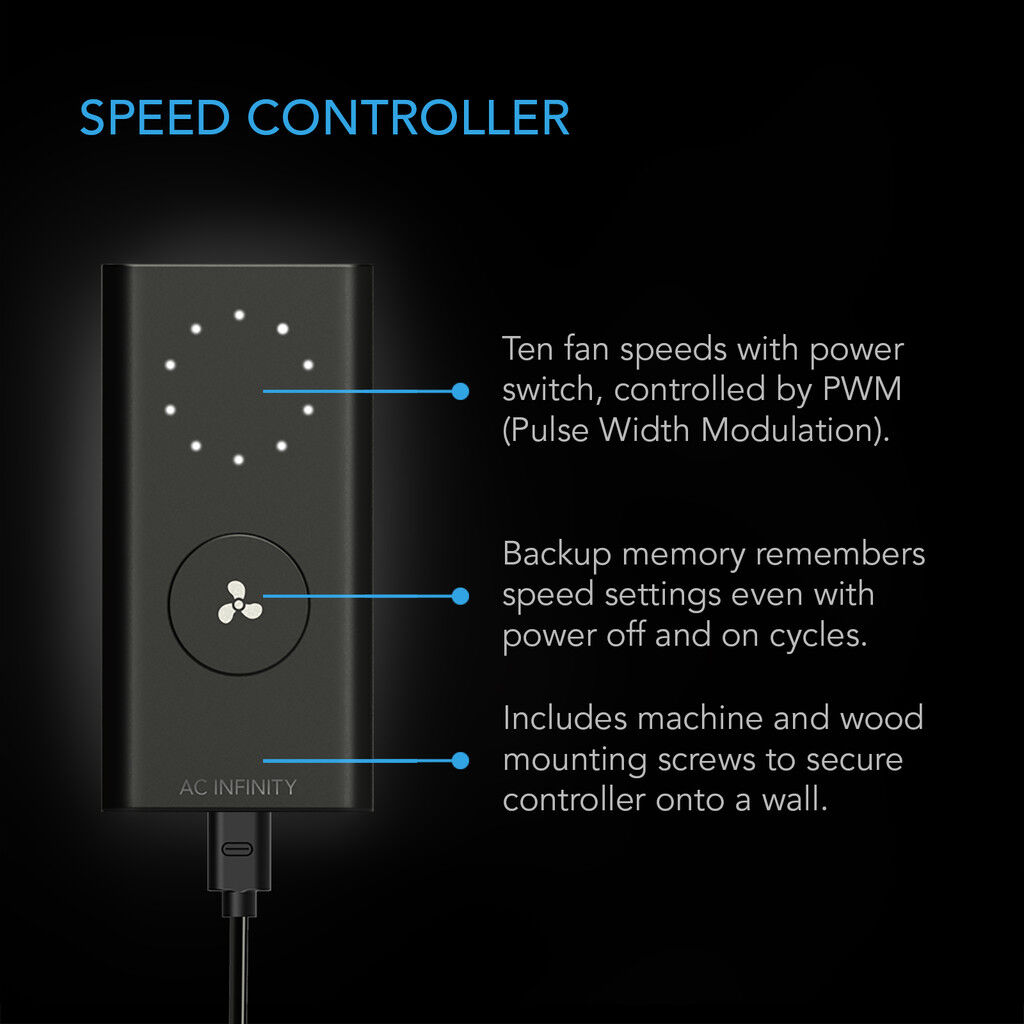

10-Speed Controller: Wired manual controller offers custom airflow levels with speed memory retention.
UIS™ Compatible: Upgradeable with UIS controllers for WiFi-based scheduling, alerts, and grow room automation.
Durable & Quiet: IP44-rated, dual-ball bearing motor rated for 67,000 hours—mounts horizontally or vertically.

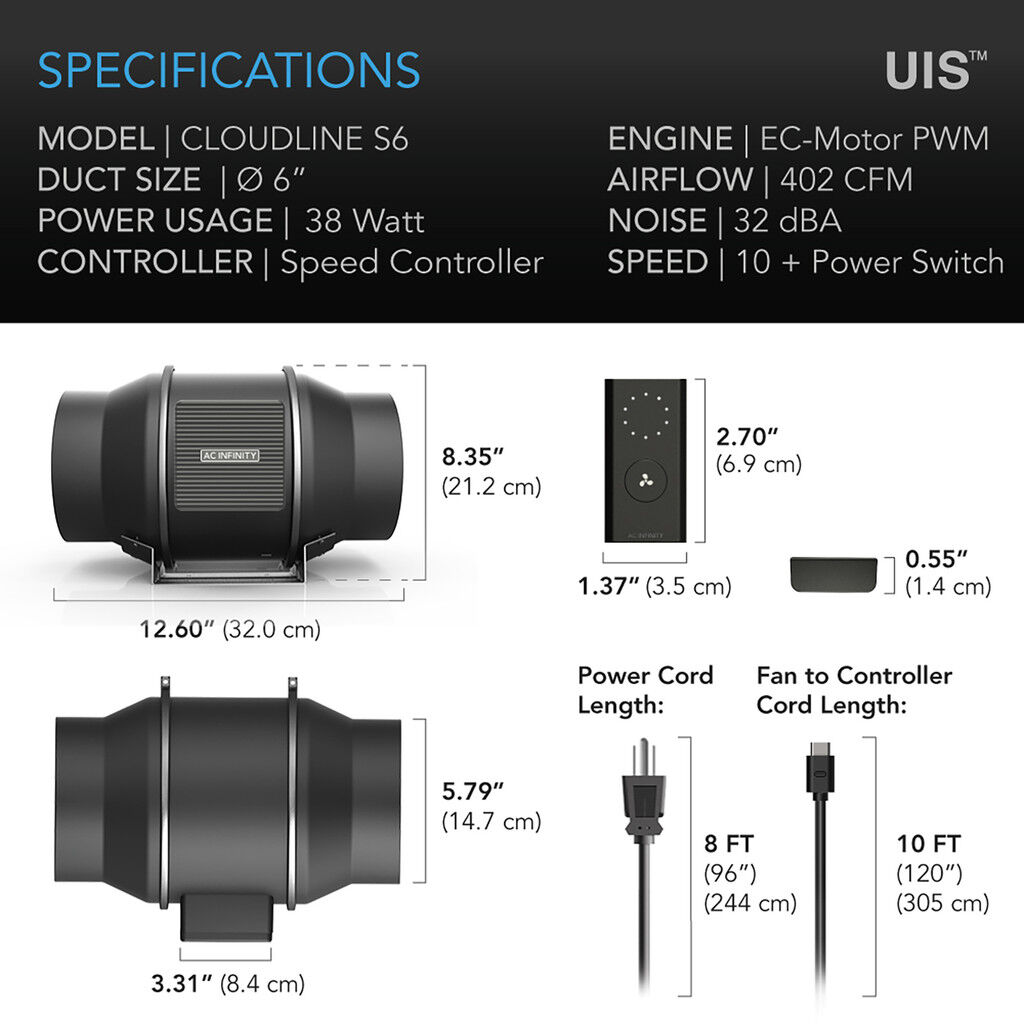

Specifications

Attribute	Details
Product Model	AI-CLS6
UPC Code	819137020306
Duct Size	6"
Fan Dimensions	21.2 x 32.0 x 20.0 cm (7.87 x 12.60 x 8.35 in.)
Controller Dimensions	8.5 x 3.6 x 1.3 cm (3.34 x 2.95 x 0.51 in.)
Mounting Hole Distance	8.0 x 6.0 cm (3.15 x 2.36 in.)
Screw Hole Size	Ø 0.6 cm (Ø 0.236 in.)
Cord Length to Controller	305 cm (10 feet)
Total Airflow	402 CFM
Total Noise	32 dBA
Static Pressure	503 Pa
Max Speed	2800 RPM
Voltage	100–240V AC
Frequency	50/60 Hz
Max Power Draw	70 W
Average Power Usage	38 W
Current	0.94 A
Power Plug Type	US Plug (NEMA 5-15 Type B)
Humidity Range	35 to 85% RH
Temperature Range	32–140°F
Ingress Protection	IP44
Bearings	Dual Ball Bearing
Mounting Positions	Horizontal or Vertical
Life Expectancy	67,000 Hours
