AC Infinity Cloudray S9 EC Clip Fan – 230MM | 405 CFM | 10-Speed | IP54

SKU: NEWPND-ACCCS9
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

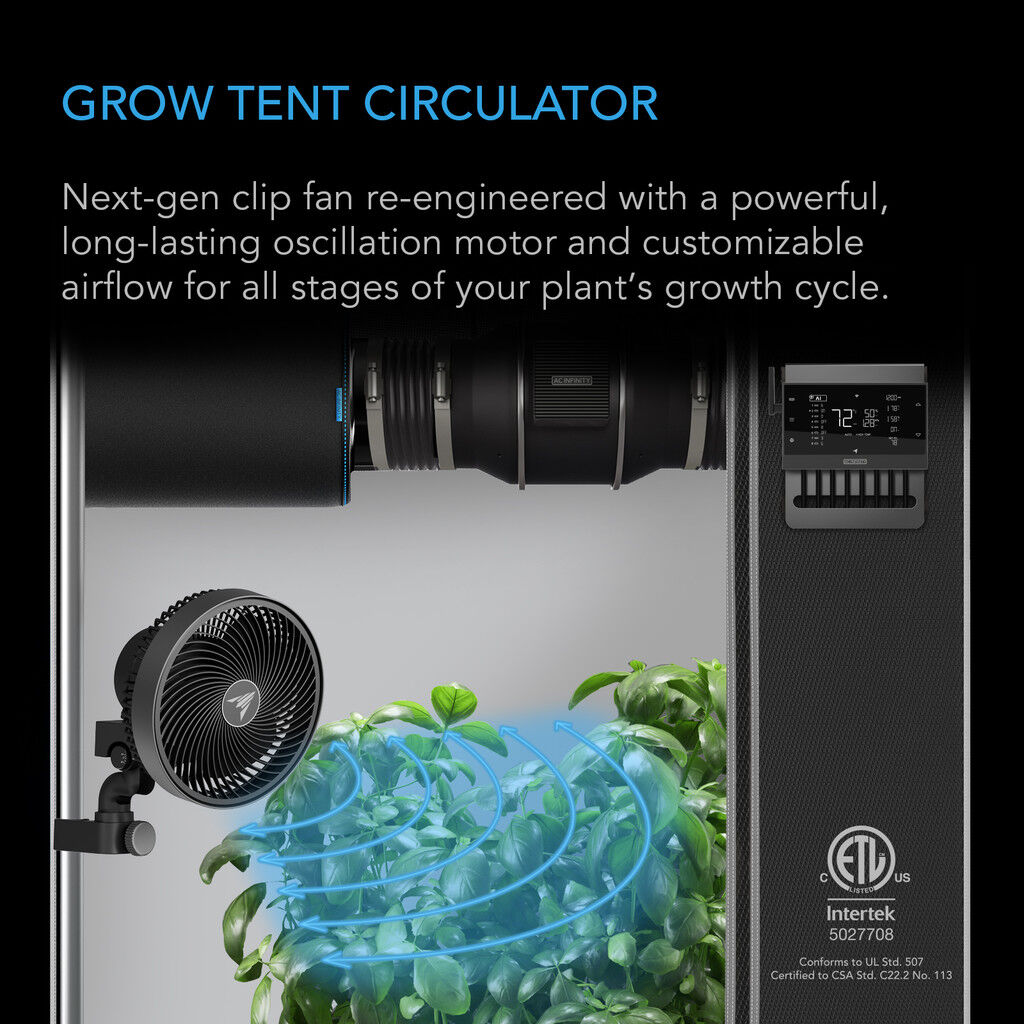

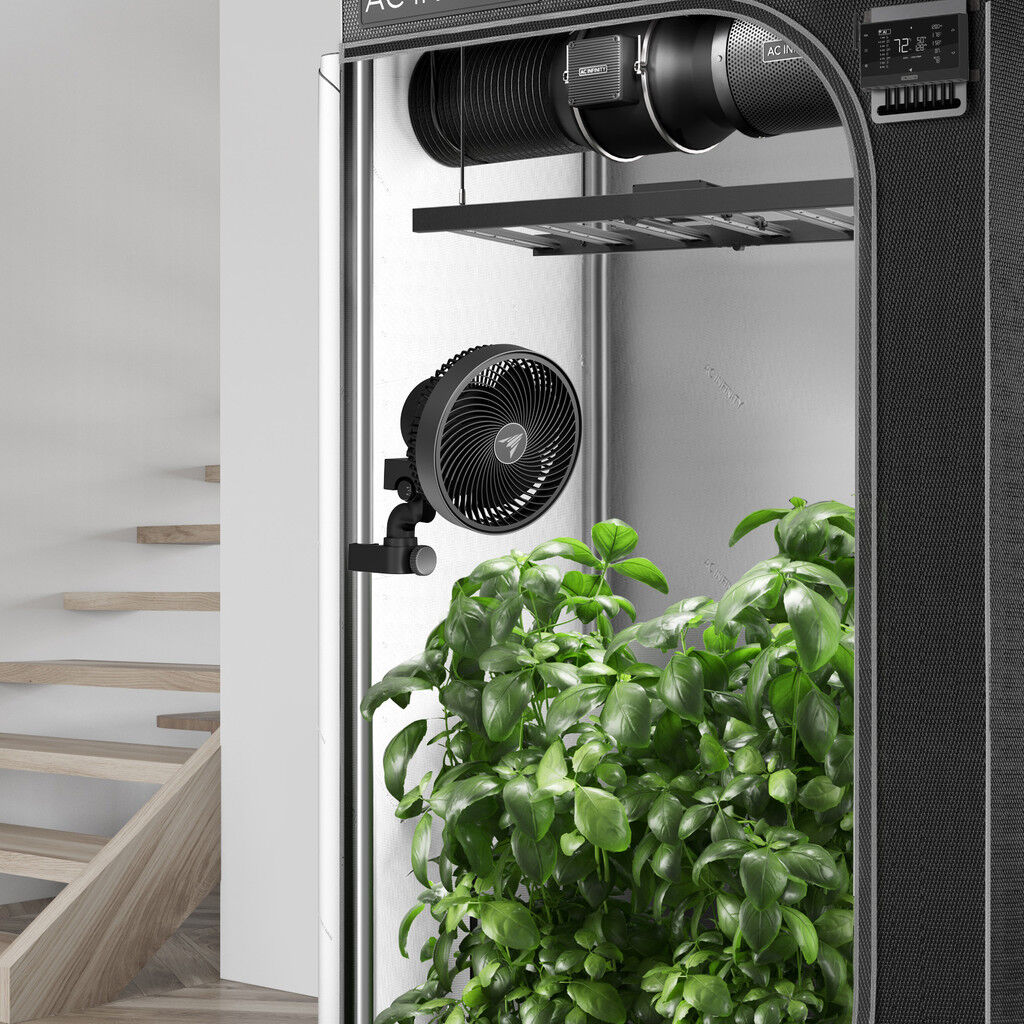

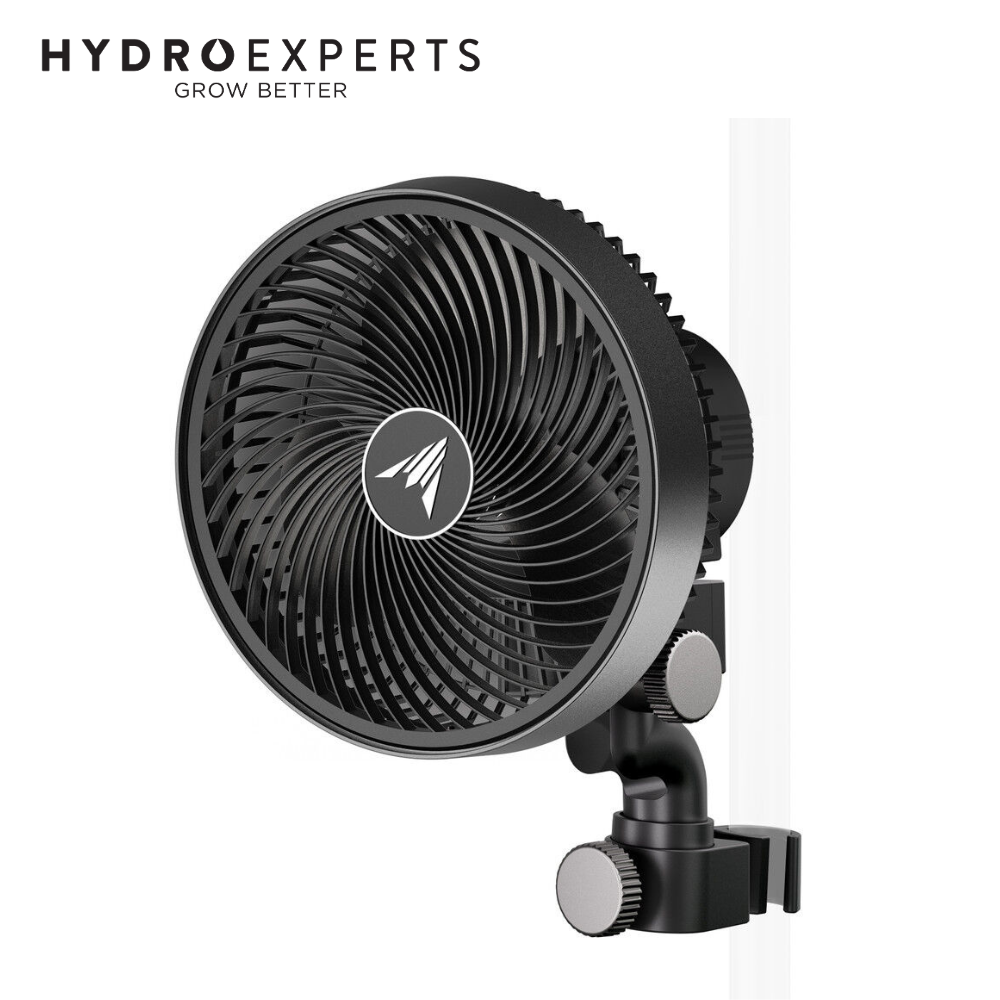

The AC Infinity CLOUDRAY S9 Clip Fan AC-CCS9 is a powerful, smart circulation solution designed to deliver optimised airflow for every stage of plant growth. Featuring a 9-inch impeller powered by a long-life EC motor, this fan provides 405 CFM of airflow across 10 speed levels, 10 dynamic wind modes, and 10 oscillation settings, allowing precise control over your growing environment.

Engineered with carbon steel gears, dual-ball bearings, and a brushless motor, this clip-on fan boasts a rated lifespan of 67,000 hours and operates quietly at just 35 dBA. The vise-grip clamp is built from metal for secure attachment to grow tent poles in both horizontal and vertical positions, making it ideal for compact setups. Rated IP54, it is resistant to humidity and dust—perfect for high-performance use in greenhouses, grow tents, and controlled-environment agriculture.

Fully integrated into the UIS™ ecosystem, the CLOUDRAY S9 connects with AC Infinity smart controllers (such as Controller 69, 69 PRO, and AI+) for WiFi app automation, climate trigger response, grow cycle scheduling, and real-time environmental feedback via the AC Infinity app.

Features

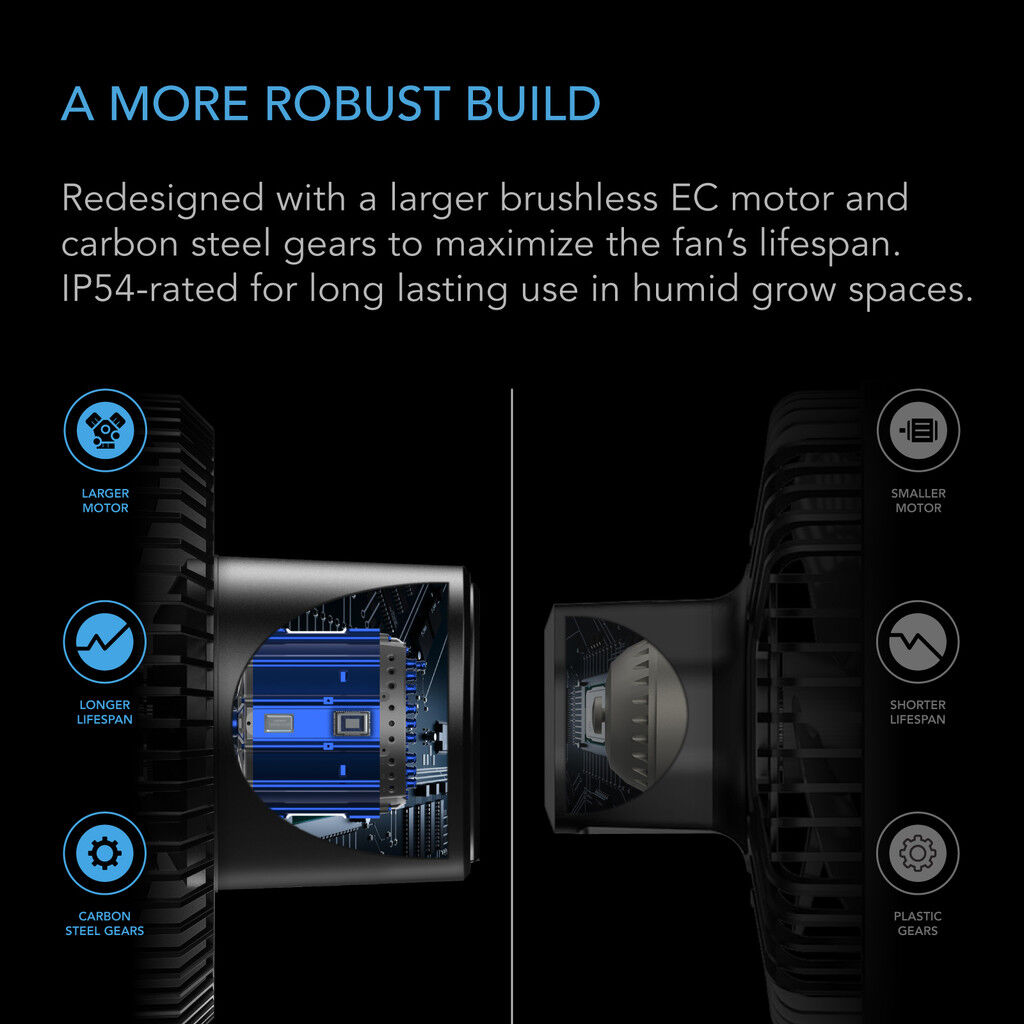

  • High-Performance EC Motor: Designed with carbon steel gears and dual-ball bearings for long-lasting, energy-efficient airflow control.

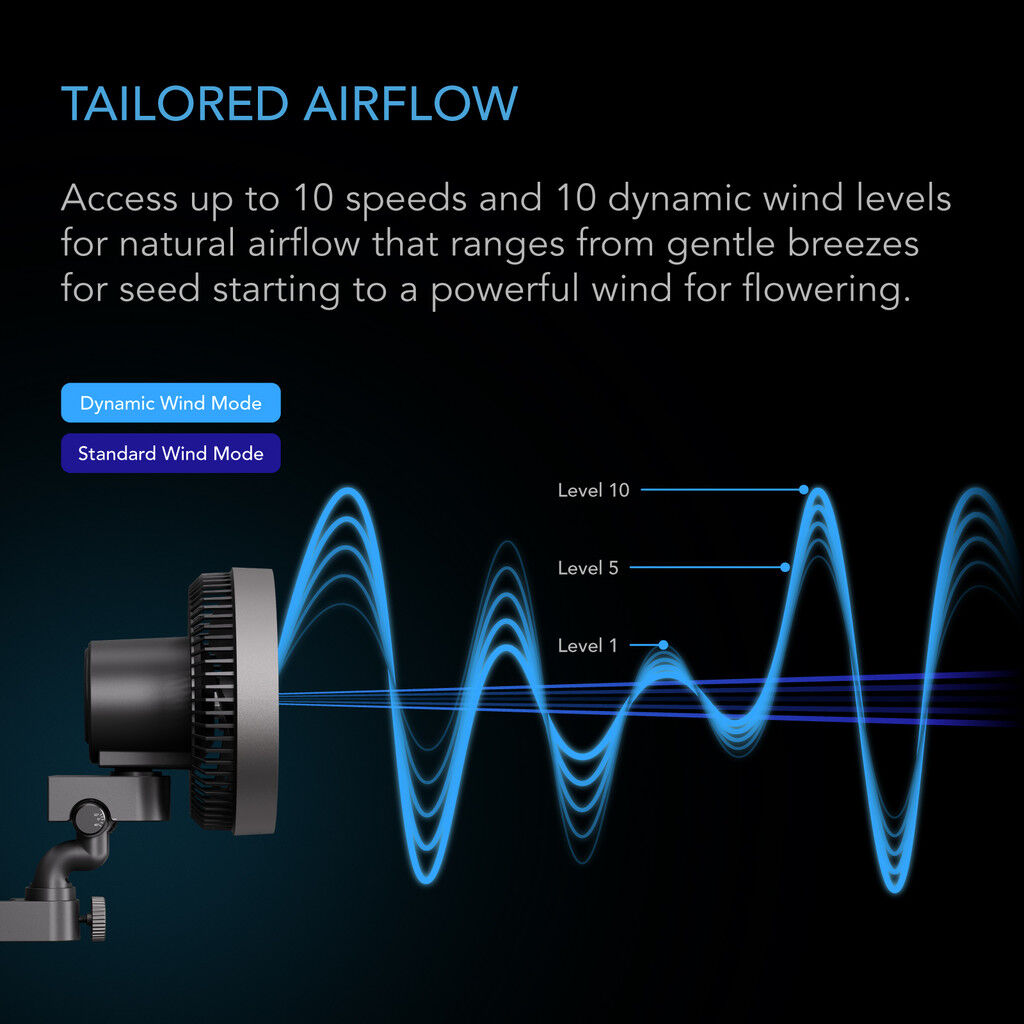

  • 10 Speeds & Wind Modes: Simulates natural breezes and varying air currents to reduce plant stress and support vigorous growth.

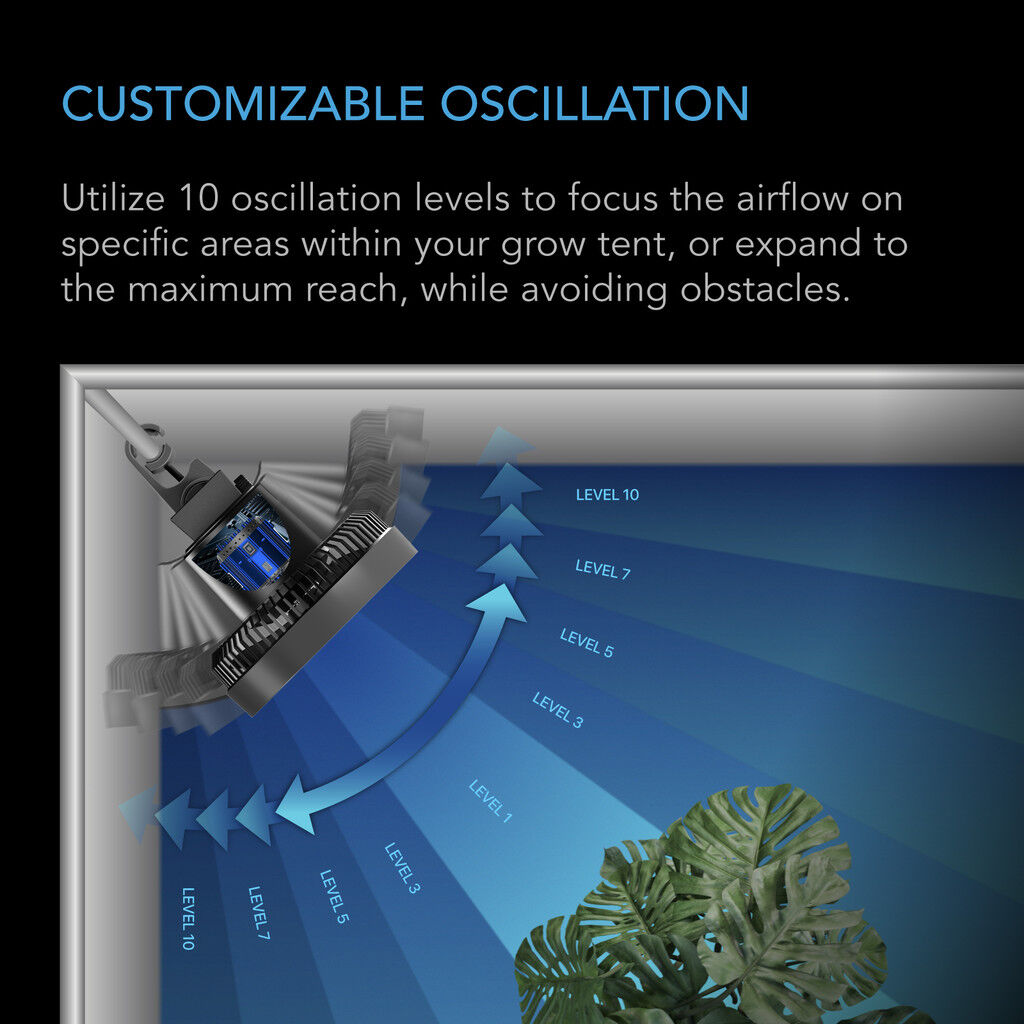

  • Customisable Oscillation: Offers 10 auto oscillation levels and 90° rotation for tailored tent-wide or spot airflow.
  • Smart UIS™ Integration: Links to WiFi-enabled controllers for scheduling, climate-triggered automation, and mobile app access.
  • Heavy-Duty & Weather Resistant: Built for tough grow room environments with an IP54 waterproof rating and 67,000-hour lifespan.

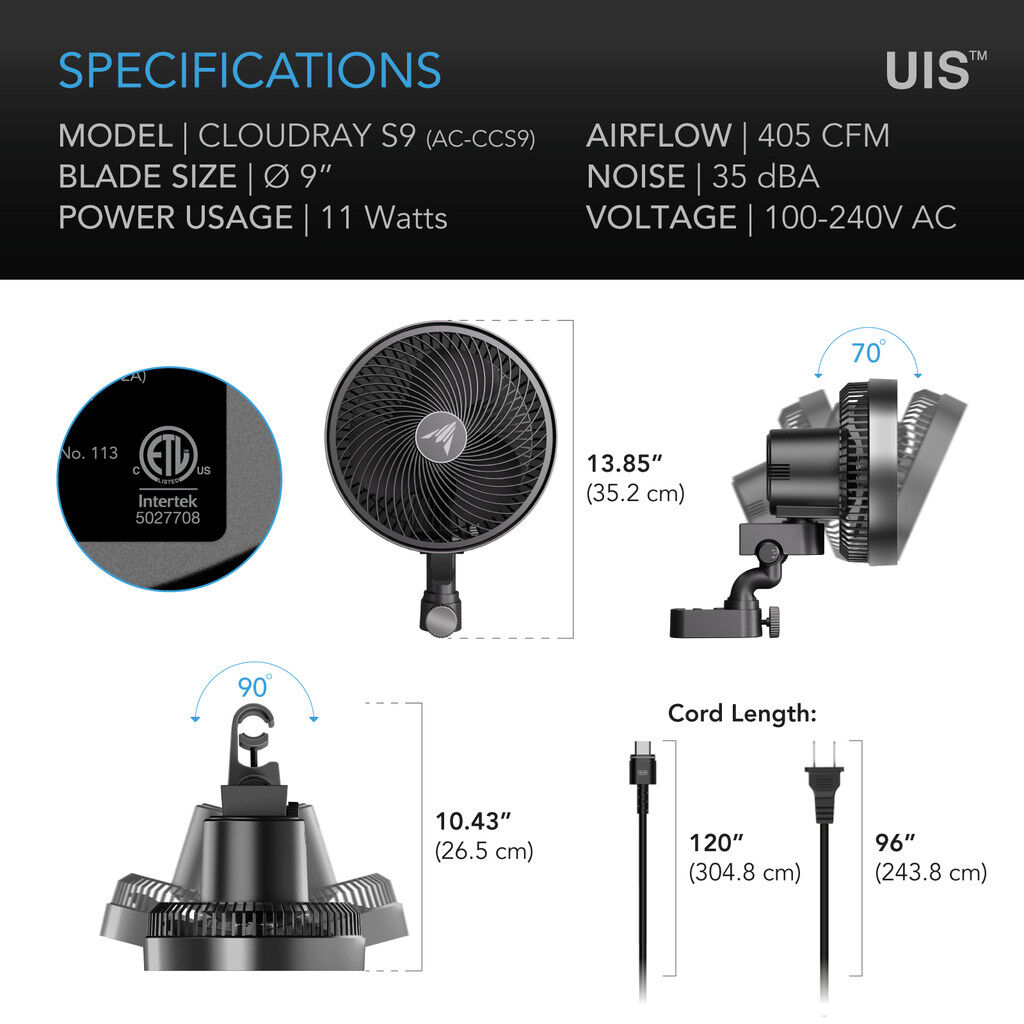

Specifications

Attribute Details
Product Model AC-CCS9
UPC Code 819137022461
Impeller Size 9.0"
Dimensions 26.5 x 35.2 cm (10.43 x 13.85 in.)
Cord Length 244 cm (8 feet)
Maximum Airflow 405 CFM
Total Noise 35 dBA
Static Pressure 25 Pa
Operating Voltage 100–240V AC
Power Consumption 11 W
Current 0.15 A
Operating Humidity 35 to 85% RH
Operating Temperature 32–140°F
Waterproof Rating IP54
Rotation Range 90°
Tilt Angle 55°
Oscillation Automatic (10 Levels)
Fan Bearings Dual Ball Bearing
Mounting Positions Horizontal or Vertical
Life Expectancy 67,000 Hours

In The Box

  • [1] x AC Infinity Cloudray S9 EC Clip Fan  – 230MM | 405 CFM | 10-Speed | IP54

Documents

View PDF brochure for AC Infinity Cloudray S9 EC Clip Fan  – 230MM | 405 CFM | 10-Speed | IP54 Download PDF brochure

   ETL Cert. (Whole Product): Click here

Documents

   ETL Cert. (Whole Product): Click here
