Dutch Original Can-Filter Classic - Prefilter Included [Model: Can 33 (150MM)]

#SKU: HEX3001
Brand: Can-Filter
$279.95

Model


Calculate Shipping


Description



The original carbon air filter! Can-Filters has been manufacturing carbon air filters for the last 15 years. With time comes experience and professionalism. This has enabled them to manufacture a high quality, no maintenance, carbon air filter with a tested and true 99.5% odor removing capability and a suggested life span of 12-18 months.

Can-Filters use a custom specified virgin activated Coal based carbon, (CKV4) to ensure the longest possible life in most applications. Whether for commercial, industrial, or residential use you can be sure that the proper carbon type, carbon weight, and bed width has been chosen to give full odor removal.



Specifications



Can 33

  • Max Recirculating (Scrubbing) CFM: 400 cfm / 700 m³h
  • Max Exhaust CFM: 200 cfm / 350 m³h @ 0.1 sec contact time
  • Recommended Min Airflow: 100 cfm / 175 m³h
  • Prefilter: Yes
  • Flange: 150MM (6" Inch) / 200MM (8" Inch)
  • Dimensions: (with pre-filter)
    • Outside Diameter: 30.5cm / 12"
    • Height: 33cm / 13"
    • Total Weight: 11.5kg / 25.3lbs.
    • Carbon Weight: 7.5kg / 16.5lbs.
    • Carbon Bed Depth: 5cm / 2"
  • Max Operating Temp: 80ºC
  • Pressure drop at max cfm: 180pa / .75"wg
  • Recommended Fans: RS150, Max-Fan Pro 150



Can 50

  • Max Recirculating (Scrubbing) CFM: 840 cfm / 1426 m³h
  • Max Exhaust CFM: 420 cfm / 713 m³h @ 0.1 sec contact time
  • Recommended Min Airflow: 210 cfm / 356 m³h
  • Prefilter: Yes
  • Flange: 150MM (6" Inch) / 200MM (8" Inch) / 250MM (10" Inch)
  • Dimensions: (with pre-filter)
    • Outside Diameter: 42cm / 16.5"
    • Height: 50cm / 19.7"
    • Total Weight: 25kg / 55lbs.
    • Carbon Weight: 19kg / 42lbs.
    • Carbon Bed Depth: 6.5cm / 2.56"
  • Max Operating Temp: 80ºC
  • Pressure drop at max cfm: 180pa / .75"wg
  • Recommended Fans: RS200, Max-Fan Pro 200

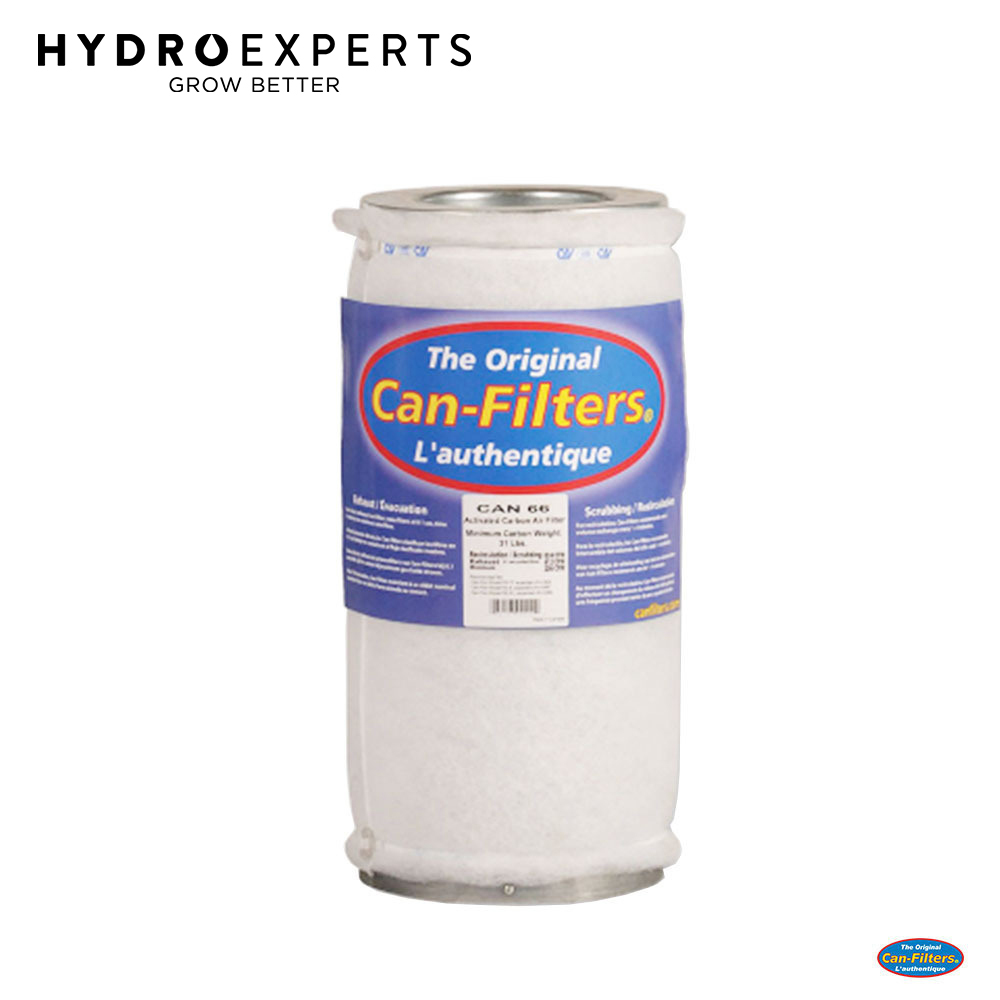

Can 66

  • Max Recirculating (Scrubbing) CFM: 824 cfm / 1400 m³h
  • Max Exhaust CFM: 412 cfm / 700 m³h @ 0.1 sec contact time
  • Recommended Min Airflow: 206 cfm / 350 m³h
  • Prefilter: Yes
  • Flange: 150MM (6" Inch) / 200MM (8" Inch) / 250MM (10" Inch)
  • Dimensions: (with pre-filter)
    • Outside Diameter: 30cm / 12"
    • Height: 66cm / 26"
    • Total Weight: 20kg / 44lbs.
    • Carbon Weight: 14kg / 31lbs.
    • Carbon Bed Depth: 5cm / 2"
  • Max Operating Temp: 80ºC
  • Pressure drop at max cfm: 180pa / .75"wg
  • Recommended Fans: RS150, RS200, Max-Fan Pro 200



Can 75

  • Max Recirculating (Scrubbing) CFM: 1200 cfm / 2000 m³h
  • Max Exhaust CFM: 600cfm / 1000 m³h
  •    @ 0.1 sec contact time
  • Recommended Min Airflow: 300 cfm / 500 m³h
  • Prefilter: Yes
  • Flange: 200MM (8" Inch) / 250MM (10" Inch) / 300MM (12" Inch)
  • Dimensions: (with pre-filter)
    • Outside Diameter: 42cm / 16.5"
    • Height: 75cm / 29.5"
    • Total Weight: 36kg / 79lbs.
    • Carbon Weight: 28kg / 61.6lbs.
    • Carbon Bed Depth: 6.5cm / 2.56"
  • Max Operating Temp: 80ºC
  • Pressure drop at max cfm: 180pa/ .75"wg
  • Recommended Fans: RS250, Max-Fan Pro 200



Can 100

  • Max Recirculating (Scrubbing) CFM: 1680 cfm / 2800 m³h
  • Max Exhaust CFM: 840 cfm / 1400 m³h
  • @ 0.1 sec contact time
  • Recommended Min Airflow: 420 cfm / 700 m³h
  • Prefilter: Yes
  • Flange: 200MM (8" Inch) / 250MM (10" Inch) / 300MM (12" Inch)
  • Dimensions: (with pre-filter)
    • Outside Diameter: 42 cm / 16.5"
    • Height: 100 cm / 39.4"
    • Weight: 47kg / 103lbs.
    • Carbon Weight: 37kg / 81.5lbs.
    • Carbon Bed Depth: 6.5 cm / 2.56"
  • Max Operating Temp: 80ºC
  • Pressure drop at max cfm: 180pa / .75"wg
  • Recommended Fans: RS315, Max-Fan Pro 250





  • [1] x Can-Filter Classic

How do I size the proper fan to a filter?

The formula for sizing a room: Length x Width x Height Divided by 3

Gives minimum recommended fan CFM

Match fan to filter

Ex.) 10ft x 10ft x 20ft = 2000 Cubic Feet

2000 Cu.ft / 3 = 667 CFM

667 CFM fan is Minimum fan size for this size area

after establishing fan size, match it to appropriate sized filter. IE, Can-100


How much CFM loss is there through the filter?

Every different size of filter provides a different resistance to each different size and style of fan you put on it, a filter at the maximum exhaust CFM rating has approximately 0.7 wg. pressure drop

All Fans will have a lower CFM at a higher pressure.

For Example at .5"wg

The 10" Max-Fan goes from 1019 CFM to 885 CFM,

The 12" Max-Fan would go from 1708 CFM to 1595 CFM


How much CFM is lost through a 25ft. Section of ducting?

Approximately 3%(Straight hard cast) to 7%(Flex Ducting)

1% to 4%  Additional loss for every 90° Bend


Where is your Can-Filters and Fans manufactured?

The Can-Filters are manufactured in Beautiful British Columbia, Canada/North America

The Fans are manufactured in Germany.


What is the difference between 38-Special Can-Filter and an Original Can-Filter?

The only difference is the carbon bed thickness

38 special = 2" Carbon bed

Original Can-Filter = 2.5" Carbon bed

38-Special expected life = Approx. 1 year

Original Can Filter = Approx. 1.5 Years


Do I need to replace the pre-filter?

It is a good idea to replace the pre-filter when they become dirty because the pre filter is blocking larger dirt and dust particles from getting into the pore structure of the carbon, a dirty pre filter increases the pressure, which will decrease the flow through the filter.


Can my Filter be refilled?

Technically the filter can be re-filled, but it is not agood idea to self-fill the filters at all, the reason for this is that Can-Filters uses an industrial shaker with timed intervals and a dust extraction system, to ensure a packed carbon bed .This eliminates the possibility of preferred air channels through the filter, because as we all know, air does not wait in line to go through a filter it finds the path of least resistance and crowds in. So if you tried packing the filter yourself, as soon as you got it as full as you think you could get it, attached a fan and turned it on, the fan would vibrate the carbon, and over time the carbon would settle and you would be left with air gaps all over the place presenting the air with channels to flow through the filter and possibly leave untreated.


What is the Maximum Temperature/Humidity I can run my filter at?

The maximum recommended temperature that you can run your filter at is 80°C / 176°F

Above 70% humidity the water molecules in the air start to get stuck in the carbon pore structure and slowly diminish the life of the filter.


How long does the filter last?

The life of a filter is determined by the concentration of the contaminant, the relative humidity and the volume of air cleaned. Unfortunately there is no indicator light on the filter that tells you when it is ready to be replaced. Experience with one Can-Filter will give you an expectation for future Can-Filters in your particular application.


Is it recommended to push or pull through the filter?

It is recommended to pull air through the filter, the reason for this is because the filters utilize the most surface area of carbon to clean the air and you use the most of the pre filter to block dirt and debris from entering your carbon pore structure. Another advantage of pulling air through the filter is that your going to have clean air running through your fan instead of air possibly laden with VOC’s, dust, and other airborne particles that could stick to the fan blades and create air resistance.


What is the Can-Filters packed bed design?

During the manufacturing process Can filters uses an industrial shaker to vibrate the filter to ensure the carbon bed is packed tight and full to the top. This process eliminates any preferential channels which would allow the odor to pass through the carbon without the proper contact time.

Can filters only uses quality activated carbon that is designed for our manufacturing process.

The CFG packed bed design filter ensures the highest quality odor control.


What are some other applications for my Can-Filter?

- VOC Removal         -Waste Disposal

- Greenhouses         -Hospitals

- Manufacturing       -Schools

- Cleanrooms          -Washrooms

- Kitchens            -Paint Booths

- Pollution Control   -AirPorts

- Laboratories        -Fabrication

- Locker Rooms


When Air cooling lights, should you push or pull your airflow?

We recommend to push the air through your air cooled lights to avoid overheating your fan and to create a positive air pressure in your ducting and light hoods.

Approximately 150 - 200 CFM is required to air cool a 1000W Bulb.


What is the warranty on your filters and fans?

We warranty our fans for 5 years. Filters are warrantedonly against manufacturing defects.


Basic Fan & Filter Assembly:

Can 33

  • Max Recirculating (Scrubbing) CFM: 400 cfm / 700 m³h
  • Max Exhaust CFM: 200 cfm / 350 m³h @ 0.1 sec contact time
  • Recommended Min Airflow: 100 cfm / 175 m³h
  • Prefilter: Yes
  • Flange: 150MM (6" Inch) / 200MM (8" Inch)
  • Dimensions: (with pre-filter)
    • Outside Diameter: 30.5cm / 12"
    • Height: 33cm / 13"
    • Total Weight: 11.5kg / 25.3lbs.
    • Carbon Weight: 7.5kg / 16.5lbs.
    • Carbon Bed Depth: 5cm / 2"
  • Max Operating Temp: 80ºC
  • Pressure drop at max cfm: 180pa / .75"wg
  • Recommended Fans: RS150, Max-Fan Pro 150



Can 50

  • Max Recirculating (Scrubbing) CFM: 840 cfm / 1426 m³h
  • Max Exhaust CFM: 420 cfm / 713 m³h @ 0.1 sec contact time
  • Recommended Min Airflow: 210 cfm / 356 m³h
  • Prefilter: Yes
  • Flange: 150MM (6" Inch) / 200MM (8" Inch) / 250MM (10" Inch)
  • Dimensions: (with pre-filter)
    • Outside Diameter: 42cm / 16.5"
    • Height: 50cm / 19.7"
    • Total Weight: 25kg / 55lbs.
    • Carbon Weight: 19kg / 42lbs.
    • Carbon Bed Depth: 6.5cm / 2.56"
  • Max Operating Temp: 80ºC
  • Pressure drop at max cfm: 180pa / .75"wg
  • Recommended Fans: RS200, Max-Fan Pro 200



Can 66

  • Max Recirculating (Scrubbing) CFM: 824 cfm / 1400 m³h
  • Max Exhaust CFM: 412 cfm / 700 m³h @ 0.1 sec contact time
  • Recommended Min Airflow: 206 cfm / 350 m³h
  • Prefilter: Yes
  • Flange: 150MM (6" Inch) / 200MM (8" Inch) / 250MM (10" Inch)
  • Dimensions: (with pre-filter)
    • Outside Diameter: 30cm / 12"
    • Height: 66cm / 26"
    • Total Weight: 20kg / 44lbs.
    • Carbon Weight: 14kg / 31lbs.
    • Carbon Bed Depth: 5cm / 2"
  • Max Operating Temp: 80ºC
  • Pressure drop at max cfm: 180pa / .75"wg
  • Recommended Fans: RS150, RS200, Max-Fan Pro 200



Can 75

  • Max Recirculating (Scrubbing) CFM: 1200 cfm / 2000 m³h
  • Max Exhaust CFM: 600cfm / 1000 m³h
  •    @ 0.1 sec contact time
  • Recommended Min Airflow: 300 cfm / 500 m³h
  • Prefilter: Yes
  • Flange: 200MM (8" Inch) / 250MM (10" Inch) / 300MM (12" Inch)
  • Dimensions: (with pre-filter)
    • Outside Diameter: 42cm / 16.5"
    • Height: 75cm / 29.5"
    • Total Weight: 36kg / 79lbs.
    • Carbon Weight: 28kg / 61.6lbs.
    • Carbon Bed Depth: 6.5cm / 2.56"
  • Max Operating Temp: 80ºC
  • Pressure drop at max cfm: 180pa/ .75"wg
  • Recommended Fans: RS250, Max-Fan Pro 200



Can 100

  • Max Recirculating (Scrubbing) CFM: 1680 cfm / 2800 m³h
  • Max Exhaust CFM: 840 cfm / 1400 m³h
  • @ 0.1 sec contact time
  • Recommended Min Airflow: 420 cfm / 700 m³h
  • Prefilter: Yes
  • Flange: 200MM (8" Inch) / 250MM (10" Inch) / 300MM (12" Inch)
  • Dimensions: (with pre-filter)
    • Outside Diameter: 42 cm / 16.5"
    • Height: 100 cm / 39.4"
    • Weight: 47kg / 103lbs.
    • Carbon Weight: 37kg / 81.5lbs.
    • Carbon Bed Depth: 6.5 cm / 2.56"
  • Max Operating Temp: 80ºC
  • Pressure drop at max cfm: 180pa / .75"wg
  • Recommended Fans: RS315, Max-Fan Pro 250
