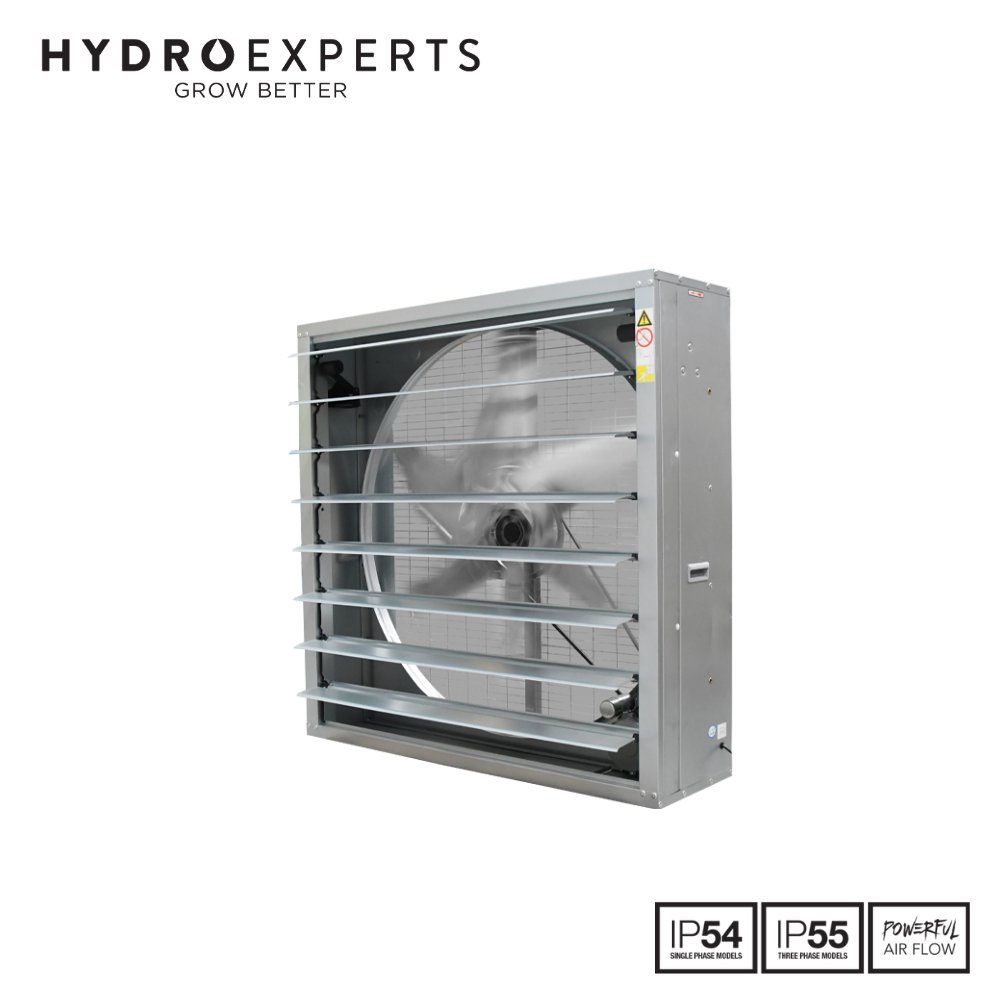

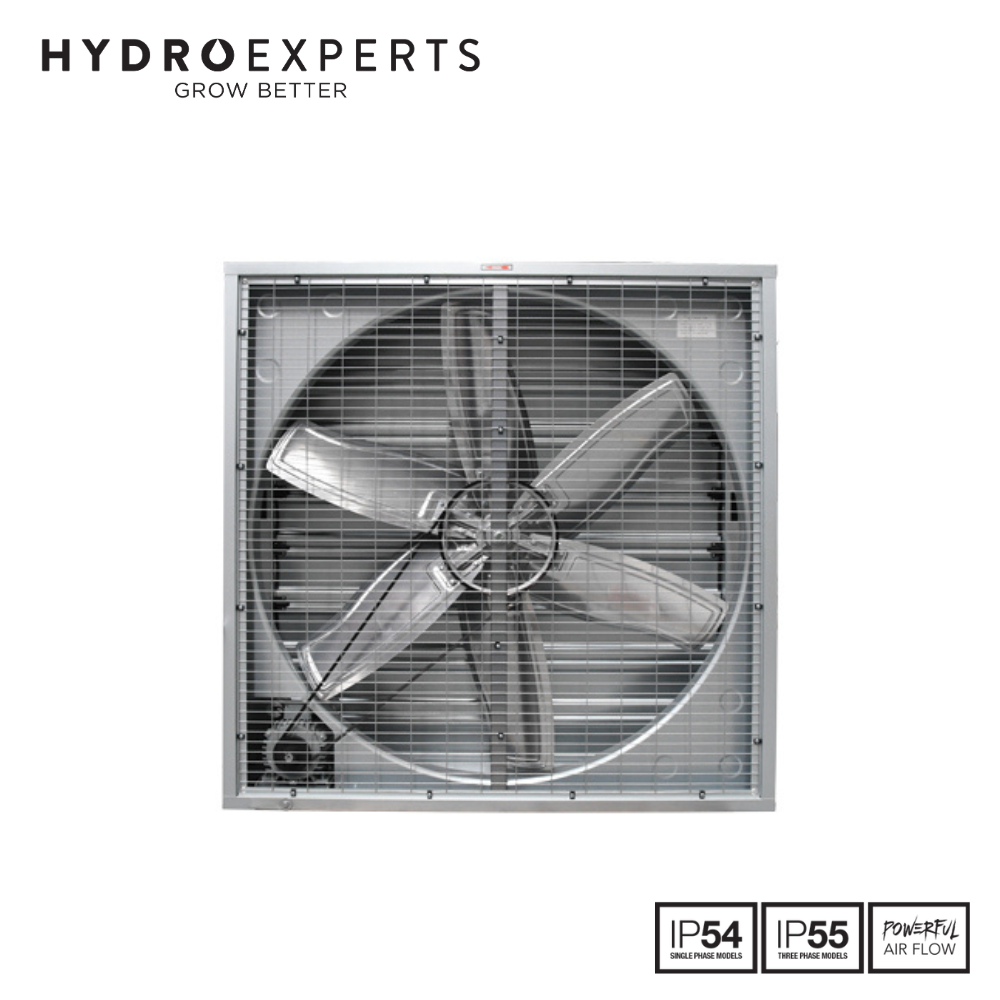

Fantech High Volume Galvanised Steel Wall Fan - HVE080 | 800MM | 1 Phase | w/ Backdraft Dampers

Airflow 16000 M³/H | Power Consumption 0.37 KW | IP54

SKU: FANS51803
|

OUT OF STOCK

POSTAGE APPLIES

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Freight applies

*This item is bullky so freight applies.

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech HVE080 High Volume Wall Fan is a powerful and reliable ventilation solution designed to provide high-volume air movement in large commercial, industrial, and agricultural environments. Delivering up to 16,000m³/hr airflow, this 800mm wall-mounted exhaust fan is ideal for removing heat, humidity, fumes, dust, and stale air from warehouses, workshops, poultry sheds, and recreation facilities.

Constructed from durable galvanised steel, the HVE080 is engineered to withstand demanding operating conditions while maintaining long-term performance. The integrated self-closing mechanical backdraft dampers help prevent weather ingress when the fan is not operating, protecting the building from rain, wind, and debris.

Powered by a dependable 240V single-phase 0.37kW motor, the HVE080 provides an excellent balance of airflow performance and energy efficiency. Operating at a low noise level of just 49dB(A) at 3 metres, it delivers effective ventilation without excessive disruption to the workplace.

With safety guards, grab handles, nutserts, and an adjustable motor plate for simplified maintenance, the Fantech HVE080 High Volume Wall Fan offers a practical and professional ventilation solution for Australian commercial and agricultural facilities.

Features

  • High Volume Airflow - Delivers up to 16,000m³/hr airflow for effective ventilation of large spaces.
  • Single Phase Operation - Operates on standard 240V power, making installation simple and convenient.
  • Heavy Duty Galvanised Steel Construction - Built for long-term durability in commercial and agricultural environments.

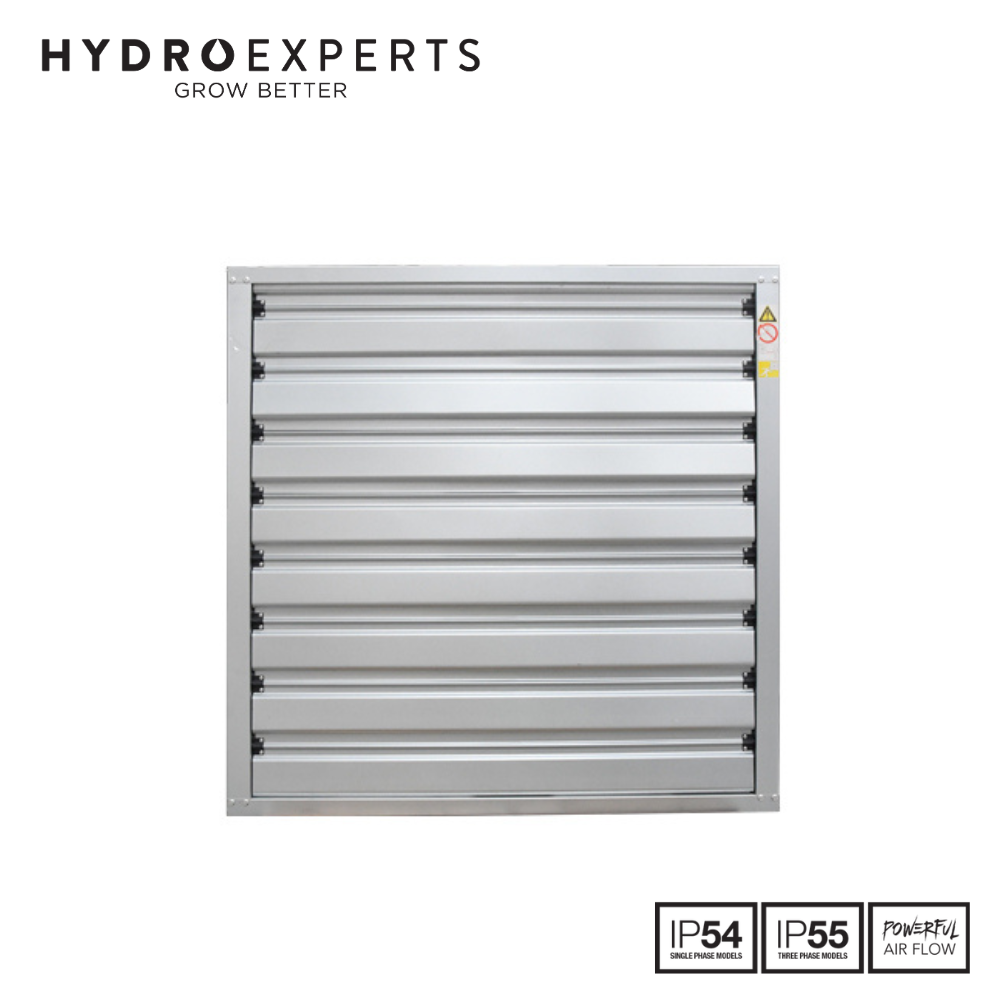

  • Self-Closing Backdraft Dampers - Prevents weather ingress when the fan is switched off.
  • Low Noise Performance - Operates at only 49dB(A) at 3 metres.
  • IP54 Rated Motor - Designed for reliable operation in demanding environments.
  • Safety Guards Included - Factory-fitted guards enhance operator safety.
  • Adjustable Motor Plate - Simplifies belt maintenance and adjustment.

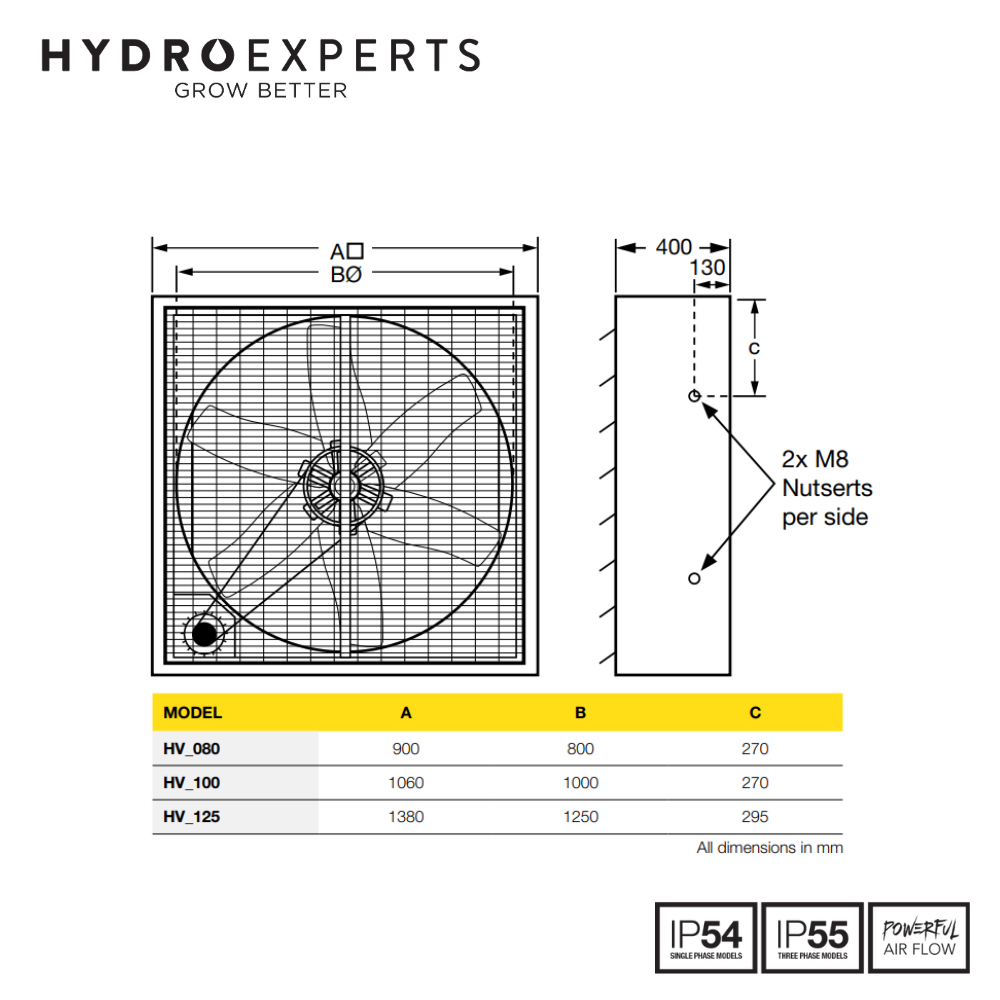

  • Easy Installation - Equipped with grab handles and nutserts for convenient mounting.
  • Versatile Applications - Suitable for warehouses, workshops, poultry sheds, livestock facilities, and recreation halls.

Specifications

Specification HVE080
Model HVE080
Fan Size 800 mm
Voltage 240 V
Phase Single Phase
Frequency 50 Hz
Motor Power 0.37 kW
Airflow 16,000 m³/hr
Noise Level 49 dB(A) @ 3m
Fan Speed 450 RPM
Weight 42 kg
IP Rating IP54
Construction Galvanised Steel
Backdraft Dampers Self-Closing Mechanical Shutters
Safety Guards Included

In The Box

  • [1] x Fantech High Volume Galvanised Steel Wall Fan - HVE080 | 800MM | 1 Phase | w/ Backdraft Dampers
