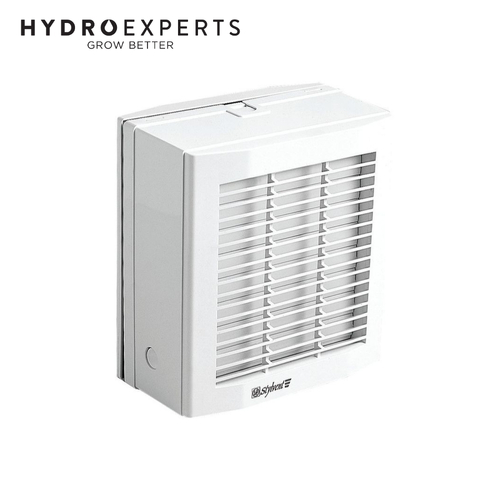

Fantech Stylvent Wall & Window Mounted Exhaust Fan - HV-230AE

Air Flow 600 M³/H | Power Consumption 34W | IPX4

SKU: FAN50802
|

OUT OF STOCK

FREE SHIPPING

Products You May Need

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Stylvent HV-230AE Exhaust Fan is a powerful wall and window mounted ventilation solution ideal for residential and commercial use. Delivering a strong 600 M³/H airflow, it efficiently removes stale, humid and contaminated air from larger bathrooms, laundries, kitchens, workshops and office spaces.

Built with a weather and impact resistant housing, the HV-230AE is engineered to withstand Australia’s demanding conditions. Rated for continuous run, it ensures long-lasting, reliable operation. Unlike the smaller HV-150AE model, the HV-230AE offers the flexibility of dual mode operation, allowing it to function in exhaust mode as standard, or be direct wired with a reversing switch for supply air or dual mode use.

The removable front cover makes cleaning quick and easy, maintaining efficiency and hygiene. For added protection in exposed locations such as seaside homes or high-rise buildings, an optional weather cap with bird mesh is available, colour matched to the fan body.

The Fantech Stylvent HV-230AE is the perfect choice for builders, renovators, and facility managers seeking a high-capacity, durable and low-maintenance exhaust fan for medium to large spaces.

Features

  • Versatile Mounting - Can be wall or window mounted to suit residential or commercial installations.
  • High Airflow - Provides 600 M³/H airflow, ideal for larger rooms and spaces.
  • Dual Mode Capability - Standard exhaust mode with option for supply air or dual mode using a reversing switch.
  • Continuous Run Rated - Designed for dependable, ongoing performance.
  • Durable Build - Weather and impact resistant housing for long service life.
  • Easy Maintenance - Removable cover for fast cleaning and servicing.
  • Optional Weather Cap - Provides added wind and rain protection, with integrated bird mesh.

Specifications

  • Model No: HV-230AE
  • Air Flow: 600 M³/H
  • L/Sec: 167
  • Fan Speed: 1250 RPM
  • Sound Level: 43 dB(A) @ 3m
  • Power Consumption: 34W
  • Voltage: 230-240V
  • IP Rating: IPX4

In The Box

  • [1] x Fantech Stylvent Wall & Window Mounted Exhaust Fan - HV-230AE
