Fantech FGR Filter Box w/ Galvanised Steel Housing - FGR315 | 315MM (12“ Inch) | Dust Filter

Average Arrestance 85% | Light Weight

SKU: FLTR63505
|

OUT OF STOCK

POSTAGE APPLIES

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Freight applies

*This item is bullky so freight applies.

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

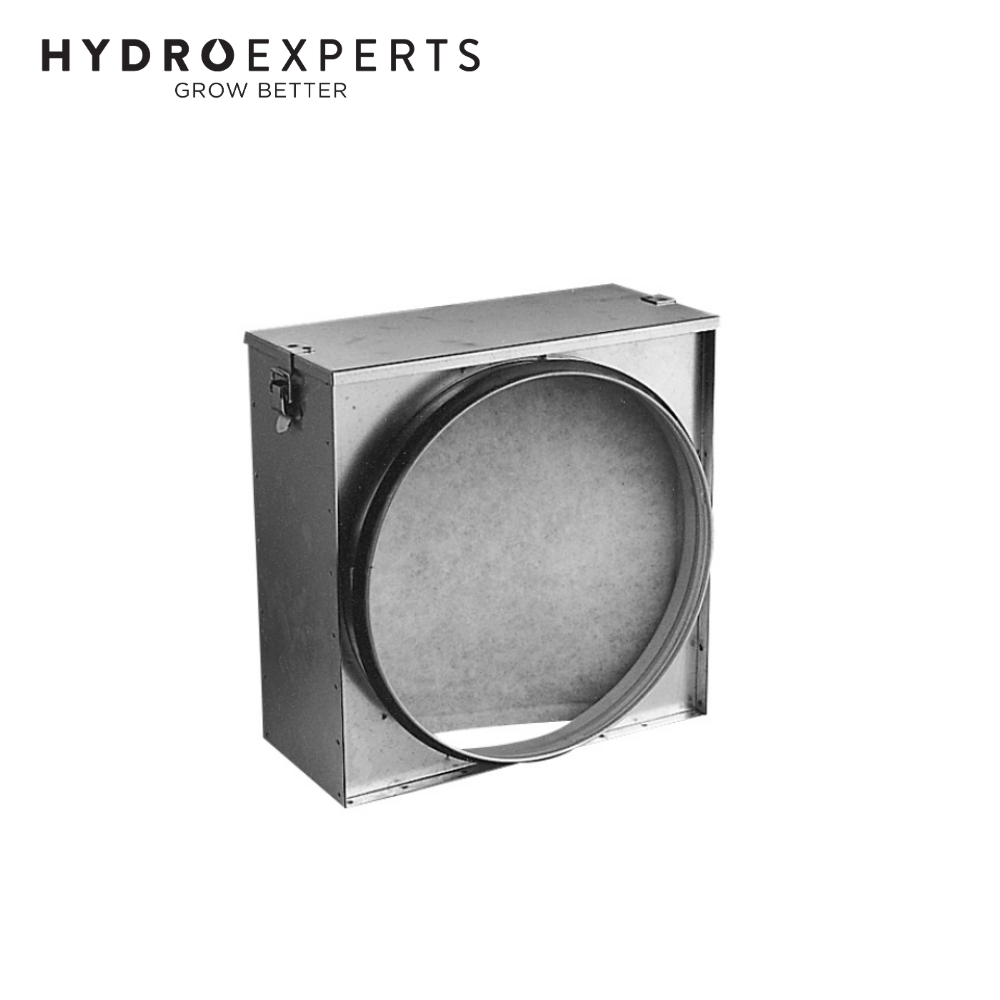

The Fantech FGR315 Filter Box is a high-capacity inline air filtration solution designed to improve air quality and protect ventilation equipment from dust and airborne contaminants. Featuring a throw-away panel dust filter with an average arrestance rating of 85%, the FGR315 effectively captures dust particles before they enter fans, ductwork, and ventilation systems.

Constructed from durable galvanised steel, the filter cassette is engineered for long-term performance in residential, commercial, hydroponic, and industrial ventilation applications. The rubber-sealed circular duct connections help reduce air leakage and maintain optimal airflow efficiency throughout the system.

Routine maintenance is simple thanks to the quick-release cover latches, allowing easy access for filter inspections and replacements. The compact inline design enables seamless installation into supply air and exhaust air systems where effective filtration and equipment protection are required.

Ideal for HVAC systems, grow room ventilation, warehouses, workshops, and commercial buildings, the FGR315 Filter Box delivers reliable filtration performance while helping extend the lifespan of ventilation components.

Features

  • Disposable Panel Dust Filter: Includes a replaceable throw-away filter for effective dust control.
  • 85% Average Arrestance: Efficiently captures airborne dust and contaminants.
  • Galvanised Steel Housing: Durable and corrosion-resistant construction.
  • Rubber Sealed Connections: Helps minimise air leakage and improve system efficiency.
  • Quick Release Cover Latches: Provides easy access for filter maintenance and replacement.
  • Inline Installation: Designed for seamless integration into ducted ventilation systems.
  • Equipment Protection: Helps reduce dust accumulation on fans and ductwork.
  • Suitable for Supply and Exhaust Air: Flexible installation options for various applications.
  • Compact Design: Space-efficient construction for commercial and industrial environments.
  • Wide Range of Applications: Suitable for HVAC, hydroponic, commercial, and industrial ventilation systems.

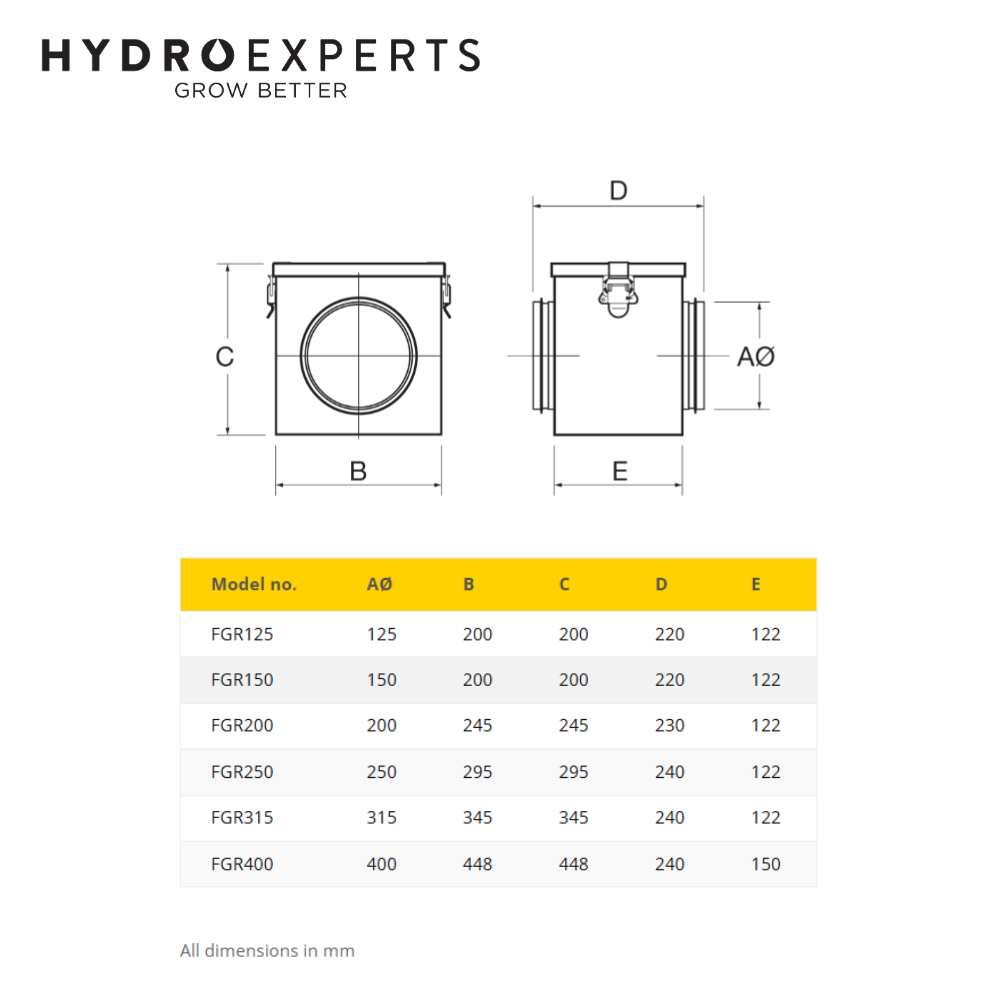

Specifications

Specification FGR315
Model FGR315
Duct Connection Size 315mm
Length 345mm
Width 345mm
Height 240mm
Weight 1.22kg
Filter Type Disposable Panel Dust Filter
Average Arrestance 85%
Housing Material Galvanised Steel
Connection Type Rubber Sealed Circular Connections
Access Cover Quick Release Latches

In The Box

  • [1] x Fantech FGR Filter Box w/ Galvanised Steel Housing - FGR315 | 315MM (12“ Inch) | Dust Filter
