Fantech FGR Filter Box w/ Galvanised Steel Housing - FGR200 | 200MM (8“ Inch) | Dust Filter

Average Arrestance 85% | Light Weight

SKU: FLTR63503
|

OUT OF STOCK

POSTAGE APPLIES

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Freight applies

*This item is bullky so freight applies.

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

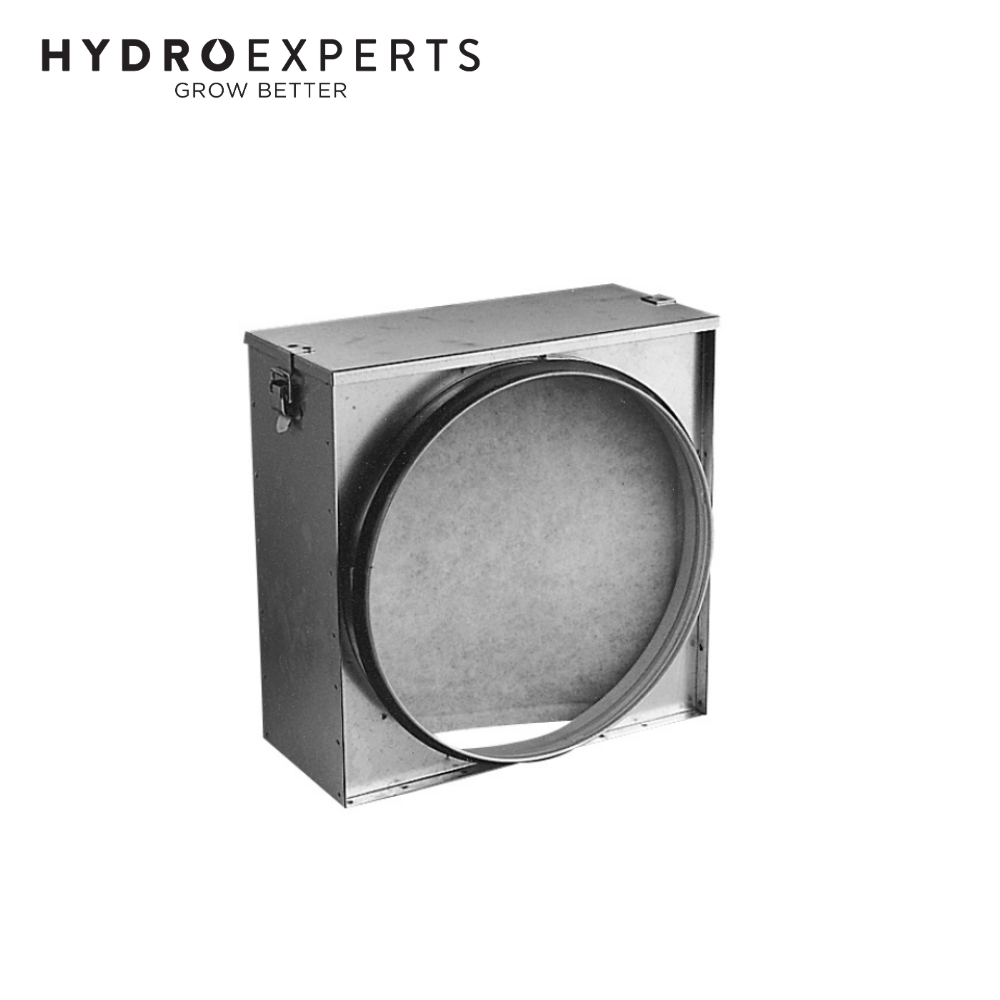

The Fantech FGR200 Filter Box is a high-performance inline filtration unit designed to improve indoor air quality and protect ventilation equipment from dust and airborne contaminants. Featuring a throw-away panel dust filter, the FGR200 provides effective particle capture with an average arrestance rating of 85%, making it suitable for a wide range of residential, commercial, and industrial ventilation applications.

Constructed from durable galvanised steel, the filter cassette is built to withstand demanding operating environments while maintaining reliable airflow performance. The rubber-sealed circular duct connections help minimise air leakage and ensure efficient operation throughout the ventilation system.

Maintenance is fast and convenient thanks to the quick-release cover latches, allowing easy access for routine filter inspections and replacement. Its compact inline design enables seamless integration into supply air and exhaust air duct systems.

Ideal for HVAC installations, hydroponic grow rooms, workshops, warehouses, commercial buildings, and general ventilation systems, the FGR200 Filter Box helps maintain cleaner airflow while extending the life of fans, ductwork, and ventilation equipment.

Features

  • Disposable Panel Dust Filter: Supplied with a replaceable throw-away dust filter.
  • 85% Average Arrestance: Efficiently captures dust and airborne particles.
  • Galvanised Steel Housing: Durable construction for long service life.
  • Rubber Sealed Connections: Helps minimise air leakage and improve efficiency.
  • Quick Release Cover: Allows easy filter access for maintenance and replacement.
  • Inline Filtration Design: Easily integrates into ducted ventilation systems.
  • Protects Ventilation Equipment: Reduces dust accumulation on fans and ducting.
  • Suitable for Supply and Exhaust Air: Flexible installation options.
  • Compact Construction: Ideal for installations where space is limited.
  • Wide Application Range: Suitable for HVAC, hydroponics, commercial, and industrial ventilation systems.

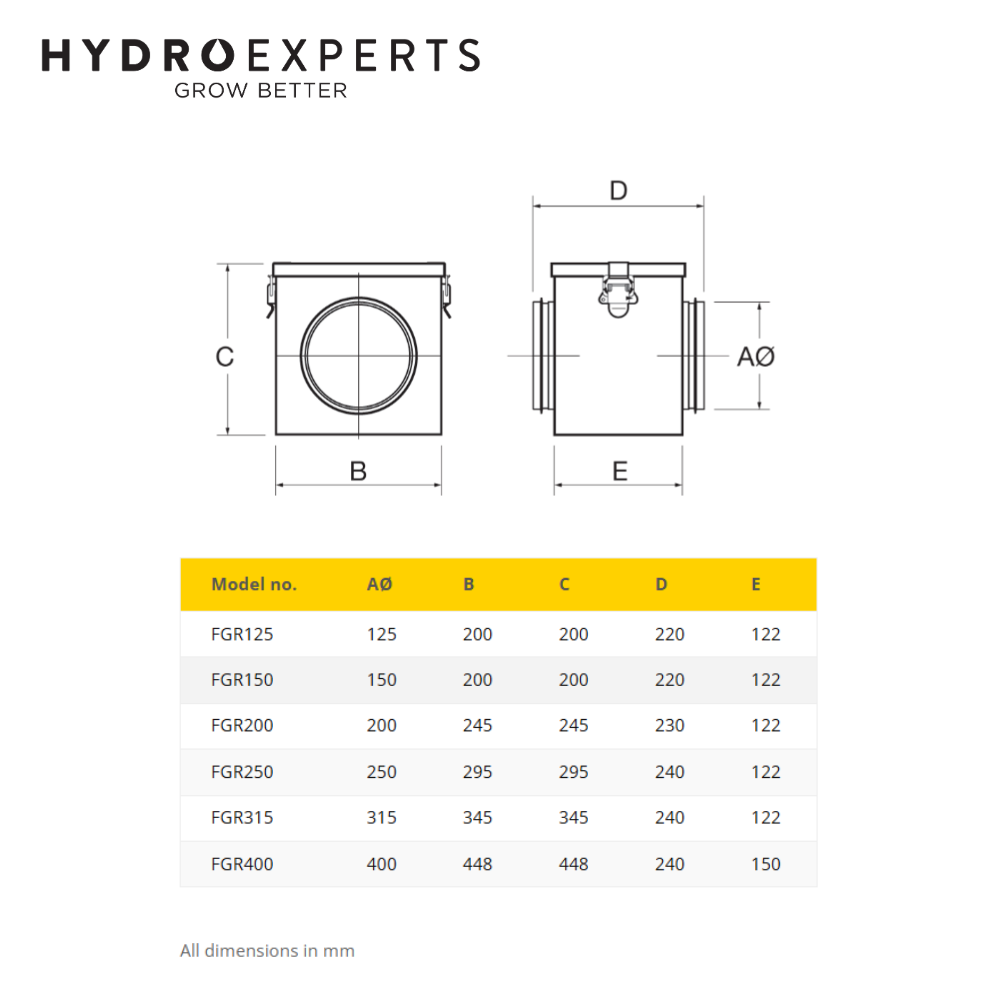

Specifications

Specification FGR200
Model FGR200
Duct Connection Size 200mm
Length 245mm
Width 245mm
Height 230mm
Weight 1.22kg
Filter Type Disposable Panel Dust Filter
Average Arrestance 85%
Housing Material Galvanised Steel
Connection Type Rubber Sealed Circular Connections
Access Cover Quick Release Latches

In The Box

  • [1] x Fantech FGR Filter Box w/ Galvanised Steel Housing - FGR200 | 200MM (8“ Inch) | Dust Filter
