TrolMaster Environmental Control System - TSH-1 | Temperature / Humidity Station

SKU: CTRL11026
|

IN STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

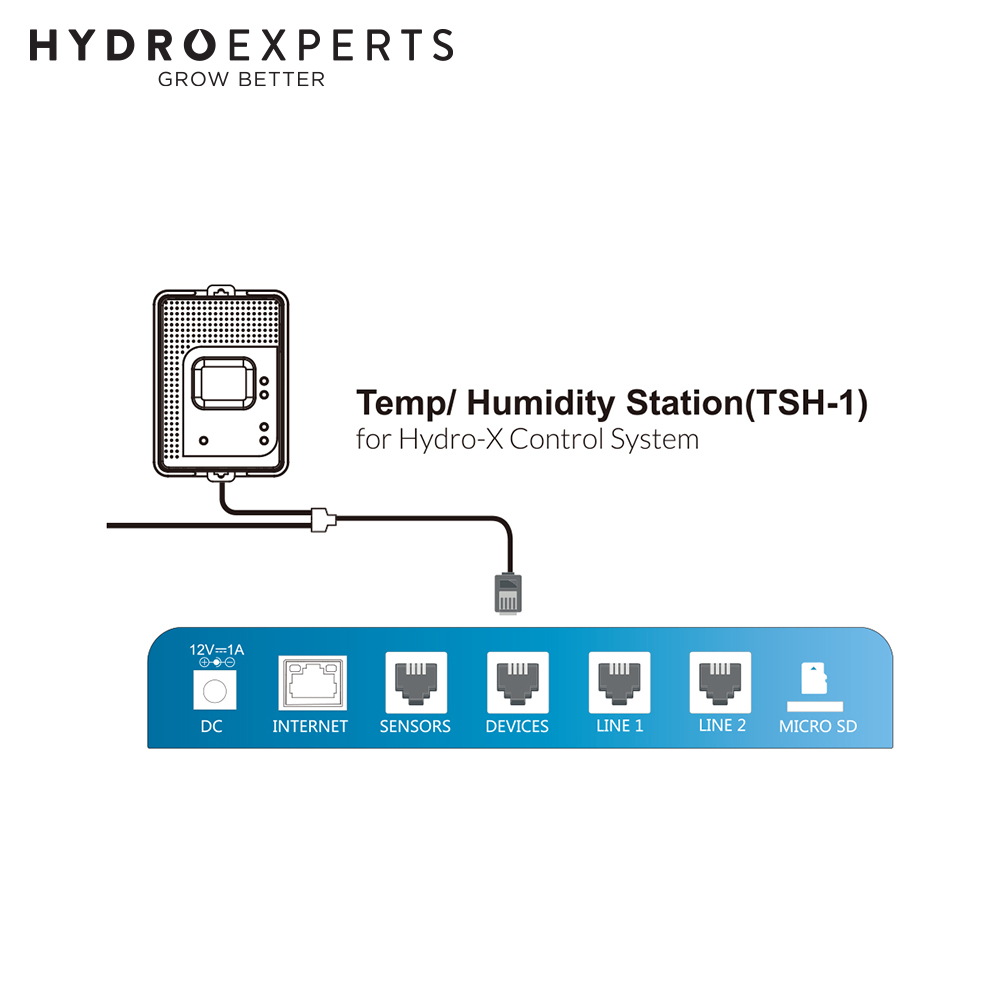

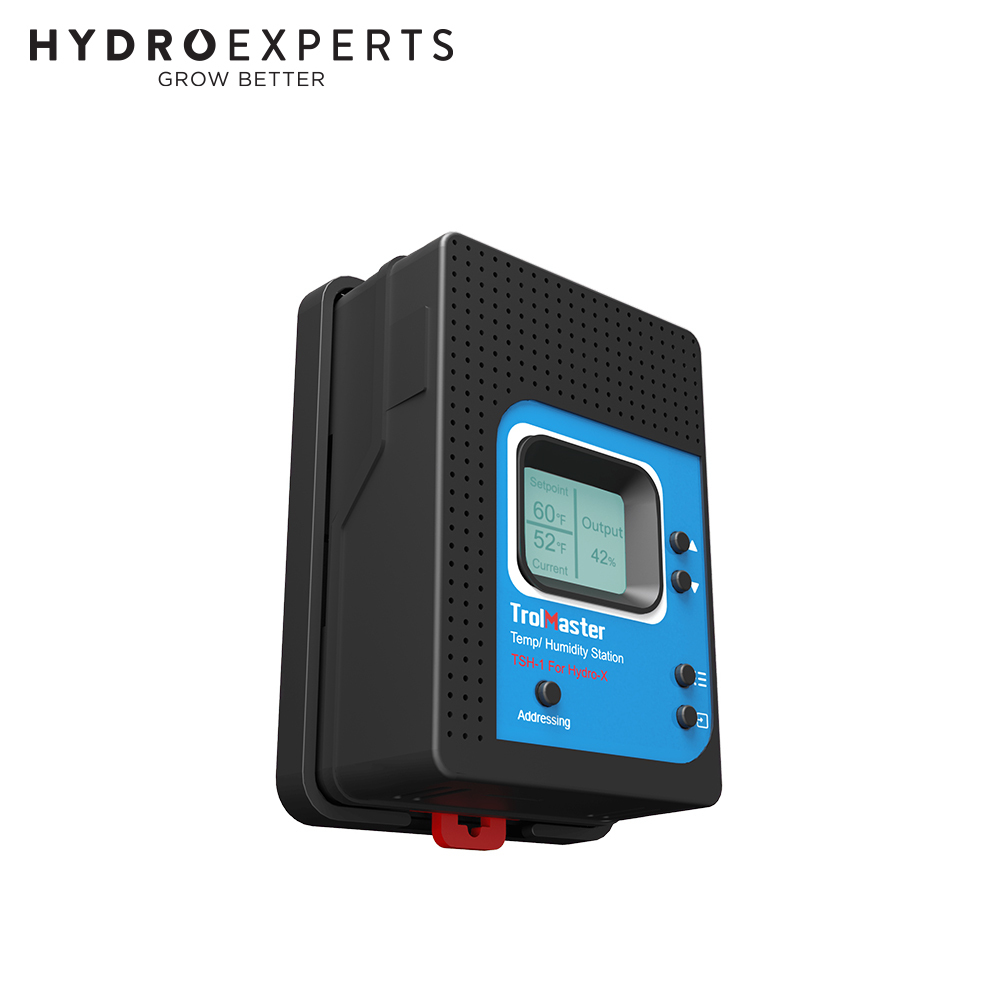

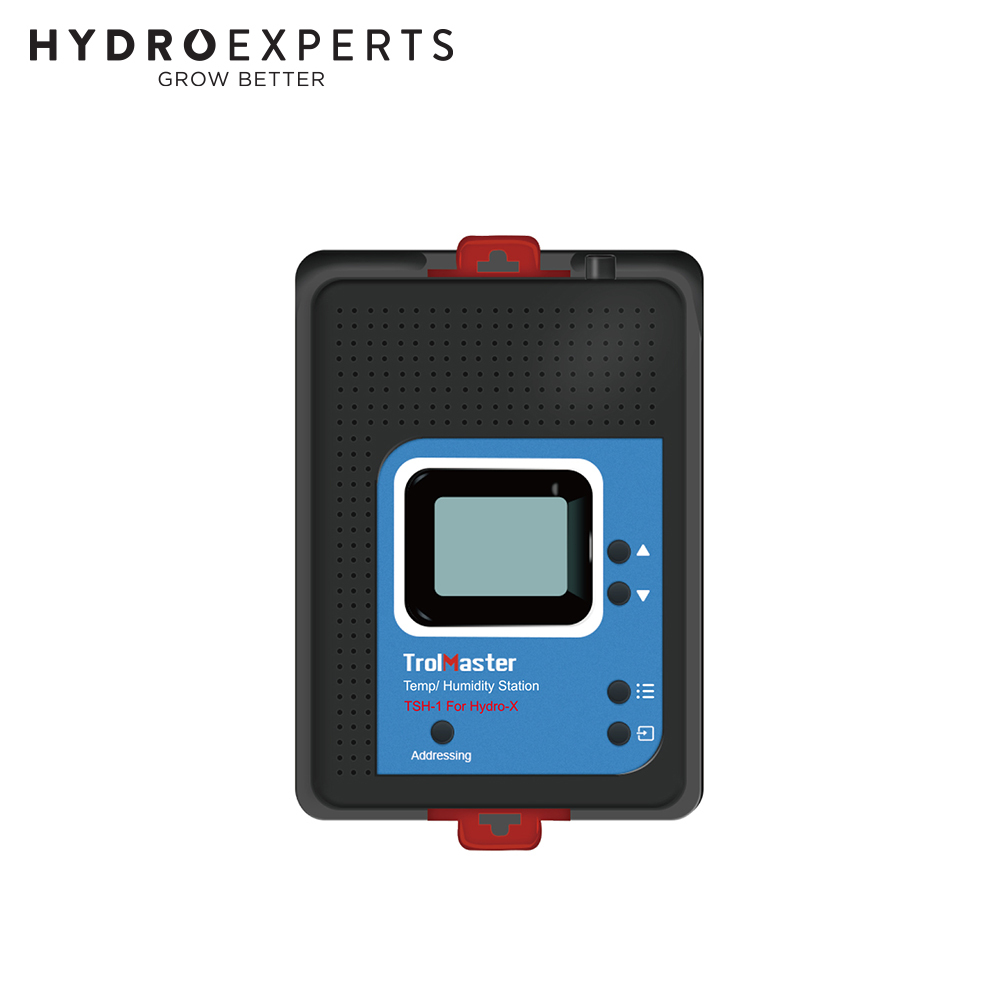

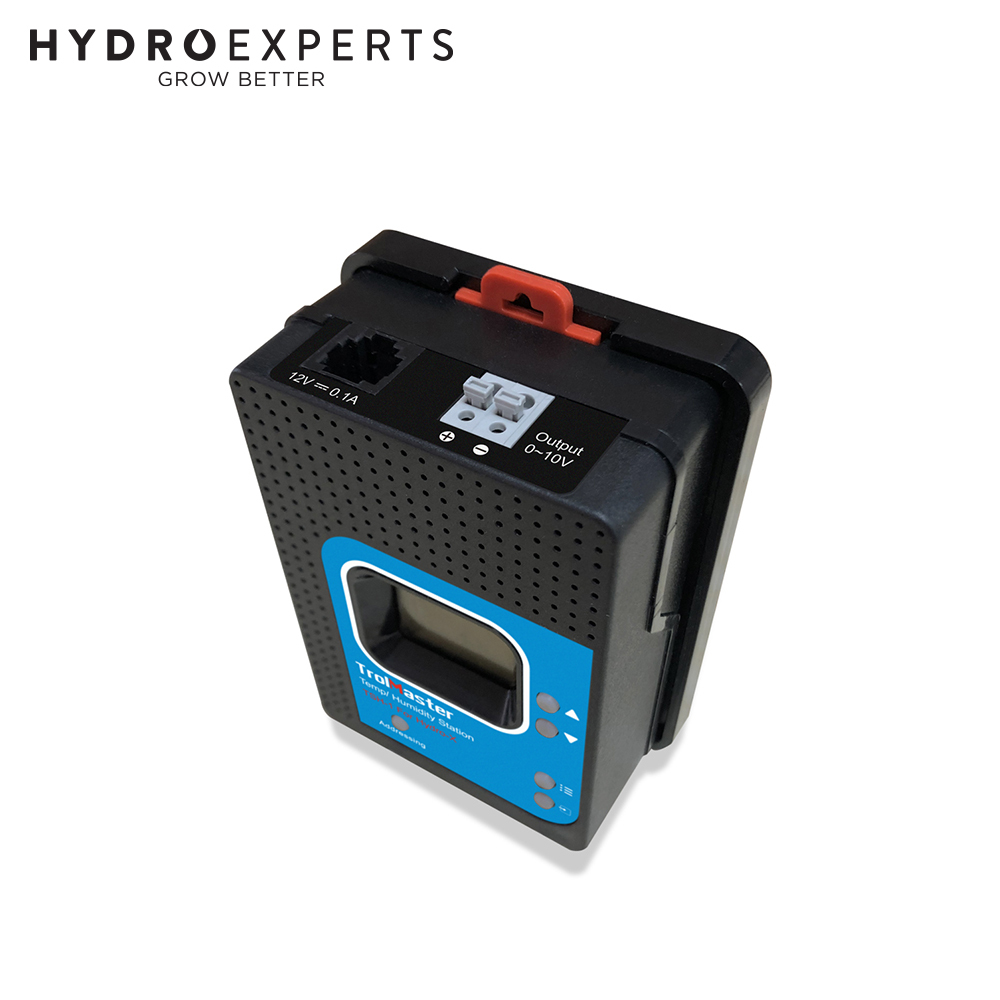

The Trolmaster TSH-1 Temperature / Humidity Station is a 0-10 volt analog output control station that works with the HCS-1 and HCS-2 controllers. The TSH-1 can be configured to control either a temperature or a humidity device that requires a variable 0-10 volt input signal.

The TSH-1 is capable of controlling variable speed fans, vents or any other device that accepts a 0-10 volt input. It features separate day and night “idle” speed settings built-into the TSH-1 as well as separate Day / Night setpoints accessed through the HCS controller.

Specifications

  • Output Voltage: 0 - 10V
  • Maximum Current: 1A
  • Working Environment: Temperature 32-122°F, Humidity=90%
  • Packaging Dimensions: 160mm(L) x 86mm(W) x 86mm(H)

In The Box

  • [1] x TrolMaster Environmental Control System - TSH-1 | Temperature / Humidity Station
  • [1] x 16ft RJ12 Cable
  • [1] x 4ft RJ12 Cable
  • [1] x RJ12 T-Splitter
  • LCD Display, Easy Operation
  • Seamless Connection with Hydro-X and Hydro-X Pro
  • Micro-SD Slot for Firmware Upgrade
  • Assignable control of Humidity or Temperature
  • Plug & Play
