TrolMaster Hydro-X Thermostat Station 2 - TS-2 | Plug & Play

SKU: CTRL11002
|

ETA: 1-3 Weeks

Product main image

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

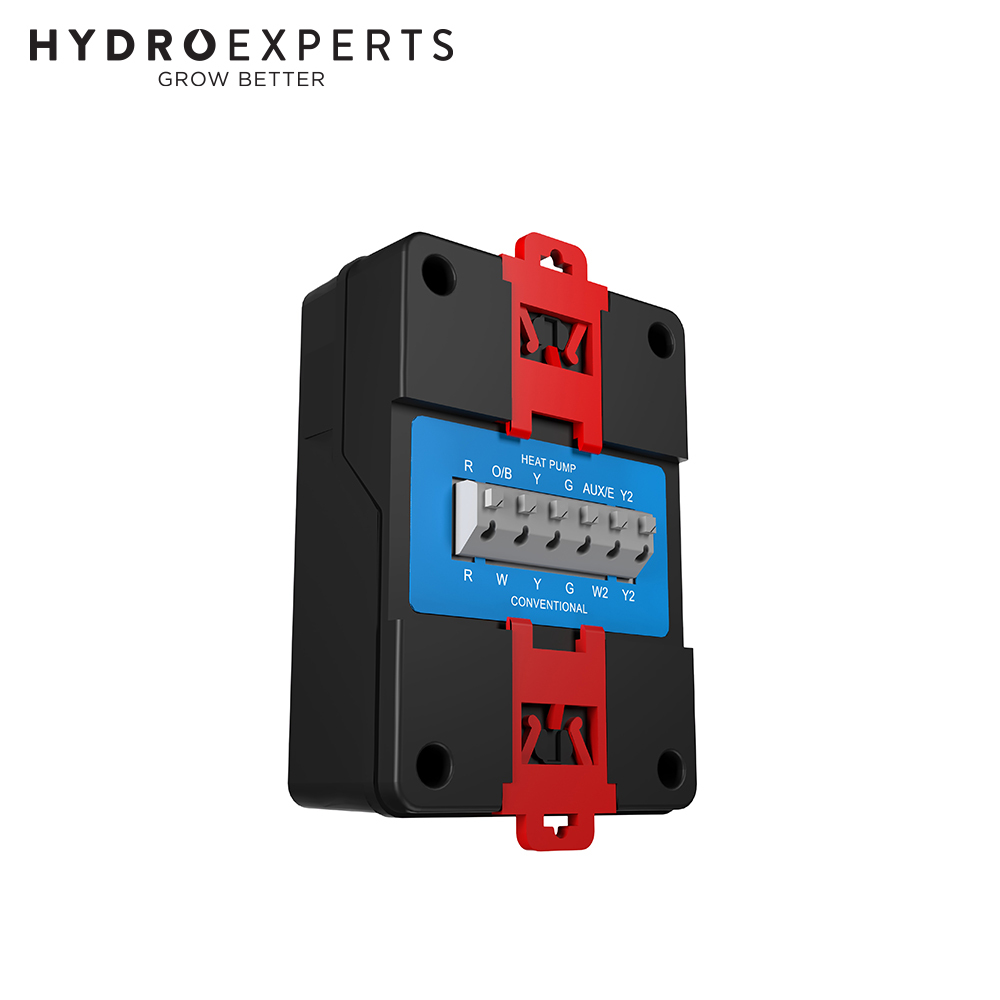

The TS-2 thermostat station is designed to replace a thermostat connected to a standard HVAC unit. The TS-2 can be used to control most HVAC systems including heat pumps and multi-stage HVAC systems. The  TS-2 is wired to the HVAC system using the same low-voltage thermostat cable and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS  modules, so multiple HVAC systems can be controlled by a single Hydro-X system. The TS-2 also has an adjustable delay time for each HVAC system being activated. That minimizes high start-up (inrush current) and allows up to 4 HVAC systems to be safely controlled.

Specifications

  • Output Voltage: 24V
  • Maximum Current: 1A
  • Working Environment: Temperature 32-122°F, Humidity=90%
  • Packaging Dimensions: 160mm(L) x 86mm(W) x 86mm(H)

In The Box

  • [1] x Thermostat Station (TS-2)
  • [1] x 16ft RJ12 Cable
  • [1] x 4ft RJ12 Cable
  • [1] x RJ12 T-Splitter

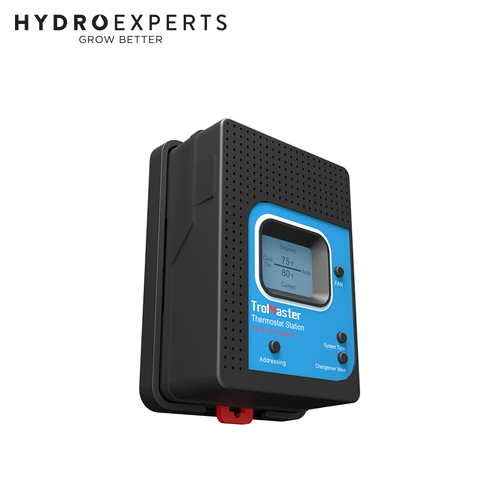

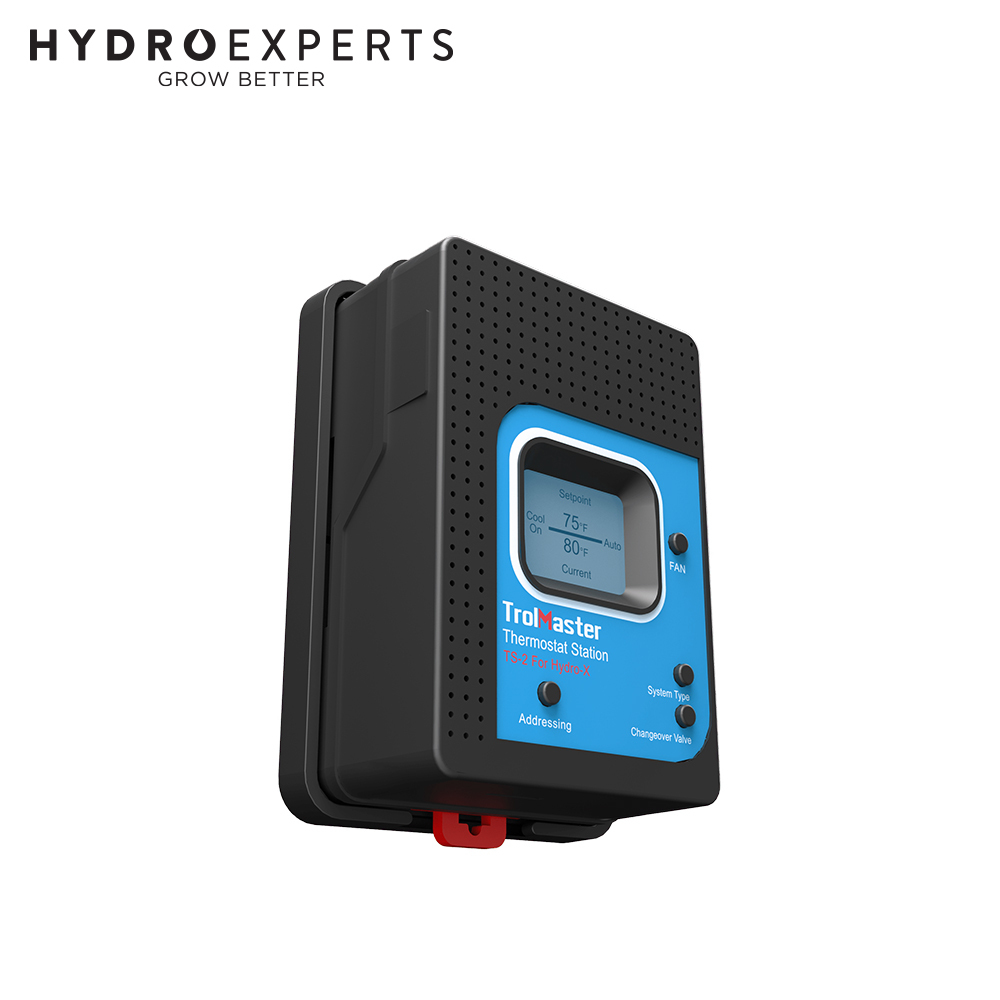

  • LCD Display, Easy Operation

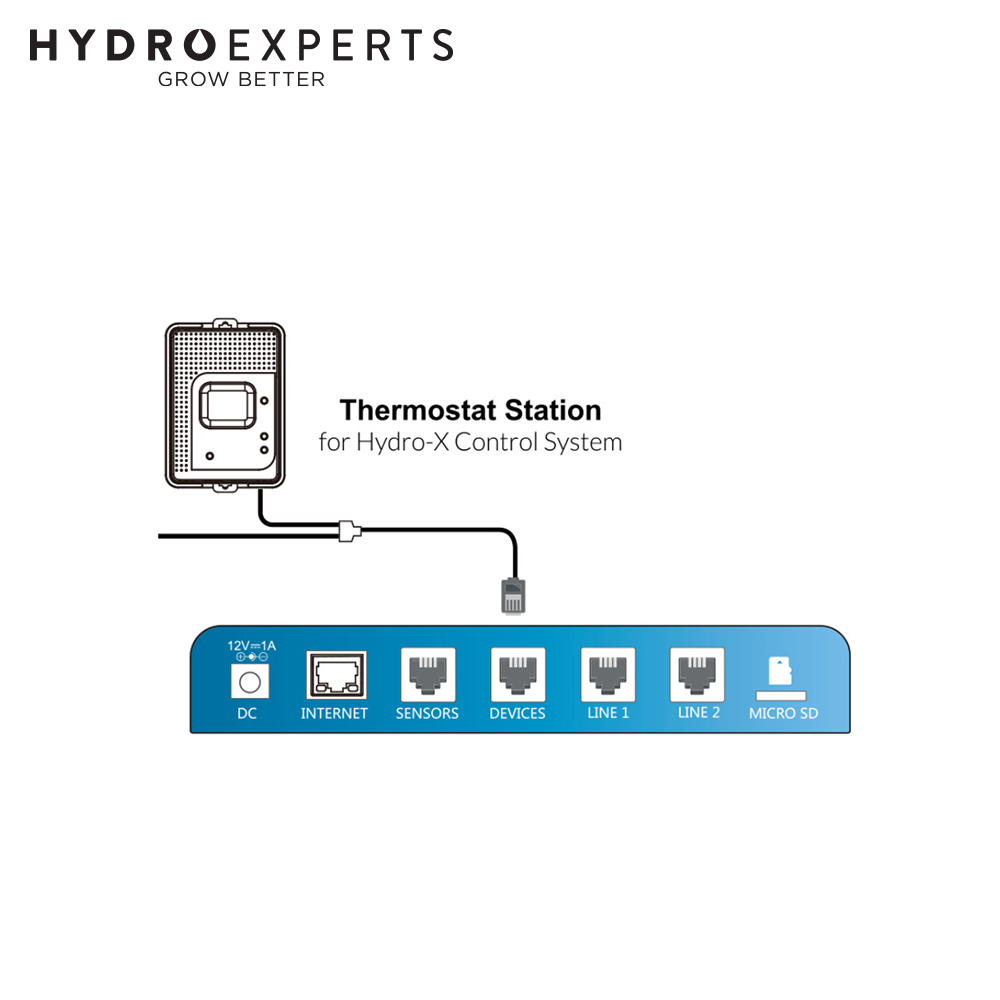

  • Seamless Connection with Hydro-X
  • Micro-SD for Firmware Upgrade
  • Address Assignment
  • Plug & Play
