TrolMaster Hydro-X Expander Station 4 - 4RS-1 | 4 Receptacles

SKU: CTRL11024
|

ETA: 1-3 Weeks

TrolMaster Hydro-X Expander Station 4 - 4RS-1 | 4 Receptacles

FREE SHIPPING OVER $499*

REG. PRICE: $392.50
$359.95
Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

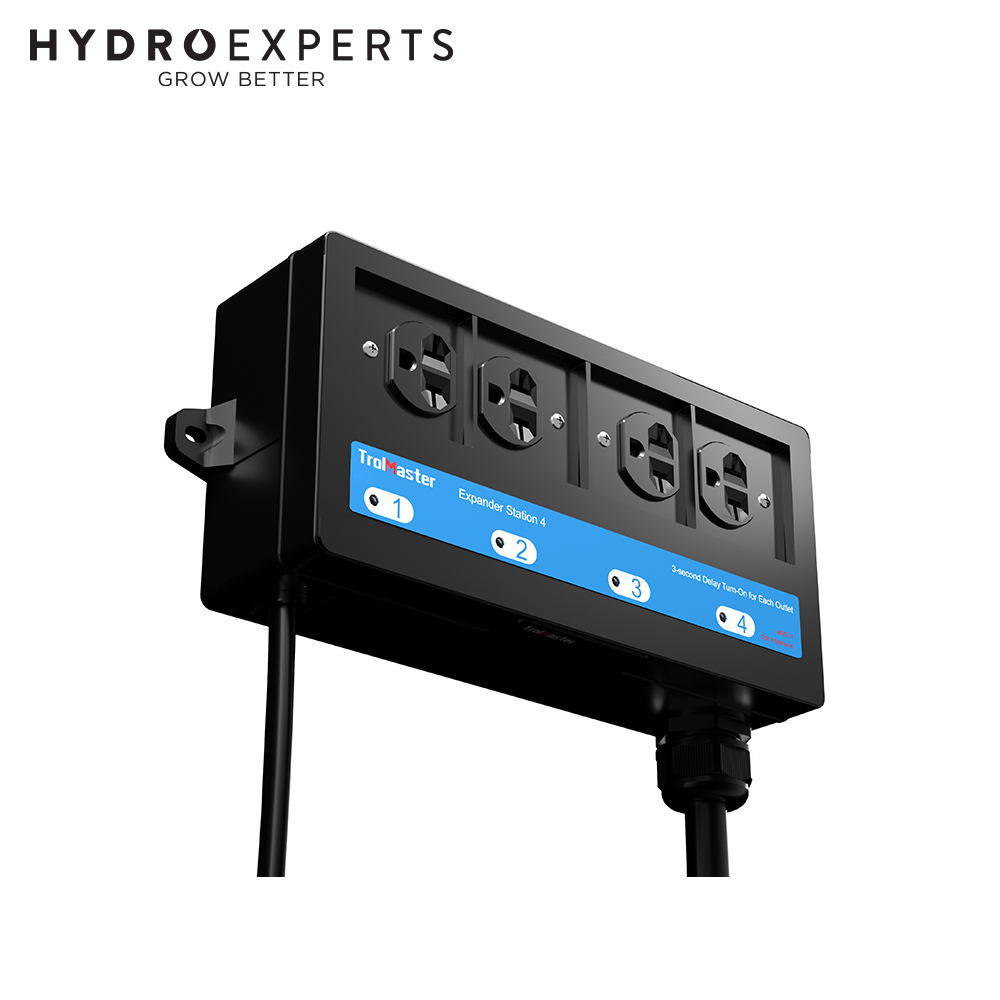

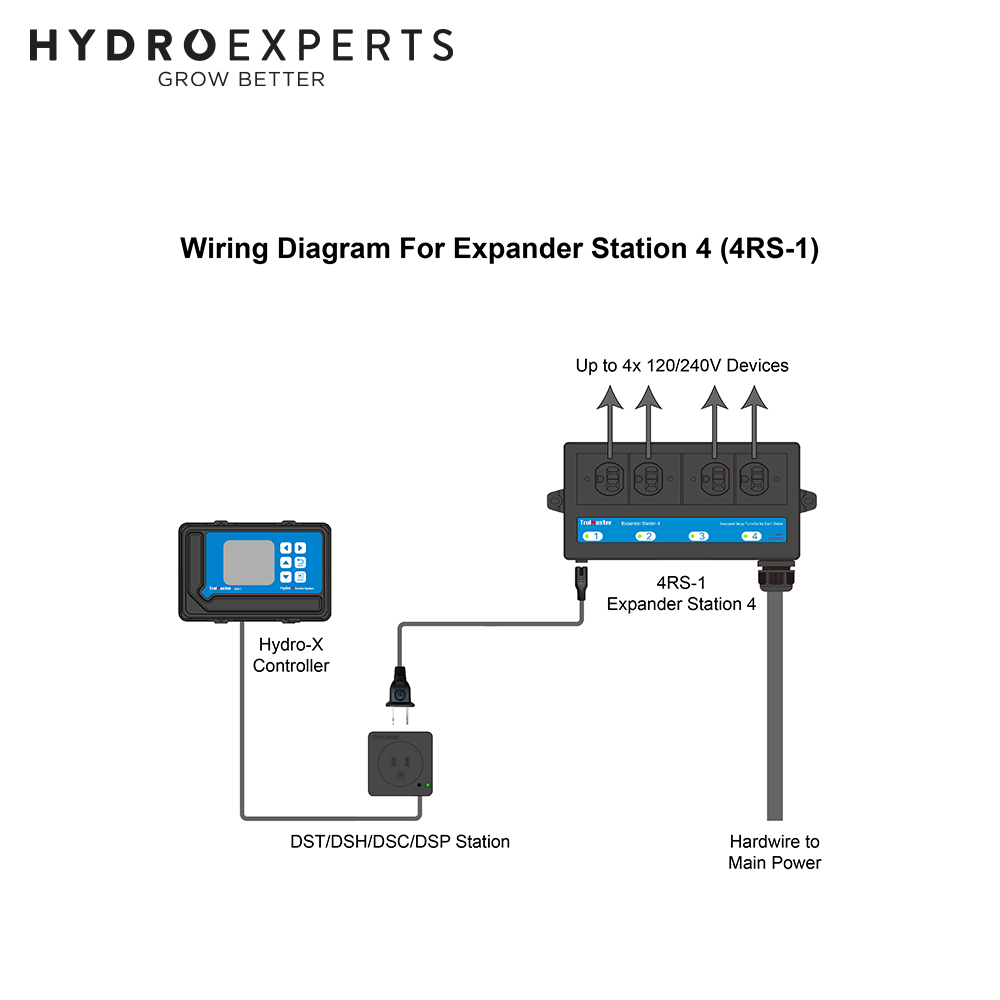

The 4RS-1 is a universal 4-outlet power expansion module. It can be used with any of TrolMaster’s “plug-in” style device modules to expand the number of devices that can be controlled by the Hydro-x. A single 120-240 volt “trigger” cable on the 4RS-1 connects to your device/control module. When the device module is activated by the Hydro-x, the 4RS-1 trigger cable will turn on each of the 4 receptacles on the 4RS-1 with a 3-second time delay between each outlet being activated. That minimizes high start-up (inrush current) and allows up to 4 devices to be safely controlled. The 4RS-1 must be installed with a 120/240-volt power circuit (up to 50-amps @ 240vac). Three-wire terminals inside the unit accept up to #6 AWG wire making connections to the power source easy.

* This plug is NOT U.L. or E.T.L listed.

Specifications

  • Main Power Voltage: 240V
  • Receptacle Quantity: 4
  • Max Relay Amperage: 25A
  • Operating Temperature: 41-140°F
  • Operating Humidity: 0-99% Noncondensing
  • Package Dimensions: 275mm x 255mm x 95mm
  • G.W. per pack: 1.50kgs

In The Box

  • [1] x Expender Station 4
  • Individual Power Relay (25A for each outlet)
  • 3-second Intervals as Time Delay for Reducing Start-Up Surges
