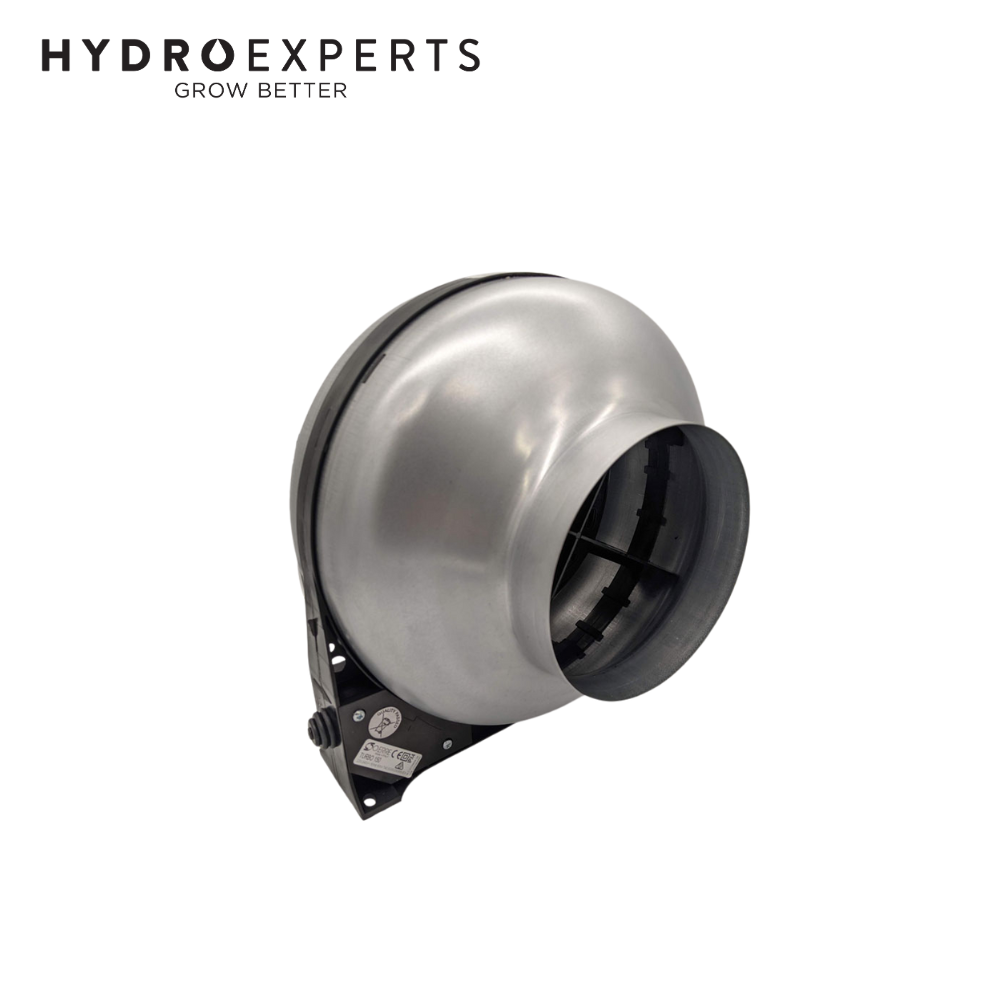

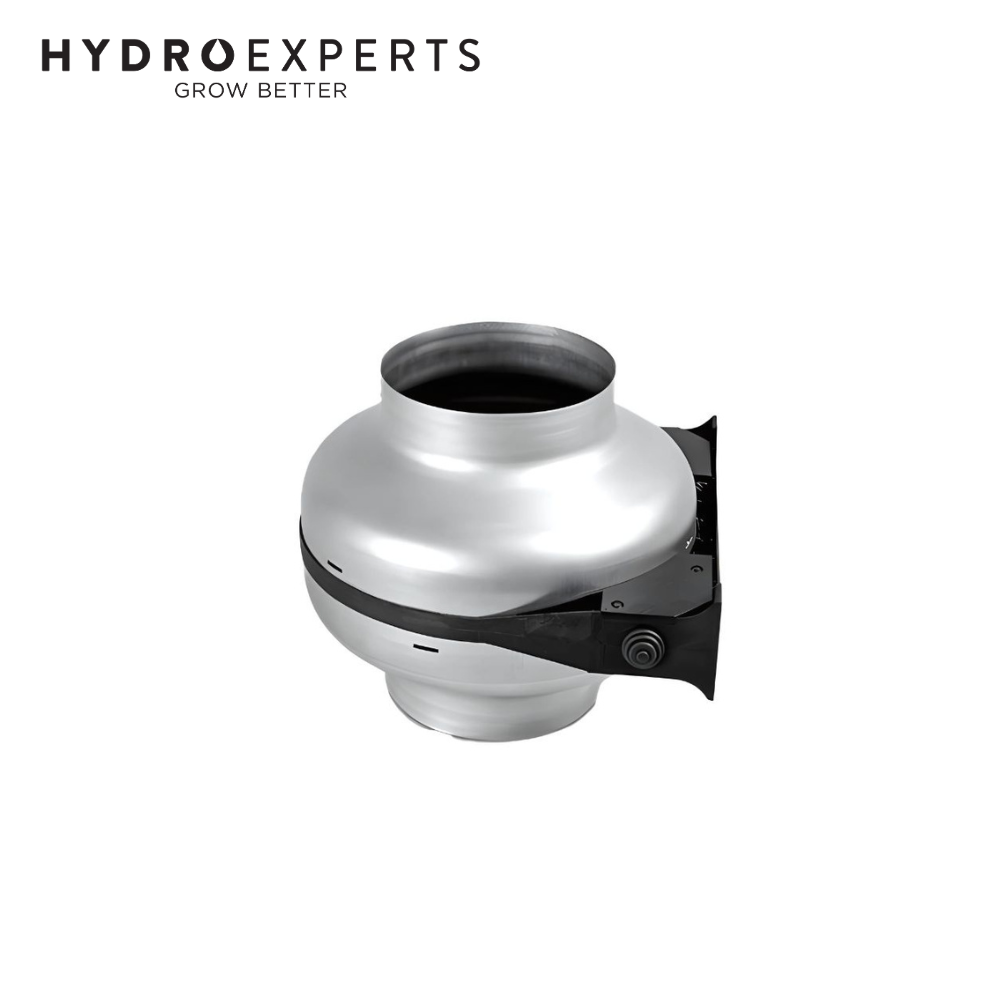

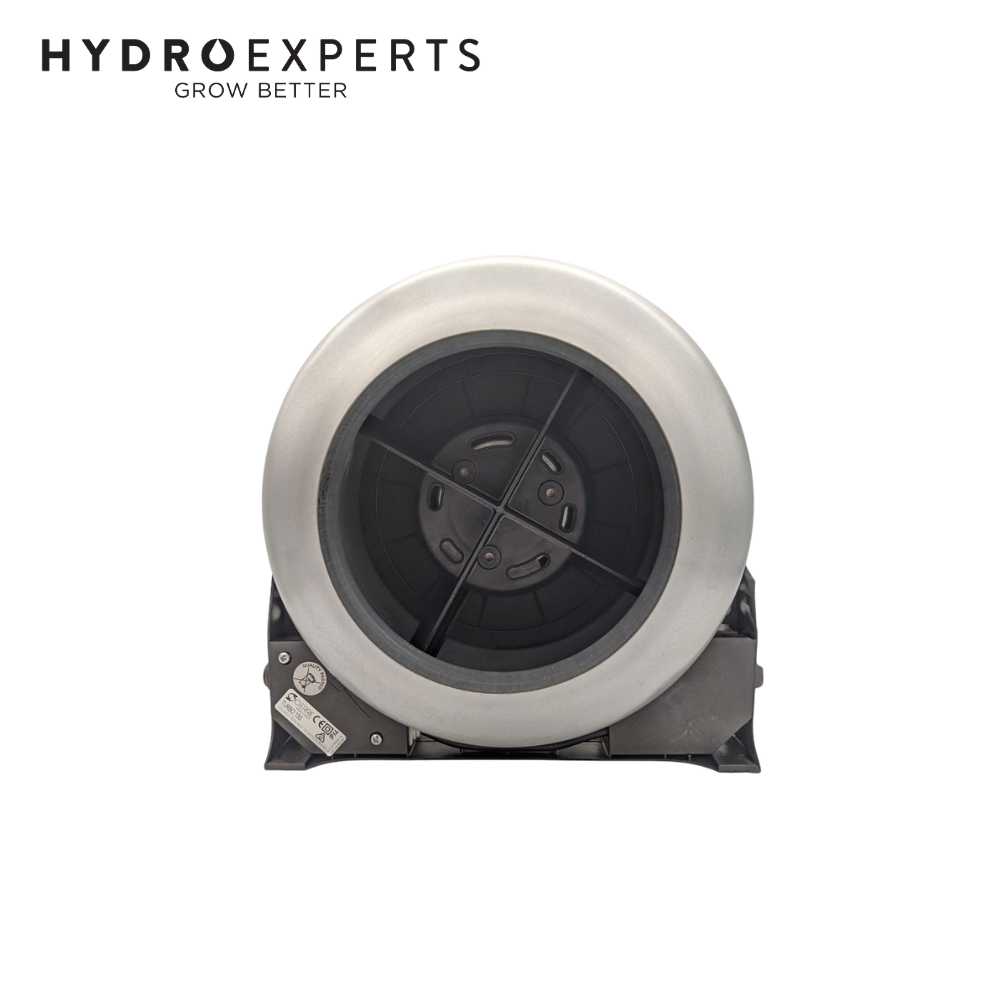

Oerre Turbo Centrifugal Inline AC Fan - 125MM (5" Inch) | w/ Metal Casing

Air Flow 400 M³/H | Power 60W | Noise 52 dB(A) | IPX4

SKU: FANS47102

Oerre

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

Calculate shipping

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

The Oerre Turbo Centrifugal Inline AC Fan 125MM with metal casing is a powerful high pressure inline solution for ducted exhaust systems. With up to 400 M³/H airflow, this Italian made centrifugal inline fan is ideal for bathrooms, kitchens, laundries and light commercial spaces where standard axial fans lose performance on longer duct runs.

The zinc plated steel casing and ball bearing motor are designed for continuous operation, while IPX4 protection, double insulation and an IP54 terminal box make it a solid choice for demanding Australian conditions. The 125MM (5" Inch) spigots connect straight to common duct sizes and the integrated mounting bracket makes installation simple in tight roof spaces and ceiling voids.

Tradies and builders will appreciate the 285 Pa pressure rating, 60W motor and 52 dB(A) noise level, providing a reliable balance of power and comfort. Pair it with quality duct, grilles and a speed controller to build a robust inline exhaust system that is easy to maintain. Add this Oerre Turbo 125 centrifugal inline fan to your cart today.

Features

High-pressure airflow - 400 M³/H centrifugal inline fan suited to long or restrictive duct runs.
Durable metal casing - zinc-plated steel housing for commercial-grade reliability on site.
Standard 125MM connections - 125MM (5" Inch) duct spigots to suit common Australian duct systems.
Efficient ball bearing motor - 60W single-phase motor at approximately 2530 RPM for strong airflow and long service life.
Moisture resistant - IPX4 protected product with IP54 terminal box and double insulated construction.
Easy installation - integrated mounting bracket and suspension holes for quick fixing in roof spaces and plant rooms.
High temperature capability - rated for extracted air up to 55°C for tough ventilation applications.
System friendly - works with speed controllers, backdraft shutters and standard inline ventilation accessories.

Specifications

Brand: Oerre
Model: Turbo 125 (0037300)
Type: Centrifugal inline AC exhaust fan
Air Flow: 400 M³/H (free air)
Max Static Pressure: 285 Pa (29 mm H₂O)
Power Consumption: 60W
Voltage: 220-240V AC
Frequency: 50 Hz
Motor: Single phase, 2 pole, ball bearing centrifugal motor
Motor Speed: 2530 RPM
Nominal Current: 0.38 A
Noise Level: 52 dB(A) at 3 m
Ingress Protection: IPX4 product, IP54 terminal box
Insulation: Double insulated, no earth required
Duct / Flange Size: 125MM (5" Inch)
Maximum Air Temperature: 55°C extracted air
Casing Material: Zinc-plated steel frame with high-resistance motor support
Mounting: In-line duct mounting with integrated bracket and suspension holes
Overall Length (A): 287 mm (28.7 cm)
Spigot Diameter (B): 123 mm nominal 125MM (12.3 cm)
Body Length (F): 242 mm (24.2 cm)
Overall Height (G): 282 mm (28.2 cm)
Bracket Hole Spacing (H): 12 mm (1.2 cm)
Weight: 2.8 kg
Country of Manufacture: Italy
Warranty: 1-year replacement (manufacturer conditions apply)
