Horiba LAQUA Standard Handheld Meters

DO220-K | DO / Temp | Waterproof

SKU: MLTMTR10106
$1,714.95
QTY:

Click & Collect Free

Free pick up at store

Delivery

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

Designed for use with one hand and with an IP67 waterproof rating and shock-resistant casing, this meter can be used for long periods, even in dark places, making it ideal for field measurements in rivers and lakes.

Specifications

  • DO Range:
    • 0.0 to 20.00 mg/L
    • 0.0 to 200.0%
  • Resolution: 0.01 mg/L, 0.1%
  • Accuracy: ± 0.1 mg/L
  • Salinity Compensation: 0.0 to 40.0 ppt
  • Barometric Pressure Compensation: Yes
  • Temperature Compensation: Yes
  • DO Probe Type: Galvanic integrated with temperature sensor
  • Calibration Points: Up to 2
  • Temperature Range: -30.0 to 130.0 °C / -22.0 to 266.0 °F
  • Resolution: 0.1 °C / °F
  • Accuracy: ± 0.5 °C / ± 0.9 °C
  • Calibration Option: Yes
  • Memory Data: 500
  • Auto Log Data: Yes
  • Real-time Clock: Yes
  • Date & Time Stamp: Yes
  • Measurement Modes: Auto stable, Auto hold, Real time
  • Auto Shut-Off: Yes (Programmable: up to 30 minutes)
  • Electrode Status: Yes (On screen display)
  • Diagnostic Messages: Yes
  • Software Upgrade: Yes via PC (USB) cable PN 3200779639
  • PC Communication: Yes via PC (USB) cable PN 3200779639
  • Printer Communication: Yes via Printer (RS232) cable PN 3200779638
  • Meter Inputs: BNC (for DO electrode), phono (for temperature sensor)
  • Meter Output: phono (for PC/printer connection)
  • Display: Custom LCD with backlight
  • Housing: IP67, shock & scratch resistant, non-slip
  • Power Requirement: 2 x AA batteries
  • Battery Life: > 500 hours
  • Meter Dimensions: 160 (L) x 80 (W) x 40.60 (H) mm
  • Meter Weight: Approx. 260 g (with batteries) / 216 g (without batteries)

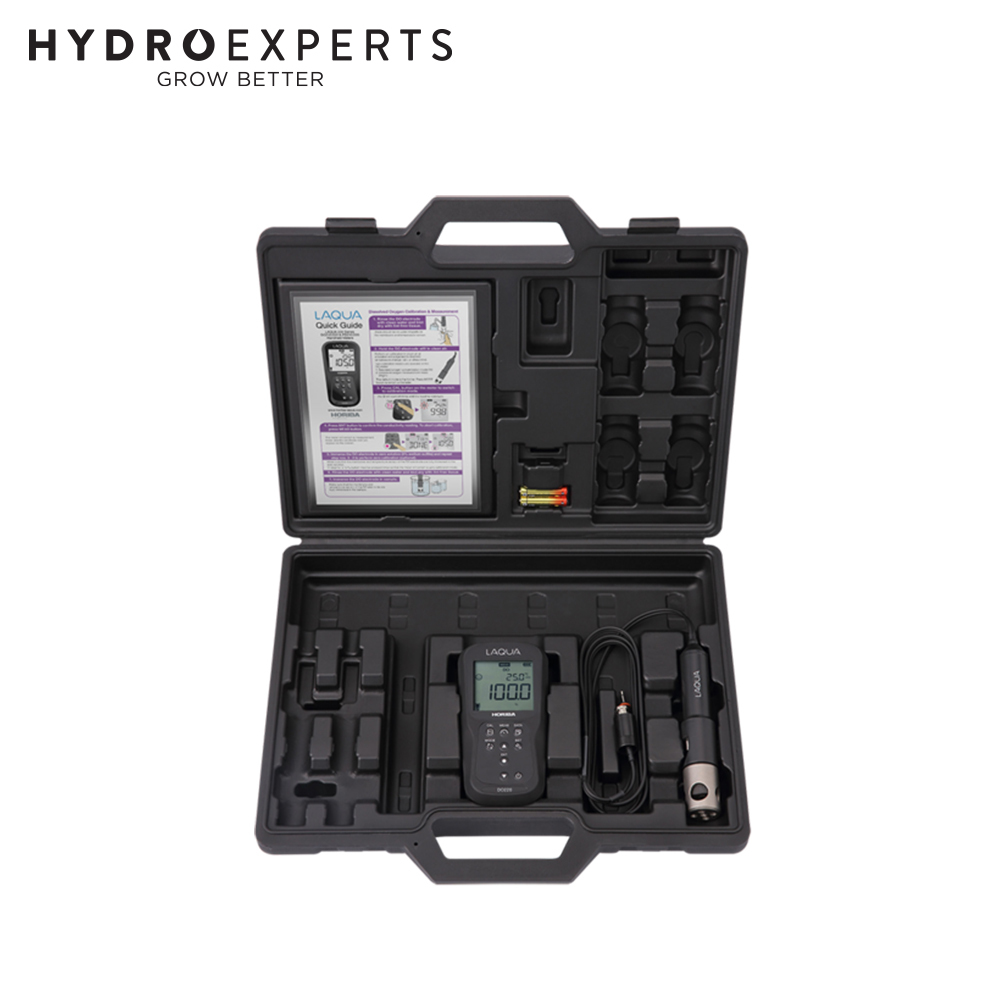

In The Box

  • [1] x LAQUA DO220 DO/Temp meter
  • [2] x AA batteries
  • [1] x Manual and quick guide
  • [1] x 9552-20D Galvanic DO probe with integrated temperature sensor, 2m cable
  • [1] x Carrying case
  • Measures dissolved oxygen (DO) concentration in ppm (mg/L) and % saturation
  • 0.01 mg/L or 0.1% DO resolution
  • Compensates salinity, temperature, and atmospheric pressure
  • Allows up to 2 calibration points using galvanic DO electrode
  • °C & °F temperature readings
  • With real-time clock and date/time stamp for GLP compliance
  • Auto log data; built-in memory can store up to 1000 data
  • Auto stable, auto hold, and real-time measurement modes
  • Auto shut-off (programmable: up to 30 minutes)
  • Built-in electrode holder allows 2 electrodes to be attached
  • Monochrome LCD with white LED backlight: 50 x 50 mm
  • Phono jack output for connecting meter to computer via PC (USB) cable for data collection and software upgrade and to printer via printer (RS232) cable for printout
  • Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
  • Powered by 2 x AA batteries
  • Packaged with galvanic electrode in carrying case
