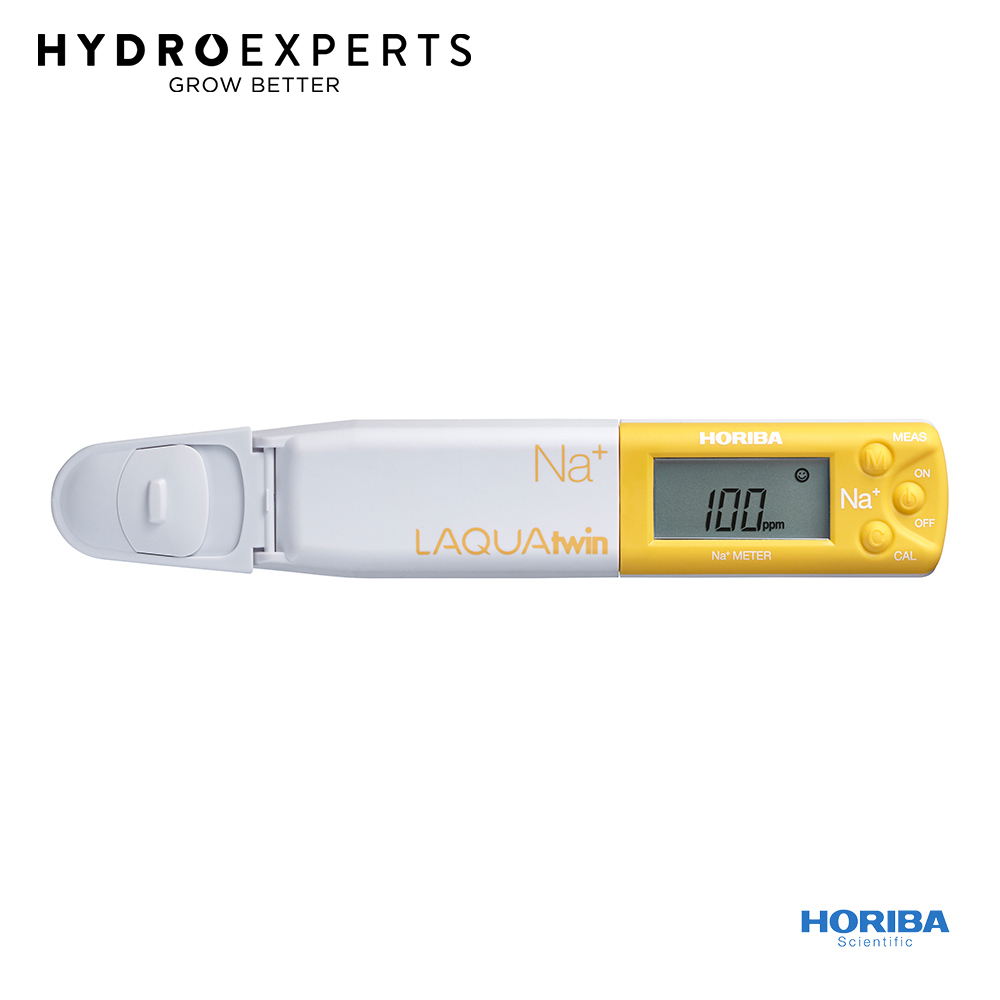

Horiba LAQUAtwin Compact Sodium Ion Meter - Na-11 | Delivery Only

$709.95
SKU: OMTR20103
Quantity:
Stock:
In stock
Delivery options:
In stock In stock In stock

Buy now, pay later

Shop up to $1000, pay later

Only compact meter for a quick measurement of sodium ion using ion selective membrane.Flat sensor technology and 60 years of sensor engineering realizes a reliable and direct measurement of a drop of the sample from 0.3mL. Use sampling sheet (sold separately) to measure down to 0.05mL or more.Unique sensor mechanism realizes direct measurement of solid, viscous, powder samples. No need for a beaker to calibrate or measure. Just drop the standards and sample on the flat sensor, saves you time and minimize wasting your precious sample.This lightweight, pocket-sized meter is suitable for research and industrial applications in diverse fields.

Applications include:

  • Soil and sap testing for improved agriculture;
  • food testing*

* Detection of ions in water only; electrolytes in oils cannot be measured. Ion measurement can be affected by non-target ions.

Specifications

  • MODEL: B-722
  • Measurement principle: Ion electrode method
  • Minimum sample volume: 0.3mL or more*1
  • Measurement range: 23 to 2300 ppm(mg/L) (10-3 to 10-1 mol/L)
  • Display range: 0 to 9900ppm(mg/L)*2
  • Range and Resolution (Valid numbers)
    • ①0 to 1.0ppm : 0.1ppm
    • ②0 to 99ppm : 1ppm
    • ③100 to 990ppm : 10ppm
    • ④1000 to 9900ppm : 100ppm
  • Calibration: Two-point*3
  • Accuracy: ±10% of reading value.*4
  • Functions
    • Auto range change
    • Temperature compensation
    • Waterproof*5
    • Reading locking
    • Automatic power off (30 minutes)
  • Display: Custom (monochrome) Digital LCD
  • Operating temperature/humidity: 5 to 40˚C, 85% or less in relative humidity (no condensation)
  • Power: CR2032 batteries (x2)
  • Battery life: Approx. 400 hours in continuous use
  • Main Material: ABS epoxy
  • Dimensions/Mass: 164mm × 29mm × 20mm (excluding projections) / Approx. 50 g (meter only, without batteries)
  • Accessories included: 2 CR2032 batteries/1 Pipette/Instruction manual/Quick manual/Storage case/Standard solution (150ppm&2000ppm)(14mL)/5 pieces of Sampling sheetB



  1. Smaller amount(0.05mL or more) can be measured with the sampling sheet B.  (Please close the light shield cover. If a sample that contain particulate, please use ”Sampling sheet holder” (sold separately))
  2. When the measured value is out of the measurement range, the displayed value blinks. It should be used only as a guide.
  3. Selectable between one-point and two-point calibrations.
  4. Repeatability in measurement of a standard solution after calibration using the same standard solution.
  5. IP67:no failure when immersed in water at a depth of 1 meter for 30 minutes. But the product can not be used underwater.

In The Box

  • [1] x Horiba LAQUAtwin Compact Sodium Ion Meter - Na-11 | Delivery Only
  • Autocalibration function recognizes standards and is user-selectable for either one- or two-point calibrations.
  • Auto range change
  • Temperature compensation
  • IP67 waterproof
  • Auto hold
  • Automatic power off (30 minutes)
