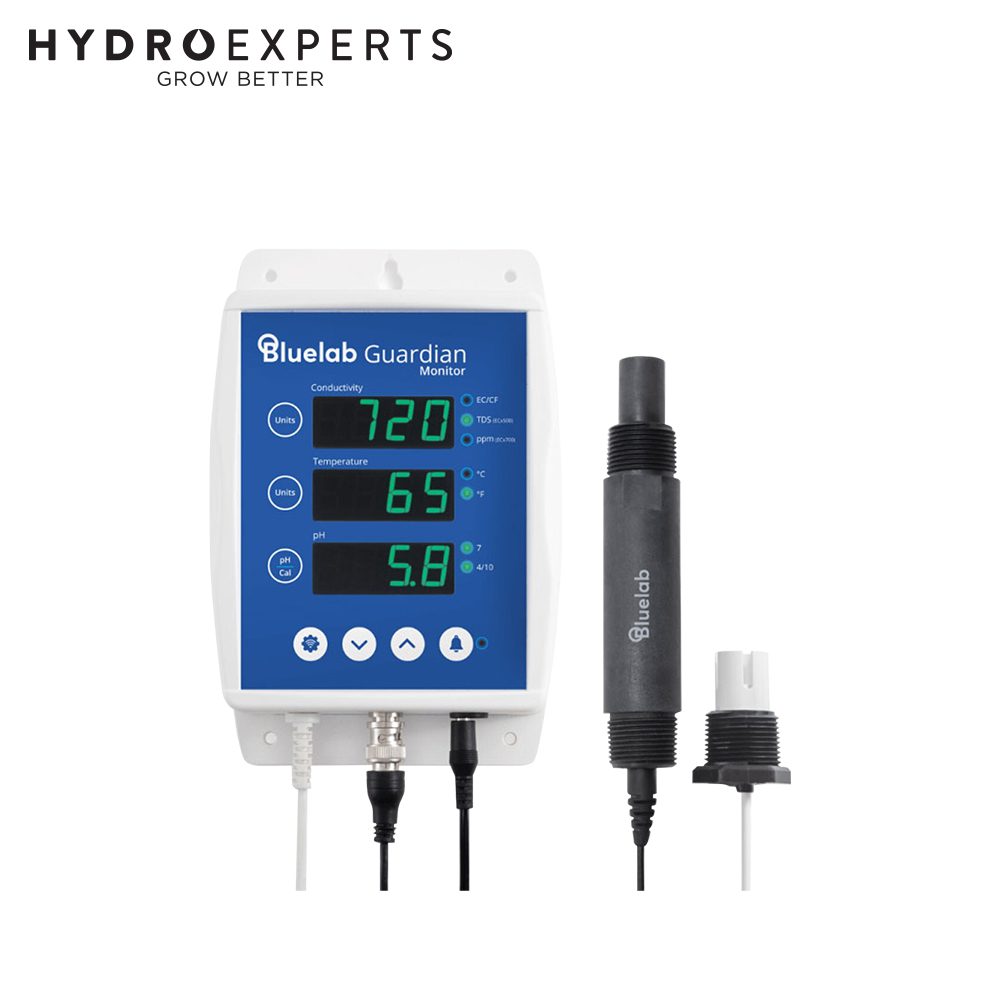

Bluelab Guardian Monitor Inline Wifi | pH EC Temperature Monitor

Built-in Wifi | Compatible with Bluelab Edenic Software

SKU: CMBOMTR10112
|
Bluelab

EXPERT'S CHOICE

ETA: 1-3 Weeks

Product main image

OUT OF STOCK

FREE SHIPPING

$949.95
Hex Point

950 Hex points

 - Learn More
Shipping Detail

Backordered items are usually shipped within 1-7 business days

The Bluelab Guardian Monitor Inline Wi-Fi comes with probe fittings suitable for 1" NPT to give you inline measurement capabilities. Able to withstand up to 7 bar this is the perfect solution for keeping an eye on your inline dosing system.
Qty:
In stock with supplier Dispatches in 1-3 Weeks

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

The Bluelab Guardian Monitor Inline Wi-Fi enables growers to optimize their nutrient solution parameters at a glance. In one view, it displays the 3 critical metrics for successful crop growth - pH, conductivity measured in either EC/CF, TDS (ppm 500) or ppm 700 units, and temperature shown in either Fahrenheit or Celsius. With built-in Wi-Fi, the monitor can feed data to Edenic’s online software platform, allowing growers to monitor nutrient levels from anywhere. This constant indicator of nutrient status helps maximize yields as crops progress through stages. The monitor mounts to the wall or hangs using fittings, with probes inserted into nutrient lines up to 1 inch. The included fittings ensure a secure fit and withstand pressures up to 200 pounds per square inch. Save time and effort with the Bluelab Guardian Monitor Inline Wi-Fi, a trusted solution for in-line monitoring systems. Your key parameters - at a glance.

Features

  • Built-in Wi-Fi (with the option to disable)
  • High/low pH, temperature and conductivity alarms
  • Non-volatile memory – keep settings through power loss
  • Plant-safe green LEDs with adjustable display brightness
  • 2 metre / 6.6 foot measurement probe cables
  • 110 – 240 VAC (Mains powered)
  • Interchangeable power plug (North America, Europe, UK, AU/NZ)
  • Replaceable Bluelab pH Probe Inline rated to 7 bar (BNC connection)

When connected to Edenic by Bluelab app

  • Instant alarm alerts to your phone
  • Remote monitoring and control
  • History reporting to assist data-driven decision-making

Specifications

  • Measurement Range:
    • pH
      • 0.0 – 14.0 pH
    • pH
      • 0.0 – 5.0 EC, 0 – 50 CF
      • 0 – 2500 TDS (EC x 500), 0 – 3500 ppm (ECx700)
    • Temp.
      • 0 – 50 ̊C, 32 – 122 ̊F
  • Resolution: 0.1 pH, ,  1 ̊C / 1 ̊F
    • pH: 0.1 pH
    • EC: 0.1 EC, 1 CF; 10 TDS, 10 ppm
    • Temp.: 1 °C, 1 °F
  • Accuracy at 25̊C / 77̊F:
    • pH: ± 0.1
    • EC: ± 0.1 EC, ± 1 CF; ± 50 TDS, ± 70 ppm
    • Temp.: ± 1 ̊C / ± 2 ̊F
  • Automatic Temperature Compensation: Yes, if the conductivity probe is in the same solution as the pH probe
  • Operating Environment: 0 – 50 ̊C / 32 – 122 ̊F
  • Inline Probe (Conductivity & pH): Rated for a maximum pressure of 100 psi (7 bar) pH – ¾” NPT fitting with a 1” adapter included Conductivity – 1” NPT fitting
  • Calibration: Two points for pH (7.0 & 4.0 or 10.0), factory calibrated for EC & Temp.
  • Power Source: Input: 100-240 VAC, 50-60 Hz, 5 VA, 4 interchangeable plug types (USA, Euro, UK, NZ/AUS), Output: 5 VDC 1 A
  • Signal Range: Indoor / Urban: 66 feet / 20 meters. Outdoor / RF line-of-sight: 164 feet / 50 meters
  • Frequency Band: 2.4 GHz ISM
  • System Requirements: Android (8.0 or later) or iOS (12 or later) Mobile phone for Edenic Software. Internet connection for remote access & data-logging..
  • Certifications: CE, FCC, IC. Contains Wi-Fi/Bluetooth Module IC: 21098-ESPS3WROOM1, FCC ID: 2ACZ7-ESPS3WROOM1
  • Radio: Wi-Fi: 2.4 GHz (802.11 b/g/n)
  • Bluetooth: 5 (Low energy)

In The Box

  • [1] x Bluelab Guardian Monitor Inline Wifi | pH EC Temperature Monitor

Always On. Being There Optional.

Monitor your reservoir pH, Conductivity and Temperature with alerts on your phone when using the Wi-Fi-capable Bluelab Guardian Monitor.

  • Built-in Wi-Fi (with the option to disable it)
  • High/low pH, temperature and conductivity alarms
  • Non-volatile memory – keep settings through power loss
  • Plant-safe green LEDs with adjustable display brightness
  • 2 metre / 6.6-foot measurement probe cables
  • 110 – 240 VAC (Mains powered)
  • Interchangeable power plug
  • Replaceable Bluelab pH Probe (with BNC connection)

When connected to Edenic by Bluelab app:

  • Instant alarm alerts to your phone
  • Remote monitoring and control
  • History reporting to assist data-driven decision making

2-Year Replacement Warranty For Bluelab Guardian Monitor Connect

  • If the product is faulty within the warranty period, the product will be replaced with a new one.
  • Please send the product to the following address on the contact us page.

6-Month For Phobes Replacement Warranty

  • If the product is faulty within the warranty period, the product will be replaced with a new one.
  • Please send the product to the following address on the contact us page.
