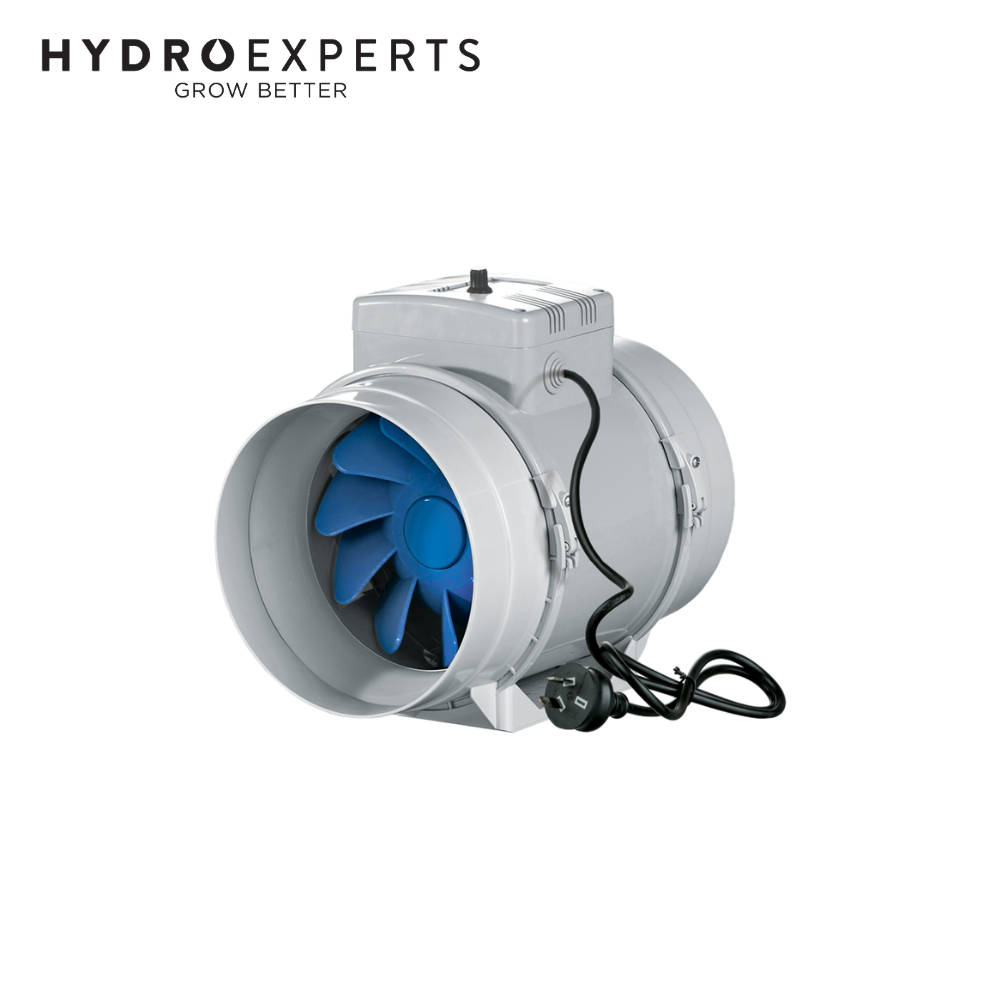

Blauberg Turbo EC Mixed Flow Fan - 315MM (12" Inch) | w/ Speed Controller & Lead and Plug

Air Flow 1970 M³/H | Power Consumption 284W | IPX4

SKU: FANS35204
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Blauberg Turbo EC 315 is the most powerful model in the Turbo EC range, delivering an impressive 1970 m³/h airflow while maintaining quiet operation and high energy efficiency. Designed for large-scale commercial, industrial, and hydroponic environments, it uses an electronically commutated (EC) motor that offers precise speed control and significant power savings.

With its hybrid mixed-flow impeller, the Turbo EC 315 ensures high static pressure and smooth airflow—ideal for long duct runs or resistance-heavy setups. It supports 0–10V speed control for integration with environmental sensors and building management systems (BMS). The fan’s smart modular design includes a removable motor core and mounting plate for quick servicing and flexible installation at any angle.

Features

  • High Airflow Performance: Moves up to 1970 m³/h to ventilate large or multi-room areas.
  • Energy-Saving EC Motor: Up to 35% more efficient than traditional AC motors with full speed range control.
  • Smart Control Integration: Accepts 0–10V input for BMS, sensors, or controllers.
  • Quiet Mixed-Flow Operation: Balanced axial and centrifugal impeller minimises turbulence and noise.
  • Tool-Free Maintenance: Removable motor/impeller cartridge simplifies servicing.
  • Wall or Inline Mounting: Secure flat-plate installation at any angle in 315mm ducting.
  • Moisture Resistant: Suitable for high-humidity environments with IPX4 rating.
  • Fire-Safe Housing: Built from low-combustible polypropylene for safety in industrial settings.

Specifications

Parameter Value Unit
Voltage 230 V
Phase 1 ~
Frequency 50/60 Hz
Current 1.25 A
Power 284 W
RPM 2826 min⁻¹
Max Air Flow 1970 m³/h
Max Air Flow 547 l/s
Sound Pressure (3m) 55 dBA
Connecting Piece Diameter 315 mm
Transported Air Temperature -25 to +55 °C
Ingress Protection Rating IPX4 -
Motor Type EC Motor -
Weight 11.95 kg
Design Axial / Centrifugal -
SEC Class B -
Mounting Inline -
ErP Compliance 2018 -

In The Box

  • [1] x Blauberg Turbo EC Mixed Flow Fan - 315MM (12" Inch) | w/ Speed Controller & Lead and Plug

Documents

View PDF brochure for Blauberg Turbo EC Mixed Flow Fan - 315MM (12" Inch) | w/ Speed Controller & Lead and Plug Download PDF brochure
