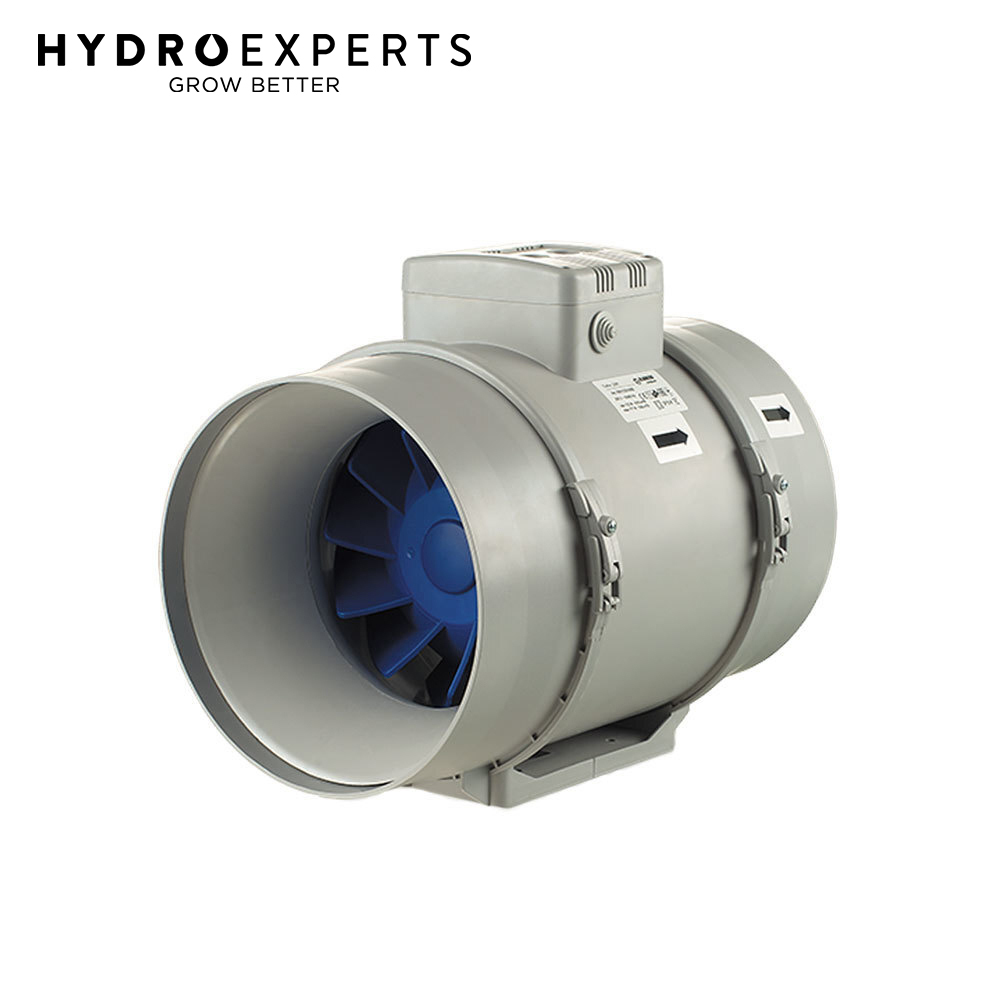

Blauberg Turbo Mixed Flow Fan - 250MM (10" Inch) | 800CFM | 2 Speed Switch

#SKU: FAN1003
Brand: Blauberg
$449.95
RRP $500.00
SAVE $50.05 (10%)


Calculate Shipping


Description



The Blauberg Turbo G Mixed Flow Fan is the best ventilation solution for premises requiring permanent temperature control as greenhouses, orangeries, etc.



Features



These Blaubergs mixed flow fans offer a range of features including;

  • Casing made of low flammable polypropylene
  • Single-phase motor on ball bearings
  • Equipped with thermal overload protection with automatic restart





Specifications



Parameter Value
Phase, [˜] 1
Voltage, [V] 230
Frequency, [Hz] 50/60
Power, [W] (min) 125
Power, [W] (max) 177
Current, [A] (min) 0.54
Current, [A] (max) 0.79
Maximum air capacity, [m³/h] (min) 1070
Maximum air capacity, [m³/h] (max) 1360
RPM, [min-¹] (min) 1955
RPM, [min-¹] (max) 2440
Sound pressure level at 3 m distance, [dBA] (min) 47
Sound pressure level at 3 m distance, [dBA] (max) 55
Max. operating temperature, [°C] 60
Ingress protection rating IP X4





Type Dimensions [mm] Weight
[kg]
D D1 B H L
Turbo 250 247 257 287 383 383 7.83









These Blaubergs mixed flow fans offer a range of features including;

  • Casing made of low flammable polypropylene
  • Single-phase motor on ball bearings
  • Equipped with thermal overload protection with automatic restart
  • [1] x Blauberg Turbo Mixed Flow Fan - 250MM (10" Inch) | 800CFM | 2 Speed Switch

Mounting

  • Due to compact design the fan is the ideal solution for mounting in limited spaces, including space behind a false ceiling.
  • The fan can be installed in any section of the ventilation system from intake to the end of the ductworks.
  • Wall or ceiling mounting with a mounting plate.







Parameter Value
Phase, [˜] 1
Voltage, [V] 230
Frequency, [Hz] 50/60
Power, [W] (min) 125
Power, [W] (max) 177
Current, [A] (min) 0.54
Current, [A] (max) 0.79
Maximum air capacity, [m³/h] (min) 1070
Maximum air capacity, [m³/h] (max) 1360
RPM, [min-¹] (min) 1955
RPM, [min-¹] (max) 2440
Sound pressure level at 3 m distance, [dBA] (min) 47
Sound pressure level at 3 m distance, [dBA] (max) 55
Max. operating temperature, [°C] 60
Ingress protection rating IP X4





Type Dimensions [mm] Weight
[kg]
D D1 B H L
Turbo 250 247 257 287 383 383 7.83





SKU FAN1003
Barcode # Does not apply
Brand Blauberg
Shipping Weight 8.0000kg
Shipping Width 0.400m
Shipping Height 0.350m
Shipping Length 0.400m
Shipping Cubic 0.056000m3
Unit Of Measure ea
