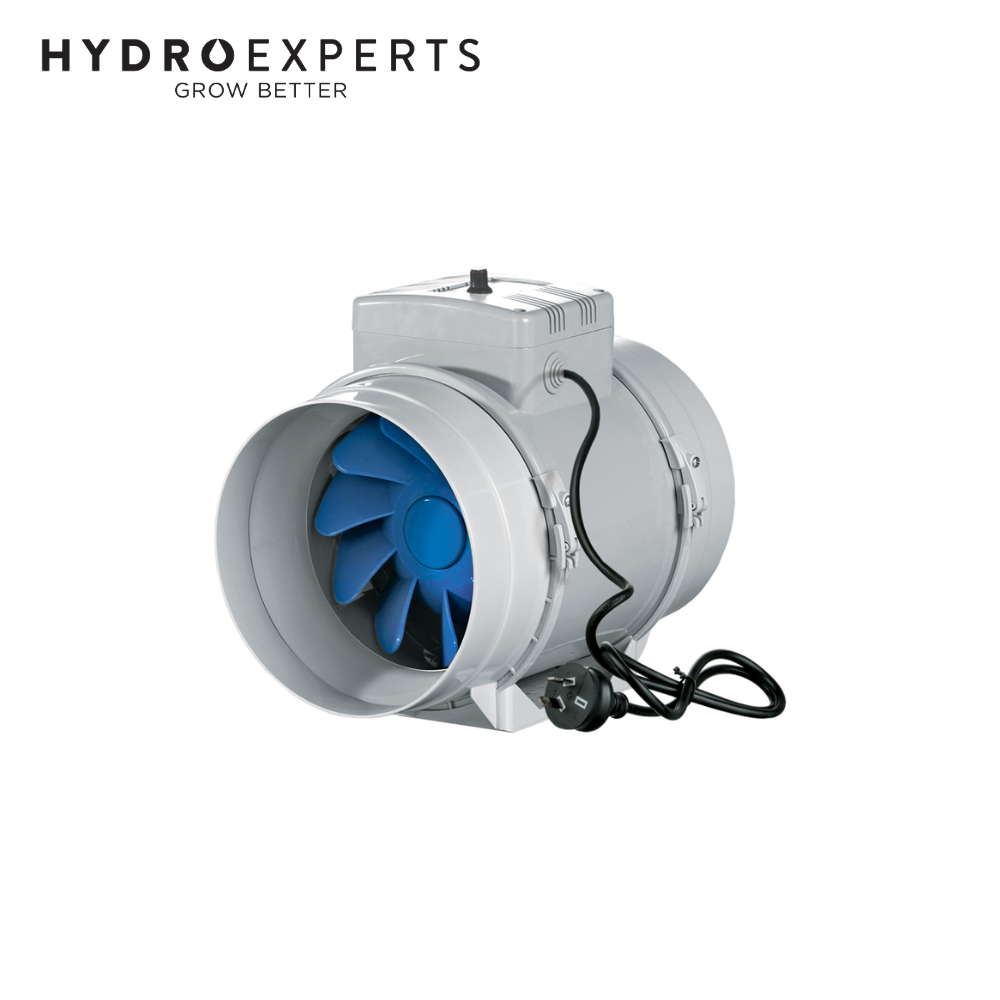

Blauberg Turbo EC Mixed Flow Fan - 150MM (6" Inch) | w/ Speed Controller & Lead and Plug

Air Flow 600 M³/H | Power Consumption 55W | IPX4

SKU: FANS35201
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Blauberg Turbo EC 150 is a high-capacity inline mixed-flow fan designed to deliver up to 600 m³/h airflow with smart EC motor technology and ultra-quiet performance. Ideal for high-humidity environments like kitchens, bathrooms, hydroponic grow rooms, and commercial ventilation systems, this fan combines centrifugal pressure with axial flow efficiency.

Powered by a high-performance EC motor, it responds to 0–10V control signals from sensors, external controllers, or central building management systems (BMS)—making it perfect for energy-conscious, responsive airflow applications. The removable motor unit and snap-fit bracket design make maintenance simple and tool-free. Fully compatible with 150mm ducting, this fan is suitable for inline installations in any orientation.

Features

  • Smart EC Motor: Electronically commutated motor saves up to 35% energy compared to traditional AC motors.
  • 0–10V Speed Control: Compatible with integrated/external controllers, sensors, and BMS systems for dynamic control.
  • High Airflow Capacity: Delivers up to 450 m³/h with quiet operation and high static pressure.
  • Mixed-Flow Design: Combines axial and centrifugal impellers for boosted airflow and pressure with reduced noise.
  • Quick Maintenance: Removable central unit with motor and impeller simplifies servicing.
  • Wall or Duct Mountable: Built-in flat plate for secure vertical or horizontal installations at any angle.
  • Low Combustible Housing: Durable polypropylene casing with IPX4 ingress protection for moist environments.
  • Flexible Integration: Suitable for 125 mm duct systems in homes, grow tents, shops, or industrial setups.

Specifications

Parameter Value Unit
Voltage 230 V
Phase 1 ~
Frequency 50/60 Hz
Current 0.48 A
Power 55 W
RPM 3390 min⁻¹
Max Air Flow 600 m³/h
Max Air Flow 167 l/s
Sound Pressure (3m) 46 dBA
Inlet/Outlet Diameter 150 mm
Transport Air Temp -25 to +55 °C
Ingress Protection IPX4 -
Weight 2.3 kg
Design Axial / Centrifugal -
SEC Class B -
Mounting Inline -
ErP 2018 -

In The Box

  • [1] x Blauberg Turbo EC Mixed Flow Fan - 150MM (6" Inch) | w/ Speed Controller & Lead and Plug

Documents

View PDF brochure for Blauberg Turbo EC Mixed Flow Fan - 150MM (6" Inch) | w/ Speed Controller & Lead and Plug Download PDF brochure
