Vortice Lineo Inline Mixed Flow EC Fan - Lineo 150 ES | 150MM (6" Inch)

Air Flow 590 M³/H | Power Consumption 55W | IP45

SKU: FANS70402
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

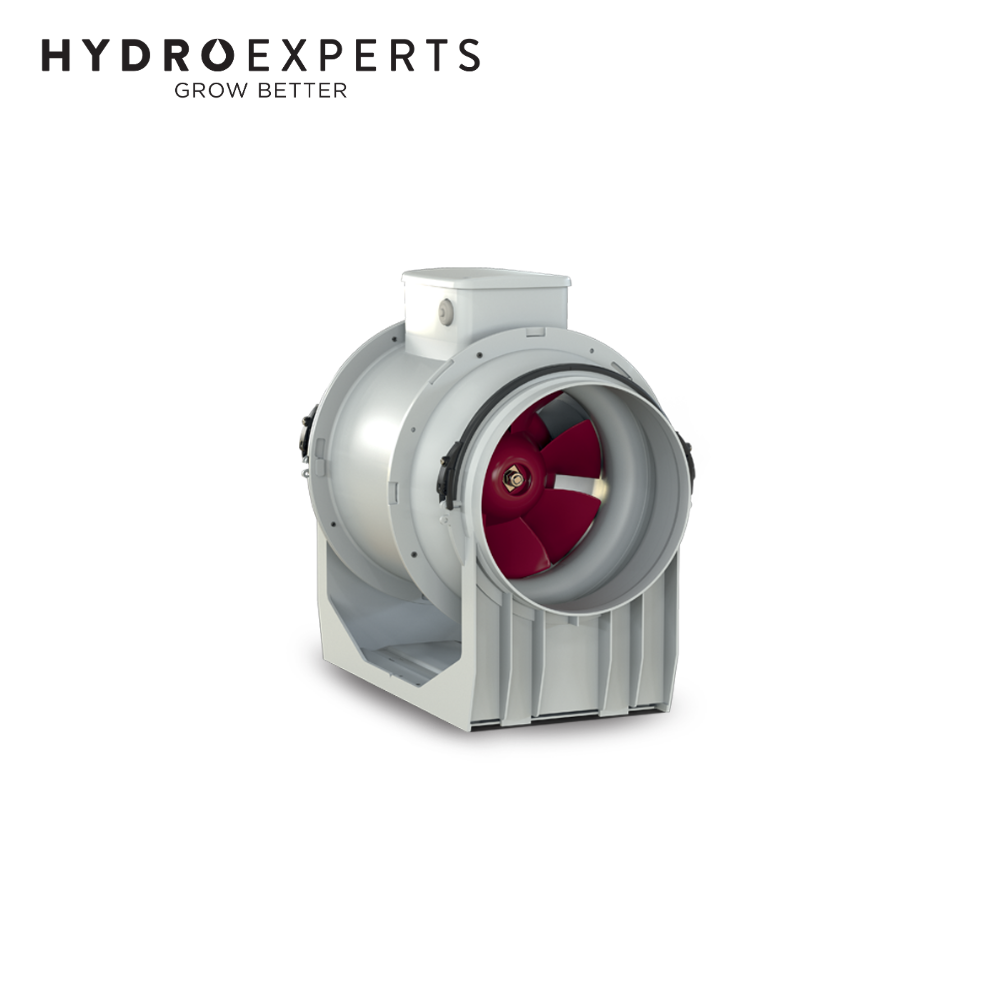

The Vortice Lineo 150 ES Inline Mixed Flow EC Fan is a high-performance, energy-efficient ventilation solution designed for professional and residential applications. With a 150mm nominal diameter and an advanced EC (brushless) motor mounted on ball bearings, it delivers a maximum airflow of 590 m³/h while maintaining low energy consumption and quiet operation. The unit’s fire-resistant plastic resin housing (E2 class, ISO EN 11925-2:2010) provides superior safety, especially around motor and electrical components.

Engineered for durability, the Vortice Lineo 150 ES has an IP45 water resistance rating (IPX5 in duct installations), making it ideal for challenging environments. Its speed can be easily adjusted via a potentiometer (0–10V) or two-speed switch, allowing precise airflow control. Equipped with a thermal fuse overheating protection device, this inline fan ensures safe and reliable operation, making it perfect for both continuous and demand-based ventilation systems.

Features

  • High-Efficiency EC Motor – Brushless technology with low running costs and thermal protection.
  • Large 150mm Diameter – Designed for high airflow applications in residential, commercial, or industrial settings.
  • Durable Fire-Resistant Housing – E2 class material compliant with ISO EN 11925-2:2010.
  • Superior Water Resistance – IP45 rating (IPX5 in duct) for reliable use in demanding conditions.
  • Adjustable Speed Control – Potentiometer (0–10V) or two-speed switch for flexible operation.
  • Low Noise Output – Quiet performance with only 21 dB(A) at 3m on low speed.
  • Safety Assured – Built-in thermal fuse to prevent overheating.

Specifications

Parameter Value
Nominal Diameter 150mm
Max Airflow 590 m³/h
Voltage 220-240V
Frequency 50-60Hz
Max Power 55W
Max Current 0.50A
Insulation Class Class II
IP Rating IP45 (IPX5 in duct)
Max Ambient Temperature 60°C
Weight 2.6 kg
RPM 2480 (max)
Noise Level at 3m 41.9 dB(A) at max speed
Housing Material Fire-resistant plastic resin (E2 class)

In The Box

  • [1] x Vortice Lineo Inline Mixed Flow EC Fan - Lineo 150 ES | 150MM (6" Inch)
