TrolMaster Carbon-X CO2 Alarm System - CDA-1

SKU: CTRL12201

ETA: 1-3 Weeks

Product main image



Pick up at store Free

Delivery Charge: Free

International shipping

Click here



Pay in 4, interest-free. Afterpay it.


Repay on a convenient weekly, fortnightly or monthly schedule.

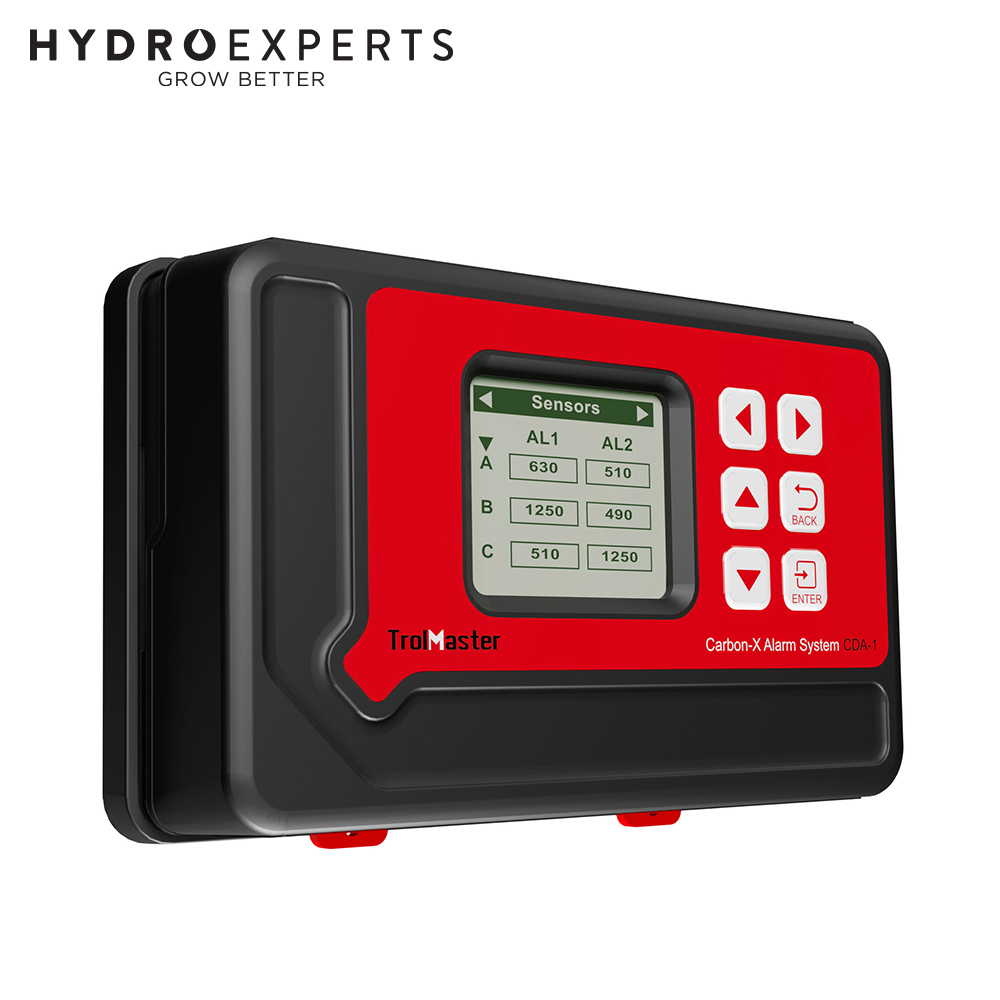

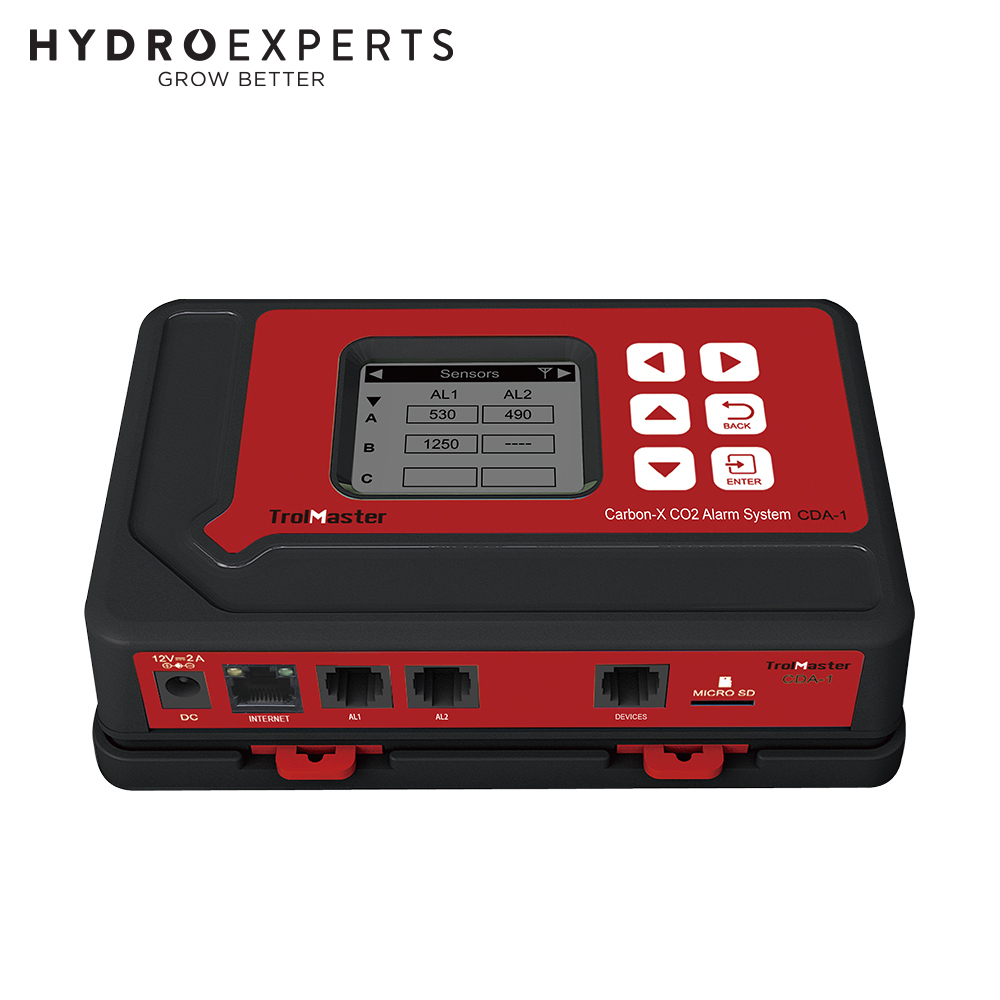

The TrolMaster Carbon-X CO2 Alarm System (CDA-1) will help you manage indoor CO2 more effectively. Up to 13 different zones or rooms can each have their CO2 levels thoroughly monitored by this device. Whether you're an expert cultivator or an amateur who enjoys indoor gardening, it offers a vital tool for preserving ideal CO2 concentrations, which are necessary for healthy plant growth.

Customizable Alerts

You have control over the Carbon-X system's configurable alerts. It has the ability to send out low-level notifications at 5,000 ppm as well as high-level alerts up to 30,000 ppm, all of which can be adjusted to comply with regional laws regarding indoor CO2 supplementation. You may relax knowing that your interior space complies with regulations and is favourable to the growth of healthy plants.

Comprehensive Control

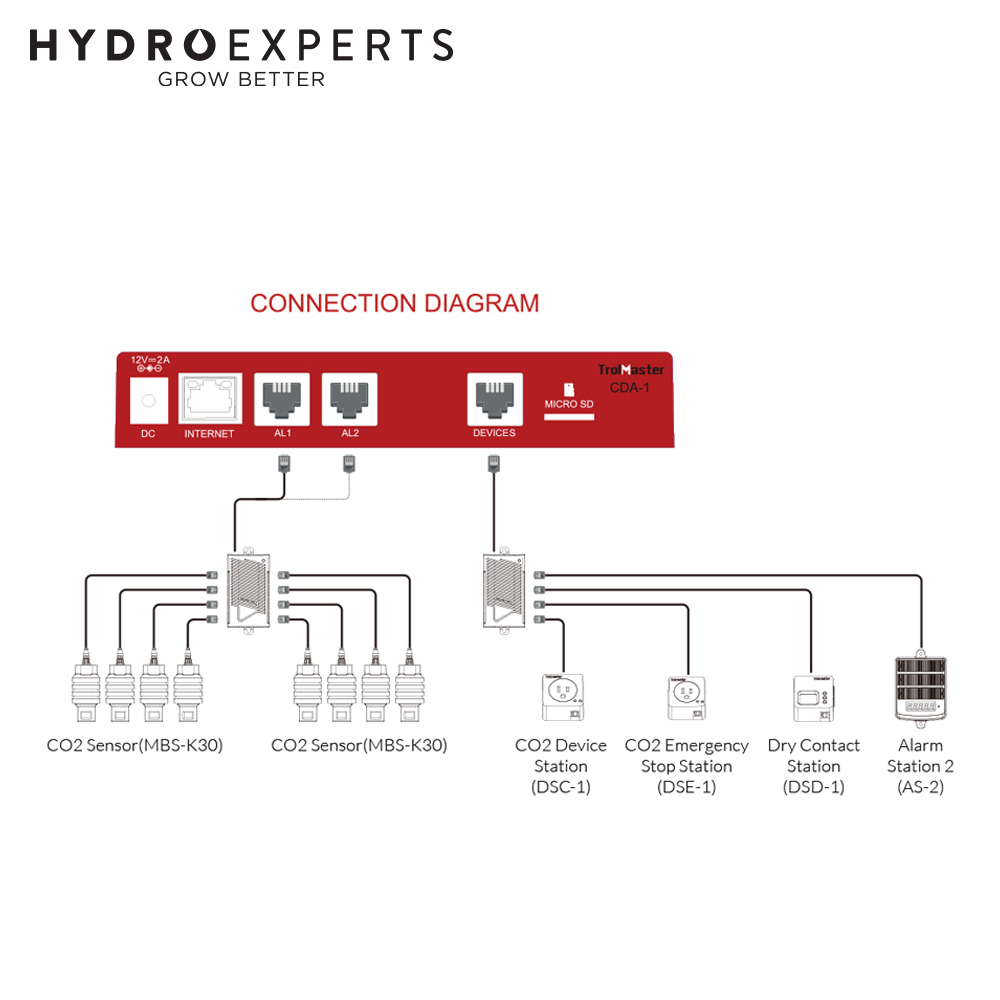

The Carbon-X system offers comprehensive control in addition to monitoring. It can control a number of appliances, including ventilation fans, dampers, and main CO2 valves. If necessary, it can also interface with your facility's fire/alarm system to call the fire service. By connecting the facility's main CO2 solenoid to the system control modules, automatic CO2 shut-off is seamless. Easily alter the settings on each device to meet your specific requirements.

Remote Monitoring for Peace of Mind

The TrolMaster app allows remote monitoring, giving you access to real-time information on the CO2 levels in your interior environment. If high CO2 levels are found, you will quickly receive user alerts and notifications, enabling you to take prompt action and ensure the success of your plants.


  • Internet Connection Note: TrolMaster's main controllers can be connected to the internet in order to use the available APP. Most internet services available including land-based and cellular internet are compatible. However, HughesNet / Viasat Satellite Internet is NOT compatible with TrolMaster controllers at this time.
  • Firmware Update Note: To update firmware on the TrolMaster's controllers and modules, you must use a Micro SD card that is 32GB or less capacity.


  • Input Voltage: 100-240VAC, 50/60Hz
  • Max Sensors: 13 pcs per Alarm channel
  • Max controlled output: 40 pcs
  • Working Environment: Temperature 32-122°F, Humidity<=90%
  • Package Dimensions: 275mm(L) x 164mm(W) x 62mm(H)

In The Box

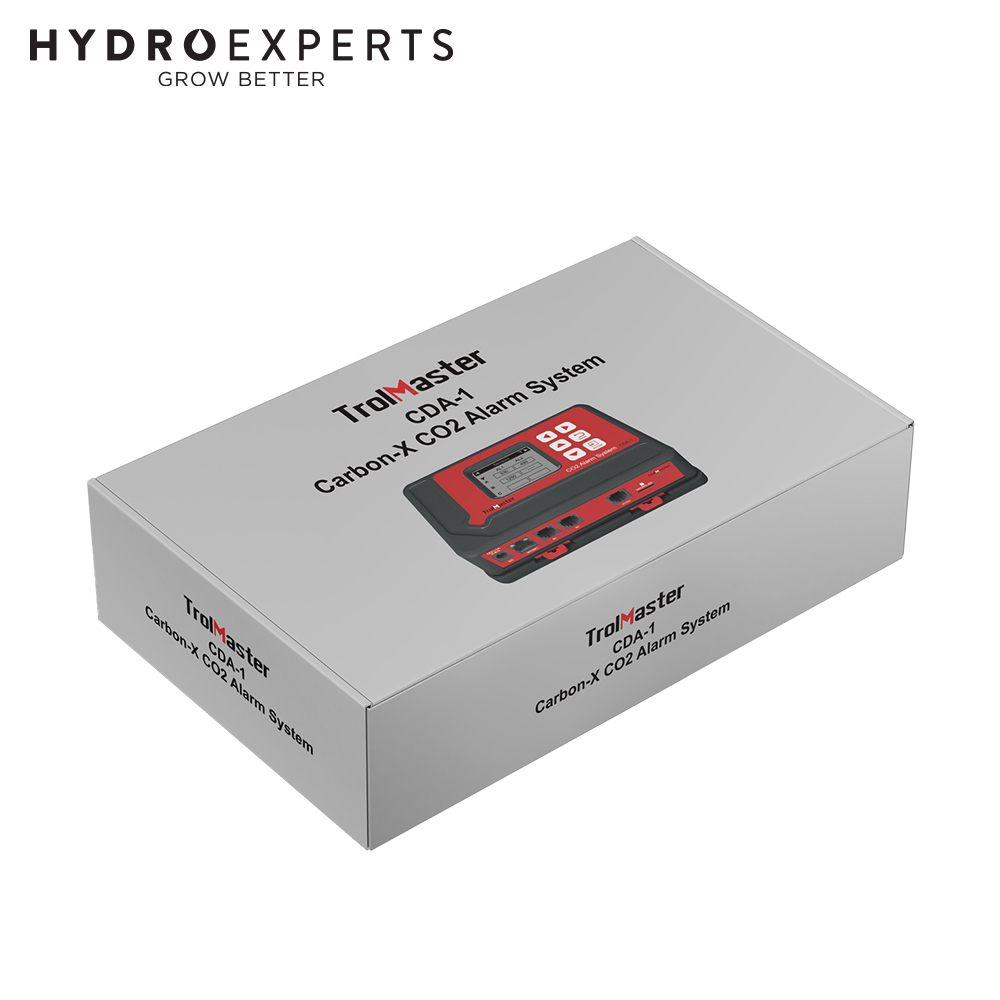

  • [1] x CO2 Alarm System(CDA-1)
  • [2] x16ft RJ12 Cable
  • [1] x12V Power Adapter
