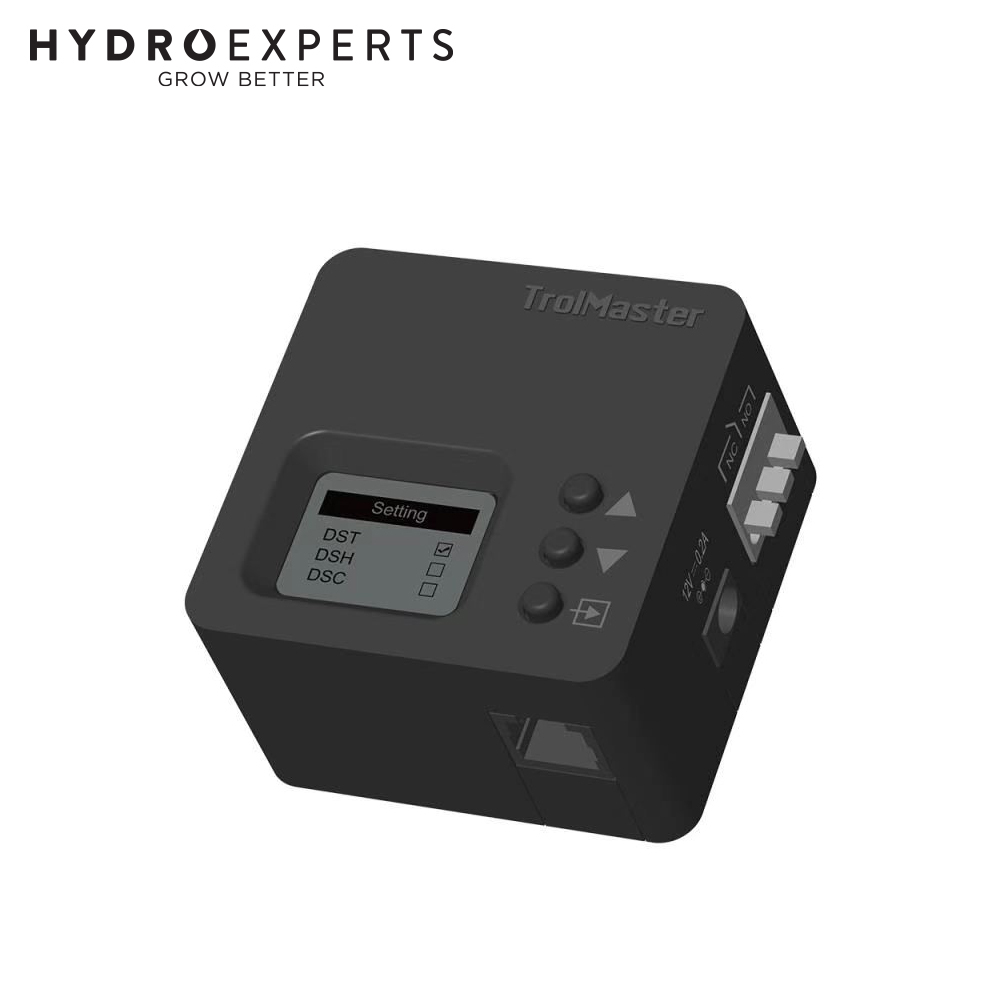

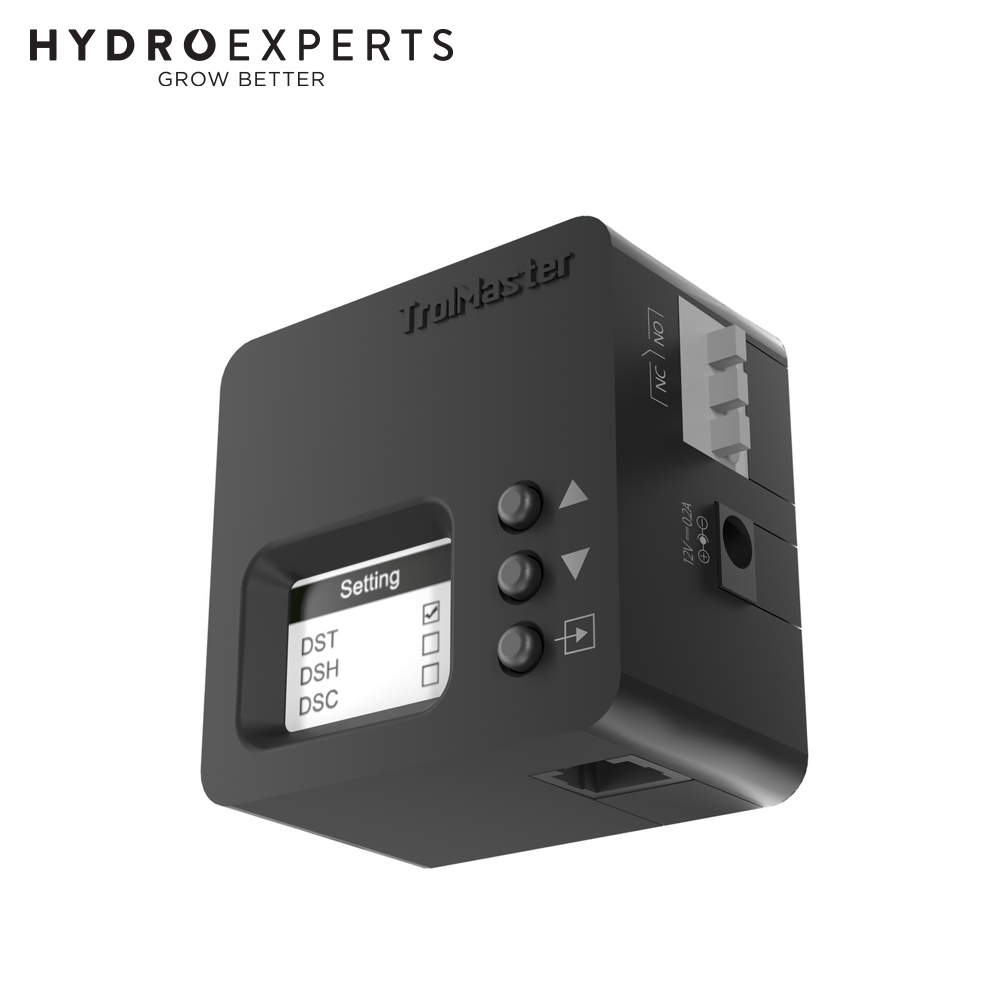

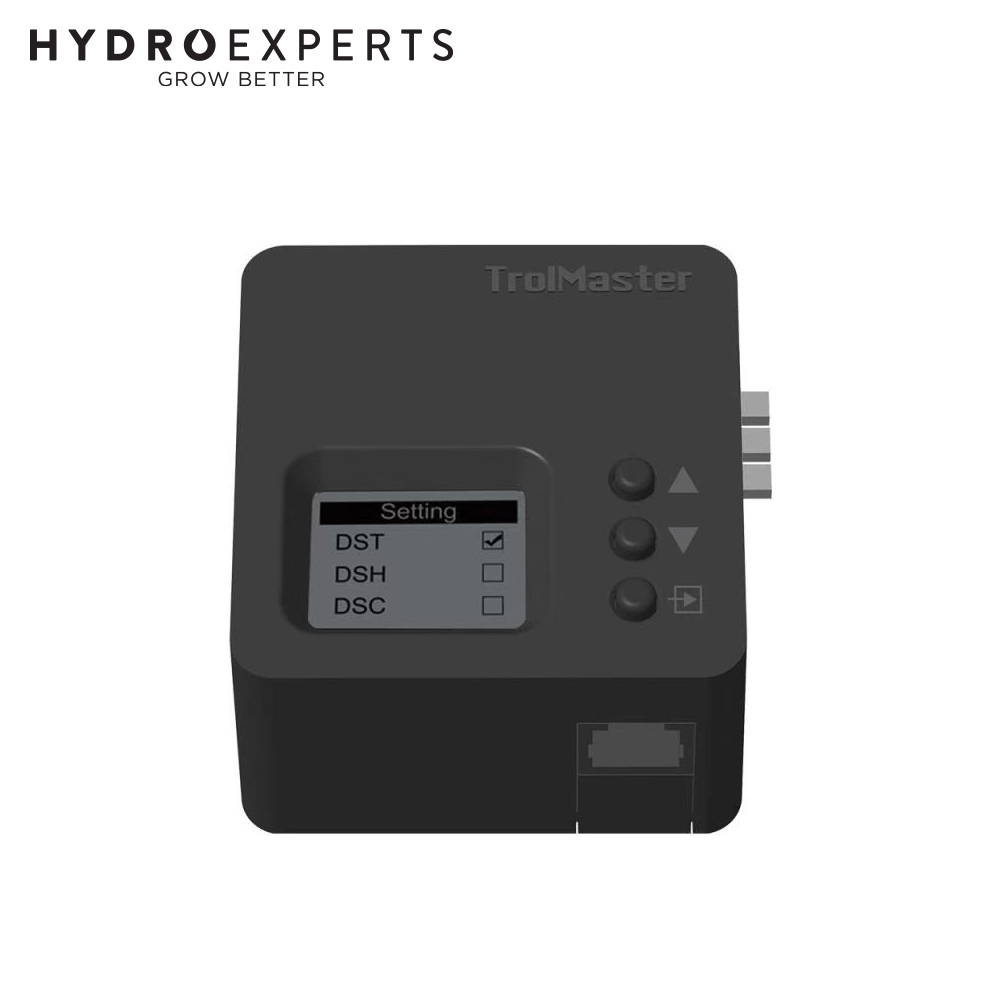

TrolMaster Hydro-X Dry Contact Station - DSD-1 | LCD Display

SKU: CTRL11023
|

ETA: 1-3 Weeks

Product main image

FREE SHIPPING OVER $499*

Products You May Need

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to who want to connect & control devices to the Hydro-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices. *

The DSD-1 can be configured to work as the other Trolmaster power modules work. The DSD-1 connects into the “devices” line on the Hydro-X and can be set to control an almost infinite number and types of devices such as:

  • Lighting contactors
  • Light Deprivation curtains
  • Pump contactors
  • Temperature devices
  • Humidity devices
  • CO2 devices
  • * Consult Trolmaster for questions concerning your particular device.

Specifications

  • Input Voltage: 100~240VAC, 50/60Hz
  • Output Current: 10A
  • Output Voltage: 100~240 VAC, 50/60Hz
  • Working Environments: Temperature 32-122°F, Humidity=90%
  • Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)

In The Box

  • [1] x TrolMaster Hydro-X Dry Contact Station - DSD-1 | LCD Display
  • LCD Display, Easy Operation
  • Seamless Connection with Hydro-X
  • Multiple purposes assigment
  • Plug & Play
