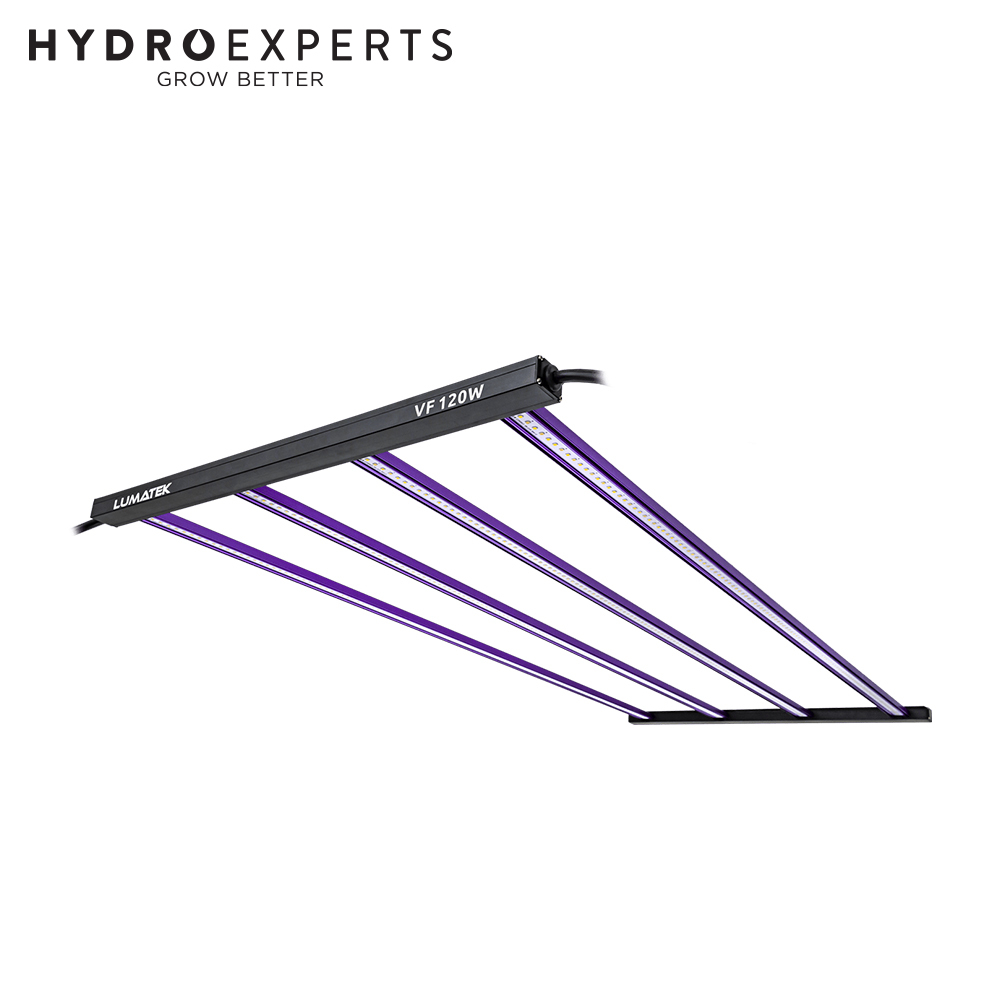

Lumatek LED Grow Light - VF120W | 220-240V | PPFE 2.4Umol/J | IP65

Dimmable | Passive Cooling | 288 White & 192 Warm Diodes

SKU: LEDL95232
Free shipping

Products You May Need


Click & Collect Free

Free pick up at store


If cart total is less than $499*

Freight applies

If cart total is $499* & above


*excluding bulky items


Lumatek 650W Driver for VF LEDs can run maximum of 5 Lumatek VF120W!

Lumatek has innovated again and came up with the ideal LED fixture for Seedlings, Clones and for any low PPFD target plants. Meet the new VF120W, with Vertical Farming Range (VF Range). These versatile high efficacy fixtures will ensure you reach your goals when used in Vertical Farming applications. From propagation factories and nurseries, climate chambers, warehouse farms, containers, among others, the Lumatek VF range will deliver the adequate light quality spectral and photon flux levels you need. The VF120W comprises four 30W LED bars with 4000K White and 3000K Warm White diodes, with a total PPF output of 308 μmol/s and a 2.4 μmol/J Efficacy.

The VF range already includes the new clear Glue protection cover technology on the LED bars; resulting in higher light transmittance of 99% without light loss, extended lifetime of diodes, extra corrosion resistance and high waterproofing of IP65. For basic maintenance, simply clean the bars with wet cotton. The fixture will require a 650W Driver (sold separately) that can run up to 5 VF120W fixtures per unit and can be dimmed with a 0-10V Light Dimmer (also sold separately) or externally controlled with our Digital Panel Plus 2.0 or any other Universal Controller 0-10V.

Universal Control Systems Compatibility
Lumatek LED Fixtures can be fully controlled with either the Lumatek Digital Panel Plus 2.0 or with any other Control System that utilises 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.


  • Efficacy: 2.4 umol/j
  • PPF: 308 umol/s
  • Input Voltage: 220-240V, 50-60HZ
  • Driver: 650w Driver (Sold Separately), Each One Can Run Up To 7 X Vf90w Fixtures
  • Input Power: 124W (±5%)
  • Footprint: 1.2 x 0.6M
  • Application:
    • Multi-Layer,
    • Vertical Farming,
    • Racks/Shelves
  • Waterproof & Dustproof: Ip65
  • Lifetime (Led Bars): 60 000 Hrs
  • Light Distribution: 120°
  • Light Source:
  • CCT: 3600K
  • Quantity Of Led Bars: 4 x 30w
  • Quantity Of Diodes Total:
    • White - 288
    • Warm White - 192
  • Quantity Of Diodes Per Led Bar:
    • White - 72;
    • Warm White - 48
  • Diodes Power Proportion:
    • White - 60%;
    • Warm White - 40%
  • Diodes Efficiency:
    • 4000k White High Spec 2.6 umol/j;
    • 3000k Warm White High Spec Diodes 2.55 umol/j
  • Dimmable:
    • Off-25%-50%-75%-100%
    • With 0-10v Light Dimmer (Connected To Driver)
  • External Control:
    • With Lumatek Digital Panel Plus 2.0 Or Universal Controller 0-10v (Connected To Driver)
  • Weight: 2.1 Kg
  • Dimensions: 1207 X 521 X 20.5mm
  • Thermal Management: Passive Cooling
  • Power Factor: 0.95
  • Max. Ambient Temperature (@ 1000w Power): 25°c
  • Btu (With Driver Attached): 409 Btus/h
  • Certifications:
    • Ip65
    • Rohs Directive 2011/65/eu And (Eu)2015/863)

In The Box

  • [1] x Lumatek LED Grow Light - VF120W | 220-240V | PPFE 2.4Umol/J | IP65
  • Very high efficacy up to 2.4 µmol/s/J
  • Very high PPF output for high-intensity 308µmol/s
  • Unique and innovative large foldable frame designed for wider rectangular coverage
  • Outstanding light spread and distribution in 1.2x0.6m grow area
  • High-quality Lumatek LED drivers
  • New Clear Glue protection cover technology on LED bars
  • Top bin LEDs
  • Balanced full spectrum
  • Fully Dimmable
  • User-friendly Plug & Play Assembling

3-Year Replacement Warranty

  • If the product is faulty within the warranty period, the product will be replaced with a new one.
  • Please send the product to the following address on the contact us page.
