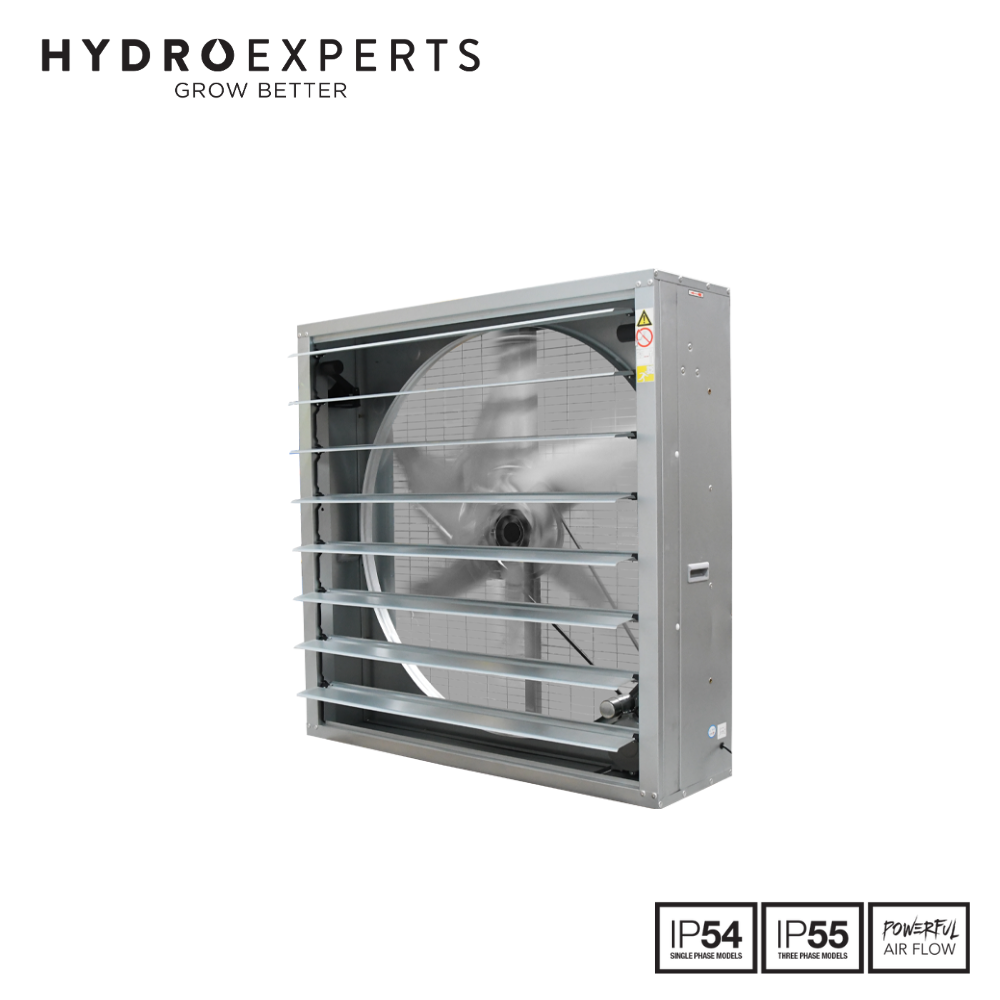

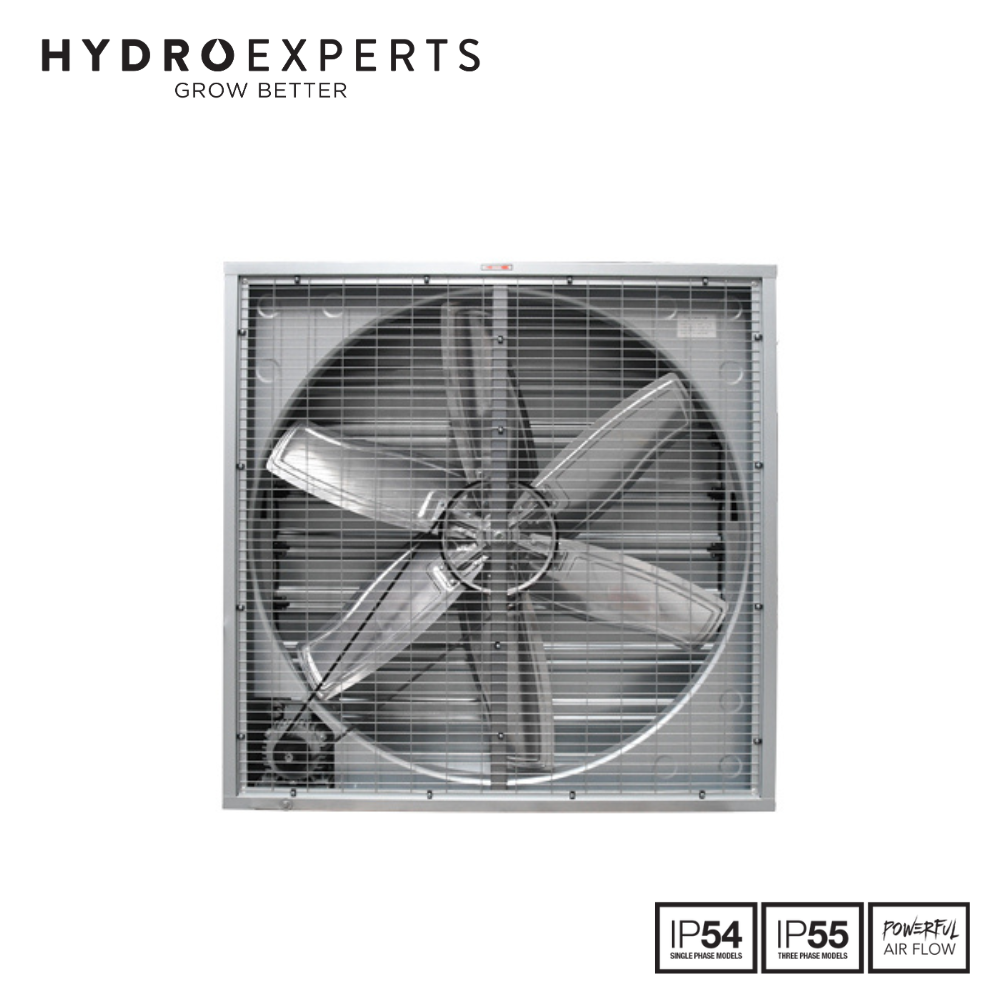

Fantech High Volume Galvanised Steel Wall Fan - HVE125 | 1250MM | 1 Phase | w/ Backdraft Dampers

Airflow 44500 M³/H | Power Consumption 1.1 KW | IP54

SKU: FANS51801
|

OUT OF STOCK

POSTAGE APPLIES

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Freight applies

*This item is bullky so freight applies.

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech HVE125 High Volume Wall Fan is a powerful industrial ventilation solution engineered to move large volumes of air in commercial, agricultural, and industrial environments. Delivering an impressive 44,500m³/hr airflow capacity, this 1250mm wall-mounted exhaust fan is designed to efficiently remove heat, humidity, dust, fumes, and stale air from large buildings where effective ventilation is essential.

Ideal for warehouses, large workshops, poultry sheds, livestock facilities, factories, processing plants, and recreation halls, the HVE125 combines exceptional airflow performance with robust construction. Manufactured from durable galvanised steel, the fan is built to withstand demanding operating conditions while providing years of reliable service.

The integrated self-closing mechanical backdraft dampers automatically close when the fan is not operating, helping to prevent weather ingress, drafts, and debris from entering the building. Powered by a reliable 240V single-phase 1.1kW motor, the HVE125 provides industrial-grade airflow performance without requiring three-phase power.

Featuring safety guards, grab handles, nutserts, and an adjustable motor plate for simplified maintenance, the Fantech HVE125 High Volume Wall Fan offers a practical and efficient ventilation solution for facilities requiring maximum airflow performance from a single-phase installation.

Features

  • Maximum Airflow Capacity - Delivers up to 44,500m³/hr airflow for large commercial and industrial spaces.
  • Single Phase Operation - Operates on standard 240V power, eliminating the need for three-phase electrical supply.
  • Large 1250mm Fan Diameter - Designed to move substantial air volumes efficiently.
  • Heavy Duty Galvanised Steel Construction - Provides long-term durability in demanding environments.

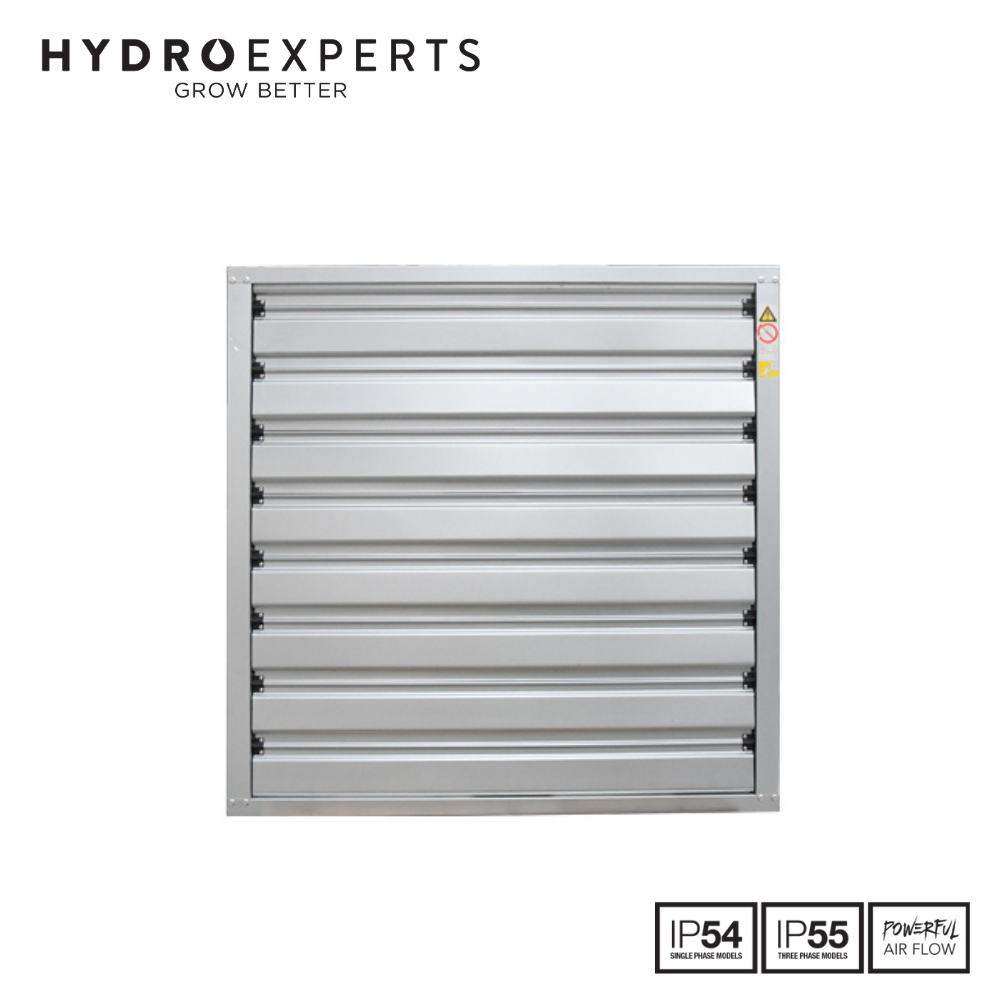

  • Self-Closing Backdraft Dampers - Prevents weather ingress when the fan is switched off.
  • Industrial Ventilation Performance - Ideal for high-volume air extraction and fresh air exchange.
  • IP54 Rated Motor - Suitable for commercial, industrial, and agricultural applications.
  • Safety Guards Included - Enhances operational safety.
  • Adjustable Motor Plate - Simplifies belt maintenance and tension adjustment.

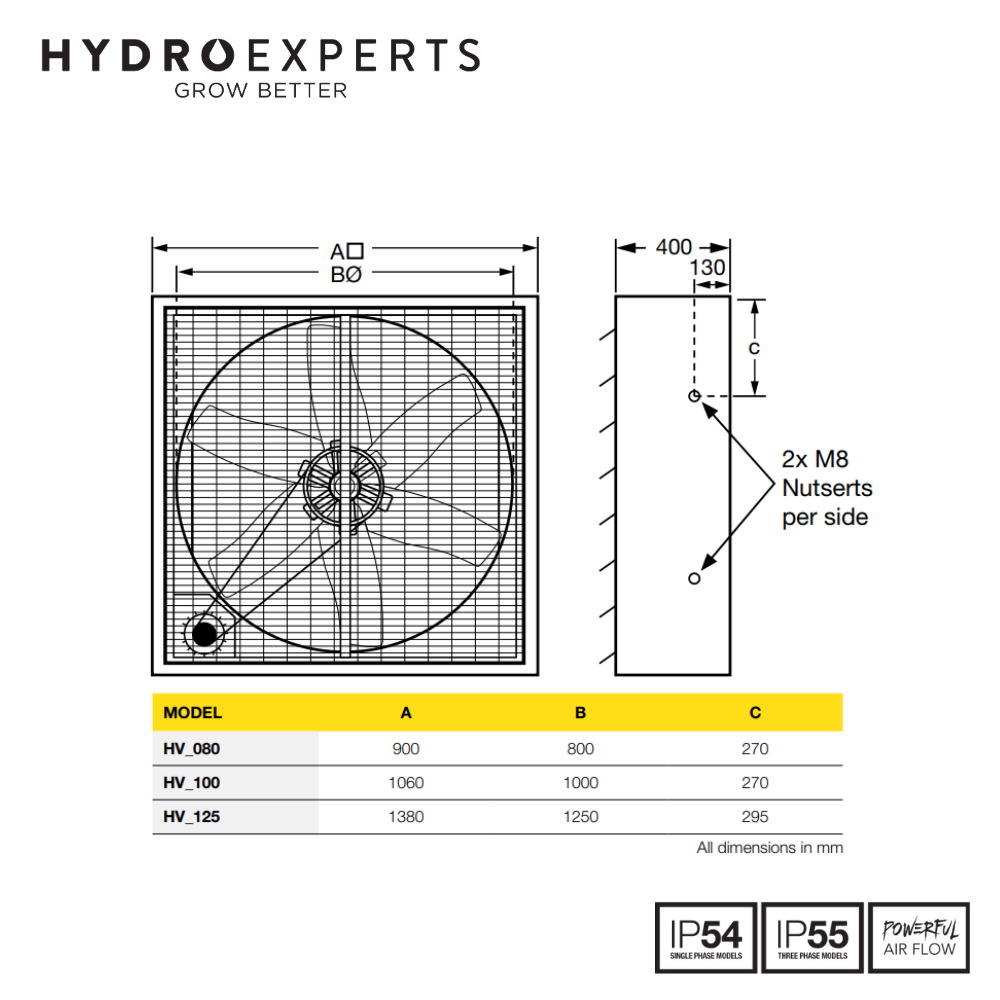

  • Easy Installation Design - Features integrated grab handles and nutserts for convenient installation.

Specifications

Specification HVE125
Model HVE125
Fan Size 1250 mm
Voltage 240 V
Phase Single Phase
Frequency 50 Hz
Motor Power 1.1 kW
Airflow 44,500 m³/hr
Noise Level 55 dB(A) @ 3m
Fan Speed 450 RPM
Weight 65 kg
IP Rating IP54
Construction Galvanised Steel
Backdraft Dampers Self-Closing Mechanical Shutters
Safety Guards Included

In The Box

  • [1] x Fantech High Volume Galvanised Steel Wall Fan - HVE125 | 1250MM | 1 Phase | w/ Backdraft Dampers
