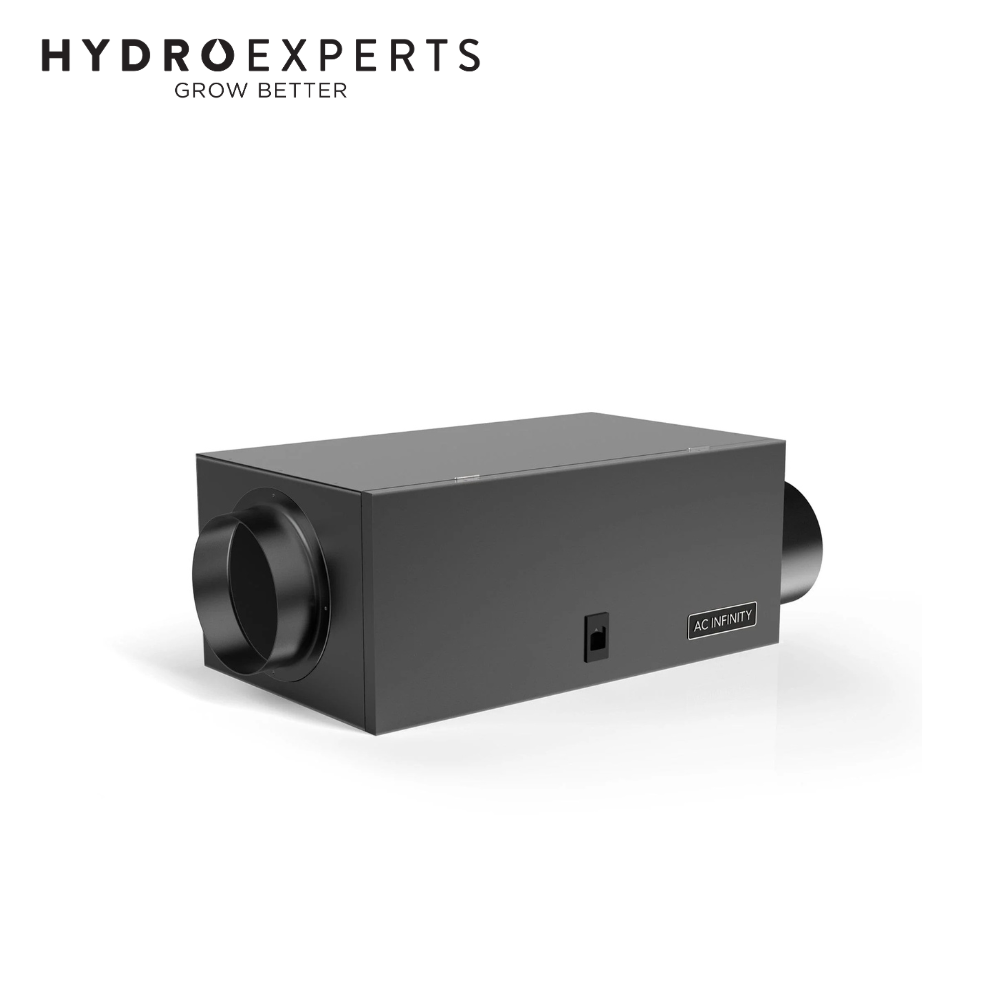

AC Infinity Inline Air Filter Box w/ MERV Filter - 200MM (8" Inch) | 1600CFM

SKU: FLTR50103
|

OUT OF STOCK

POSTAGE APPLIES

$319.95
Industrial-grade inline duct filter box with replaceable MERV filter, steel construction, 1600CFM airflow capacity – perfect for grow rooms, HVAC systems, and indoor air purification.

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Freight applies

*This item is bullky so freight applies.

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

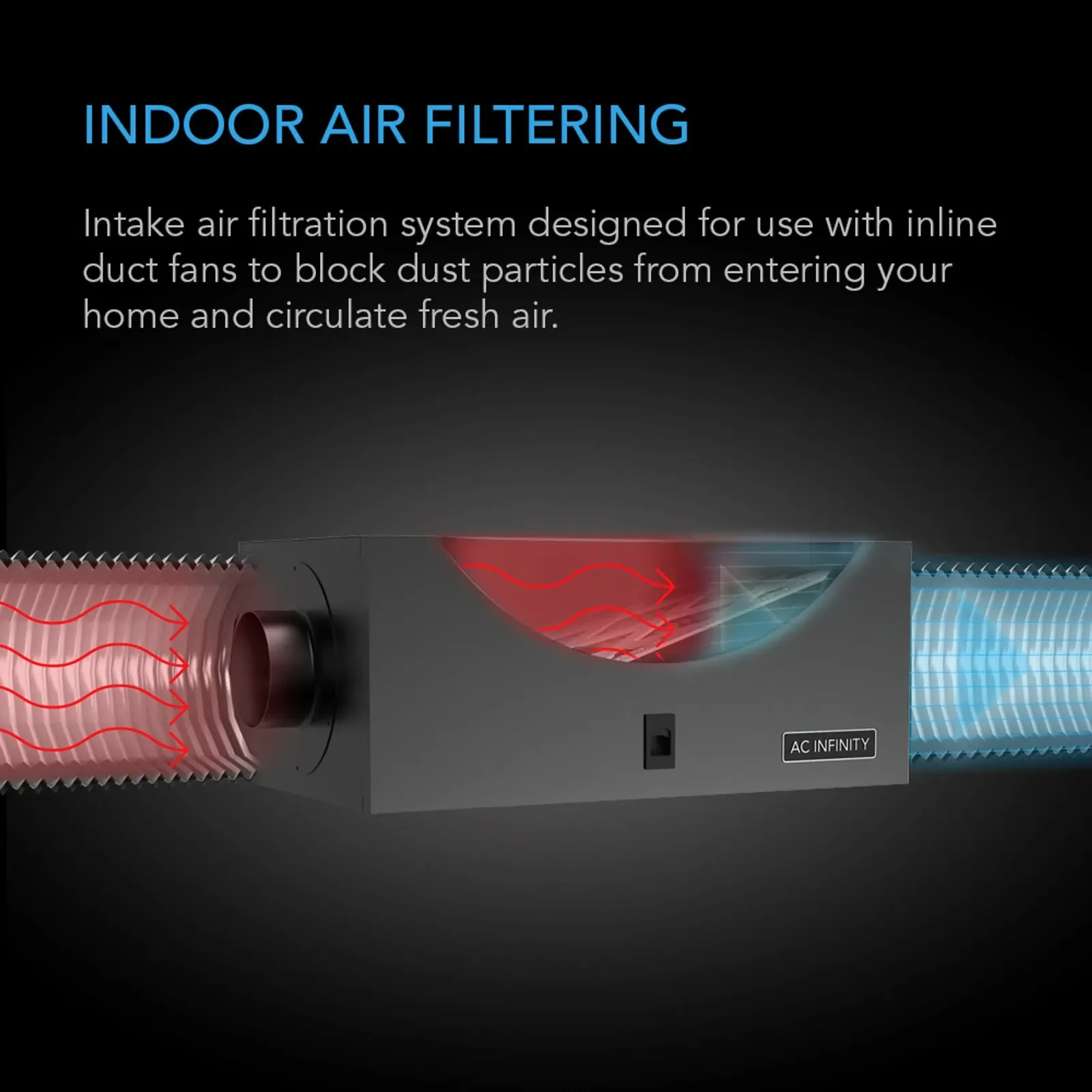

The AC Infinity Inline Air Filter Box 200MM (8") is engineered to provide powerful and efficient air purification for large-scale ventilation systems, hydroponic grow environments, and HVAC applications. Built from 1mm thick SPCC cold-rolled steel with a matte black powder-coated finish, it offers exceptional strength and long-term durability even under demanding conditions.

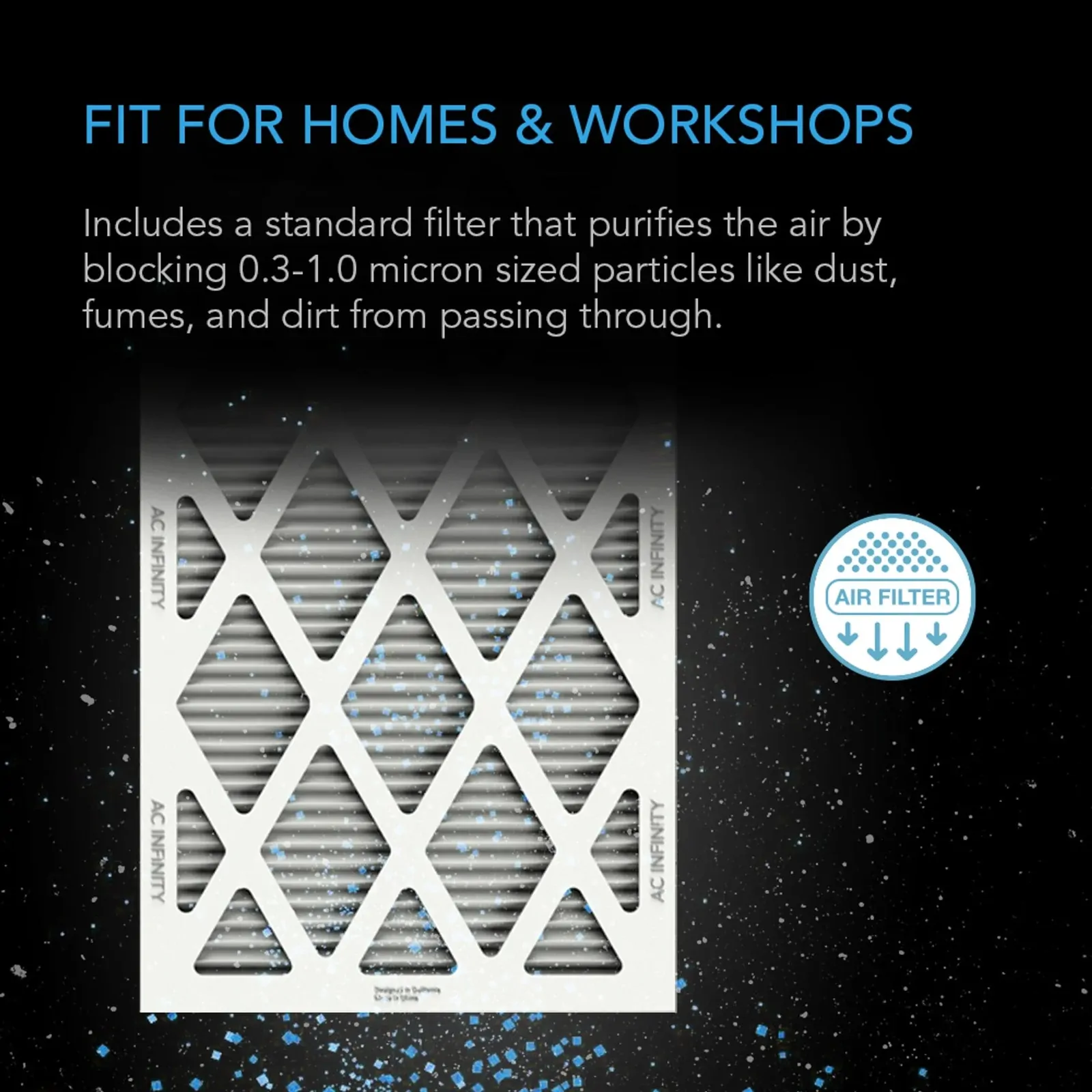

Equipped with a high-performance MERV pleated filter, this duct filter box captures fine particles as small as 0.3 microns with 90% efficiency, including dust, dirt, lint, pollen, and odours. Its hinged door with slide-lock mechanism allows quick filter changes, while the neoprene seal ensures a dust-tight chamber for reliable filtration.

Designed to integrate seamlessly with 200mm (8") inline fans such as the AC Infinity CLOUDLINE S8 and T8, this filter box handles up to 1600CFM airflow, making it a powerful solution for high-capacity filtration needs. Whether for professional hydroponic growers, HVAC installers, or industrial air circulation projects, this filter box guarantees cleaner and healthier air with minimal maintenance.

Features

  • High-Capacity Filtration: Pleated MERV filter traps particles down to 0.3 microns, including dust, lint, odours, and pollen.
  • Durable Construction: Made with 1mm SPCC steel body and aluminium flanges, finished in matte black powder coating.

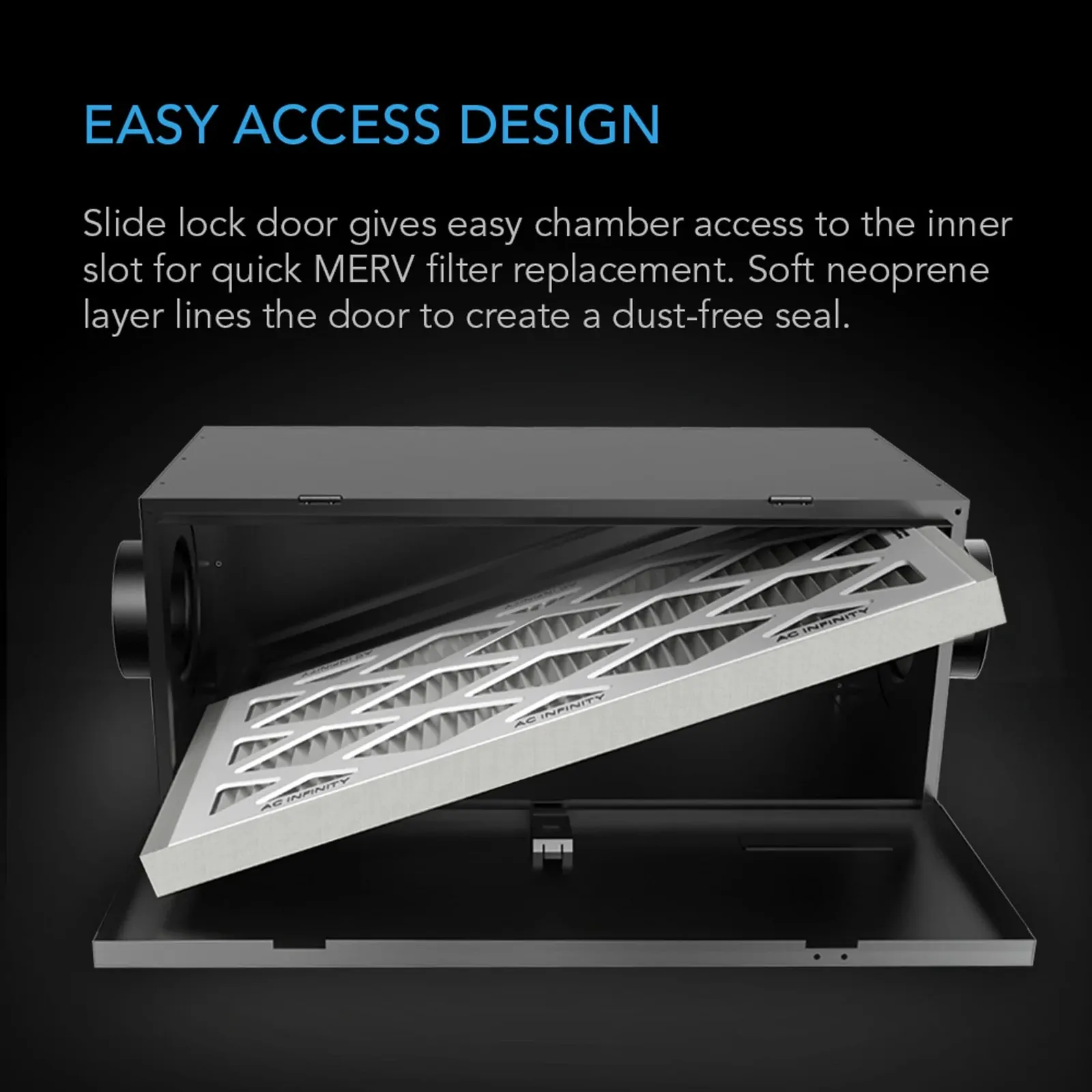

  • Quick Access Door: Slide-lock hinge door allows fast and easy filter replacements.
  • Airtight Seal: Neoprene lining ensures maximum efficiency with no dust leakage.
  • Large Airflow Capacity: Handles up to 1600CFM with compatible inline fans.
  • Grow & HVAC Ready: Designed for hydroponic grow tents, greenhouses, and large HVAC air intake systems.

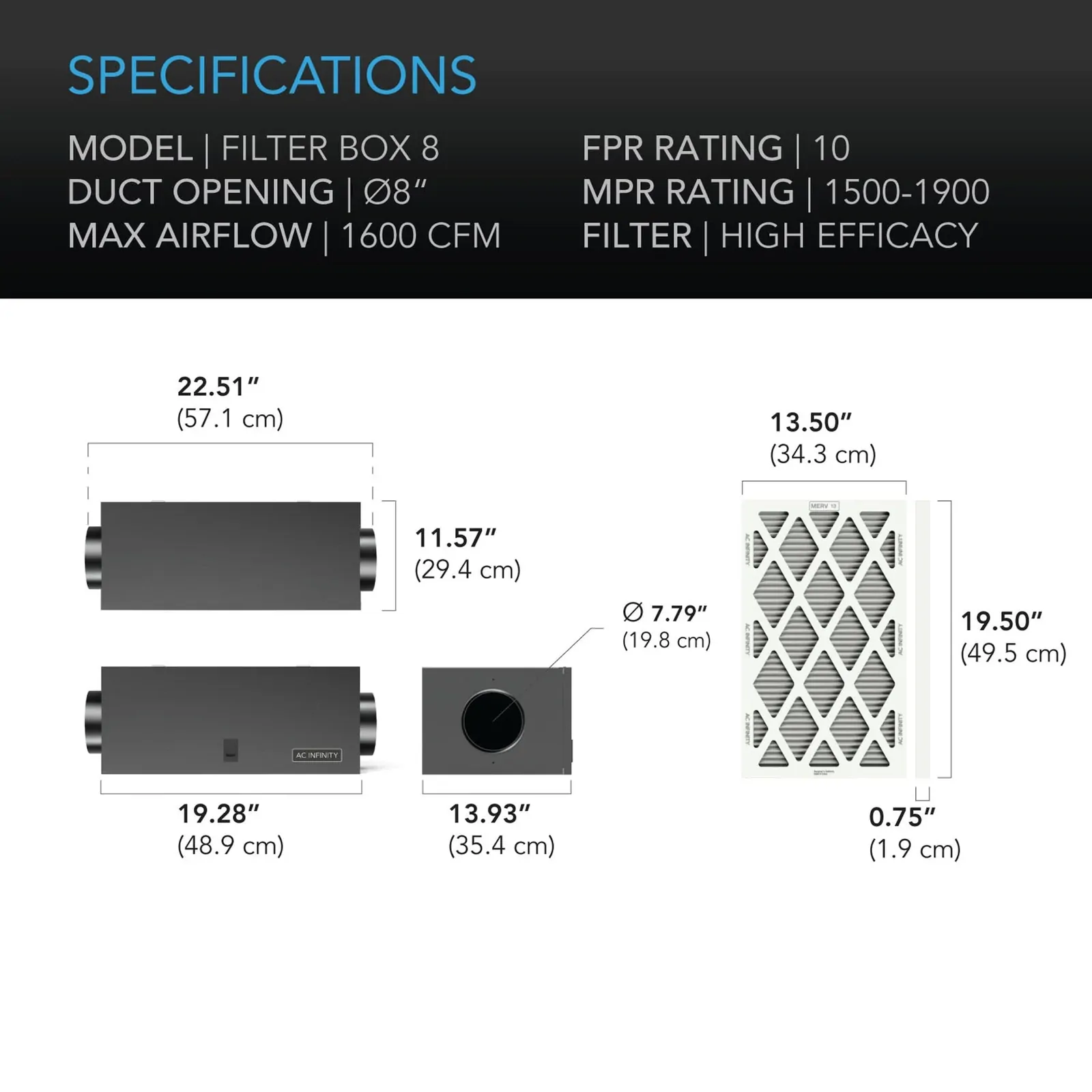

Specifications

  • Brand: AC Infinity
  • Model: AC-AFB8
  • Duct Size: 200MM (8" Inch)
  • Maximum Airflow: 1600 CFM
  • Minimum Airflow Range: 402-604 CFM
  • Construction: 1mm SPCC Steel with Aluminium Duct Flanges
  • Finish: Matte Black Powder Coat
  • Filter Type: High-Efficacy MERV Pleated Filter
  • Filter Size: 14 x 20 x 1 Inch
  • Dimensions: 22.51 x 11.57 x 13.93 Inch (57.1 x 29.4 x 35.4 cm)
  • Duct Opening Size: 7.79 Inch (19.8 cm)
  • Flange Length: 3.23 Inch (8.2 cm)
  • Compatible Fans: AC Infinity CLOUDLINE S8, CLOUDLINE T8
  • UPC: 819137021716
