Blauberg Turbo EC Mixed Flow Fan - 250MM (10" Inch) | w/ Speed Controller & Lead and Plug

Air Flow 1285 M³/H | Power Consumption 169W | IPX4

SKU: FANS35203
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

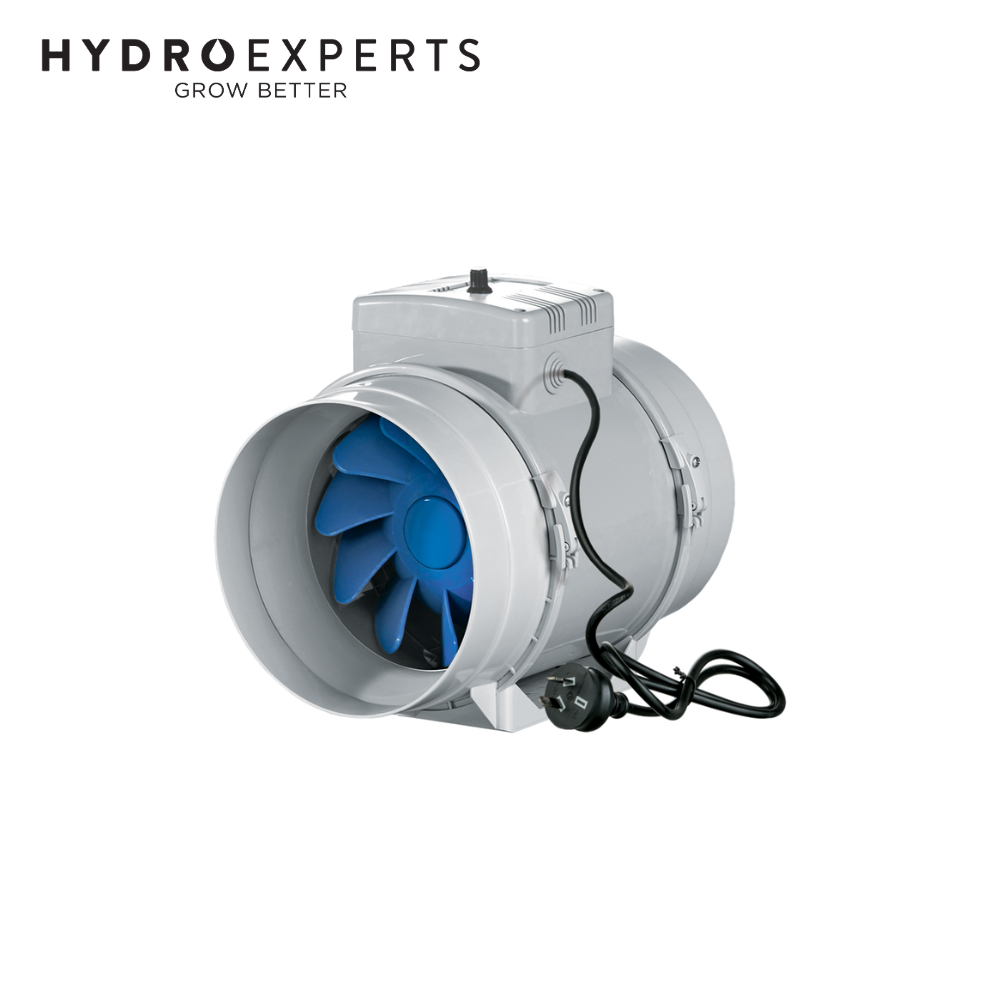

The Blauberg Turbo EC 250 is a high-capacity inline mixed-flow fan designed to deliver up to 1285 m³/h airflow while maintaining ultra-efficient, low-noise operation. With its intelligent EC motor and support for 0–10V speed control, this fan is perfect for large hydroponic setups, industrial exhaust systems, and commercial applications requiring precise air volume regulation and integration with building management systems (BMS).

The advanced aerodynamic design combines the advantages of axial and centrifugal airflow, providing high pressure and volume while minimising turbulence. Its low-combustible polypropylene housing, removable motor module, and flat wall-mounting bracket make installation and servicing simple and safe. The Turbo EC 250 is suitable for 250 mm duct systems and delivers consistent performance under demanding conditions.

Features

  • 1285 m³/h Max Airflow: High-capacity air movement for large-scale ventilation systems.
  • EC Motor Efficiency: Electronically commutated motor with up to 35% energy savings and full speed control.
  • Smart Speed Control: 0–10V input for integration with sensors, BMS, and digital controllers.
  • Mixed-Flow Impeller: Combines centrifugal pressure and axial flow for quiet, efficient operation.
  • Low Maintenance: Removable motor/impeller module for quick service access.
  • Wall or Duct Installation: Mounts at any angle using the flat bracket for stability.
  • Weather & Moisture Protection: IPX4 rated for safe use in high-humidity environments.
  • Safe Construction: Durable low-combustible casing suitable for commercial and industrial environments.

Specifications

Parameter Value Unit
Voltage 230 V
Phase 1 ~
Frequency 50/60 Hz
Current 1.38 A
Power 169 W
RPM 2870 min⁻¹
Max Air Flow 1285 m³/h
Max Air Flow 357 l/s
Sound Pressure (3m) 53 dBA
Connecting Piece Diameter 250 mm
Transported Air Temperature -25 to +55 °C
Ingress Protection Rating IPX4 -
Motor Type EC Motor -
Weight 7.80 kg
Design Axial / Centrifugal -
SEC Class B -
Mounting Inline -
ErP Compliance 2018 -

In The Box

  • [1] x Blauberg Turbo EC Mixed Flow Fan - 250MM (10" Inch) | w/ Speed Controller & Lead and Plug

Documents

View PDF brochure for Blauberg Turbo EC Mixed Flow Fan - 250MM (10" Inch) | w/ Speed Controller & Lead and Plug Download PDF brochure
