Aqua Master Tools C800 Pro Multi-Controller - pH, EC, PPM, TDS & Temp
Smart Dosing System Controller
OUT OF STOCK
FREE SHIPPING
SECURE PAYMENTS WITH

BUY NOW, PAY LATER
Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER
Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER





The Aqua Master Tools C800 Pro Multi-Controller is an advanced and intelligent dosing controller designed for precision nutrient management in hydroponic and irrigation systems. Specifically engineered for horticulture and professional cultivation, it continuously monitors and regulates pH, EC, PPM, TDS, and temperature levels to maintain optimal growing conditions.
The C800 Pro automatically doses when readings deviate from target values, ensuring consistent nutrient balance in your batch tank. With two modular UTP output ports, the controller allows:
- One pH dosing pump connection (to raise or lower pH)
- Up to five EC dosing pumps for nutrient dosing
This makes it fully configurable as a combined pH + EC controller, or as a standalone pH or EC controller, depending on your system setup.

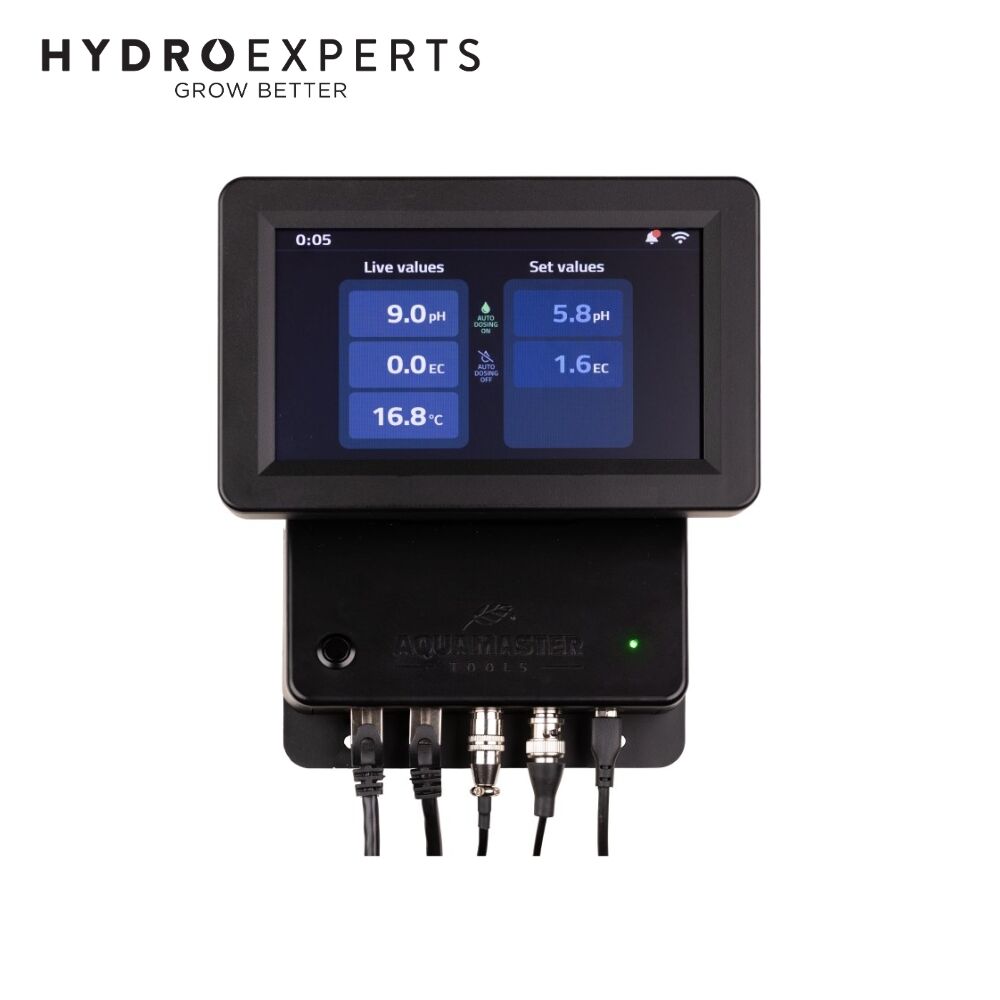

The intuitive colour touchscreen display provides real-time readings, alarms, and access to dosing history. For complete remote management, the Aqua Master Tools mobile app (available for iOS and Android) connects directly via WiFi—enabling:
- Real-time monitoring and historical graph tracking
- Cloud storage for nutrient dosing schedules
- Instant alarm notifications to your smartphone
- Remote adjustment of setpoints, calibration, and alarm thresholds
- Multi-device management for professional setups
With the ability to store up to 12 months of historical data, the C800 Pro ensures growers maintain complete insight and control over their hydroponic systems—anytime, anywhere.
- Note: Modular dosing pumps are sold separately.
Features
- Smart Automatic Dosing: Continuously measures and corrects pH, EC, PPM, TDS, and temperature in real-time.
- Modular Design: Connect 1 pH pump and up to 5 EC dosing pumps (sold separately).
- App Connectivity: WiFi-enabled control via the Aqua Master Tools App for iOS and Android.
- Data Management: Store and view up to 12 months of historical dosing and alarm logs.
- Intuitive Interface: Color touchscreen for live readings, alarm status, and dosing settings.
- Advanced Calibration: pH (1, 2, or 3-point) and EC (auto 1-point) calibration options for accuracy.
- Adjustable Alarms: High/low alarms for pH, EC, and temperature with auto dosing stop.
- Flexible Power Supply: AC 85–260V with AU, EU, UK, and US plug options.
- Waterproof Protection: Controller rated IP63; electrodes rated IP67.
- Compact & Robust: Lightweight, durable construction suitable for commercial grow systems.
Specifications
Parameter | Specification |
Model | Aqua Master Tools C800 Pro |
pH Range | 0.00 – 14.00 pH |
EC Range | 0.00 – 20.00 mS/cm |
TDS Range | 0.00 – 14.00 PPT |
PPM Range | 0 – 14,000 PPM (700 Scale) |
Temperature Range | 0°C – 50°C (32°F – 122°F) |
Resolution | pH: 0.01 or 0.1 | EC: 0.01 or 0.1 | Temp: 0.1°C (0.2°F) |
Accuracy | pH ±0.1 | EC/TDS ±2% F.S. | Temp ±1.0°C |
Temp Compensation | Automatic 0°C – 50°C (32°F – 122°F) |
Calibration | pH: 1, 2, or 3-point (4.0/7.0/10.0) | EC: 1-point (1.4/3.0/12.88) |
Dosing Control | On-time: 1–900 sec | Off-time: 0–60 min |
Alarm Features | High/Low pH, EC, Temp with dosing stop & visual/audio alerts |
Connectivity | WiFi | Aqua Master Tools App (iOS & Android) |
Data Logging | History storage up to 12 months |
Power Supply | AC 85–260V, 50/60Hz (AU/EU/UK/US plug) |
Dimensions | 94 x 210 x 55 mm |
Weight | 656 g |
Waterproof Rating | Controller IP63 | Electrodes IP67 |
System Requirements | Android 8.0+ or iOS 12+ |
In The Box

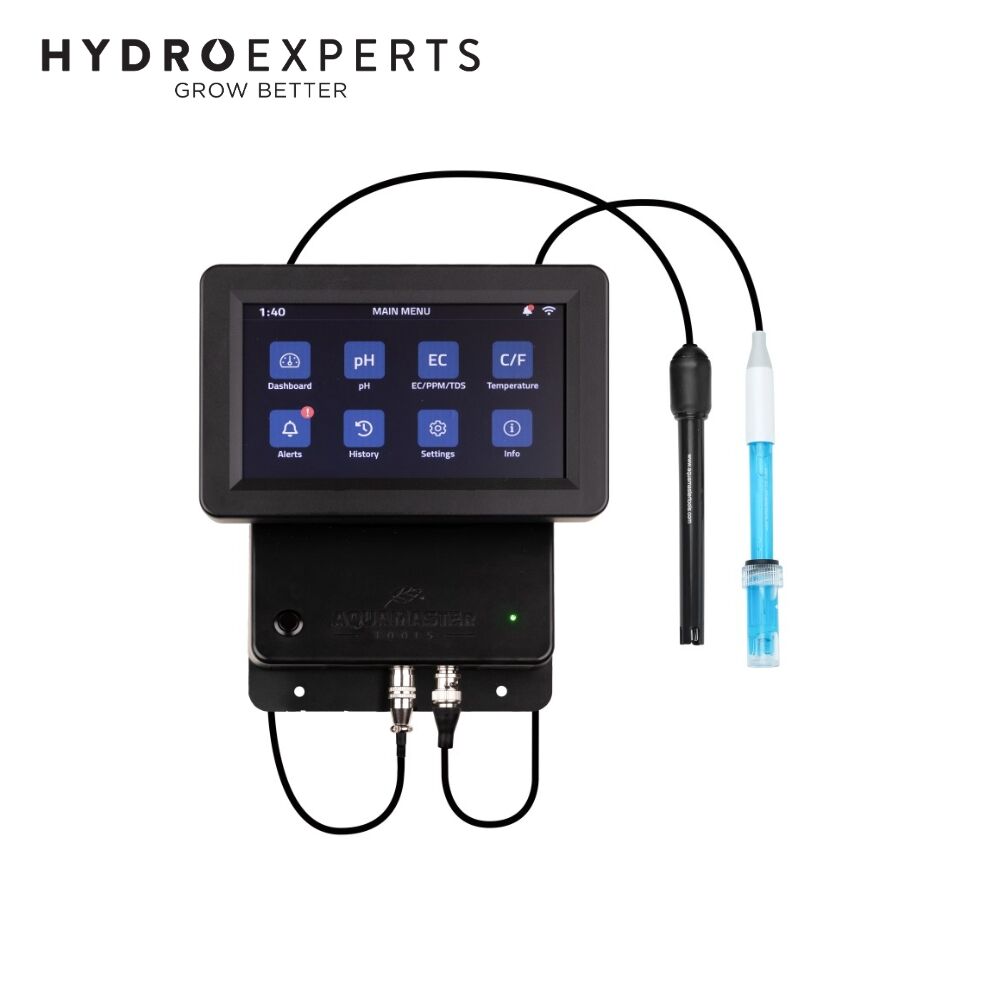

- C800 Pro Controller

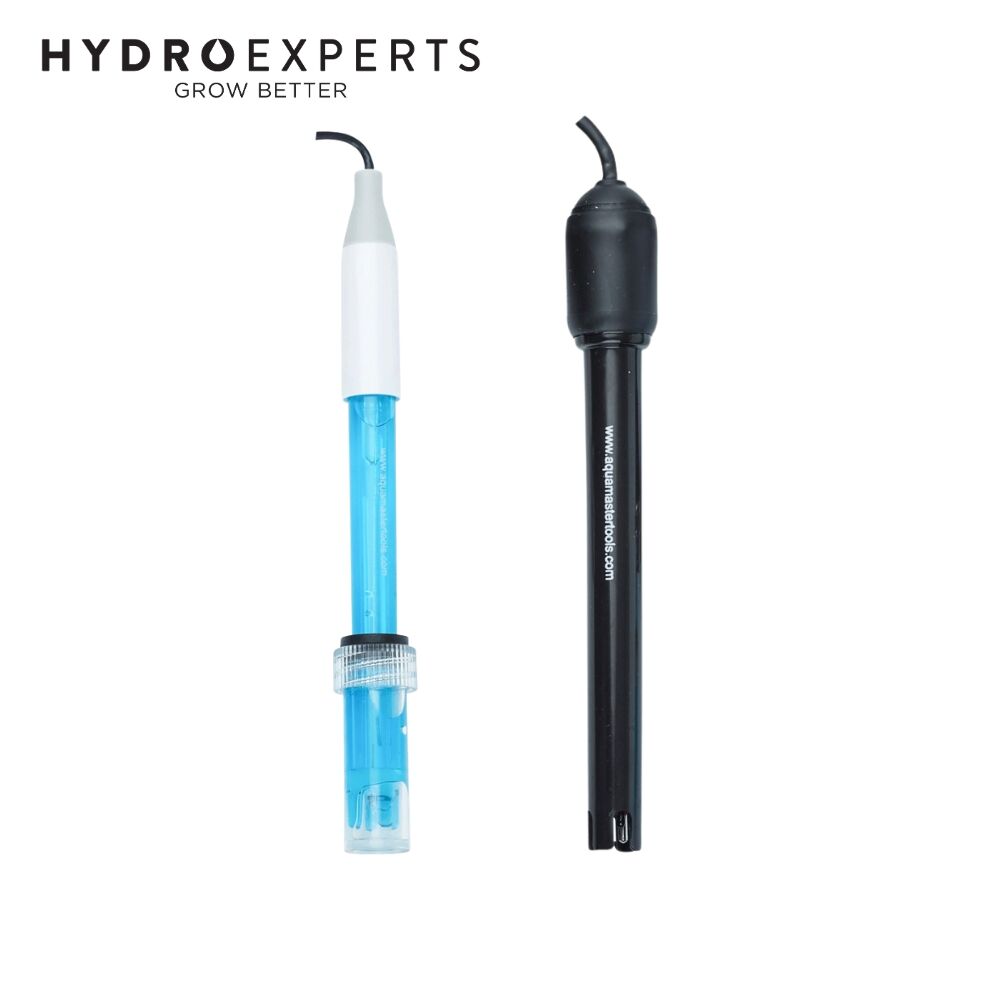

- pH Electrode
- EC Electrode (with built-in temperature sensor)
- International Power Adapter
- User Manual
Video
Documents
User Manual - Download Here
Android app APK - Download Here
