Aqua Master Tools C800 Pro Inline Multi-Controller - pH, EC, PPM, TDS & Temp

6 Bar | For Pressurised Hydro Systems

SKU: CTRL93002
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

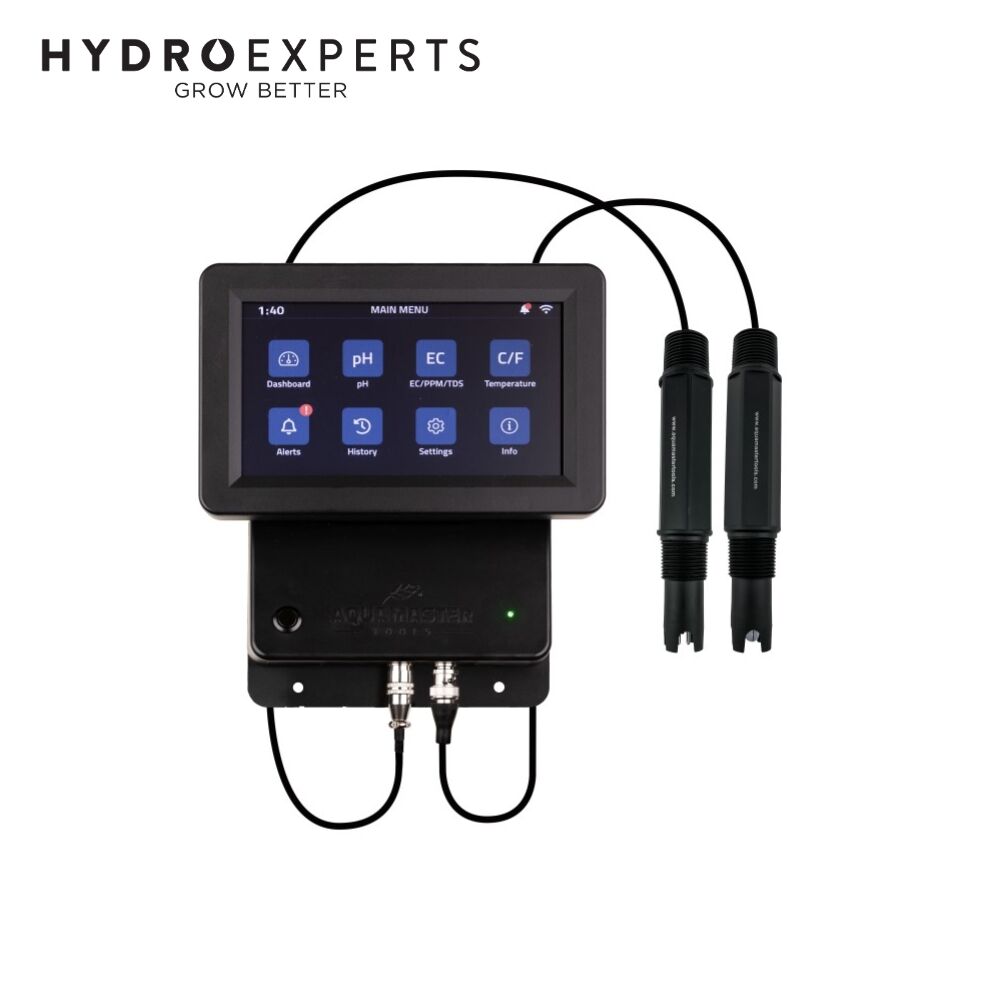

The Aqua Master Tools C800 Pro Inline Multi-Controller (6 Bar) is a next-generation dosing and monitoring system engineered for pressurised irrigation and hydroponic systems. Designed to automatically regulate pH, EC, PPM, TDS, and temperature, it ensures consistent nutrient delivery and perfect growing conditions for professional horticulture and large-scale cultivation environments.

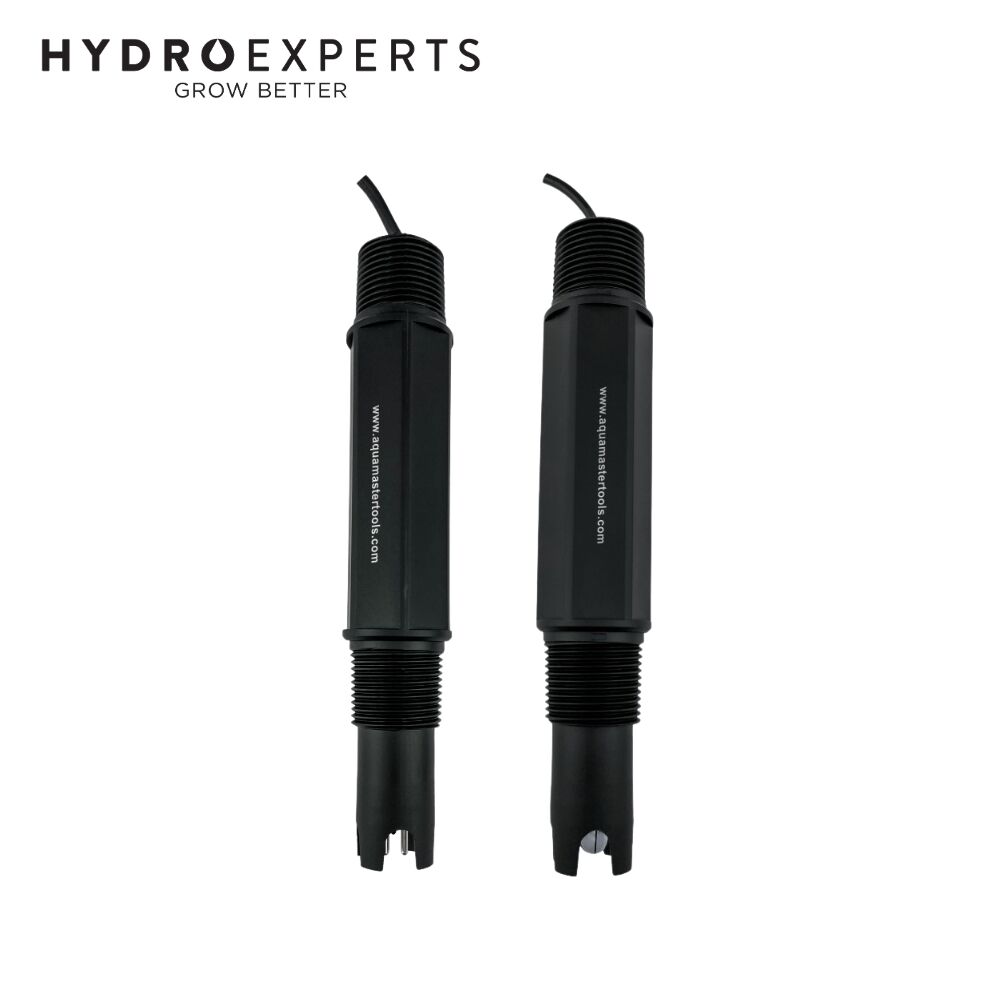

This Inline version comes with high-pressure-rated electrodes (up to 6 Bar) designed for installation in 3/4" saddle clamps, allowing seamless integration into closed or pressurised pipelines. It continuously monitors system parameters and automatically doses the set quantities whenever readings deviate from the desired range.

The C800 Pro Inline features two UTP output ports:

  • One for connecting a single pH dosing pump (to raise or lower pH)
  • One for connecting up to five EC dosing pumps for nutrient dosing

This modular setup makes it highly flexible — it can operate as a combined pH & EC controller, or as a dedicated pH or EC controller.

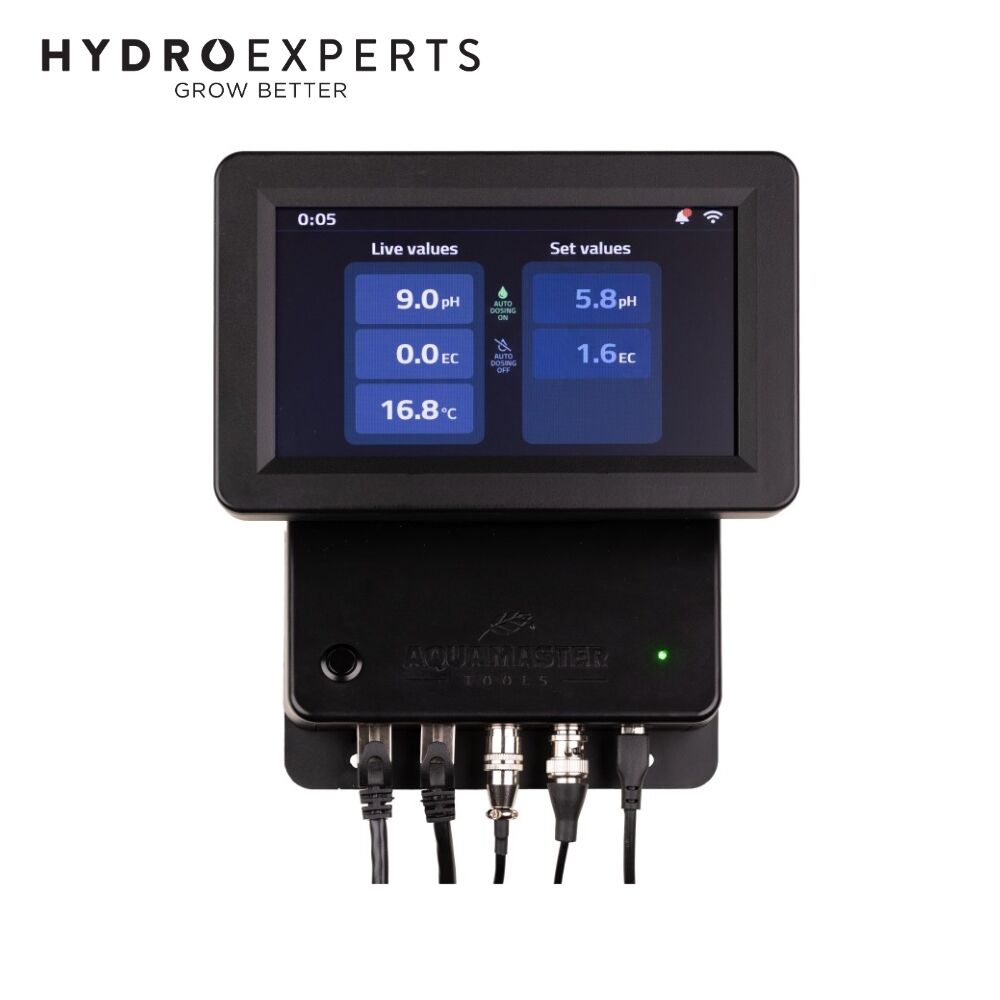

The intuitive colour touchscreen display provides real-time readings, dosing settings, alarms, and historical data. Integrated WiFi enables full control through the Aqua Master Tools App (for iOS & Android), offering:

  • Real-time monitoring and cloud-based data storage
  • Remote dosing schedule management
  • Instant alarm notifications
  • Access to historical graphs (up to 12 months)
  • Multi-device remote control for large installations

Note: The modular dosing pumps are not included and are sold separately.

Features

  • High-Pressure Inline Design: 6 Bar-rated electrodes suitable for 3/4" saddle clamp installation into pressurised systems.
  • Smart Dosing Control: Automatically adjusts pH and EC to maintain ideal nutrient balance.
  • Dual Output Ports: Supports 1 pH dosing pump and up to 5 EC dosing pumps (sold separately).
  • WiFi App Connectivity: Manage dosing, view alarms, and monitor live data remotely via iOS/Android app.
  • Cloud Data Storage: Save dosing schedules and access up to 12 months of history and alarm logs.
  • Touchscreen Interface: Intuitive colour display with live readings, calibration, and dosing control.
  • Advanced Calibration: pH 1–3 point (4.0/7.0/10.0) and EC 1-point (1.4/3.0/12.88) calibration.
  • Custom Alarms: Adjustable high/low alarms for pH, EC, and temperature with auto dosing stop.
  • Durable Build: IP63 controller and IP67 electrodes for high-moisture environments.
  • Global Compatibility: AC 85–260V power input with AU/EU/UK/US plug options included.

Specifications

Model Aqua Master Tools C800 Pro Inline (6 Bar)
pH Range 0.00 – 14.00 pH
EC Range 0.00 – 20.00 mS/cm
TDS Range 0.00 – 14.00 PPT
PPM Range 0 – 14,000 PPM (700 Scale)
Temperature Range 0°C – 50°C (32°F – 122°F)
Resolution pH: 0.01 | EC: 0.01 | Temp: 0.1°C
Accuracy pH ±0.1 | EC/TDS ±2% F.S. | Temp ±1.0°C
Temperature Compensation Automatic (0°C – 50°C)
Calibration pH: 1–3 point (4.0/7.0/10.0) | EC: 1-point (1.4/3.0/12.88)
Dosing Control On-time: 1–900s | Off-time: 0–60 min
Alarm Features Adjustable pH, EC & Temp alarms with dosing stop
Connectivity WiFi via Aqua Master Tools App (iOS/Android)
Data Logging Up to 12 months
Power Supply AC 85–260V, 50/60Hz (AU/EU/UK/US plug)
Dimensions 94 x 210 x 55 mm
Weight 656 g
Waterproof Rating Controller: IP63 | Electrodes: IP67
Inline Pressure Rating Up to 6 Bar
Threaded Connection 3/4" Male Thread
System Requirements Android 8.0+ | iOS 12+

Documents

User ManualDownload Here
Android app APK - Download Here
