AC Infinity Inline Air Filter Box w/ MERV Filter - 150MM (6" Inch) | 800CFM

SKU: FLTR50102
|

IN STOCK

POSTAGE APPLIES

$259.95
Heavy-duty inline duct filter box with replaceable MERV filter, steel and aluminium build, 800CFM max airflow – engineered for HVAC systems, grow rooms, and fresh air intake applications.
Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Freight applies

*This item is bullky so freight applies.

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

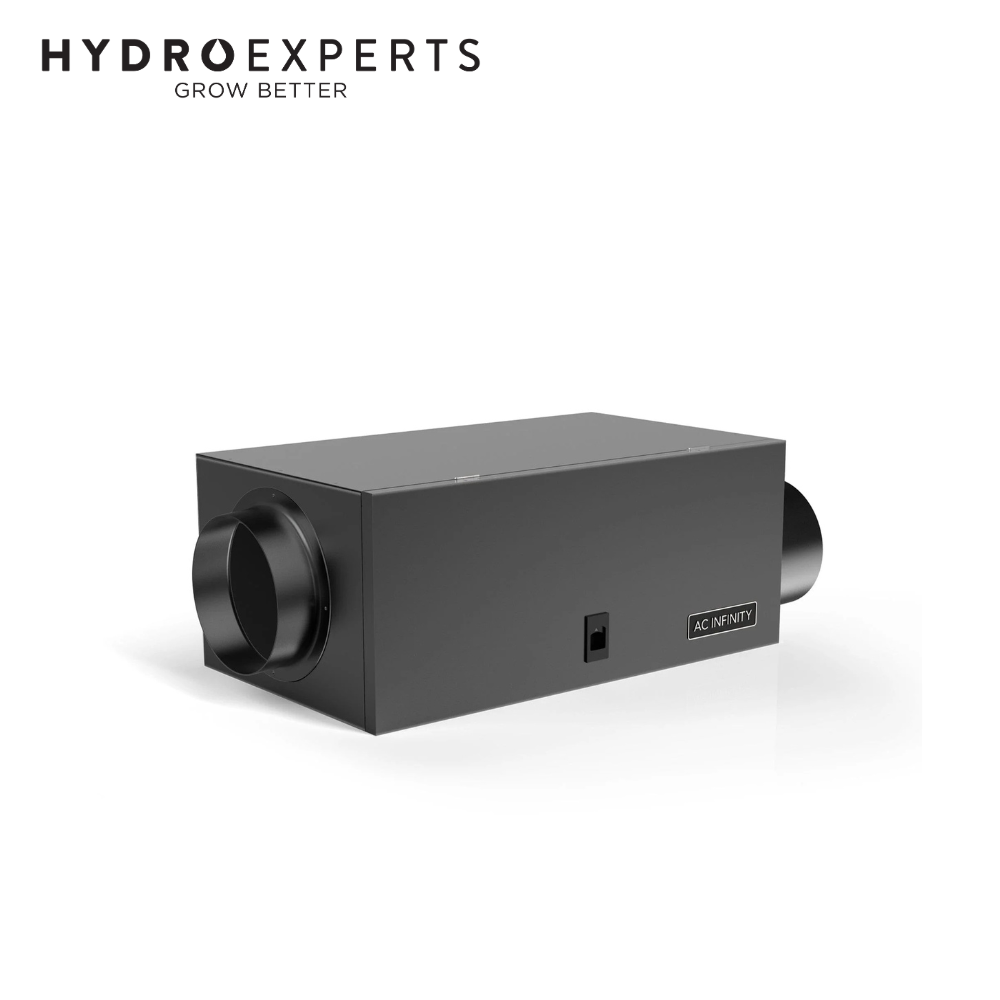

The AC Infinity Inline Air Filter Box 150MM (6") delivers high-performance air purification for both residential ventilation and hydroponic grow room environments. Constructed with 1mm thick SPCC cold-rolled steel and matte black powder coating, it combines strength, durability, and weather resistance.

Fitted with a high-efficiency pleated MERV filter, this unit captures dust, lint, odours, pollen, and fine particles down to 0.3 microns with up to 90% efficiency. The hinged slide-lock door allows easy access for cleaning and filter replacement, while the neoprene seal ensures an airtight, dust-free chamber.

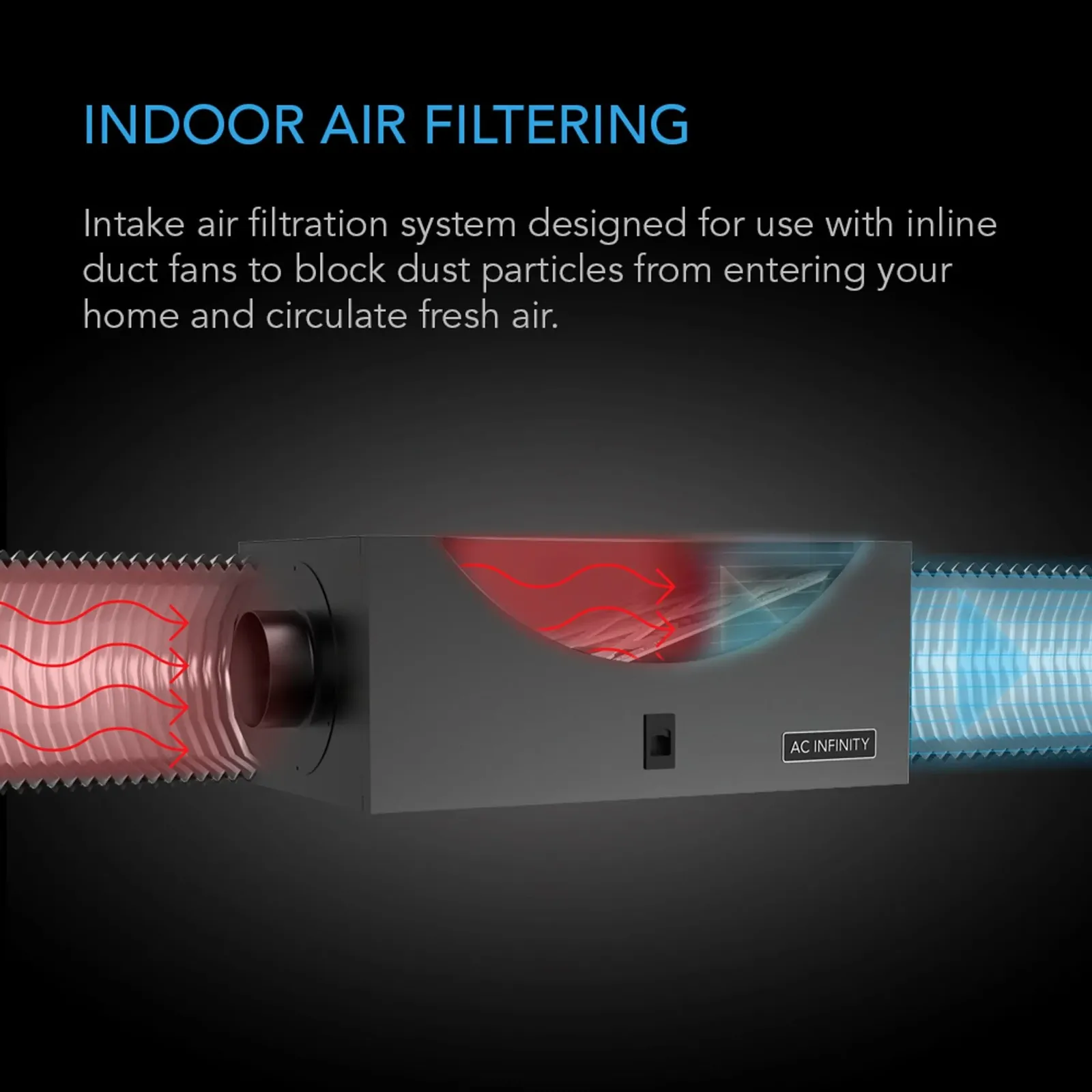

Designed to integrate seamlessly with 150mm (6") inline fans such as the AC Infinity CLOUDLINE S6 and T6, this filter box ensures optimal airflow up to 800 CFM. Whether you’re improving indoor air quality, setting up a climate-controlled grow tent, or upgrading HVAC systems, this inline filter box provides reliable, low-maintenance filtration for cleaner, fresher air.

Features

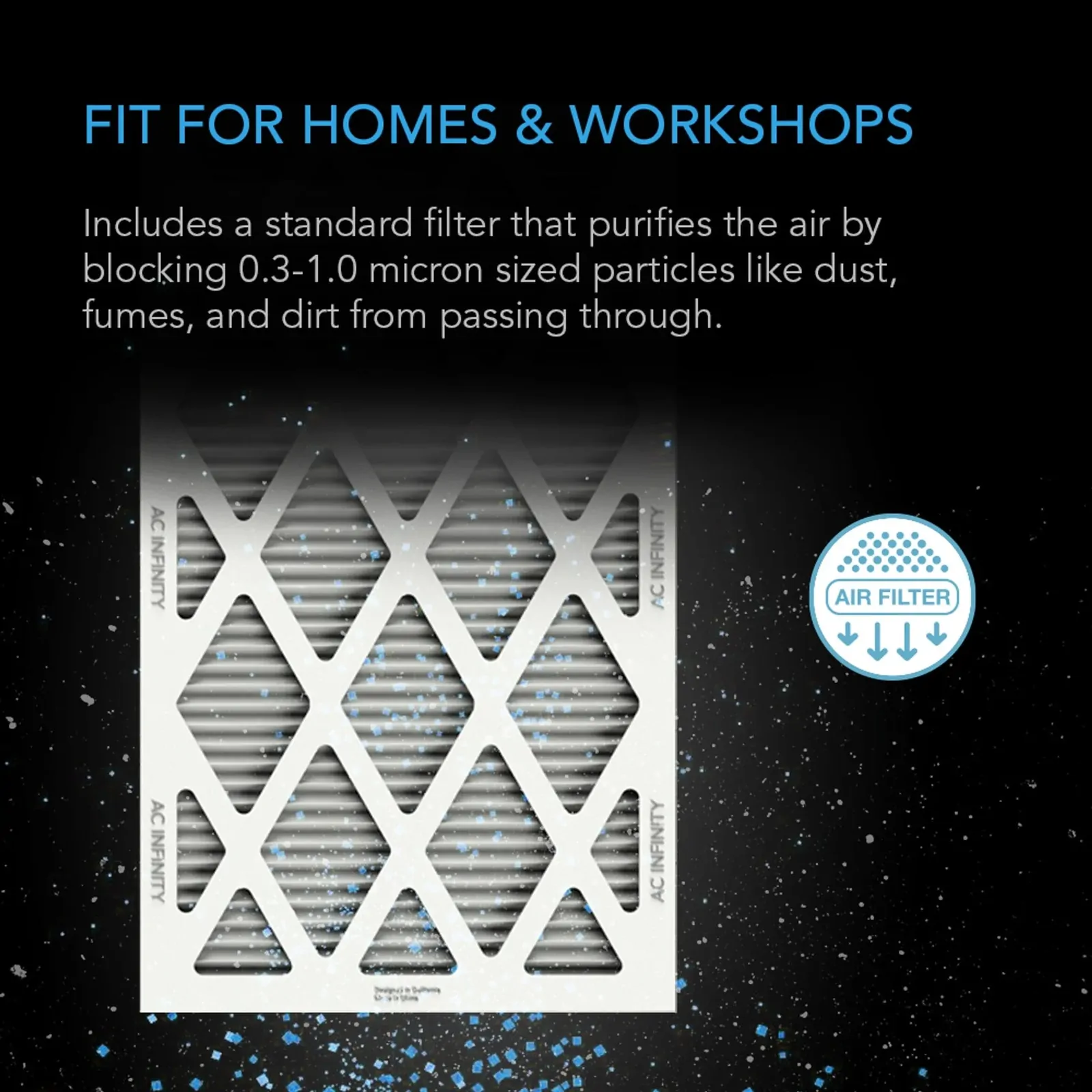

  • Powerful Air Filtration: High-efficacy pleated MERV filter captures particles as small as 0.3 microns, including dust, lint, pollen, and odours.
  • Heavy-Duty Build: Constructed from 1mm SPCC steel with aluminium flanges and finished in matte black powder coat for durability.

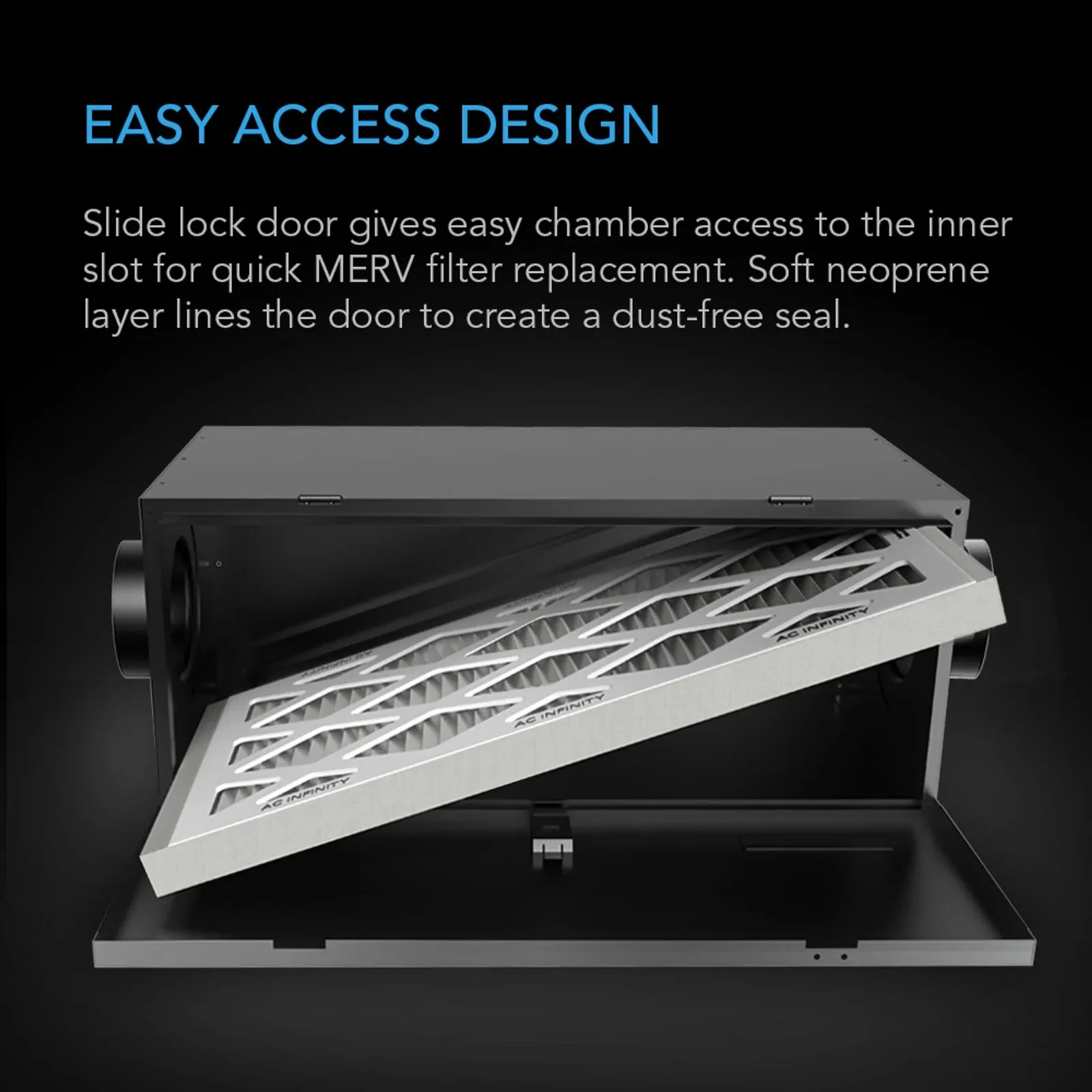

  • Easy Filter Access: Hinged door with slide lock provides quick and convenient filter replacement.
  • Airtight Sealing: Neoprene padding prevents leaks and ensures dust-free filtration.
  • Optimised Airflow: Supports up to 800CFM when paired with compatible inline fans.
  • Grow Room & HVAC Ready: Ideal for hydroponic grow tents, HVAC systems, and general air intake applications.

Specifications

  • Brand: AC Infinity
  • Model: AC-AFB6
  • Duct Size: 150MM (6" Inch)
  • Maximum Airflow: 800 CFM
  • Minimum Airflow Range: 182-272 CFM
  • Construction: 1mm SPCC Steel with Aluminium Duct Flanges
  • Finish: Matte Black Powder Coat
  • Filter Type: High-Efficacy MERV Pleated Filter
  • Filter Size: 12 x 20 x 1 Inch

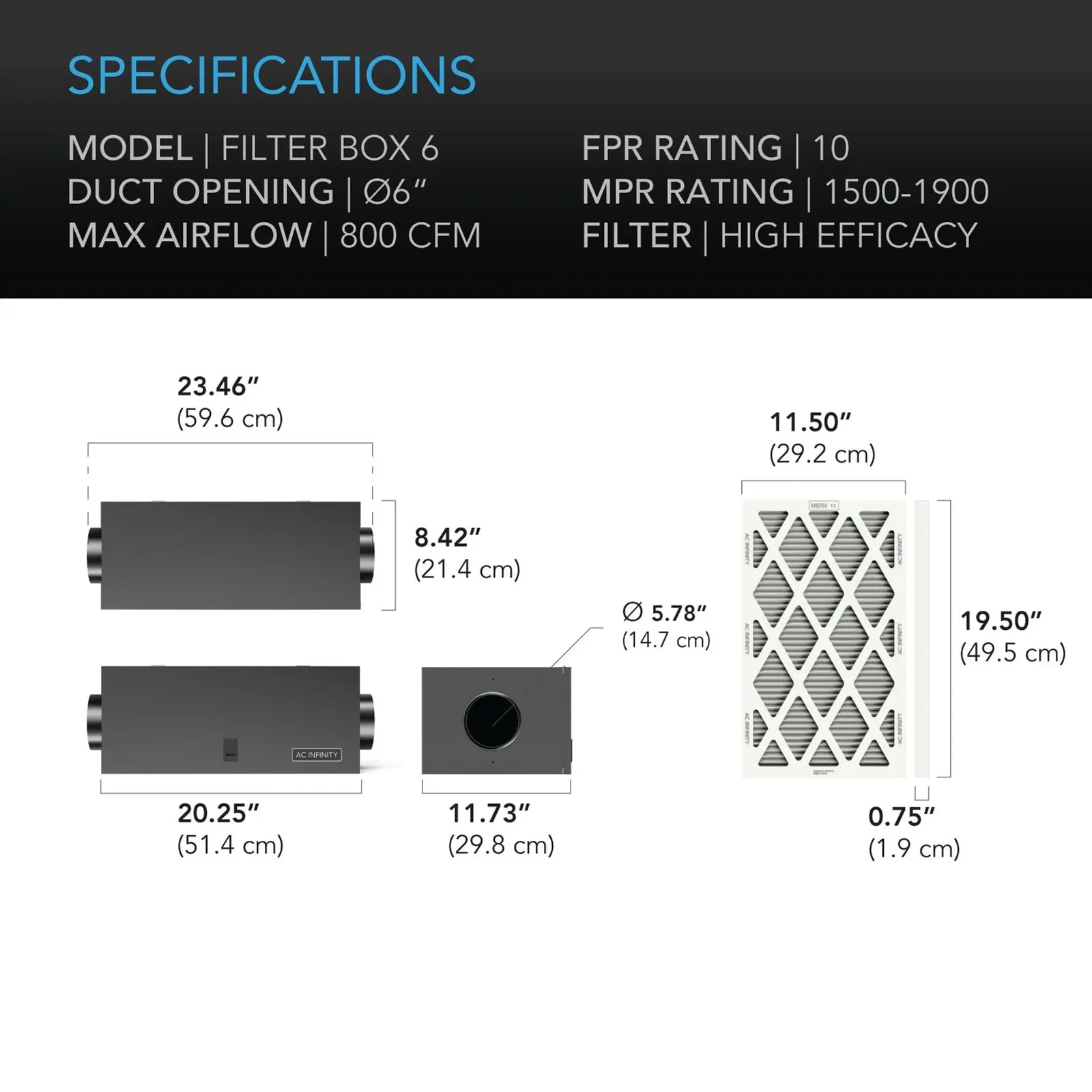

  • Dimensions: 23.46 x 8.42 x 11.73 Inch (59.6 x 21.4 x 29.8 cm)
  • Duct Opening Size: 5.78 Inch (14.7 cm)
  • Flange Length: 3.21 Inch (8.2 cm)
  • Compatible Fans: AC Infinity CLOUDLINE S6, CLOUDLINE T6
  • UPC: 819137021709
