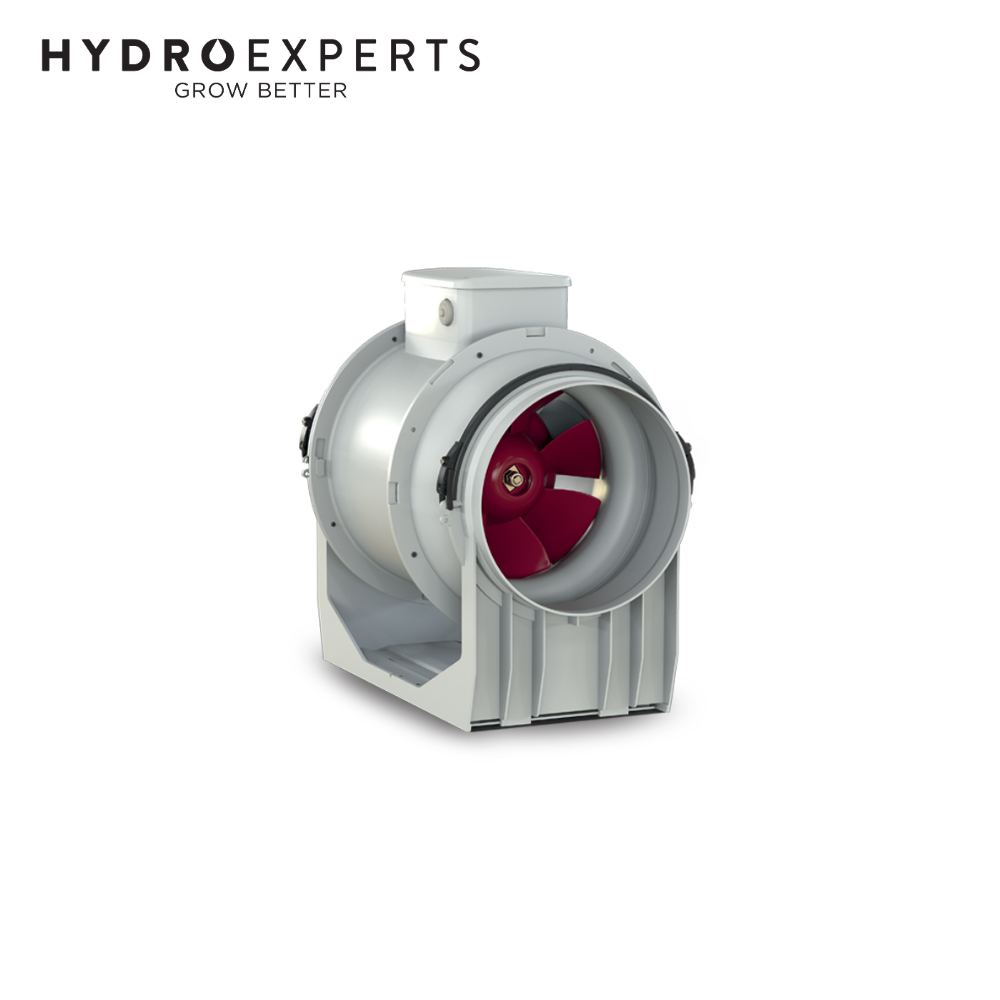

Vortice Lineo Inline Mixed Flow AC Fan - Lineo 150 | 150MM (6" Inch)

Air Flow 550 M³/H | Power Consumption 58W | IP44

SKU: FANS70302
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice Lineo Inline Mixed Flow AC Fan - Lineo 150 is a high-performance inline ventilation solution designed for both residential and commercial applications in Australia. Engineered with a 150mm nominal diameter and advanced mixed-flow technology, this fan delivers a maximum airflow of 550 m³/h while maintaining low noise levels. Built with fire-resistant E2 class plastic resin in accordance with ISO EN 11925-2:2010, it ensures enhanced safety in areas close to the motor and electrical components.

The unit features a thermally protected induction motor with ball bearing supports for long-lasting reliability, paired with a centrifugal impeller for efficient airflow. With a high water resistance rating of IPX5 when installed in ductwork, it’s suitable for demanding environments. Airflow speed can be conveniently adjusted using compatible Vortice speed controllers, giving you complete control over performance and energy consumption.

Ideal for bathrooms, kitchens, laundries, grow rooms, and commercial exhaust systems, the Vortice Lineo 150 is a versatile choice for any ventilation setup where consistent airflow and quiet operation are essential.

Features

  • Robust Fire-Resistant Housing – Made from E2 class plastic resin to ISO EN 11925-2:2010 standards.
  • 150mm Nominal Diameter – Suitable for standard duct sizes.
  • High-Performance Induction Motor – Thermally protected with ball bearing supports for durability.
  • IPX5 Water Resistance – Protection against water ingress when installed in ductwork.
  • Adjustable Speed Control – Compatible with Vortice speed control devices for custom airflow settings.
  • Low Noise Operation – Sound pressure of just 35 dB(A) at 3 metres on maximum speed.
  • Lightweight & Easy to Install – Compact design at only 2.5 kg.

Specifications

Model Vortice Lineo 150
Nominal Diameter 150 mm
Voltage 220-240 V
Frequency 50 Hz
Max Airflow 550 m³/h
Airflow (Low Speed) 385 m³/h
Power Consumption (Max) 58 W
Power Consumption (Low) 40 W
Current (Max) 0.26 A
Noise Level @ 3m (Max) 35 dB(A)
Noise Level @ 3m (Low) 24.9 dB(A)
Max Pressure 264.9 Pa
Insulation Class Class II
IP Rating IP44
Max Operating Temperature 60°C
Weight 2.5 kg

In The Box

  • [1] x Vortice Lineo Inline Mixed Flow AC Fan - Lineo 150 | 150MM (6" Inch)
