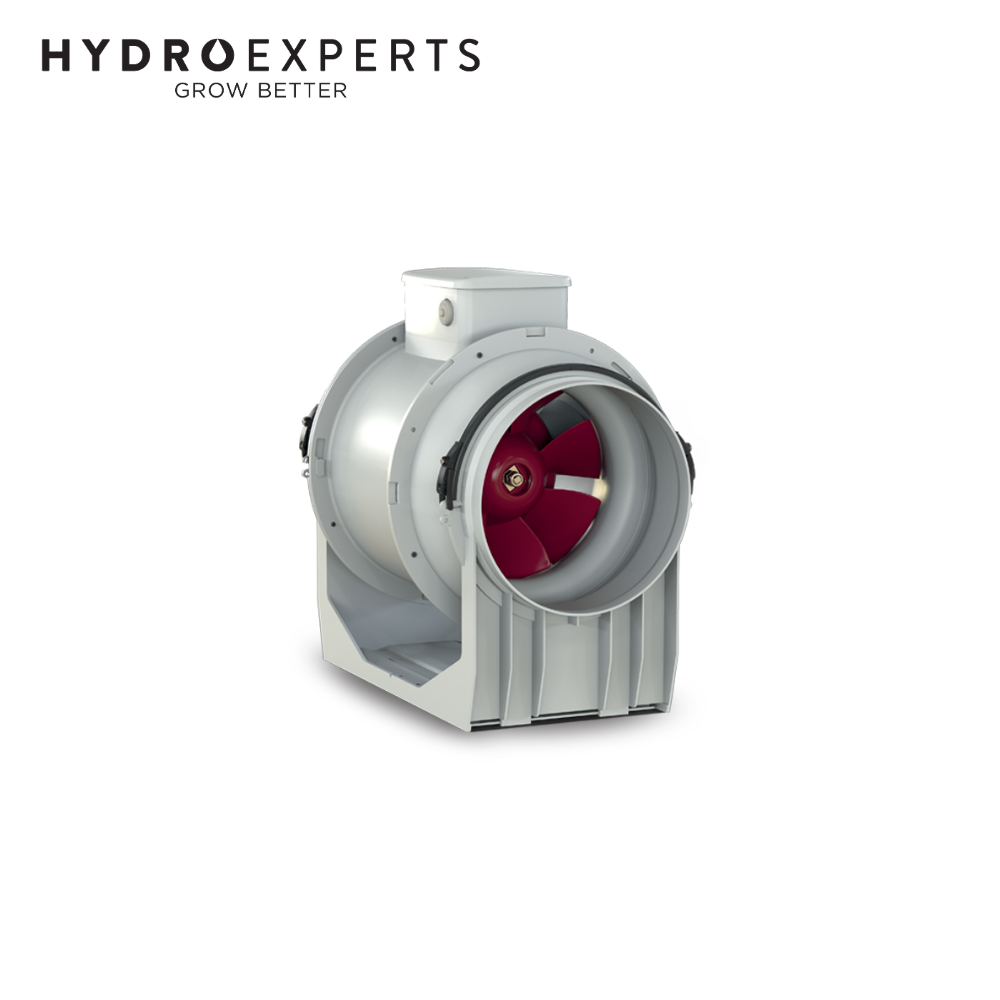

Vortice Lineo Inline Mixed Flow EC Fan - Lineo 200 ES | 200MM (8" Inch)

Air Flow 1100 M³/H | Power Consumption 90W | IP45

SKU: FANS70403
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice Lineo 200 ES Inline Mixed Flow EC Fan delivers exceptional airflow performance and energy efficiency for demanding ventilation applications in residential, commercial, and industrial environments. Featuring a 200mm nominal diameter and a high-quality EC (brushless) motor mounted on ball bearings, this unit achieves a maximum airflow of 1100 m³/h with low power consumption and extended service life.

The robust fire-resistant housing (E2 class, ISO EN 11925-2:2010) ensures maximum safety, while its IP45 water resistance rating (IPX5 in duct installations) guarantees reliable operation even in moisture-prone or challenging environments. Designed for adaptability, it offers speed control via potentiometer (0–10V) or two-speed switch, enabling precise ventilation adjustment. Equipped with a thermal fuse overheating protection device, the Vortice Lineo 200 ES ensures safe, continuous operation for a variety of ducted air movement systems.

Features

  • Powerful EC Motor - Brushless technology for high efficiency, long lifespan, and thermal protection.
  • Large 200mm Diameter - Delivers high airflow rates up to 1100 m³/h.
  • Durable Fire-Resistant Construction - E2 class resin housing meets ISO EN 11925-2:2010 standards.
  • Moisture-Resistant Design - IP45 rating (IPX5 in duct) for reliable use in humid environments.
  • Flexible Speed Control - Adjustable via potentiometer (0–10V) or preset two-speed switch.
  • Quiet Operation - Low noise levels starting at 35.1 dB(A) at 3m on low speed.
  • Thermal Safety Fuse - Protects against overheating for continuous safe use.

Specifications

Parameter Value
Nominal Diameter 200mm
Max Airflow 1100 m³/h
Voltage 220-240V
Frequency 50-60Hz
Max Power 90W
Max Current 0.80A
Insulation Class Class II
IP Rating IP45 (IPX5 in duct)
Max Ambient Temperature 50°C
Weight 4.6 kg
RPM 2680 (max)
Noise Level at 3m 44.5 dB(A) at max speed
Housing Material Fire-resistant plastic resin (E2 class)

In The Box

  • [1] x Vortice Lineo Inline Mixed Flow EC Fan - Lineo 200 ES | 200MM (8" Inch)
