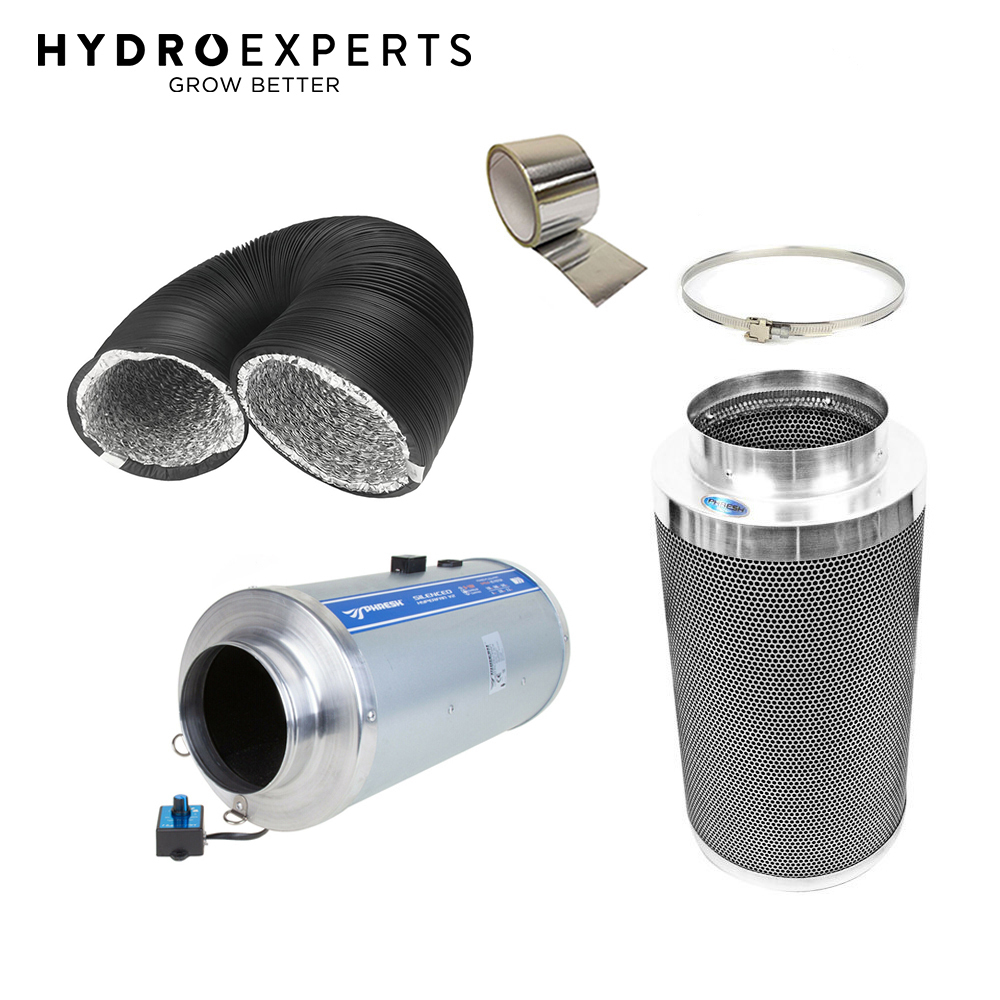

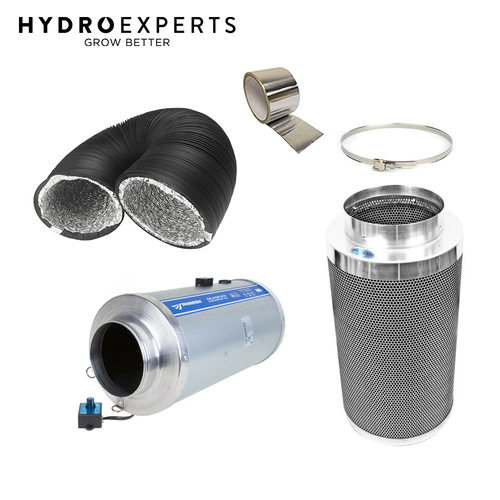

Phresh Silenced EC Hyperfan 300MM (12" Inch) + Phresh Carbon Filter 300 x 1000MM 1700CFM + 5M Duct

SKU: FAN-FLTR-SET2025
$1,519.95
QTY:

Click & Collect Free

Free pick up at store

Delivery

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

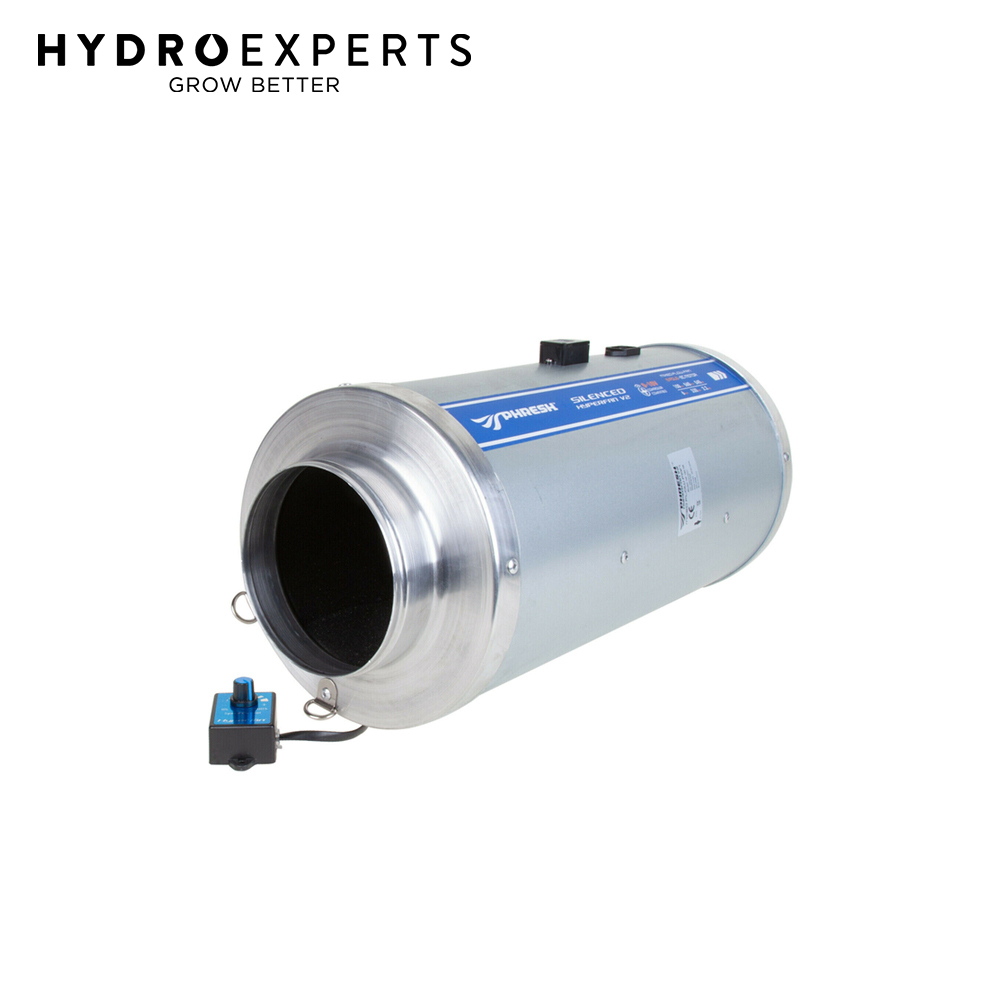

Phresh Slienced Hyperfan EC Fan v2 w/ Controller - 300MM (12") | Speed Variable

Hyperfan is the latest technology available in mixed flow fans. Hyperfan utilizes aircraft "taper blade technology" to fully optimize the aerodynamic movement of air over the fan blade.

Static pressure is one of the most important factors in ventilation design. Simply put, static pressure refers to the resistance to airflow in a ventilation system's components and ductwork. The push of the air must be greater than the resistance to the flow. The higher the fans static pressure rating (pa) the greater it's the ability to remove either hot or stale air from the environment.

  • New 9 pole digital EC "Brush-Less" motors
  • High fan efficiency @7.85CFM per watt
  • Higher linear airflow output than other fans
  • Higher static pressure output than outer fans
  • Detachable, fully variable speed controller included
  • Sturdy, steel housing and Abec 7 ball bearings
  • 0-10V controller compatible via RJ9 or RJ11 cable

Specification:

  • Size: 300MM (12" Inch)
  • Max Air Flow: 1827CFM  - 3100M^3/h - 862LPS
  • RPM: 3200
  • Watts: 320W
  • Amps: 2.8A
  • Weight: 12.9KG
  • Noise: 59 dB A
  • Fan Pressure: 730Pa/iwg2.93"
  • Diameter: 302.1MM
  • Width: 388MM
  • Length: 1010MM
  • Housing: Steel & Aluminium
  • Blade Design: Mixed flow - laminar blade
  • Climate Rating: T
  • IPX Rating: IPX2

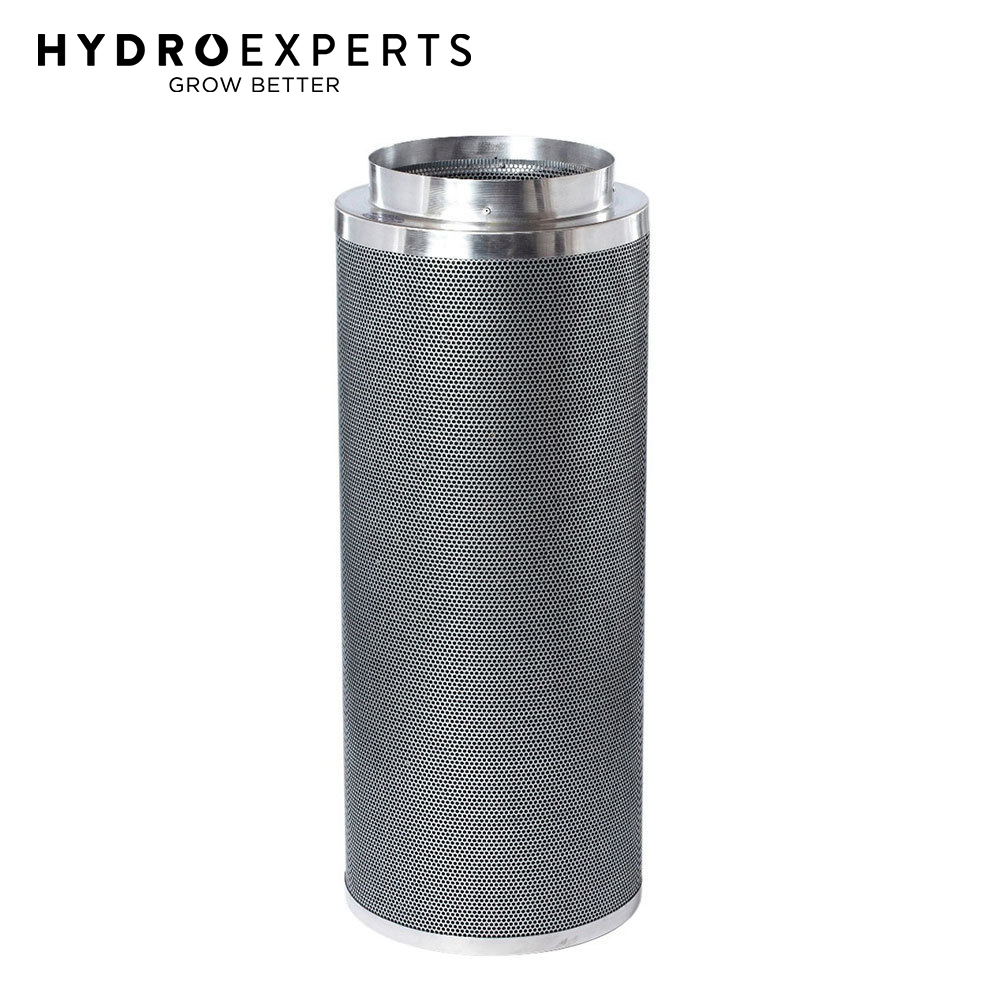

Original Phat Phresh Carbon Filter [Size: 300 x 1000]

These filters offer the ultimate in air scrubbing. Machine packed with 46mm RC-48 activated, certified virgin carbon to ensure maximum carbon density with less movement than other filters. These filters offer a cone shaped internal base for optimum air flow. The 51% open air custom mesh design helps make these filters half the weight of other filters. Sealed, bagged, boxed and shipped immediately after being manufactured for optimum life span, handling and presentation.

  • Aluminum tops and bases for reduced weight. Half the weight of other filters.
  • 46mm (1.8") RC-48 activated, certified virgin carbon bed.
  • Machine packed carbon means more carbon and less movement.
  • Cone shaped internal base for optimum air flow.
  • Sealed, bagged, boxed and labeled directly after being manufactured for optimum life span, handling and presentation.
  • 51% open air custom mesh.
  • Unique "Anti Air Bypass" System.
  • Large selection of sizes available to fit any application.
  • Flange & pre-filter included.

These are not the Phresh Skinny Filters, which are often sold at half the price.

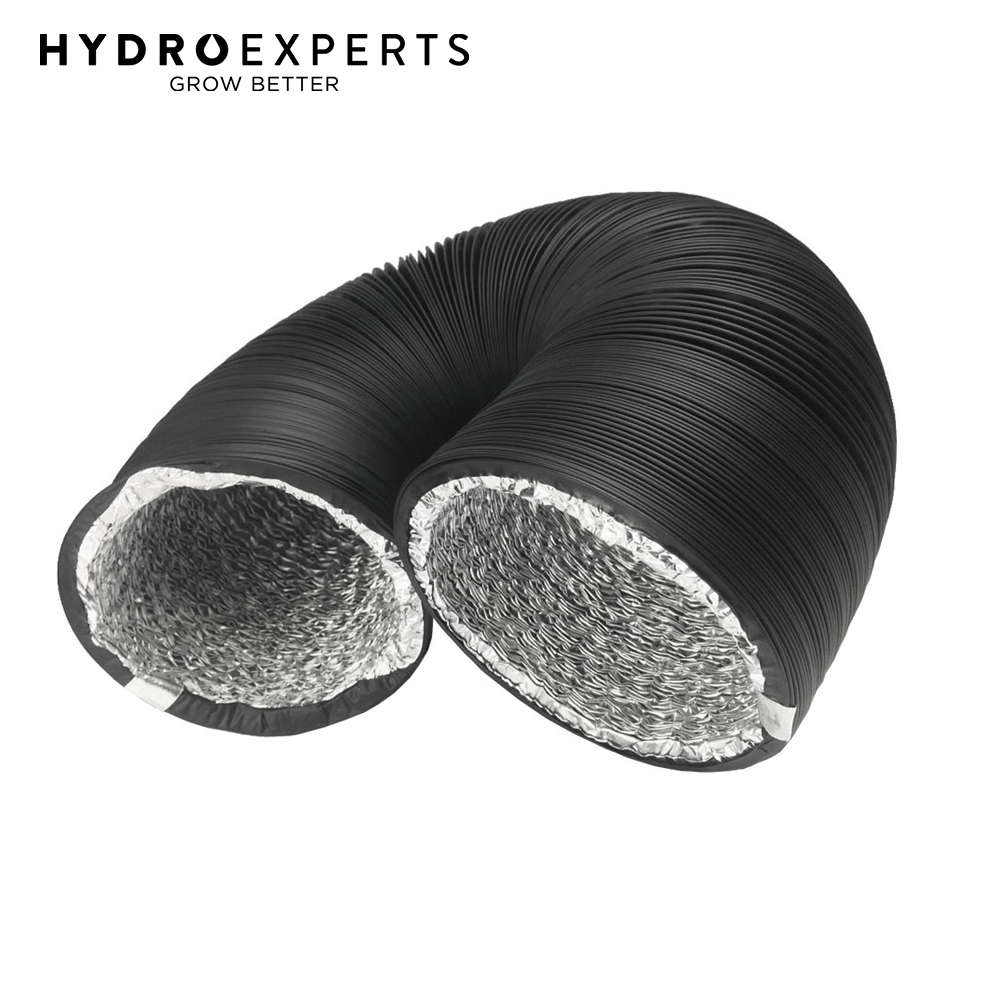

Non-Insulated Aluminium Air Duct - 315MM (15" Inch) x 5M

  • This non-insulated aluminium air duct uses mylar and wire construction for durability and maneuverability. It's capable of handling temperatures up to 60 degrees Celsius and will not kink.

Quick Release Clamp - 304MM (12" Inch)

  • Quick release stainless steel hose clamps. Just release the tension on the screw and flip up to instantly release the clamp. Allows for easy removal of the clamp for quicker flex duct removal when cleaning the glass in your air cooled fixture or accessing your lamp.

Silver Foil Aluminium Insulation Duct Tape - 50MM x 50M | 30mu

  • A heavy duty heat resistant aluminum tape for repairing ducting.
  • Has pressure sensitive backing for durability and easy application.

In The Box

  • [1] x Phresh Silenced Hyperfan EC Fan v2 w/ Controller - 300MM (12") | 1700CFM | Speed Variable
  • [1] x Original Phat Phresh Carbon Filter [Size: 300 x 1000]
  • [1] x Non-Insulated Aluminium Air Duct - 315MM (12" Inch) x 5M
  • [1] x Fan Ducting Clamp - 304MM (12" Inch)
  • [1] x Silver Foil Aluminum Insulation Duct Tape - 50MM x 50M
