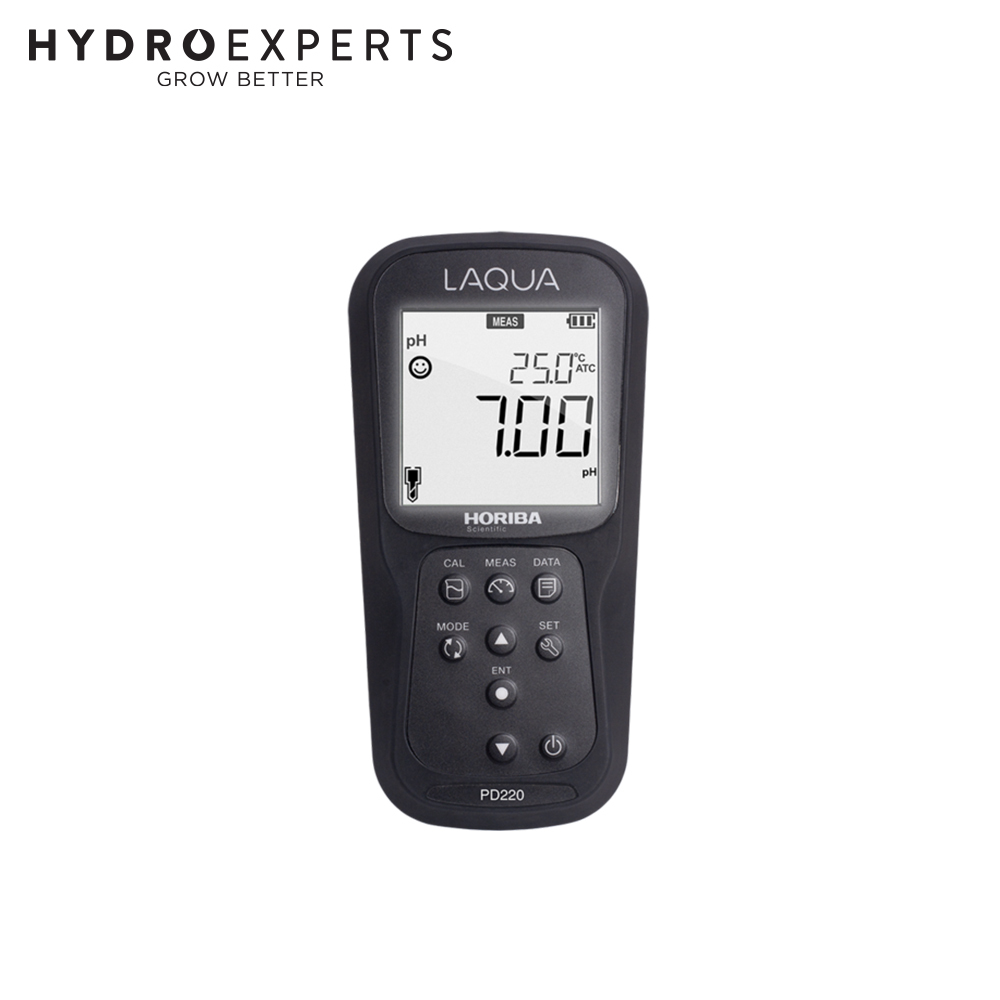

Horiba LAQUA Standard Handheld Multi-Meters

PD220-K | pH / ORP / DO / Temp

SKU: MLTMTR10111
|
$2,359.95
QTY:

Click & Collect Free

Free pick up at store

Delivery

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

Designed for use with one hand and with an IP67 waterproof rating and shock-resistant casing, this meter can be used for long periods, even in dark places, making it ideal for field measurements in rivers and lakes.

Specifications

  • pH Range: -2.00 to 16.00 pH
  • Resolution: 0.01 pH
  • Accuracy: ± 0.01 pH
  • Calibration Points: Up to 5 (USA & NIST) / Up to 6 (DIN)
  • Buffer Options: USA, NIST, DIN
  • ORP Range: ± 2000 mV
  • Resolution: 0.1 mV (< ±1000 mV), 1 mV (≥ ±1000 mV)
  • Accuracy: ±0.3 mV (< ±1000 mV), 0.3% of reading (≥ ±1000 mV)
  • Calibration Option: Yes
  • DO Range: 0.00 to 20.00 mg/L / 0.0 to 200.0 %
  • Resolution: 0.01 mg/L or 0.1 %
  • Accuracy: ±0.1 mg/L
  • Salinity Compensation: 0.0 to 40.0 ppt
  • Barometric Pressure Compensation: Yes
  • Temperature Compensation: Yes
  • Calibration Points: Up to 2
  • DO Probe Type : Galvanic integrated with temperature sensor
  • Temperature Range: -30.0 to 130.0 °C / -22.0 to 266.0 °F
  • Resolution: 0.1 °C / °F
  • Accuracy: ± 0.5 °C / ± 0.9 °F
  • Calibration Option: Yes
  • Memory Data: 1000
  • Auto Log Data: Yes
  • Real-time Clock: Yes
  • Date & Time Stamp: Yes
  • Measurement Modes: Auto Stable, Auto Hold, Real Time
  • Offset & Average Slope Display: Yes
  • Calibration Alarm: Yes (Programmable: up to 90 days)
  • Auto Shut-Off: Yes (Programmable: up to 30 minutes)
  • Electrode Status: Yes (On screen display)
  • Diagnostic Messages: Yes
  • Software Upgrade: Yes via PC (USB) cable PN 3200779639
  • PC Communication: Yes via PC (USB) cable PN 3200779639
  • Printer Communication: Yes via Printer (RS232) cable PN 3200779638
  • Meter Inputs: 2 x BNC (for pH and DO electrodes), 2 x phono (for temperature sensors)
  • Meter Output: phono (for PC/printer connection)
  • Display: Custom LCD with backlight
  • Housing: IP67, shock & scratch resistant, non-slip
  • Power Requirement: 2 x AA batteries
  • Battery Life: > 500 hours
  • Meter Dimensions: 160 (L) x 80 (W) x 40.60 (H) mm
  • Meter Weight: Approx. 260g (with batteries) / 216g (without batteries)

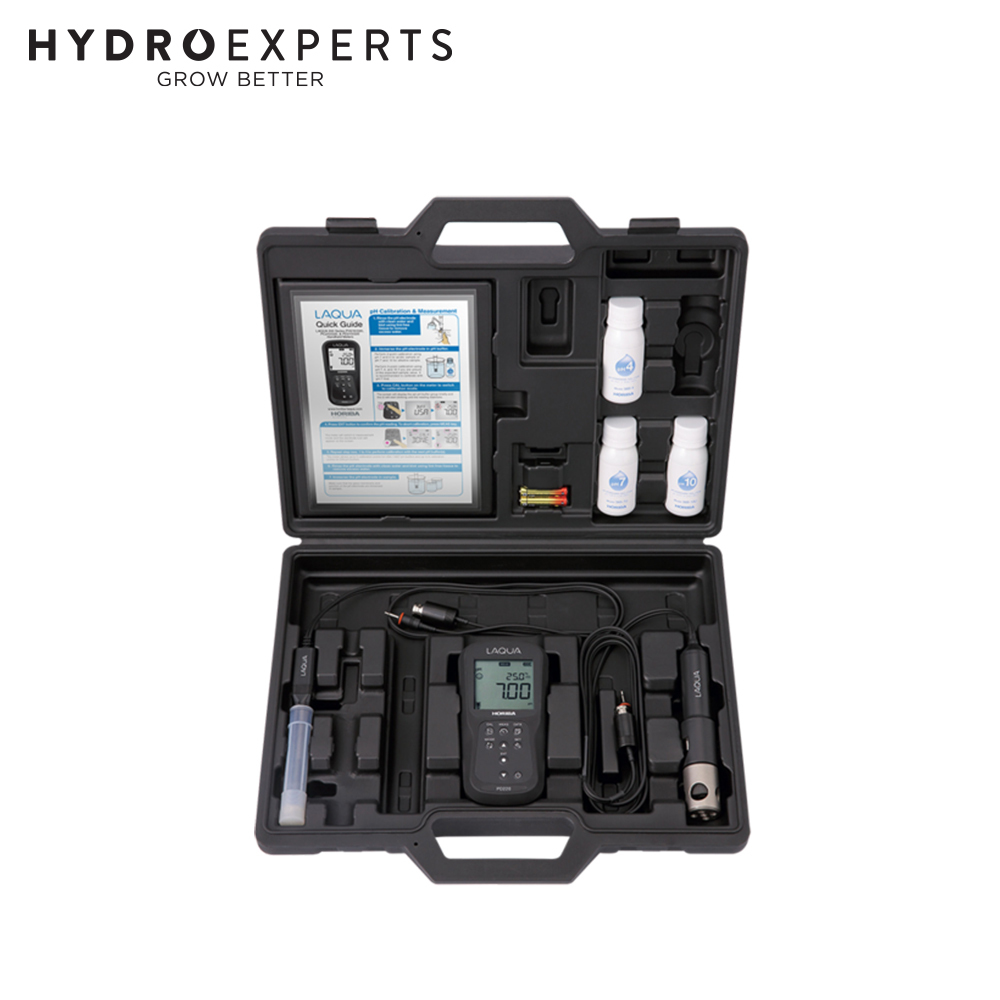

In The Box

  • [1] x LAQUA PD220 dual channel pH/ORP/DO/Temp meter
  • [2] x AA batteries
  • [1] x Manual and quick guide
  • [1] x 9652-20D plastic-body, gel-filled pH electrode with integrated temperature sensor, 2m cable
  • [1] x 9552-20D Galvanic DO probe with integrated temperature sensor, 2m cable
  • [1] x pH 4.01, 7.00, 10.01 buffers (60ml each)
  • [1] x Electrode adapter
  • [1] x Carrying case
  • Automatic pH calibration - up to 5 points (NIST, USA pH buffers) / up to 6 points (DIN pH buffers)
  • 0.01 pH resolution
  • Offset and average slope display
  • Automatic / manual temperature compensation and temperature calibration function
  • ORP calibration option
  • Dissolved oxygen (DO) concentration in ppm (mg/L) and % saturation
  • 0.01 mg/L or 0.1% DO resolution
  • Compensates salinity, temperature, and atmospheric pressure
  • Up to 2 DO calibration points
  • With real-time clock and date/time stamp for GLP compliance
  • Auto log data; built-in memory can store up to 1000 data
  • Auto shut-off (programmable: up to 30 minutes)
  • Auto stable, auto hold, and real time measurement modes
  • Calibration alarm (programmable: up to 90 days)
  • Built-in electrode holder allows 2 electrodes to be attached
  • Monochrome LCD with white LED backlight: 50 x 50 mm
  • Phono jack output for connecting the meter to computer via PC (USB) cable for data collection and software upgrade and to printer via printer (RS232) cable for printout
  • Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
  • Powered by 2 x AA batteries
  • Packaged with electrodes and calibration solutions in carrying case
