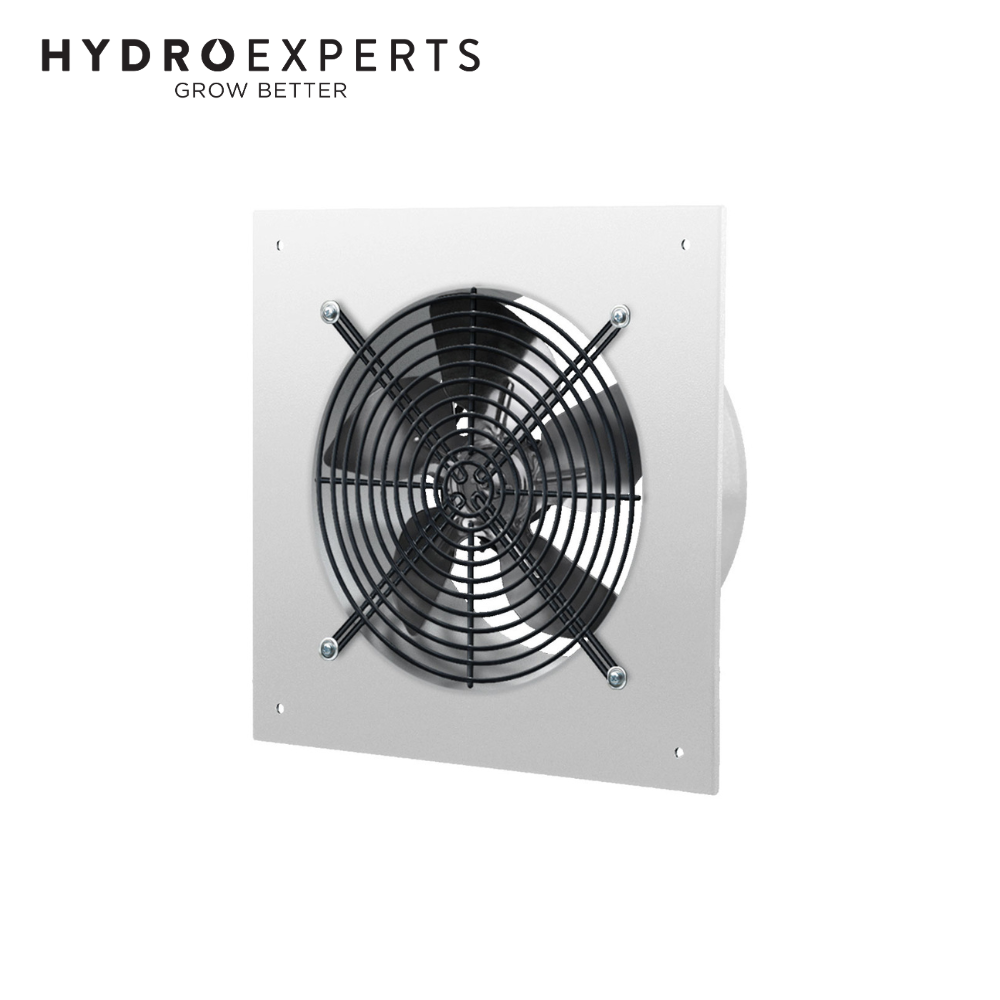

Fanco Commercial Exhaust Fan OV 4E - 350MM (14" Inch) | Wall & Ceiling Mount

Air Flow 2500 M³/H | Power Consumption 140W | IPX4

SKU: FANS71503
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fanco OV 4E 350 commercial exhaust fan is a heavy duty axial unit designed for serious commercial ventilation in warehouses, workshops, commercial kitchens and plant rooms. Delivering up to 2500 M³/H of airflow from a 350MM (14" Inch) fan, it is ideal where strong, reliable extraction is essential.

A European made, ball bearing motor powered by Blauberg is built for continuous operation, giving tradies, builders and maintenance teams confidence on demanding jobs. The robust steel housing with polymer coating is designed for internal wall and ceiling mount installations and can be ducted at the rear to short lengths of 400MM duct for direct discharge outdoors.

With 140W power input, IPX4 motor ingress protection and high capacity extraction, this 350MM commercial exhaust fan is a smart choice for Australian projects that need tough, low fuss ventilation. Add the OV 4E 350 to your cart and upgrade your next install with proven commercial performance.

Features

  • High capacity extraction 2500 M³/H airflow for large commercial and high usage domestic spaces.
  • Commercial grade motor European made ball bearing motor designed for continuous operation.
  • Durable steel construction metal casing and impeller with protective polymer coating.
  • Wall and ceiling mount square mounting plate for flexible internal mounting options.
  • Rear ductable connects to 400MM duct for short straight runs to outside.
  • IPX4 protection motor ingress protection suitable for general wet and commercial areas.
  • Speed control compatible can be used with a separate controller for adjustable airflow (sold separately).

Specifications

  • Brand: Fanco
  • Model: OV 4E 350 Commercial Exhaust Fan
  • Fan Type: Axial commercial exhaust fan
  • Application: Commercial and high usage domestic ventilation
  • Air Flow: 2500 M³/H
  • Power Consumption: 140W
  • Voltage: 220 to 240V AC
  • Current: 0.65A
  • Noise Level: 62 dB(A) at 3M
  • IP Rating: IPX4
  • Nominal Fan Size: 350MM (14" Inch)
  • Duct Outlet Diameter: 400MM (16" Inch)
  • Wall or Ceiling Cutout: 388MM diameter
  • Face Size: 485MM (B) x 435MM (B1)
  • Fan Depth: 200MM (L)
  • Housing Material: Steel casing with polymeric coating
  • Impeller Type: Axial metal impeller
  • Motor Type: Single phase ball bearing motor with thermal overload protection
  • Mounting: Internal wall or ceiling mounting only
  • Ducting: Suitable for short, straight duct runs
  • Maximum Air Temperature: 40°C
  • Operating Temperature Range: +1°C to +40°C, up to 80 percent relative humidity
  • Warranty: 2 year replacement warranty (manufacturer)

In The Box

  • [1] x Fanco Commercial Exhaust Fan OV 4E - 350MM (14" Inch) | Wall & Ceiling Mount
