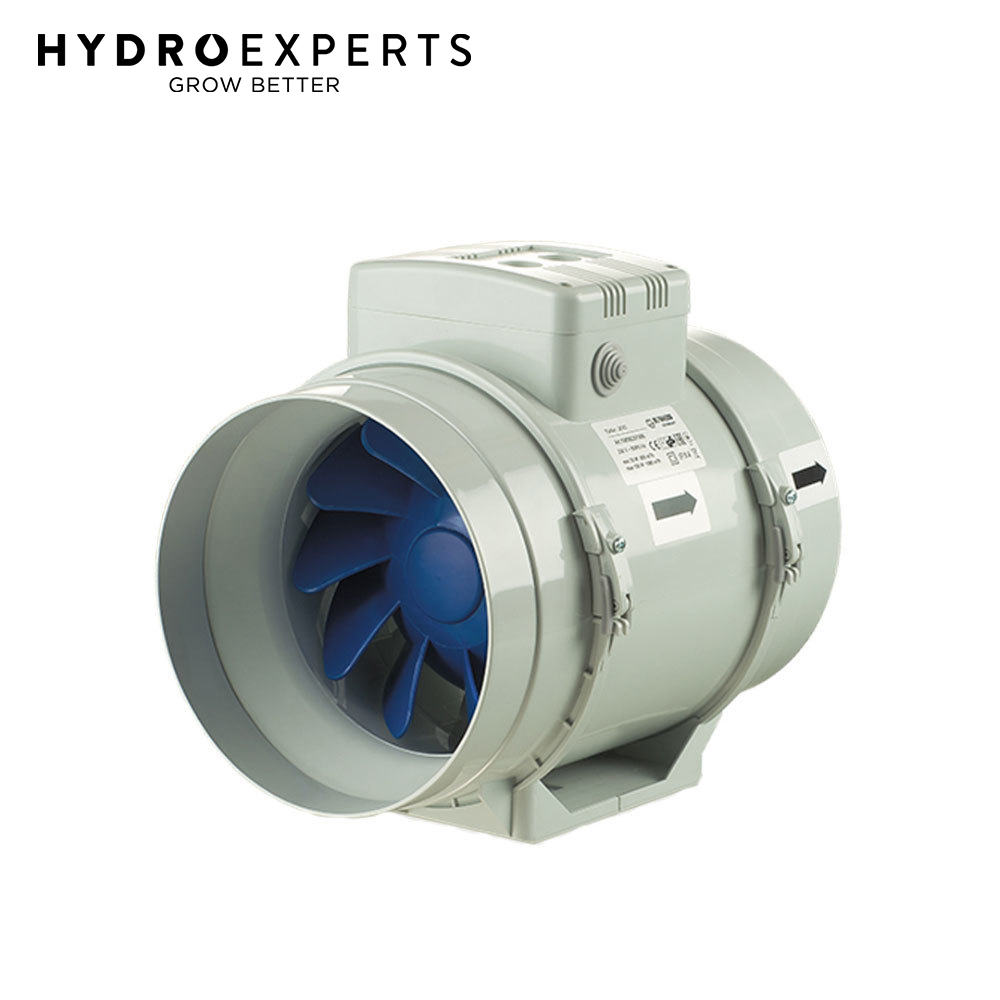

Blauberg Turbo Mixed Flow Fan - 200MM (8" Inch) | 636CFM | 2 Speed

#SKU: FANS35102
Brand:
View PDF brochure for Blauberg Turbo Mixed Flow Fan - 200MM (8" Inch) | 636CFM | 2 Speed Download PDF brochure

$249.95
RRP $300.00
SAVE $50.05 (17%)


Calculate Shipping


Description



USE

  • Supply and exhaust ventilation systems installed in various premises. Mounting in kitchens, bathrooms and other humid premises. Ventilation air ducts requiring high pressure, powerful air flow and low noise level. Compatible with Ø 100 up to 315 mm round air ducts.

DESIGN

  • Casing made of low-flammable polypropylene. Ventilation unit with terminal box. Can be turned to any position.Special casing design permits easy dismantling of the impeller and motor block for fan servicing without dismantling the air duct.

MOTOR

  • Double-speed single-phase motor on ball bearings.Equipped with thermal overload protection.



Features



These Blaubergs mixed flow fans offer a range of features including;

  • Casing made of low flammable polypropylene
  • Single-phase motor on ball bearings





Specifications



Duct Size (mm) 200
Extract Capacity (m3/h) 805-1080
Noise Level (dBA) 44-52
Power (watts) 76-108
RPM 1915-2380
Width (mm) 239
Height (mm) 261
Depth (mm) 296
Material Polyproplene





These Blaubergs mixed flow fans offer a range of features including;

  • Casing made of low flammable polypropylene
  • Single-phase motor on ball bearings
  • [1] x Blauberg Turbo Mixed Flow Fan - 200MM (8" Inch) | 636CFM | 2 Speed

Mounting

  • Due to compact design the fan is the ideal solution for mounting in limited spaces, including space behind a false ceiling.
  • The fan can be installed in any section of the ventilation system from intake to the end of the ductworks.
  • Wall or ceiling mounting with a mounting plate.







Duct Size (mm) 200
Extract Capacity (m3/h) 805-1080
Noise Level (dBA) 44-52
Power (watts) 76-108
RPM 1915-2380
Width (mm) 239
Height (mm) 261
Depth (mm) 296
Material Polyproplene
SKU FANS35102
Barcode # Does not apply
Brand Blauberg
Shipping Weight 4.0000kg
Shipping Width 0.350m
Shipping Height 0.300m
Shipping Length 0.350m
Unit Of Measure ea
