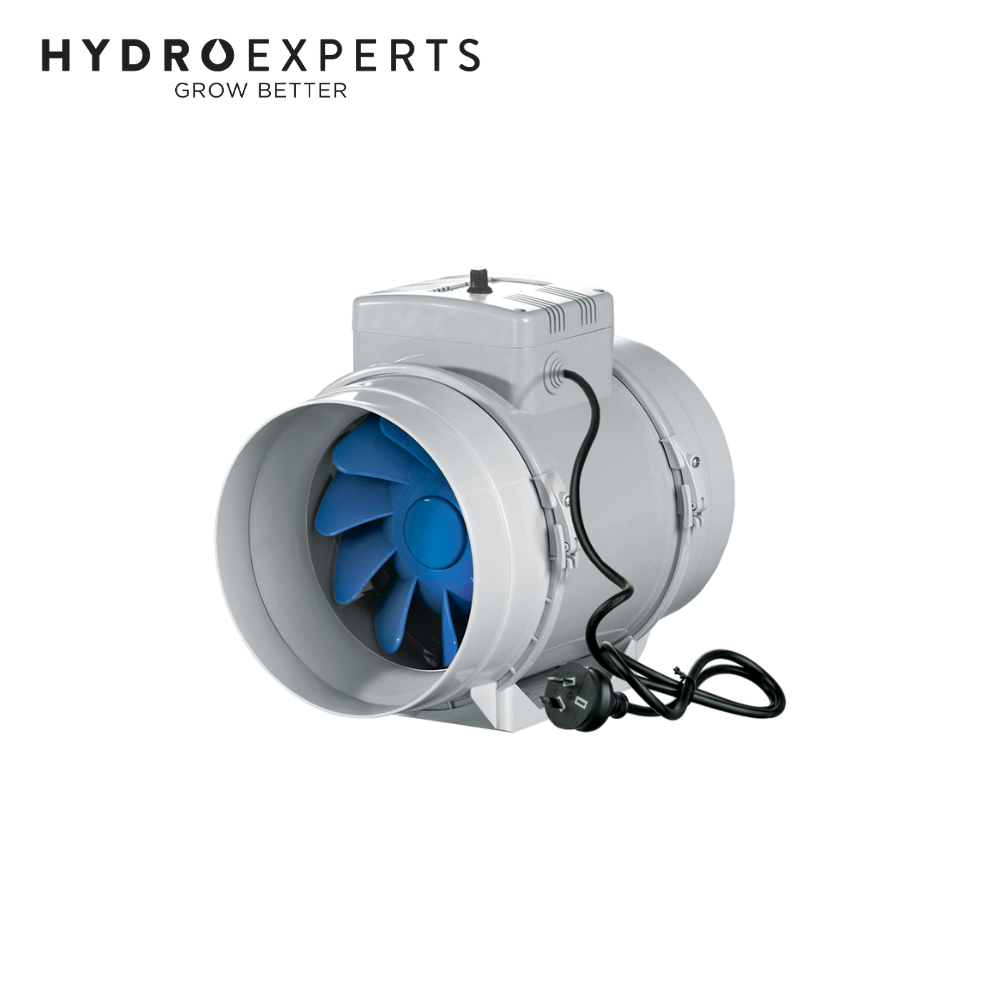

Blauberg Turbo EC Mixed Flow Fan - 200MM (8" Inch) | w/ Speed Controller & Lead and Plug

Air Flow 1040 M³/H | Power Consumption 123W | IPX4

SKU: FANS35202
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Blauberg Turbo EC 200 is a high-capacity inline mixed-flow fan engineered for efficient air exchange up to 1040 m³/h. Featuring a quiet and powerful EC motor, it provides high static pressure and energy savings of up to 35% compared to conventional motors—making it ideal for large hydroponic grows, commercial kitchens, industrial spaces, and HVAC systems.

With 0–10V signal control, the fan can dynamically adjust airflow based on temperature, pressure, or smoke sensor inputs, and integrates seamlessly into building management systems (BMS). The hybrid axial/centrifugal impeller design ensures powerful airflow with low noise, and the fan’s maintenance-friendly design includes a removable motor unit and flat wall-mounting plate.

Features

  • High Volume Airflow: Moves up to 1040 m³/h for large-scale ventilation systems.
  • Advanced EC Motor: Electronically commutated motor with full-range speed control and lower energy consumption.
  • Smart Speed Regulation: 0–10V input control from sensors, controllers, or BMS.
  • Hybrid Fan Design: Mixed-flow impeller boosts pressure and flow with minimal sound.
  • Quick Maintenance: Detachable motor core enables tool-free servicing.
  • Flexible Mounting: Suitable for any orientation, with built-in flat wall plate.
  • Durable Build: Low-combustible polypropylene housing with IPX4 rating for humid environments.
  • Wide Compatibility: Ideal for 200mm duct systems in grow rooms, commercial spaces, and industrial zones.

Specifications

Parameter Value Unit
Voltage 230 V
Phase 1 ~
Frequency 50/60 Hz
Current 1.02 A
Power 123 W
RPM 3390 min⁻¹
Max Air Flow 1040 m³/h
Max Air Flow 289 l/s
Sound Pressure (3m) 49 dBA
Connecting Piece Diameter 200 mm
Transported Air Temperature -25 to +55 °C
Ingress Protection Rating IPX4 -
Motor Type EC Motor -
Weight 3.95 kg
Design Axial / Centrifugal -
SEC Class B -
Mounting Inline -
ErP Compliance 2018 -

In The Box

  • [1] x Blauberg Turbo EC Mixed Flow Fan - 200MM (8" Inch) | w/ Speed Controller & Lead and Plug

Documents

View PDF brochure for Blauberg Turbo EC Mixed Flow Fan - 200MM (8" Inch) | w/ Speed Controller & Lead and Plug Download PDF brochure
