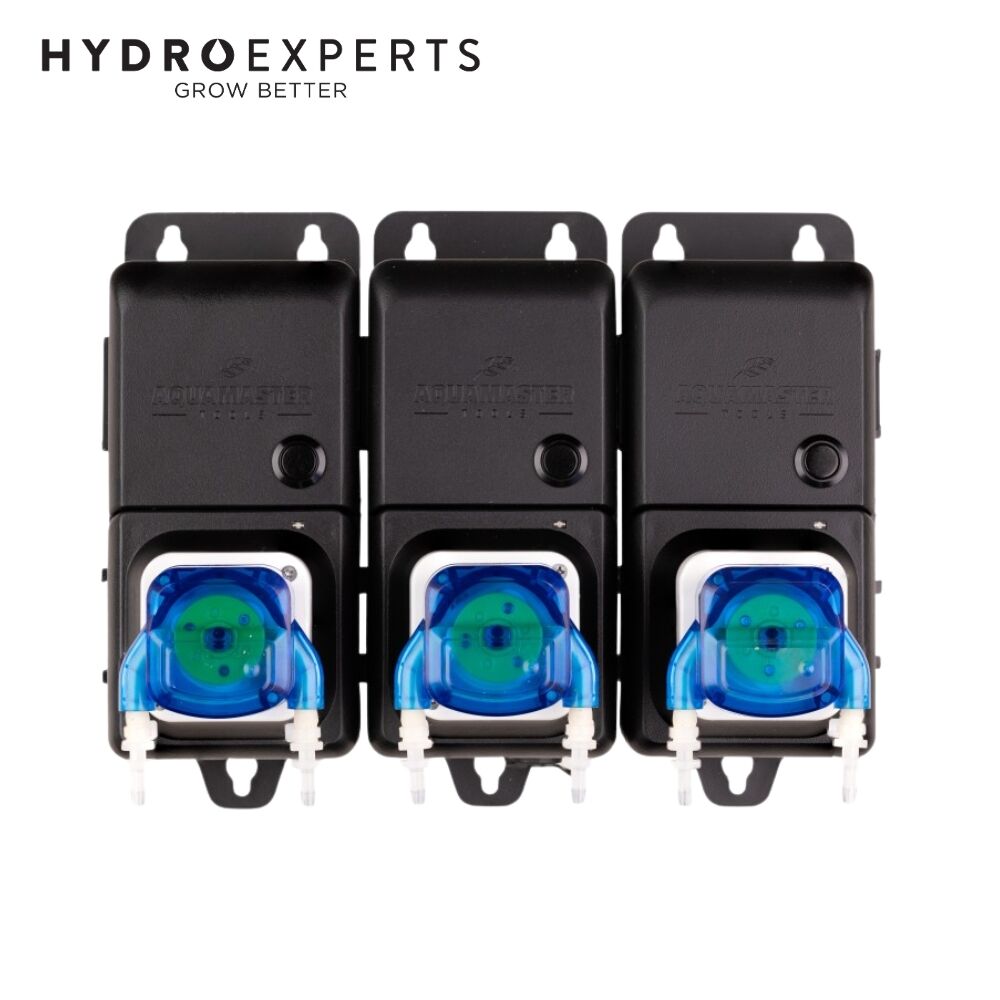

Aqua Master Tools C30 Pump - 3 x Peristaltic Pump Set for Nutrient Dosing

Triple-channel nutrient dosing pump w/ modular expansion

SKU: AQRM51003
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Aqua Master Tools C30 Pump is a three-channel peristaltic dosing system engineered for precise and reliable nutrient delivery in hydroponic and irrigation systems. Designed exclusively for EC (Electrical Conductivity) nutrient dosing, the C30 delivers fast, consistent, and accurate control of multiple nutrient solutions — ensuring optimal feed balance and plant health in professional cultivation environments.

Each of the three independent pumps dispenses at a rate of 1.5 mL per second (90 mL per minute), providing high accuracy and speed. The unit connects directly to the Aqua Master Tools controller (C800 Pro) via the left UTP port. For larger nutrient systems, it can be easily expanded using the right UTP output port:

  • Connect a C10 (1 pump) to create a 4-pump system
  • Connect a C20 (2 pumps) to create a 5-pump system

The C30’s slide-rail design allows physical linking with other Aqua Master dosing modules, while its electrical interconnection via UTP cables ensures seamless system communication.

Each pump is equipped with a manual priming button for quick filling or emptying of tubing during setup or maintenance. Built for durability and quiet operation, the C30 provides long component life and consistent dosing performance, making it the perfect solution for automated hydroponic nutrient management.

Usage Configurations

  • Standalone Mode: Connect directly to the controller — appears as Pump 1, 2, and 3 in the menu.
  • Expansion Mode (C30 + C10): Adds Pump 4 (total 4 pumps).
  • Expansion Mode (C30 + C20): Adds Pump 4 and Pump 5 (total 5 pumps).
  • Maximum Configuration: 5 EC pumps and 1 pH pump per system.
  • Compatible With: Aqua Master Tools C800 Pro controller and other modular dosing units.

Features

  • Triple Independent Pumps: Three precision peristaltic channels for accurate nutrient dosing.
  • Expandable System: Connect a C10 or C20 to add up to five nutrient pumps total per controller.
  • Accurate Dosing Rate: 1.5 mL/sec per pump (≈90 mL/min) for fast, stable EC control.
  • Smart Integration: Compatible with Aqua Master Tools controllers such as the C800 Pro.
  • Modular Design: Side slide rail for mechanical connection and UTP ports for communication.
  • Manual Priming: Each pump has an independent priming button for easy maintenance.
  • Quiet Operation: Low-noise design (<60 dB) ideal for grow rooms and indoor setups.
  • Durable Construction: Long tube and motor life for reliable continuous use.
  • Universal Power Supply: Operates on AC 85–260V with AU/EU/UK/US plug compatibility.

Specifications

Model Aqua Master Tools C30
Function Triple peristaltic pump unit for nutrient (EC) dosing
Dosing Rate 1.5 mL/sec per pump (≈90 mL/min)
Operation Temperature 5°C – 50°C (41°F – 122°F)
Noise Level < 60 dB
Power Supply AC 85–260V, 50–60Hz (AU/EU/UK/US plugs)
Power Consumption 6 W
Rated Voltage 12V
Peristaltic Tube Lifetime ≈ 1000 Hours
Motor Lifetime ≈ 800 Hours
Dimensions (LxWxH) 197 x 159 x 100 mm
Weight 706 g
Connection Ports 1x Left UTP Input (to controller), 1x Right UTP Output (for C10 or C20)

In The Box

  • 1 x C30 dosing unit (3 pumps)
  • 3 x Tubing (3 meters each)
  • 1 x UTP cable (150 cm) for controller connection
  • 1 x UTP cable (50 cm) for expansion
  • 1 x International power adapter
