How Oxygen and Water Flow Affect Hydroponic Growth?

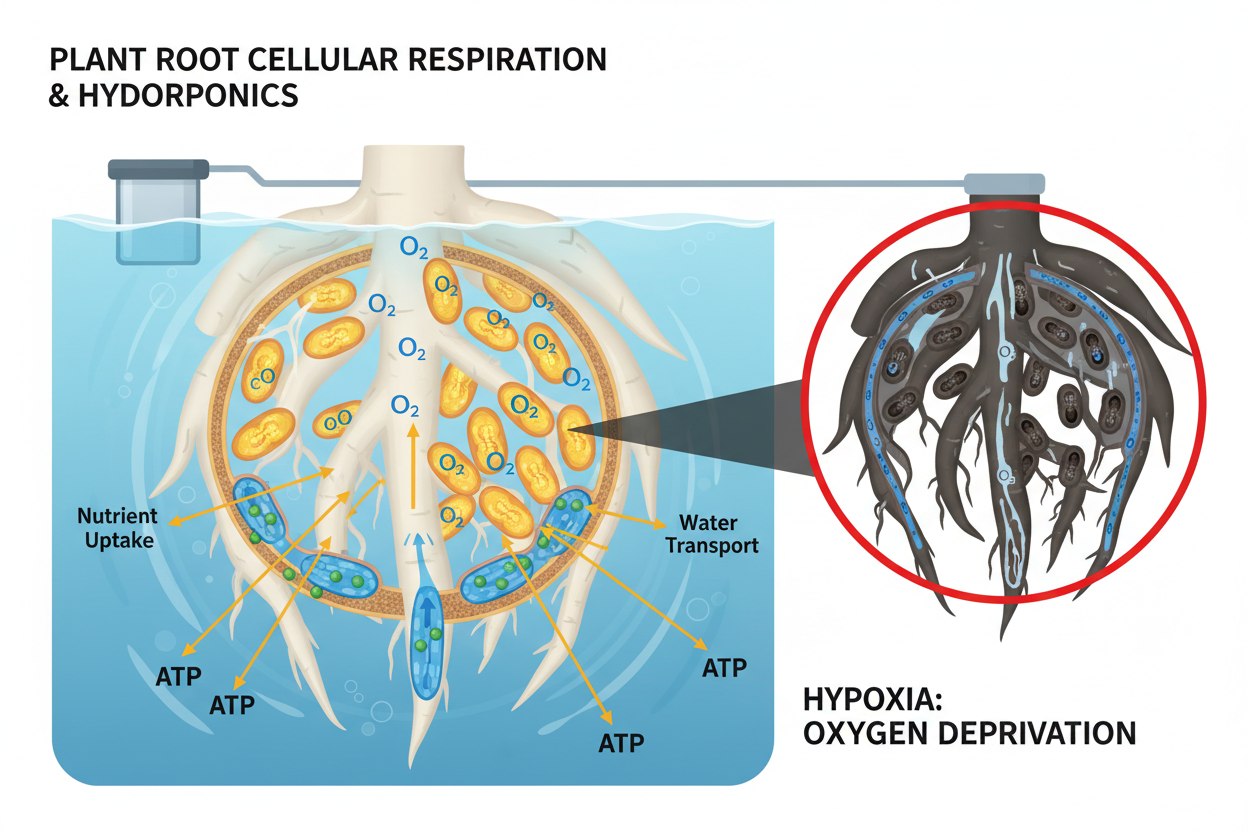

Oxygen and Root Respiration

Plants in hydroponic systems require oxygen for survival. Roots absorb oxygen to perform cellular respiration. This biological process generates the energy necessary for nutrient uptake and water transport. Without oxygen, root cells experience hypoxia. This condition leads to the cessation of growth and the eventual death of the plant.

Oxygen is delivered to the roots through the nutrient solution as dissolved oxygen. The availability of this oxygen determines the efficiency of the entire hydroponic system. High oxygen levels correlate with vigorous growth and increased yield. Low oxygen levels create physiological stress.

Dissolved Oxygen Mechanics

Dissolved oxygen refers to the amount of gaseous oxygen present in the water. Water holds a finite amount of oxygen based on physical laws. Henry's Law dictates that the amount of dissolved gas in a liquid is proportional to its partial pressure above the liquid. In hydroponics, the goal is to reach saturation levels.

Saturation occurs when the water holds the maximum possible amount of oxygen at a given temperature. Surface agitation increases the rate of gas exchange. As water breaks at the surface, it captures oxygen molecules from the atmosphere. This process is essential because roots continuously deplete the oxygen in their immediate vicinity.

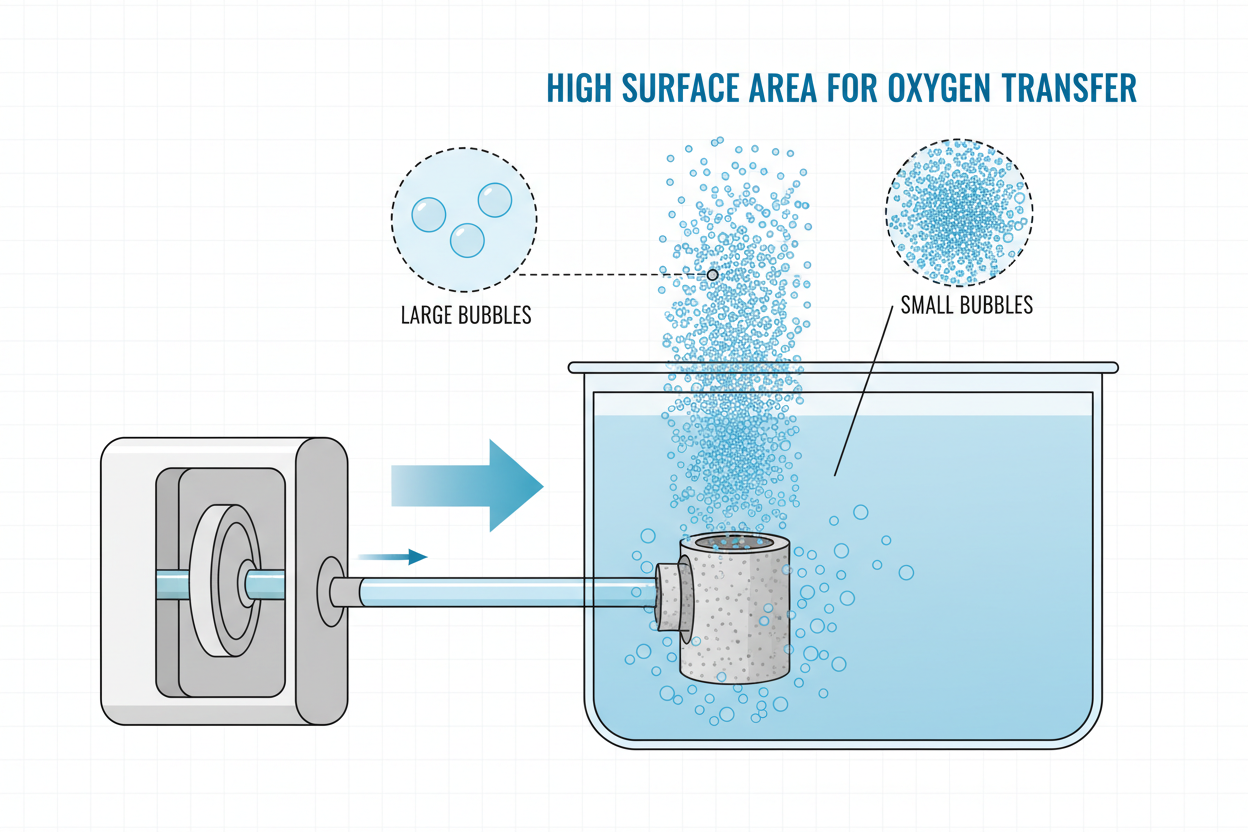

Aeration Hardware Selection

A hydroponic air pump is the primary tool for increasing dissolved oxygen. These devices use a diaphragm to push air through tubing into the reservoir. The air enters the water through an air stone. The air stone consists of porous material that breaks the air stream into small bubbles. Small bubbles increase the surface area available for oxygen transfer.

Large bubbles rise quickly and provide less aeration. Ceramic air stones provide more durable performance than blue sandstone versions. High quality air pumps feature adjustable flow rates to match the needs of the reservoir.

Water Flow Dynamics

Water movement prevents the formation of stagnant zones. In stationary water, an oxygen depleted layer forms around the roots. This is known as the boundary layer. Moving water physically displaces this layer and replaces it with oxygenated nutrient solution. In Nutrient Film Technique systems, a thin stream of water flows over the roots.

The movement provides constant aeration through surface contact. In Deep Water Culture, the water is deep, so the aeration system must be more robust to reach the bottom. Proper water flow ensures that nutrients remain in suspension and do not settle as sediment.

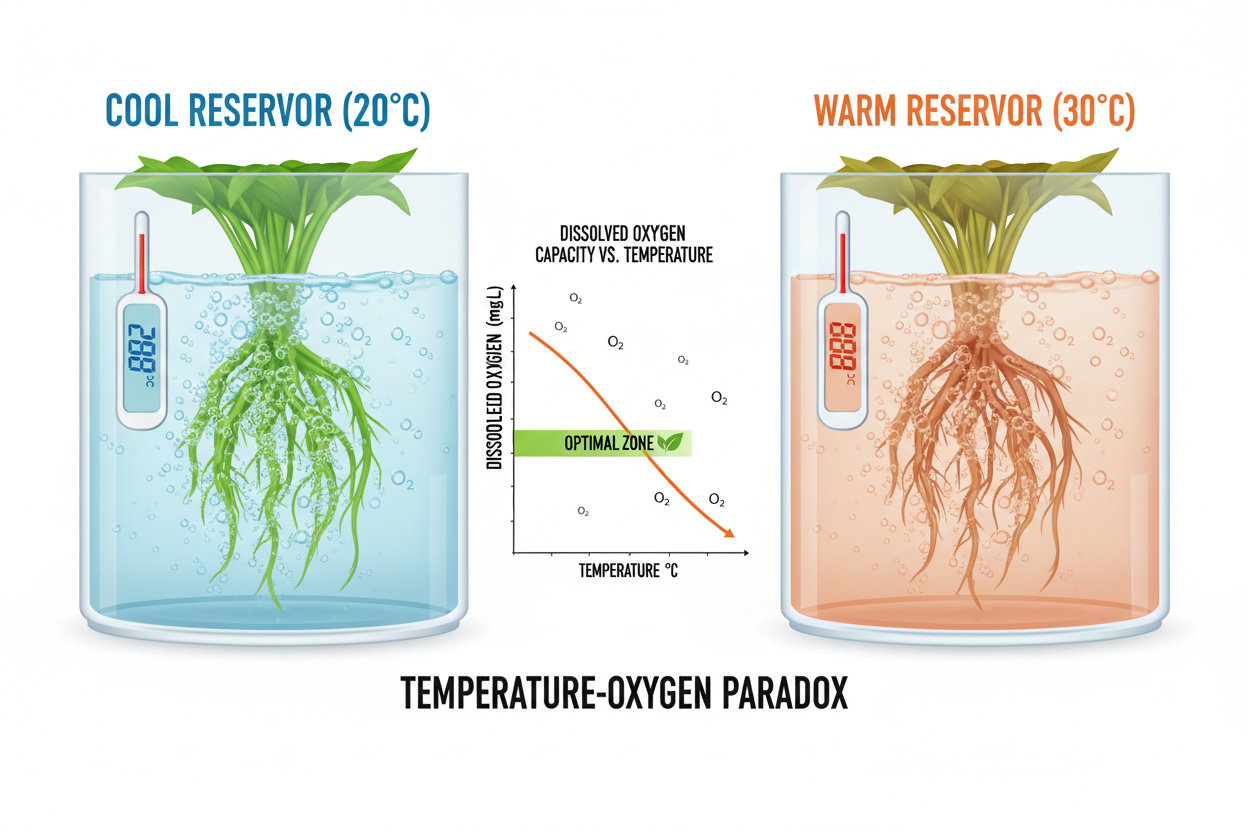

Nutrient Solution Temperature

Temperature inversely affects oxygen solubility. Cold water has a higher capacity for dissolved oxygen than warm water. A solution at 20 degrees Celsius holds significantly more oxygen than a solution at 30 degrees Celsius.

However, plant metabolism increases with temperature. This creates a paradox where the plant needs more oxygen as the water becomes less capable of providing it. Maintaining the reservoir between 18 and 22 degrees Celsius optimizes both oxygen levels and metabolic rates. Chiller systems are often necessary in Australian climates to keep water within this functional range.

Root Rot Pathogenesis

Root rot is caused by opportunistic pathogens like Pythium and Phytophthora. These organisms are present in most environments but only become a problem under specific conditions. Low oxygen levels and high temperatures trigger the onset of infection. When roots lack oxygen, they begin to leak sugars and organic acids.

These exudates attract pathogens. The infection causes the roots to turn brown and become slimy. The structural integrity of the root collapses. A diseased root system cannot transport water or minerals. This leads to wilting and leaf chlorosis.

Aeration System Setup

The physical arrangement of the aeration hardware impacts efficiency. Air pumps should be placed above the water line. This prevents the siphoning of water into the pump during power failures. If the pump is below the reservoir, a check valve must be installed in the airline. Air stones should be placed at the bottom of the tank. This maximizes the time bubbles spend in the water column. Multiple air stones provide better distribution than a single large stone. Tubing should be secured to prevent it from floating or tangling with the roots.

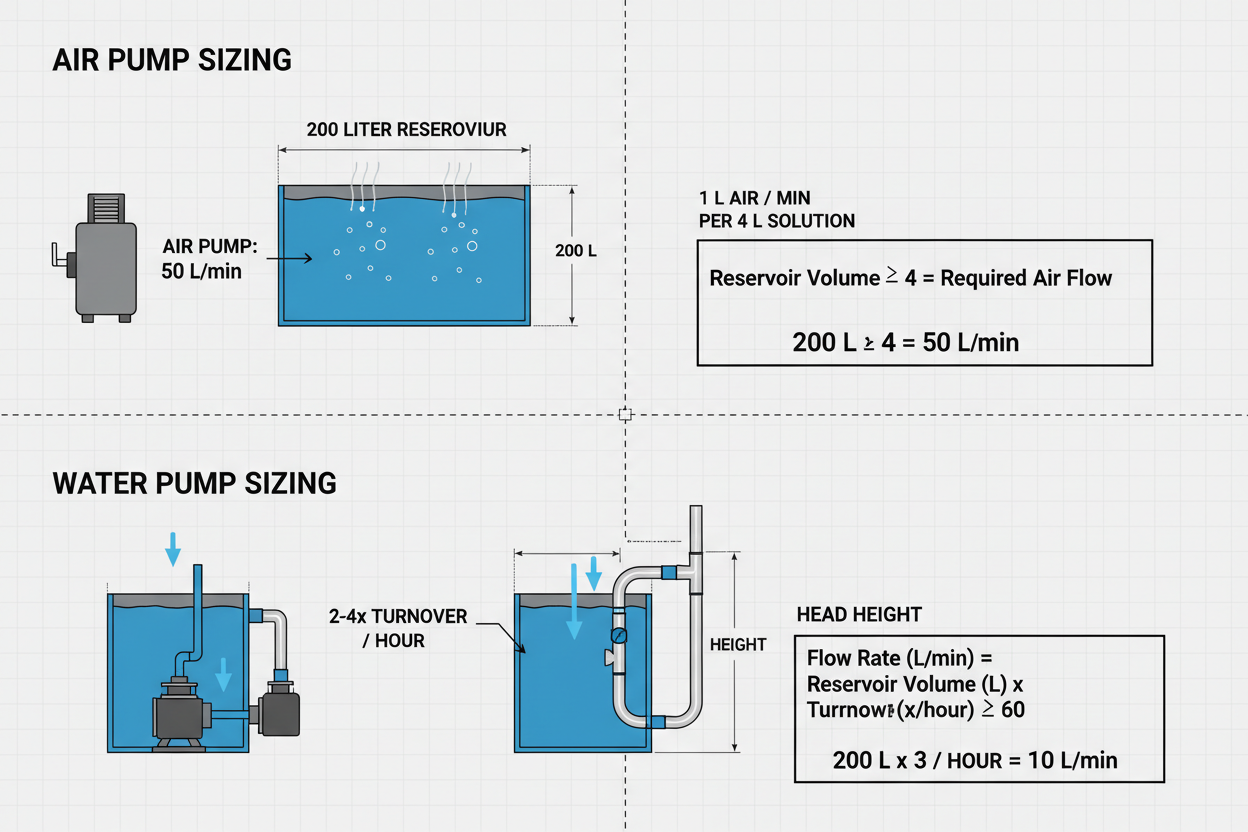

Pump Capacity Calculations

Sizing an air pump involves calculating the volume of the reservoir. A standard ratio is one liter of air per minute for every four liters of nutrient solution. For a 200 liter reservoir, a pump rated for 50 liters per minute is required.

Water pumps are sized based on the turnover rate. A common goal is to move the entire volume of the reservoir through the system two to four times per hour. Head height must be factored into the calculation. Head height is the vertical distance the pump must push the water. As the height increases, the flow rate decreases.

Reservoir Layout Strategy

The shape of the reservoir influences water flow. Rectangular tanks often have corners where water becomes stagnant. Round reservoirs promote a vortex motion that keeps water moving uniformly. Placing the water pump and the return pipe on opposite ends of the tank encourages full circulation.

Using a spray bar for the return water increases aeration through surface splashing. The intake for the water pump should be protected by a filter or mesh screen. This prevents large debris from entering the pump and causing mechanical failure.

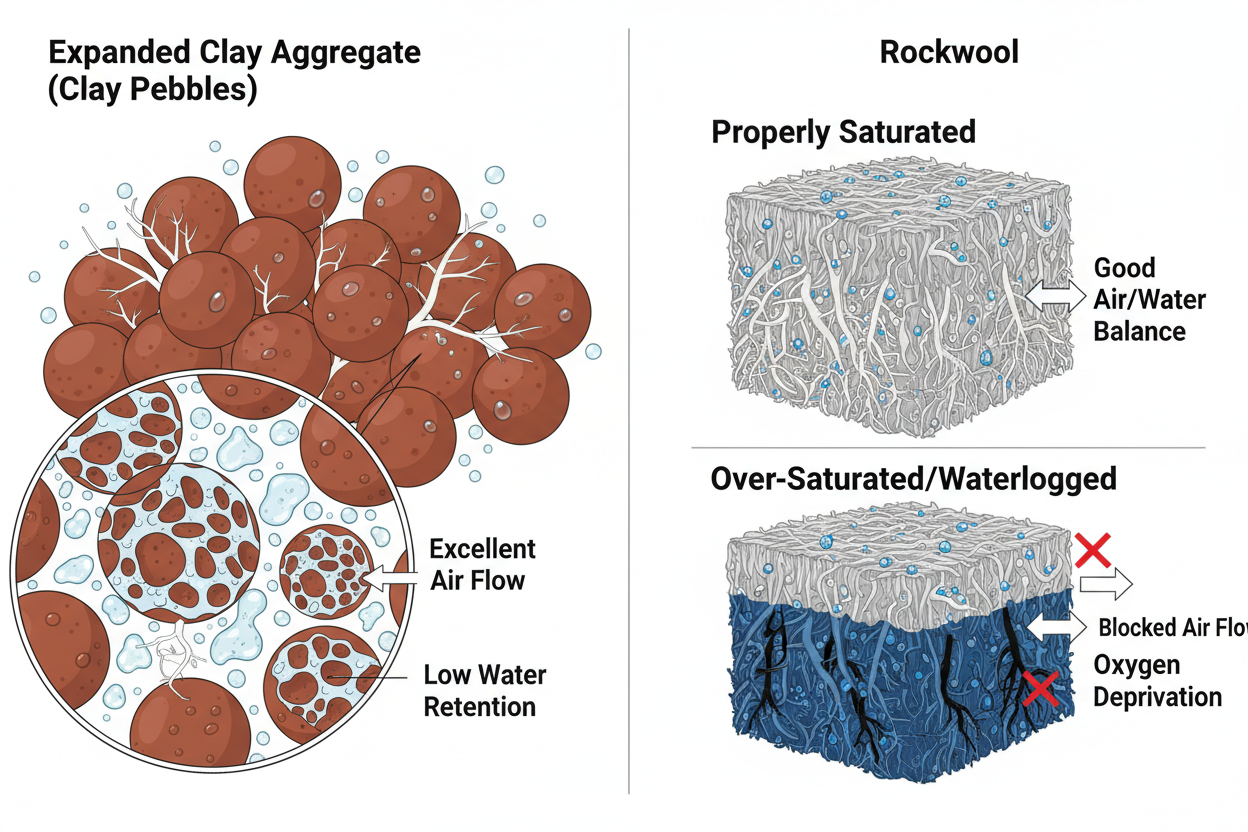

Grow Media Characteristics

The choice of grow media affects how much air reaches the roots. Clay pebbles have a high porosity and allow for excellent air flow. They do not retain much water, which necessitates frequent irrigation. Rockwool holds a high volume of water but can become waterlogged if over-saturated. This blocks oxygen from the root zone.

Perlite is lightweight and provides good aeration but tends to float in deep water systems. Coco coir offers a balance of water retention and aeration. Understanding the air to water ratio of a medium is critical for successful Hydro Experts water management.

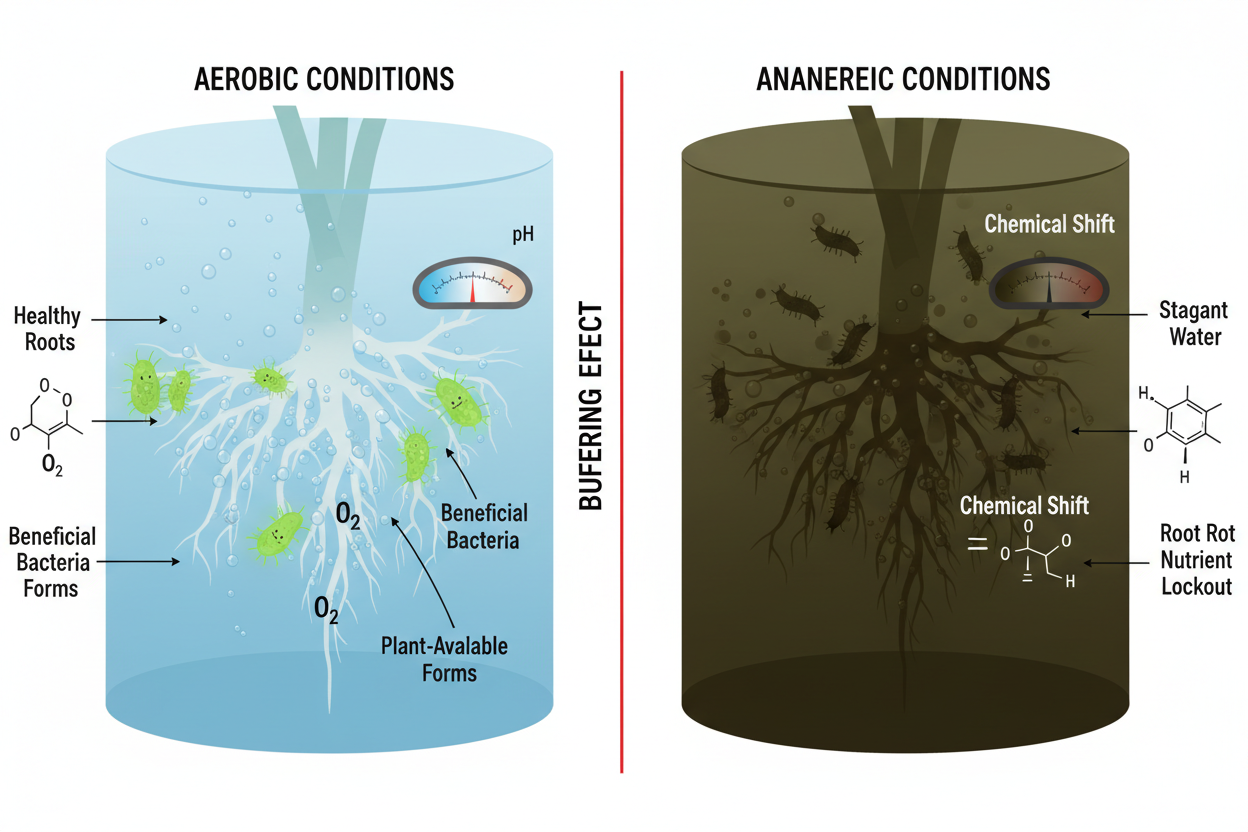

Chemical Buffering and Oxygen

Oxygen levels influence the chemical stability of the nutrient solution. Aerobic conditions support the presence of beneficial bacteria. These microbes help convert nutrients into forms that are easier for the plant to absorb. They also compete with harmful pathogens for resources. In anaerobic conditions, the chemistry shifts.

The pH of the water often drops as bacteria produce acidic waste products. This can lead to nutrient lockout. Maintaining high oxygen levels helps keep the pH stable and ensures that minerals like iron and manganese remain available to the plant.

Maintenance Protocols

Regular maintenance prevents the failure of the aeration and water flow systems. Air stones accumulate mineral deposits and biofilm over time. This increases the resistance the pump must overcome. Stones should be cleaned with a dilute acid solution every month. Air pump diaphragms eventually wear out and lose pressure.

These components should be replaced annually. Water pumps require the cleaning of the impeller and the intake screen. Clogged pipes should be flushed to remove algae and salt buildup. Consistent maintenance ensures the system operates at peak efficiency.

Passive Aeration Techniques

Some systems utilize passive methods to supplement mechanical aeration. The Kratky method relies on an air gap between the net pot and the nutrient solution. As the plant consumes water, the gap increases.

The top portion of the roots adapts to breathe air directly from this space. Falling water also provides passive aeration. When water drops from a height into a reservoir, it creates turbulence that mixes air into the liquid. This is often seen in top drip systems or NFT setups where the return line is positioned above the water level.

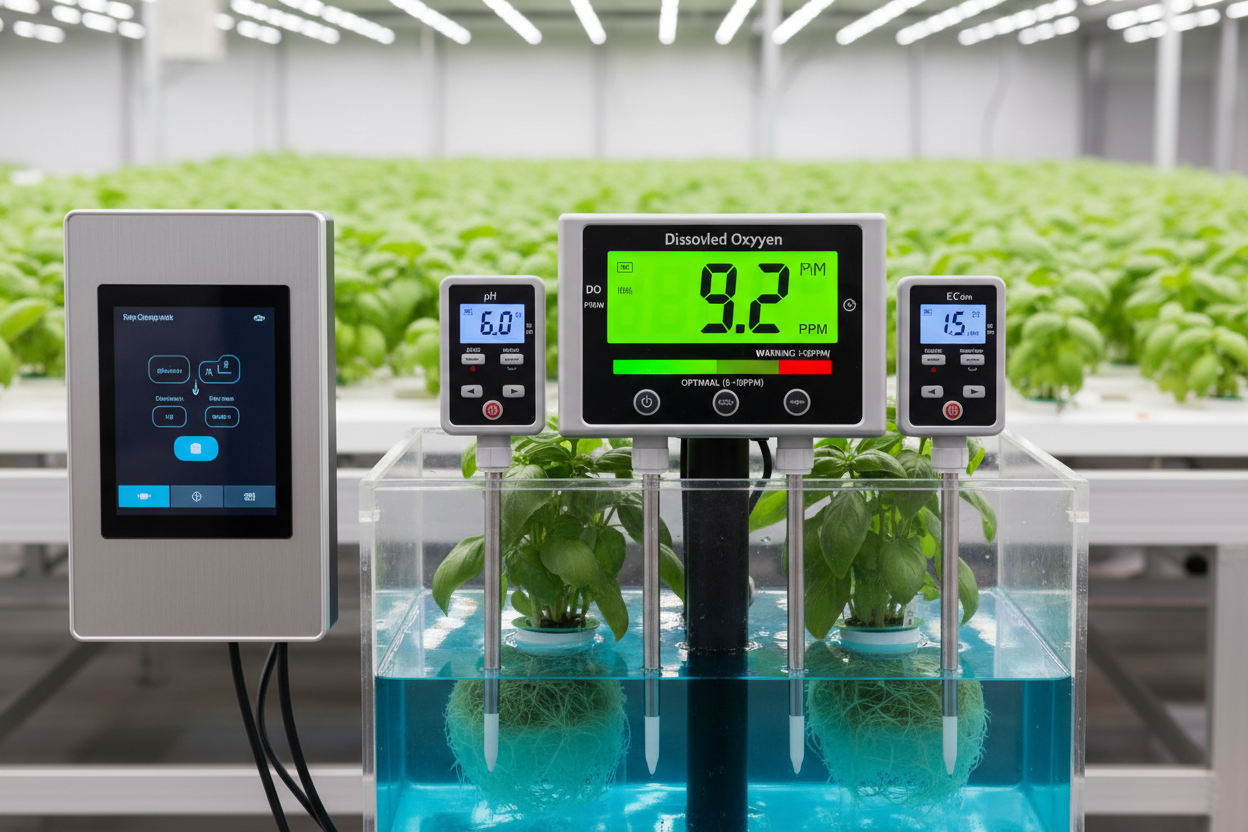

Sensor Monitoring Systems

Electronic sensors provide data on the health of the system. A dissolved oxygen meter measures the exact concentration of oxygen in parts per million. Most hydroponic crops thrive at levels between 8 and 10 ppm. If the levels drop below 5 ppm, the plants are at risk. pH and EC meters monitor the nutrient balance.

Modern systems use controllers to automate the operation of pumps and chillers based on sensor data. This reduces the risk of human error and allows for precise control over the root environment.

Root Development Patterns

The architecture of the root system changes in response to oxygen and water flow. In high oxygen environments, plants develop a dense mass of fine lateral roots. These roots are highly efficient at absorbing nutrients. In low oxygen environments, the plant produces thick, long roots that lack fine hairs.

This is an adaptive response to search for oxygen. A well-oxygenated system produces a root ball that is white and firm. A poorly oxygenated system produces a sparse, weak root system. The health of the roots is a direct reflection of the success of the aeration system.

Gas Exchange in Canopies

While the focus is on the roots, the plant canopy also affects the demand for oxygen. Transpiration drives the movement of water from the roots to the leaves. This process is powered by the evaporation of water from the stomata. High transpiration rates require the roots to work harder.

This increases the metabolic demand for oxygen. Proper air flow around the leaves ensures that the plant can transpire effectively. If the humidity is too high or the air is stagnant, transpiration slows down. This reduces the uptake of water and the associated oxygen.

Filtration and System Cleanliness

Cleanliness is a functional requirement for water flow. Organic matter like dead leaves or root debris, can clog pumps and emitters. This disrupts the flow of oxygenated water to the plants. Using a fine mesh filter on the main supply line captures these particles. The reservoir should be covered to prevent light from entering.

Light encourages the growth of algae. Algae consumes dissolved oxygen and can clog equipment. A clean system experiences fewer mechanical failures and maintains more consistent oxygen levels.

Air Intake Quality

The quality of the air being pumped into the system matters. If the air pump is located in a dusty or contaminated area, it will push those contaminants into the water. This can introduce pathogens or harmful chemicals.

Air pumps should be fitted with intake filters to catch dust and spores. Some growers pull air from outside the grow room to ensure the highest possible oxygen content. High levels of carbon dioxide in the air are beneficial for the leaves but not for the roots. Ensuring a fresh supply of air to the pump optimises root health.

Diagnostic Visual Checks

Visual inspection is a reliable way to monitor system performance. Bubbles in the reservoir should be vigorous and distributed evenly. Water should be clear and free of foul odours. Roots should be inspected weekly. They should be bright white.

Any sign of browning or a swampy smell indicates a failure in the aeration or water flow system. Checking the leaf tips for burning can also indicate flow issues. If water flow is inconsistent, the plant may experience localised nutrient deficiencies. Addressing these signs early prevents the loss of the crop.
